CMR2U-02LEADFREE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CMR2U-02LEADFREE

Preview

CMR2U-02LEADFREE: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size291KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CMR2U-02LEADFREE Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, SMB, 2 PIN

CMR2U-02LEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
package instruction	SMB, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

CMR2U-01

CMR2U-02

CMR2U-04

CMR2U-06

CMR2U-08

CMR2U-10

w w w. c e n t r a l s e m i . c o m

SURFACE MOUNT ULTRA FAST

RECOVERY SILICON RECTIFIER

2 AMP, 100 THRU 1000 VOLTS

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMR2U-01 Series

2.0 Amp Surface Mount Silicon Ultra Fast Recovery

Rectifier is a high quality, well constructed, highly

reliable component designed for use in all types of

commercial, industrial, entertainment, computer, and

automotive applications. To order devices on 12mm

Tape and Reel (3000/13” Reel), add TR13 suffix to

part number.

MARKING CODE: SEE MARKING CODE TABLE ON

FOLLOWING PAGE

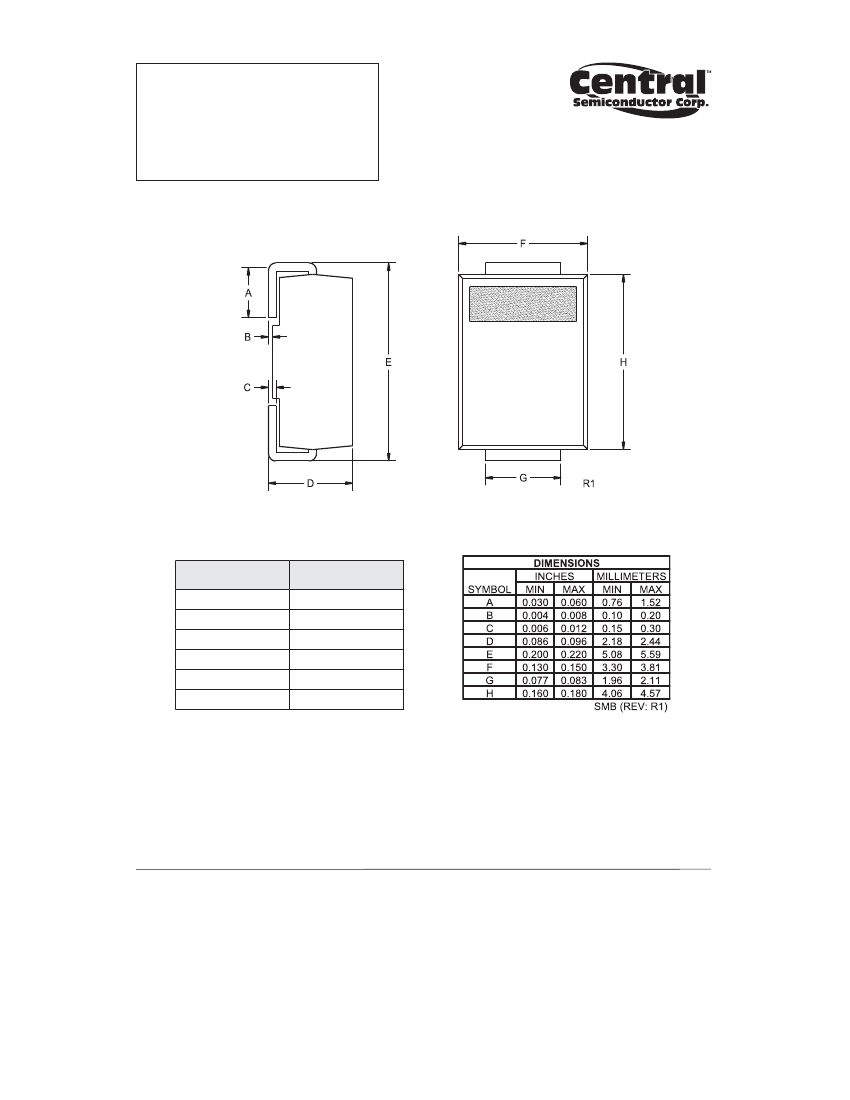

SMB CASE

FEATURES:

• Low cost

• Special selections available

• High reliability

• Superior lot to lot consistency

• Glass passivated chip

• “C” bend construction provides strain relief

when mounted on pc board

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

CMR2U CMR2U CMR2U CMR2U CMR2U CMR2U

SYMBOL

-01

-02

-04

-06

-08

-10 UNITS

Peak Repetitive Reverse Voltage

VRRM

100

200

400

600

800

1000

V

DC Blocking Voltage

VR

RMS Reverse Voltage

VR(RMS)

Average Forward Current (TL=90°C)

IO

Peak Forward Surge Current, tp=8.3ms IFSM

Operating and Storage

Junction Temperature

TJ, Tstg

Thermal Resistance

Θ

JL

100

70

200

140

400

280

2.0

50

-65 to +150

20

600

420

800

560

1000

700

V

A

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

IR

VF

trr

CJ

VR=Rated VRRM

VR=Rated VRRM, TA=100°C

IF=2.0A, (CMR2U-01, -02)

IF=2.0A, (CMR2U-04)

IF=2.0A, (CMR2U-06, -08, -10)

IF=0.5A, IR=1.0A, Irr=0.25A (CMR2U-01, -02, -04)

IF=0.5A, IR=1.0A, Irr=0.25A 0.25A (CMR2U-06, -08, -10)

VR=4.0V, f=1.0MHz

TYP

MAX

10

200

1.0

1.4

1.7

50

100

UNITS

µA

V

ns

pF

28

R4 (21-October 2010)
