M5M4C264AL-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> M5M4C264AL-12

M5M4C264AL-12: DescriptionVideo DRAM, 64KX4, 120ns, CMOS, PZIP24, 0.400 INCH, PLASTIC, ZIP-24; Categorystorage storage; File Size925KB，30 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

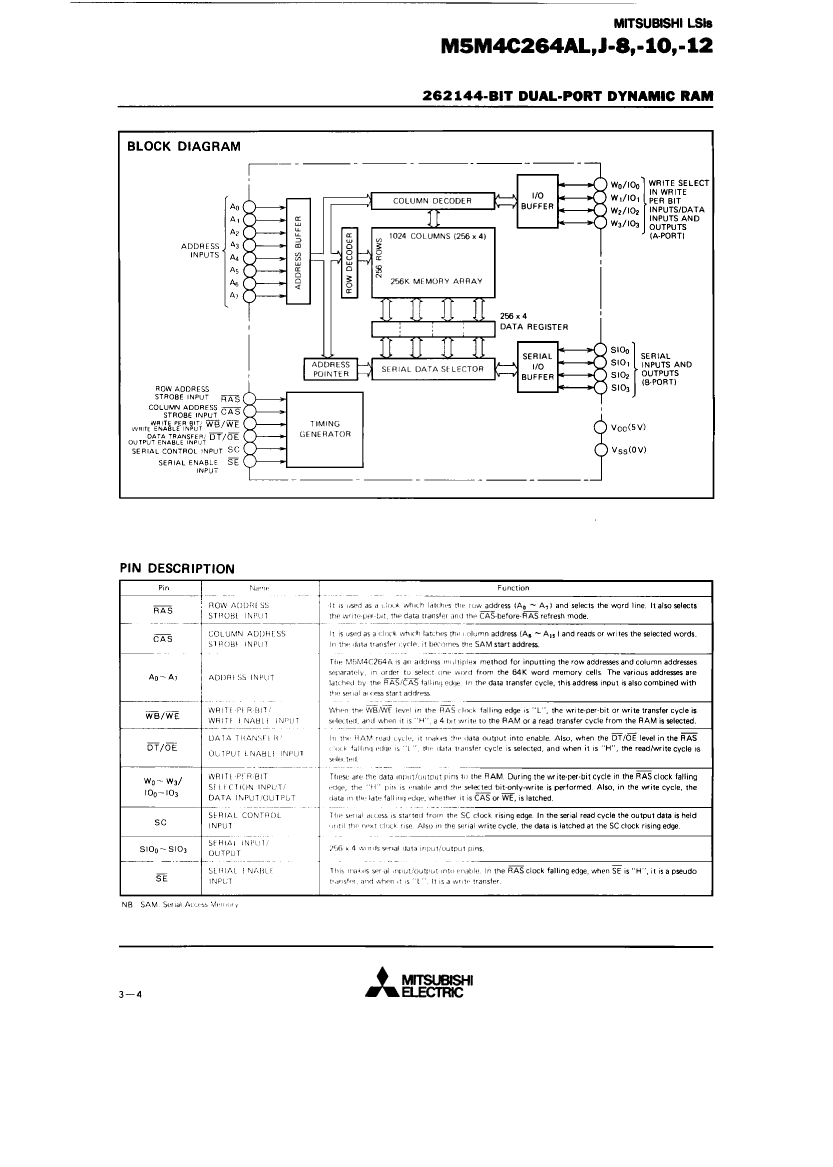

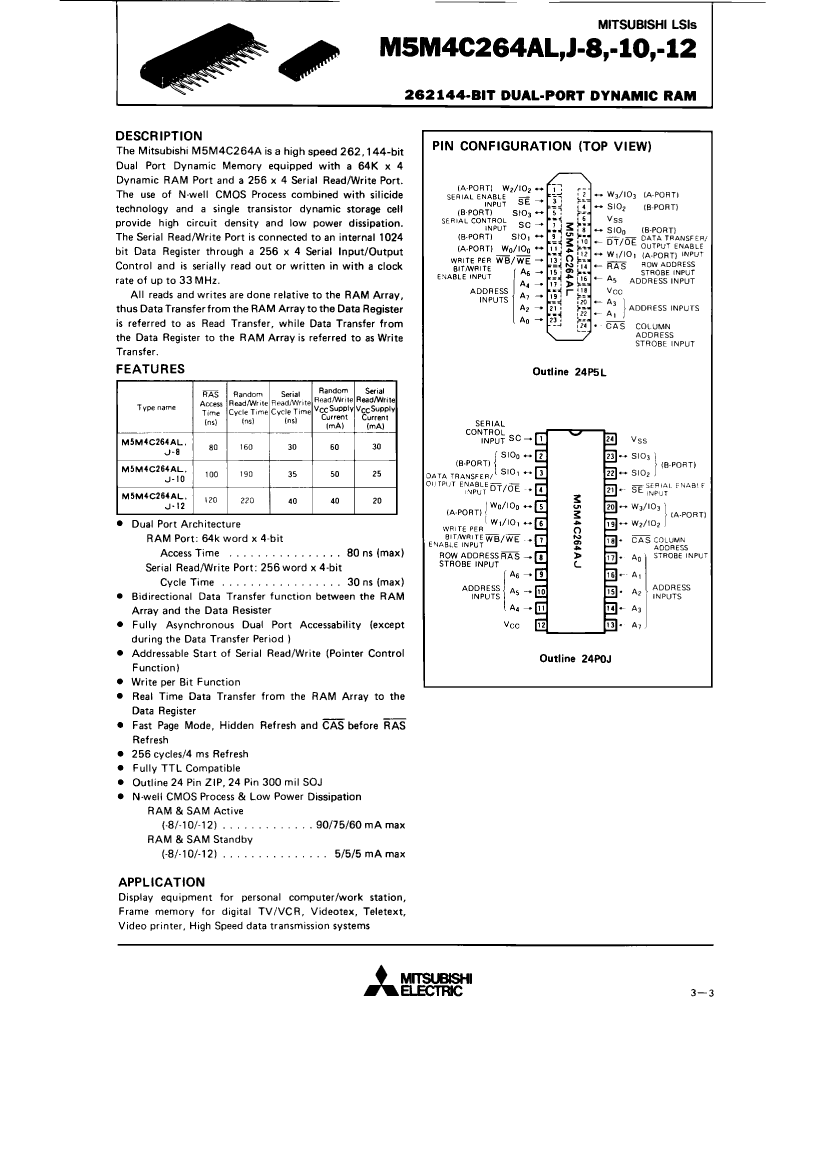

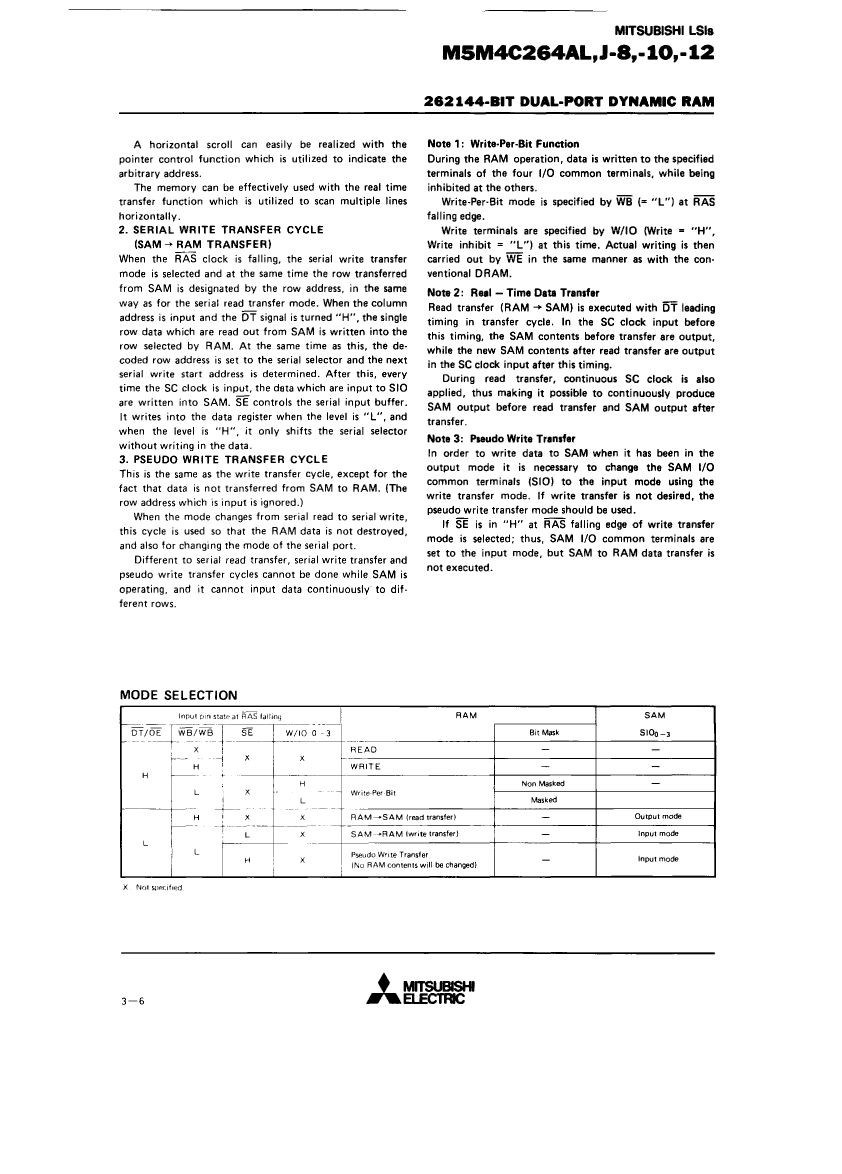

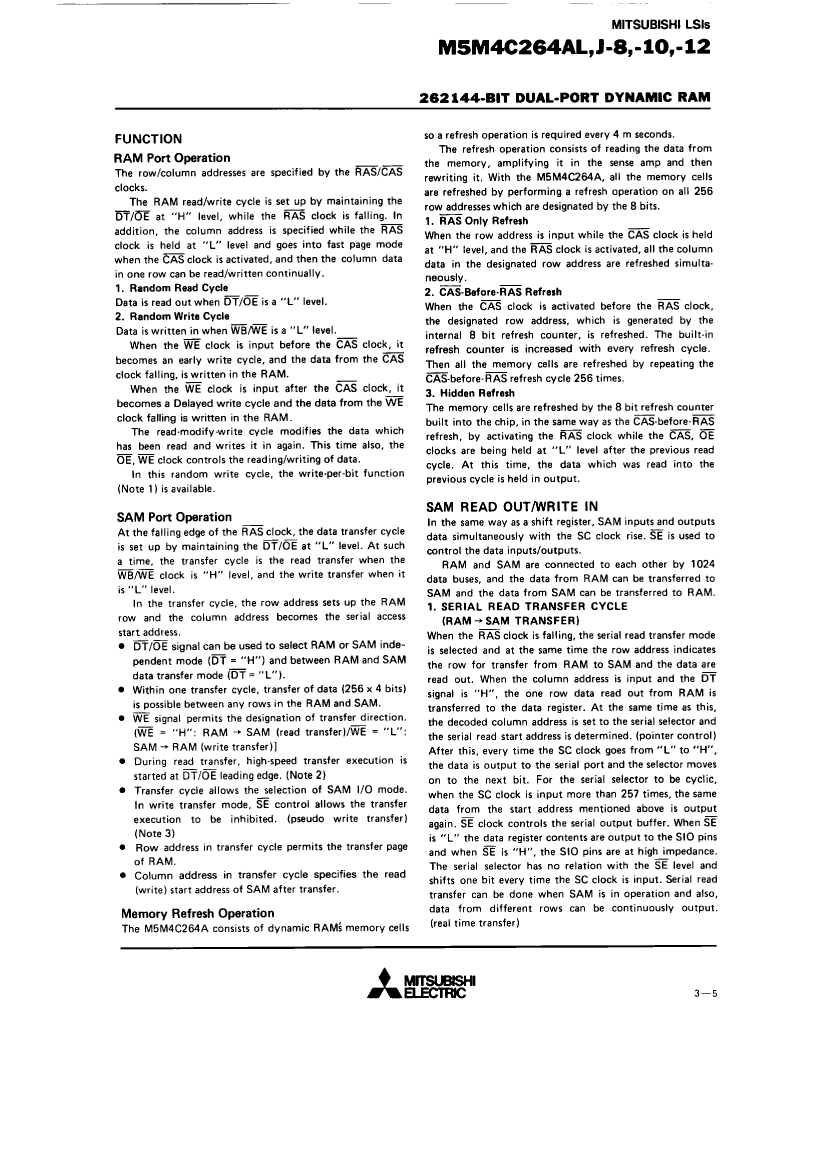

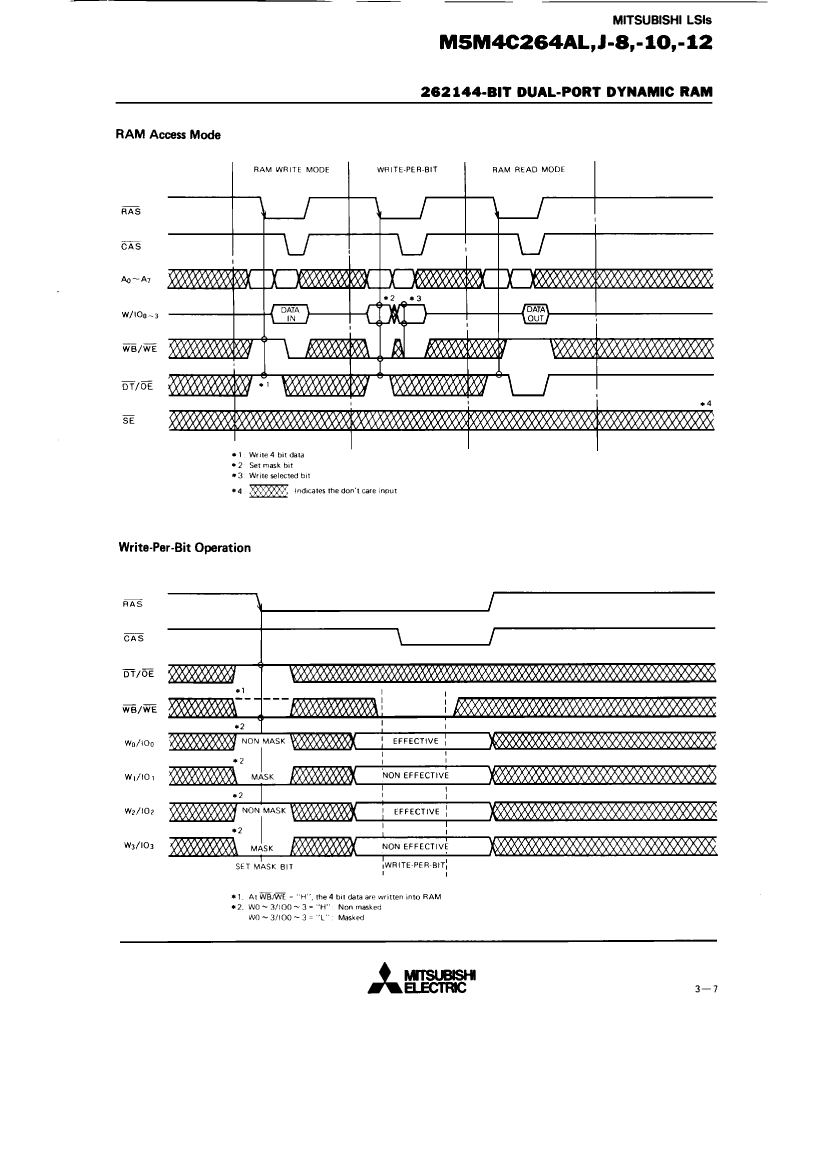

M5M4C264AL-12 Overview

Video DRAM, 64KX4, 120ns, CMOS, PZIP24, 0.400 INCH, PLASTIC, ZIP-24

M5M4C264AL-12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	ZIP
package instruction	ZIP, ZIP24,.1
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	120 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 4 SAM PORT
JESD-30 code	R-PZIP-T24
JESD-609 code	e0
memory density	262144 bit
Memory IC Type	VIDEO DRAM
memory width	4
Number of functions	1
Number of ports	2
Number of terminals	24
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP24,.1
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
refresh cycle	256
Maximum seat height	10.16 mm
Maximum standby current	0.005 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED
width	2.8 mm

Preview

Download Datasheet

View All

M5M4C264AL-12 Related Products

	M5M4C264AL-12	M5M4C264AJ-12	M5M4C264AJ-12T	M5M4C264AJ-10	M5M4C264AJ-10T	M5M4C264AJ-8	M5M4C264AJ-8T	M5M4C264AL-8	M5M4C264AL-10
Description	Video DRAM, 64KX4, 120ns, CMOS, PZIP24, 0.400 INCH, PLASTIC, ZIP-24	Video DRAM, 64KX4, 120ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Video DRAM, 64KX4, 120ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Video DRAM, 64KX4, 100ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Video DRAM, 64KX4, 100ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Video DRAM, 64KX4, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Video DRAM, 64KX4, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Video DRAM, 64KX4, 80ns, CMOS, PZIP24, 0.400 INCH, PLASTIC, ZIP-24	Video DRAM, 64KX4, 100ns, CMOS, PZIP24, 0.400 INCH, PLASTIC, ZIP-24
Parts packaging code	ZIP	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	ZIP	ZIP
package instruction	ZIP, ZIP24,.1	SOJ, SOJ24,.34	SOJ,	SOJ, SOJ24,.34	SOJ,	SOJ, SOJ24,.34	SOJ,	ZIP, ZIP24,.1	ZIP, ZIP24,.1
Contacts	24	24	24	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	120 ns	120 ns	120 ns	100 ns	100 ns	80 ns	80 ns	80 ns	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 4 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 4 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 4 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 4 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 4 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 4 SAM PORT
JESD-30 code	R-PZIP-T24	R-PDSO-J24	R-PDSO-J24	R-PDSO-J24	R-PDSO-J24	R-PDSO-J24	R-PDSO-J24	R-PZIP-T24	R-PZIP-T24
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM
memory width	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2	2
Number of terminals	24	24	24	24	24	24	24	24	24
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ZIP	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	ZIP	ZIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	256	256	256	256	256	256	256	256	256
Maximum seat height	10.16 mm	3.55 mm	3.55 mm	3.55 mm	3.55 mm	3.55 mm	3.55 mm	10.16 mm	10.16 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	ZIG-ZAG	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	ZIG-ZAG	ZIG-ZAG
width	2.8 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	2.8 mm	2.8 mm
Is it lead-free?	Contains lead	Contains lead	-	Contains lead	-	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	-	incompatible	-	incompatible	-	incompatible	incompatible
Maker	Mitsubishi	-	-	-	-	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
JESD-609 code	e0	e0	-	e0	-	e0	-	e0	e0
Encapsulate equivalent code	ZIP24,.1	SOJ24,.34	-	SOJ24,.34	-	SOJ24,.34	-	ZIP24,.1	ZIP24,.1
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	-	5 V	-	5 V	-	5 V	5 V
Maximum standby current	0.005 A	0.005 A	-	0.005 A	-	0.005 A	-	0.005 A	0.005 A
Maximum slew rate	0.06 mA	0.06 mA	-	0.075 mA	-	0.09 mA	-	0.09 mA	0.075 mA
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
length	-	15.87 mm	15.87 mm	15.87 mm	15.87 mm	15.87 mm	15.87 mm	-	-
