GVXO-755D/NCFREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GVXO-755D/NCFREQ

GVXO-755D/NCFREQ: DescriptionCMOS Output Clock Oscillator, 1.5MHz Min, 54MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components oscillator; File Size83KB，2 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GVXO-755D/NCFREQ Overview

CMOS Output Clock Oscillator, 1.5MHz Min, 54MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4

GVXO-755D/NCFREQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	unknown
Other features	TAPE AND REEL; BULK
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	25%
JESD-609 code	e4
linearity	10%
Manufacturer's serial number	GVXO-755
Installation features	SURFACE MOUNT
Maximum operating frequency	54 MHz
Minimum operating frequency	1.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.2mm x 5.2mm x 1.8mm
longest rise time	10 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

OBSOLETE - DO NOT USE

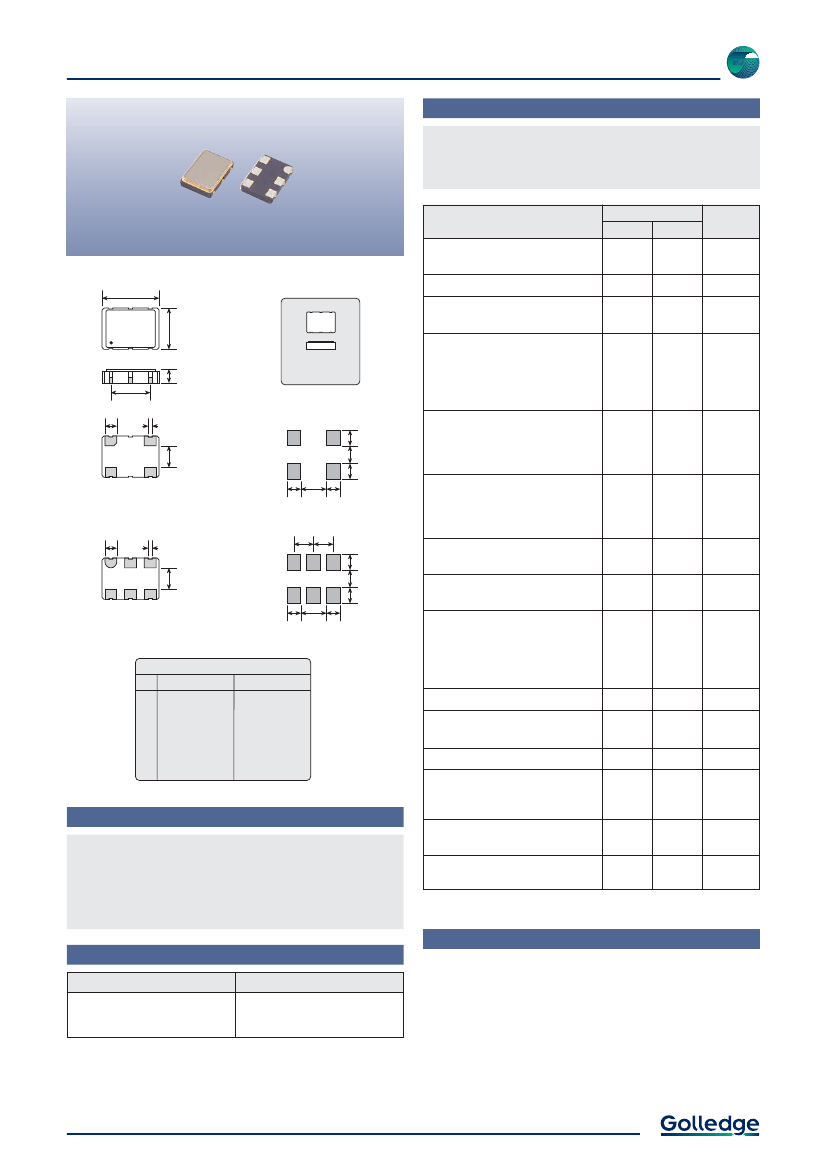

5V SM VCXO

Specifications

GVXO-755D: 4 pads, No Enable / Disable

GVXO-755F: 6 pads, Enable / Disable function

GVXO-755

Parameters

Package:

7.20

(max)

Variant

Option

Codes

4 pads, 5.08mm pitch

6 pads, 2.54mm pitch

Frequency range:

1.50 ~ 54.0MHz

5.20

(max)

Voltage control:

+2.5V ±2.0V, 10% linearity

Frequency pullability (min):

±50ppm

±100ppm

±120ppm

Other

Frequency stability (max):

±50ppm

±25ppm

Other

Operating temperature range:

-20 to +70°C

-40 to +85°C

Other

2.00

1.80

(max)

5.08

1.40

0.60

2.60

ACTUAL SIZE

SOLDER PAD LAYOUTS

2.00

2.20

2.00

specify

GVXO-753D

1.80 3.28 1.80

TOP VIEW

1.40

0.60

2.60

2.54 2.54

specify

GVXO-753F

Storage temperature range:

-40 to +85°C

Supply voltage (V

+5.0V (±10%)

Supply current:

15mA max (1.5 ~ 20.0MHz)

20mA max (>20.0 ~ 30.0MHz)

25mA max (>30.0 ~ 40.0MHz)

30mA max (>40.0MHz)

Driving ability:

15pF CMOS

2.20

2.00

1.80 3.28 1.80

TOP VIEW

CONNECTION

PAD

Variant D

Control voltage

Ground

Output

Supply

Variant F

Control voltage

Enable/Disable

Ground

Output

Not connected

Supply

Logic levels:‘0’

level = 10%V

max

‘1’

level = 90%V

min

Waveform symmetry:

Scale 2:1

45:55 max

Features

Rise / fall time (10%~90%V

10ns max (1.5 ~ 10.0MHz)

6ns max (>10.0MHz)

Enable / disable function:

Tristate (control via pad 2)

Phase noise (typ):

-130dBc/Hz @ 1kHz

Standard.

Optional - Please specify required code(s) when ordering

5.0V supply

Low cost for volume applications

Enable / disable tristate function (6-pad)

Ordering Information

Enable / Disable Function (GVXO-755F)

Input (pad 2)

Open

‘1’

level

‘0’

level

Output (pad 4)

Enabled

High Impedance

Product + option codes + frequency

eg:

GVXO-755D/SC 19.440MHz

±100ppm pullability, ±25ppm stability

GVXO-755F/VB 32.7680MHz

±120ppm pullability, ±50ppm stability

Option codes must be included to fully specify a model.

Option code X (eg GVXO-755F/X) denotes a custom spec.

Tel:

+44 1460 256 100

26 Apr 2010

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
