TK83854CBX datasheet, PDF - EEWORLD Datasheet

TK83854CBX: DescriptionPower Factor Controller, Current-mode, 1.5A, 200kHz Switching Freq-Max, CQCC20, LCC-20; CategoryPower/power management The power supply circuit; File Size657KB，10 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric View All

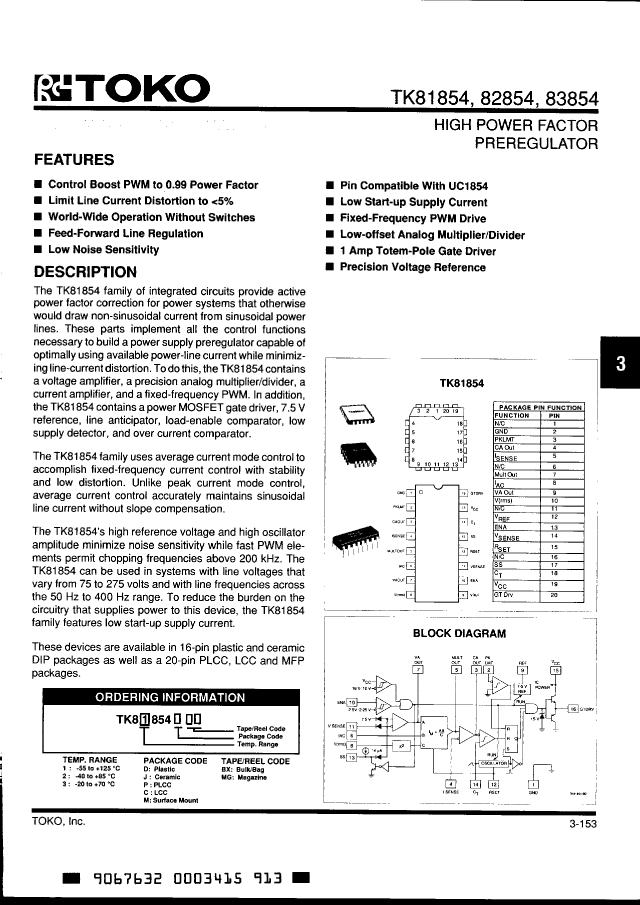

TK83854CBX Overview

Power Factor Controller, Current-mode, 1.5A, 200kHz Switching Freq-Max, CQCC20, LCC-20

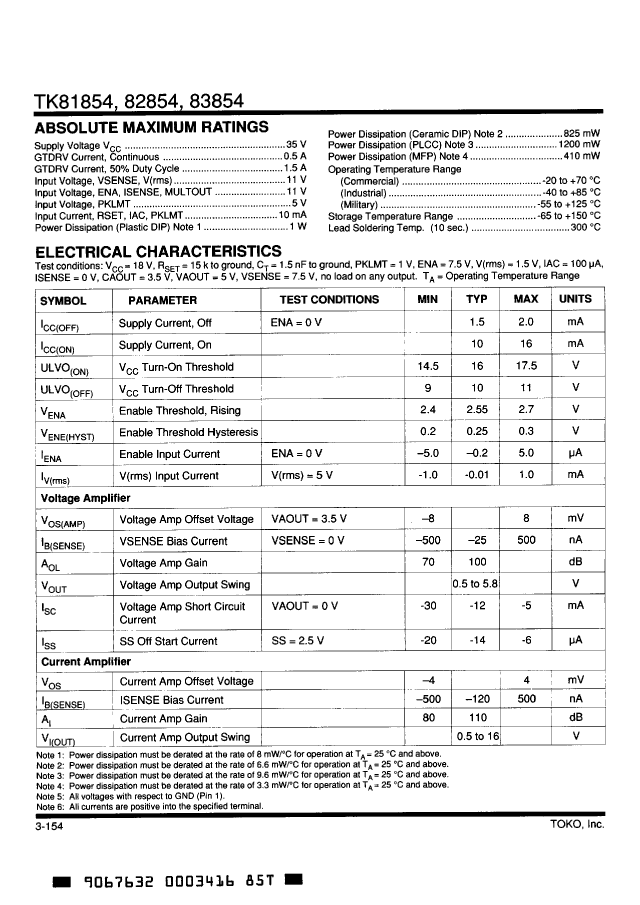

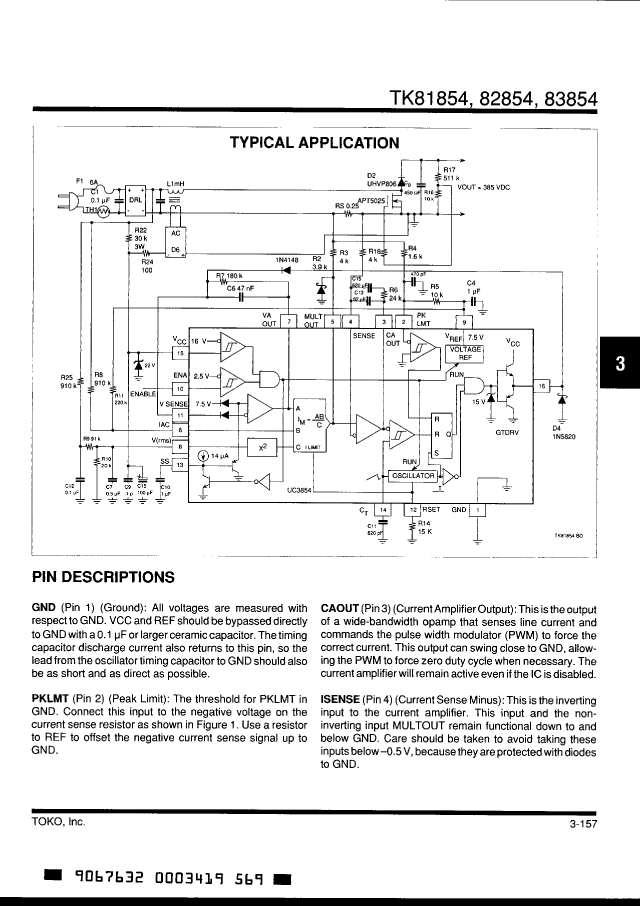

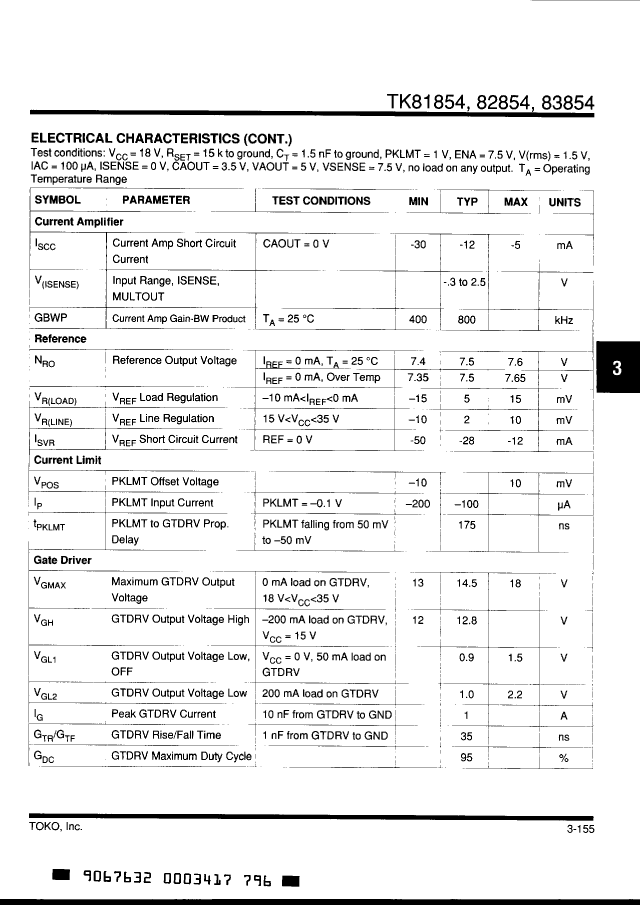

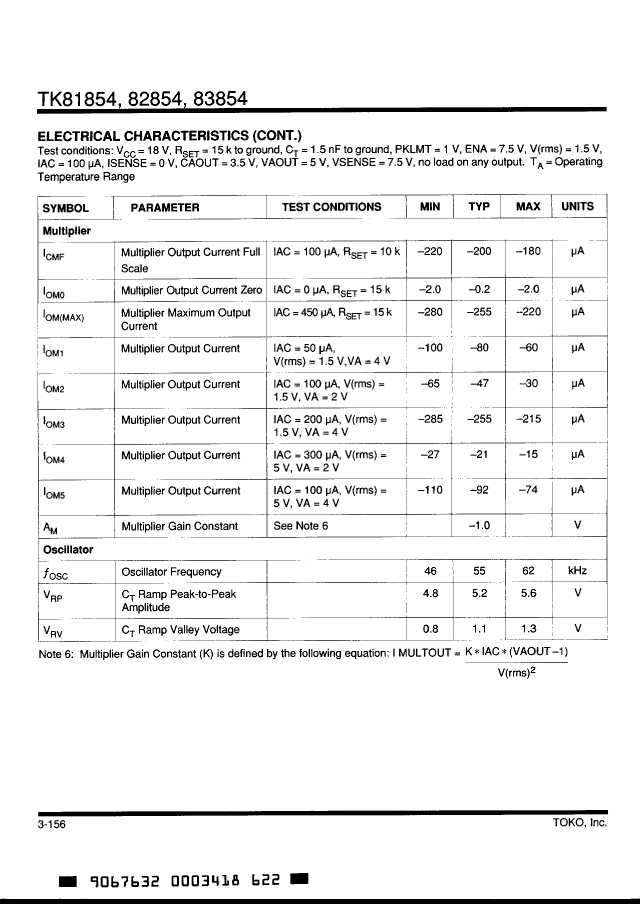

Parameter Name	Attribute value
Maker	TOKO, INC.
package instruction	QCCN,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	POWER FACTOR CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	35 V
Minimum input voltage	11 V
JESD-30 code	S-CQCC-N20
length	11.43 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum output current	1.5 A
Nominal output voltage	7.5 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum supply current (Isup)	16 mA
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	200 kHz
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
