with PHM Backshell
and Sleeves to Accommodate Various Cable Sizes
IPT G 06 A 18-11 S Z C PHM18 XX
MIL-C-26482
Series l Type
Grounding Fingers
(Omit for Standard)
06 - Straight Plug
Connector Class
A -Non-Environmental
Shell Size and
Insert Arrangements
Mod Code Options
See Table II
PHM Thread Size
See Table I
Contact Type
C - Crimp
(Omit for Solder Cup)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal
Contact Gender
P - Pin
S - Socket

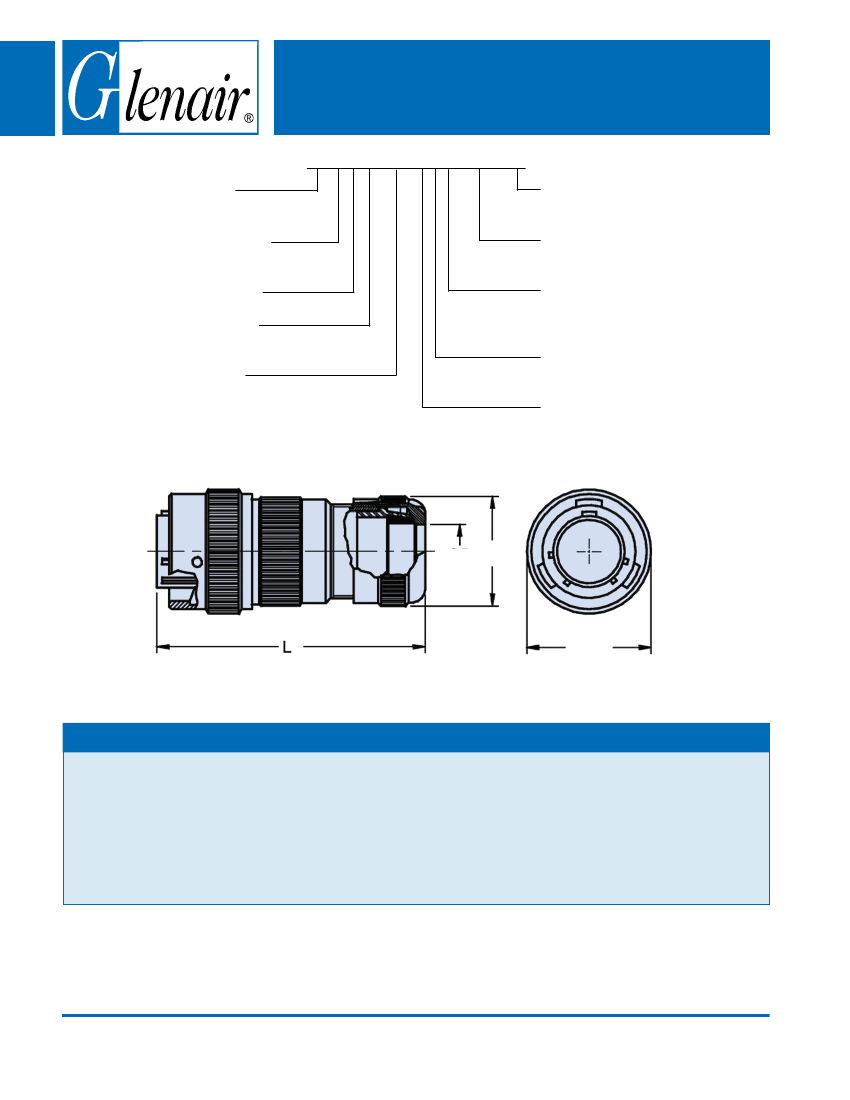

IPT 06 A...PHM_ _
Straight Plug Connector
IPT Series
Bayonet Lock
Connectors
6. Standard insert is high insulation synthetic rubber.
© 2008 Glenair, Inc.
B
C
G
APPLICATION NOTES
1. Straight plug with PHM backshell includes rubber sleeves to allow use of different diameter cables.
2. Connector Class “A” (non-environmental)––no grommet supplied. PHM connector accessory provides
environmental sealing to IP65.
3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.
4. Standard contact material consists of copper alloy with gold plating over nickel.
5. A broad range of other front and rear connector accessories are available. See our website and/or contact factory for complete information.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-76
with PHM Backshell
and Sleeves to Accommodate Various Cable Sizes
TABLE I: DIMENSIONS
Shell size
8
10
12
14
16
18
20
22
24
P.N. PHM
11
11
11
11
11
11 / 18
18
18
18 / 22 / 24
B
min. - Max.
2-7
2-9
2 - 11
2 - 11
2 - 11
2 - 11 / 9 - 16.5
9 - 16.5
9 - 16.5
9 - 16.5 / 15 - 20 / 19 - 24
C
Max.
15
21
24
24
24
42
42
42
42
G
Max.
19.05
21.80
26.20
29.40
32.55
35.35
38.90
42.10
45.10
L
Max.
47
49
58
58
58
75
75
75
75
TABLE II: MODIFICATION CODES
Shell Finish
(Omit for Standard Cad/Olive Drab Finish)
F2
- Bright Nickel Plating (RoHs)
F6
- Black Electrodeposited Paint (RoHs)
F7
- Black Zn-Co Plating (RoHs)
F8
- Olive Drab Zn-Co Plating
Assembly with Accessories
(Omit for Standard Version)
Key Polarization (Omit for
N
version)
W, X, Y, Z
= Alternates
N0
- Connector Less Backshell
GXXX
- Custom Designed Connector
STANDARD FINISHES (For QQ-A-591 Aluminum Shells)
Requirements
IAW RoHS
F2 Electrolytic Nickel F6 Black Non Conductive F7 Black Conductive
Thermal Shock
Salt Spray After
Thermal Shock
Electical Conductivity
Abrasion Resistance
-40°C + 100°C
24 hour
Very Good
Very Good
-55°C + 125°C
500 hour
NO
Very Good
-55°C + 125°C
500 hour
Very Good
Good
Not IAW RoHS
G3 Cadmium with Olive F8 Zinc Cobalt with
Drab Passivation
Olive Drab Passivation
-55°C + 125°C
500 hour
Very Good
Very Good
-40°C + 100°C
200 hour
Good
Good
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-77
IPT Series
Bayonet Lock
Connectors
IPT 06 A...PHM_ _
Straight Plug Connector
