86093487194748000E1 datasheet, PDF

86093487194748000E1: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Press Fit Terminal; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86093487194748000E1 Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	PRESS FIT
Total number of contacts	48

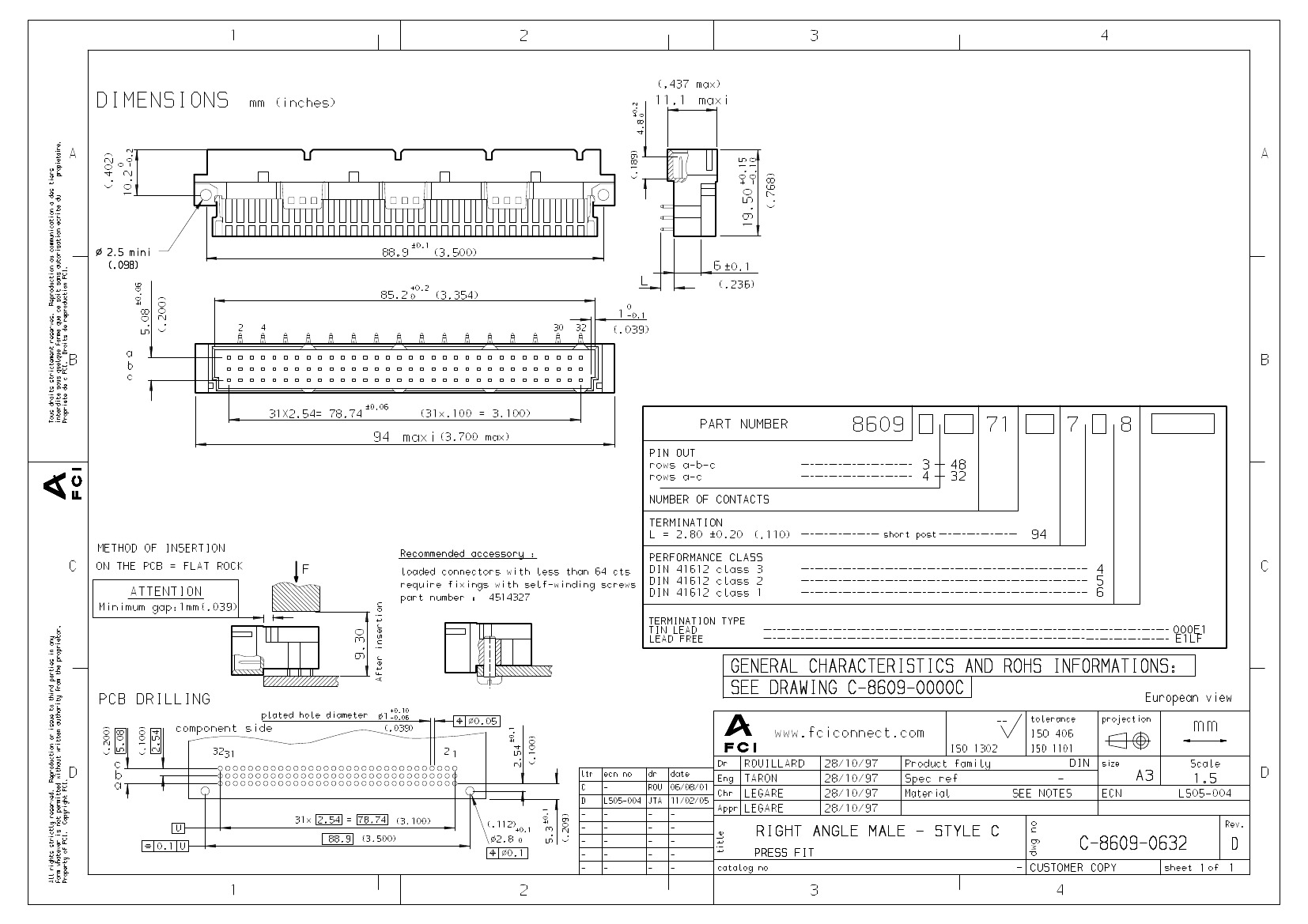

PDM: Rev:D

STATUS:

Released

Printed: Sep 30, 2005

.

	86093487194748000E1	86093487194758000E1	86093487194768000E1
Description	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Press Fit Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Press Fit Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	8609	8609	8609
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	5.08 mm	5.08 mm	5.08 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	48	48	48
