HM2P83PZF1F1Z1 datasheet, PDF - EEWORLD Datasheet

HM2P83PZF1F1Z1: DescriptionBoard Connector, 110 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size275KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P83PZF1F1Z1 Overview

Board Connector, 110 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (16) OVER NICKEL
Contact completed and terminated	TIN LEAD (2)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	10
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110

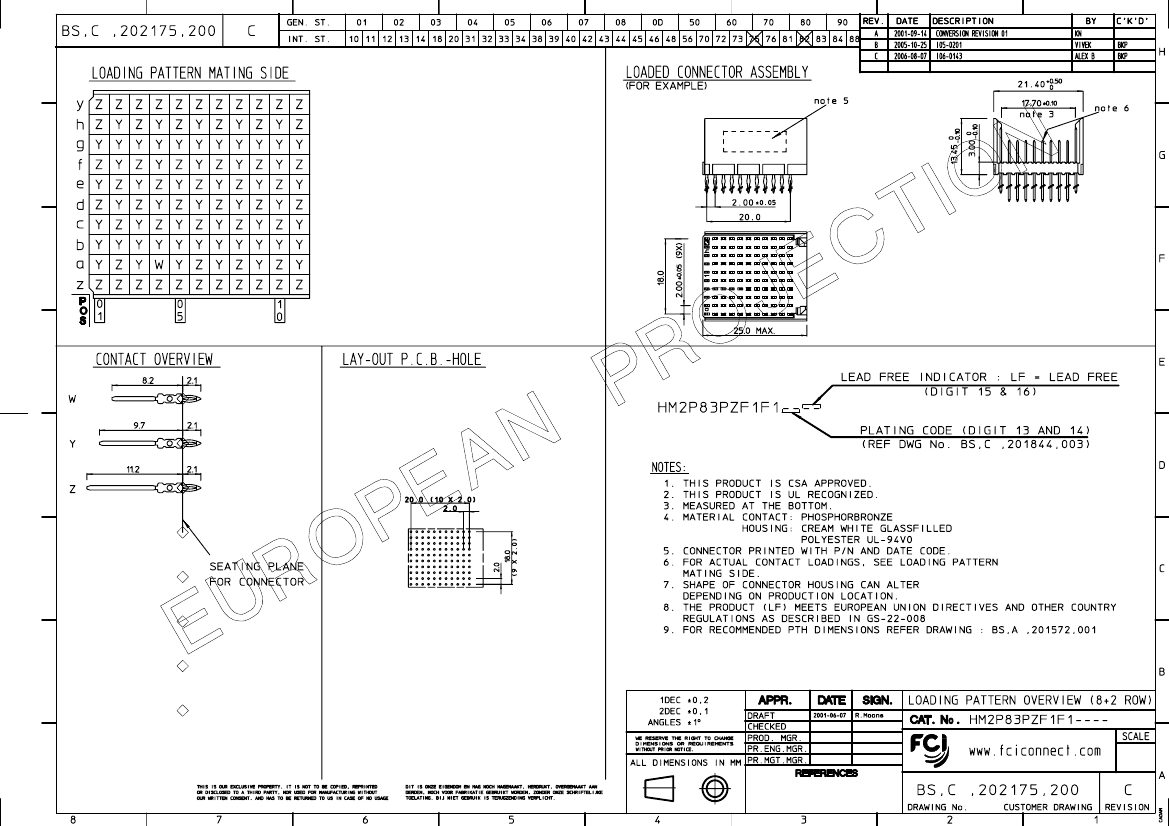

PDM: Rev:C

STATUS:

Released

Printed: Sep 07, 2006

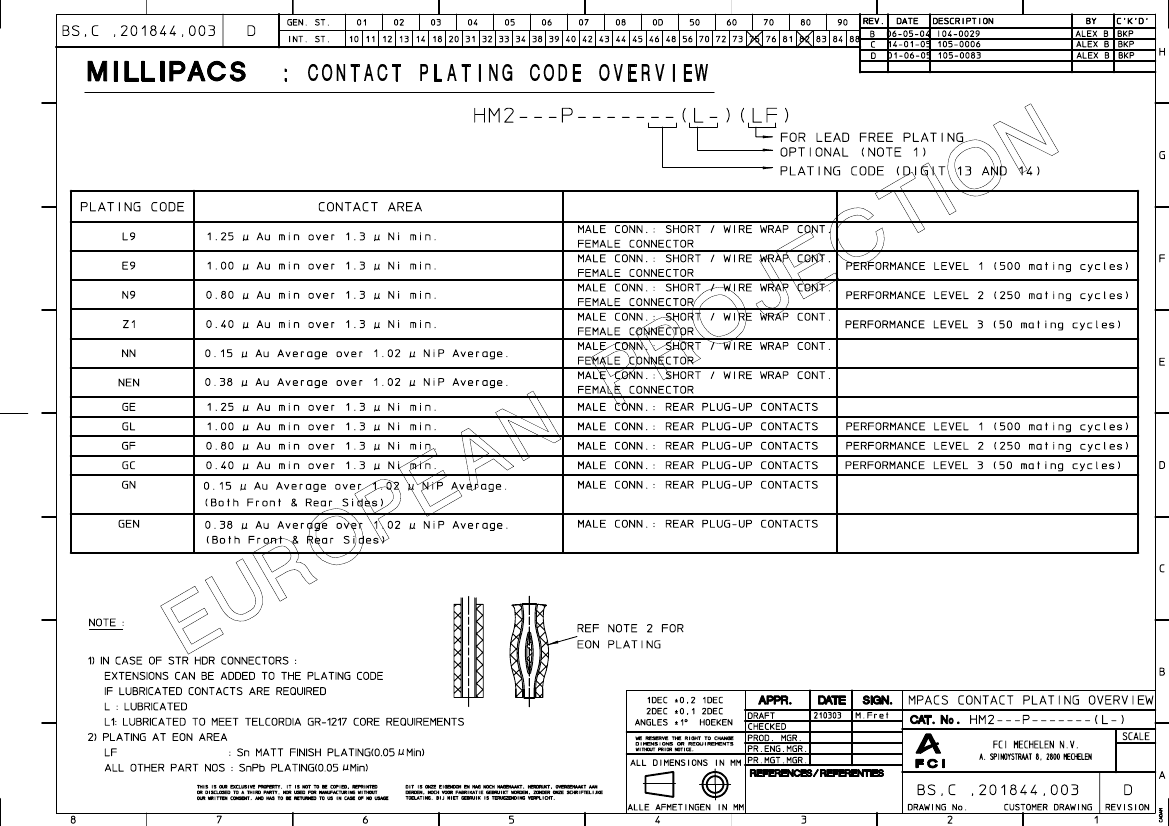

PDM: Rev:D

STATUS:

Released

Printed: Jun 17, 2005

	HM2P83PZF1F1Z1	HM2P83PZF1F1E9LF	HM2P83PZF1F1E9	HM2P83PZF1F1Z1LF
Description	Board Connector, 110 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 110 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 110 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 110 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (16) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (16) OVER NICKEL
Contact completed and terminated	TIN LEAD (2)	MATTE TIN (2)	TIN LEAD (2)	MATTE TIN (2)
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e3	e0	e3
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	10	10	10	10
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	110	110	110	110
