RM20DA-12F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> RM20DA-12F

RM20DA-12F: DescriptionRectifier Diode, 1 Phase, 2 Element, 20A, 600V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size53KB，3 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

RM20DA-12F Overview

Rectifier Diode, 1 Phase, 2 Element, 20A, 600V V(RRM), Silicon,

RM20DA-12F Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mitsubishi
package instruction	R-PUFM-X3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED, FREE WHEELING
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-30 code	R-PUFM-X3
Maximum non-repetitive peak forward current	400 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	20 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.8 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

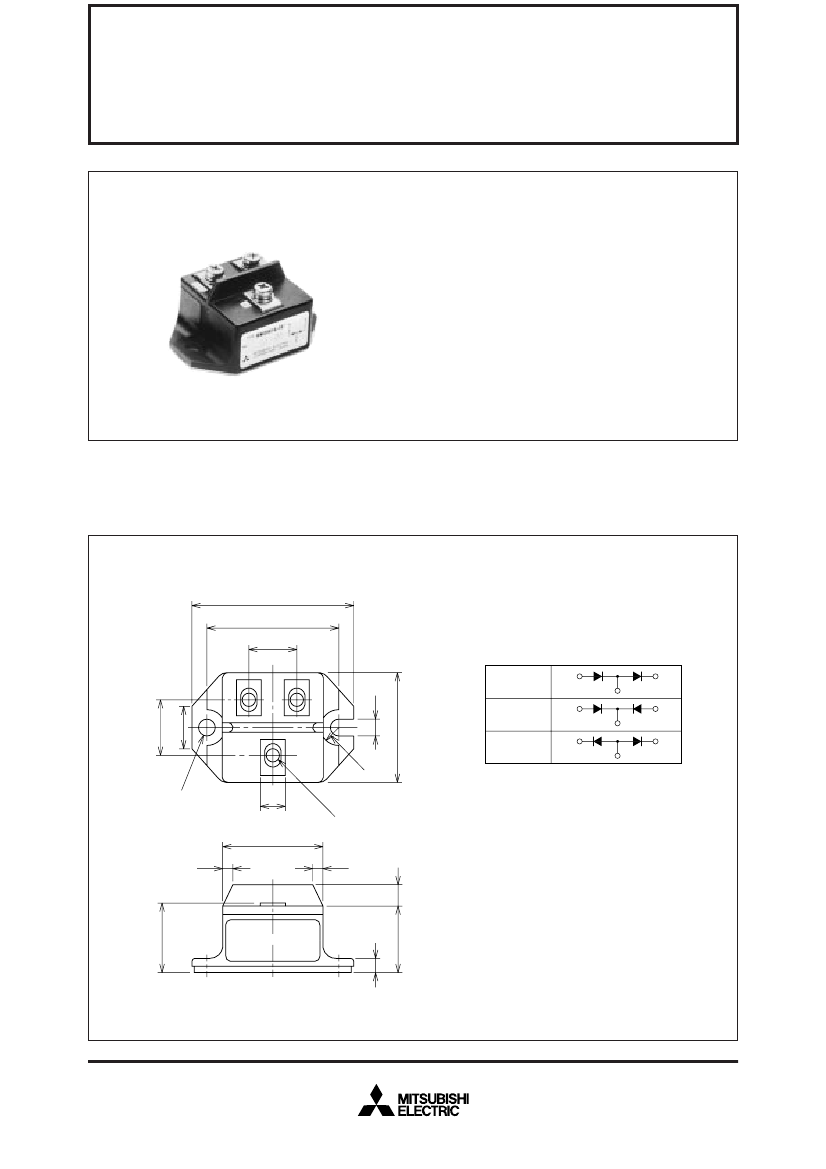

MITSUBISHI FAST RECOVERY DIODE MODULES

RM20DA/CA/C1A-XXF

HIGH SPEED SWITCHING USE

INSULATED TYPE

RM20DA/CA/C1A-XXF

DC current ..................................

20A

Repetitive peak reverse voltage

......................

600/800/1000/1200V

•

Reverse recovery time .............

0.8

•

Insulated Type

•

UL Recognized

Yellow Card No. E80276 (N)

File No. E80271

•

RRM

APPLICATION

Free wheel use, Welders

OUTLINE DRAWING & CIRCUIT DIAGRAM

Dimensions in mm

53.5

43.3

5.3

C1A

φ5.3

3–M4

3.5

4.5

LABEL

36.5

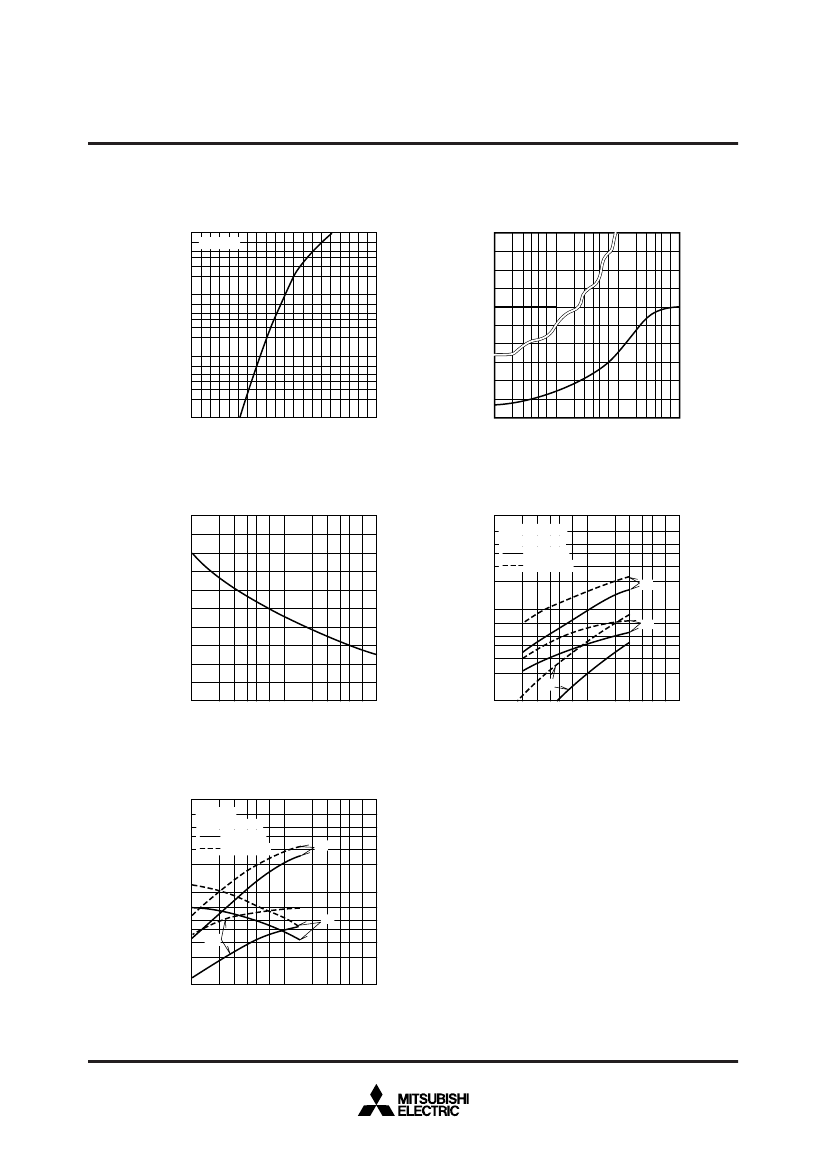

Feb.1999

RM20DA-12F Related Products

	RM20DA-12F	RM20C1A-12F	RM20CA-12F	RM20C1A-20F	RM20DA-24F	RM20C1A-24F	RM20CA-24F	RM20DA-16F	RM20CA-20F
Description	Rectifier Diode, 1 Phase, 2 Element, 20A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 20A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 20A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 20A, 1000V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 20A, 1200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 20A, 1200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 20A, 1200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 20A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 20A, 1000V V(RRM), Silicon,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED, FREE WHEELING	UL RECOGNIZED, FREE WHEELING	UL RECOGNIZED, FREE WHEELING	UL RECOGNIZED, FREE WHEELING	UL RECOGNIZED, FREE WHEELING	UL RECOGNIZED, FREE WHEELING	UL RECOGNIZED, FREE WHEELING	UL RECOGNIZED, FREE WHEELING	UL RECOGNIZED, FREE WHEELING
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
JESD-30 code	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A	400 A	400 A	400 A	400 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	20 A	20 A	20 A	20 A	20 A	20 A	20 A	20 A	20 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	600 V	600 V	1000 V	1200 V	1200 V	1200 V	800 V	1000 V
Maximum reverse recovery time	0.8 µs	0.8 µs	0.8 µs	0.8 µs	0.8 µs	0.8 µs	0.8 µs	0.8 µs	0.8 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Mitsubishi	-	Mitsubishi	-	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	-
