SM7745HE-33.333M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SM7745HE-33.333M

SM7745HE-33.333M: DescriptionCMOS Output Clock Oscillator, 33.333MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-4; CategoryPassive components oscillator; File Size110KB，8 Pages; ManufacturerPletronics

Download Datasheet Parametric Compare View All

SM7745HE-33.333M Overview

CMOS Output Clock Oscillator, 33.333MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-4

SM7745HE-33.333M Parametric

Parameter Name	Attribute value
Maker	Pletronics
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	SM77H
Installation features	SURFACE MOUNT
Nominal operating frequency	33.333 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.73mm
longest rise time	5 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	GOLD OVER NICKEL

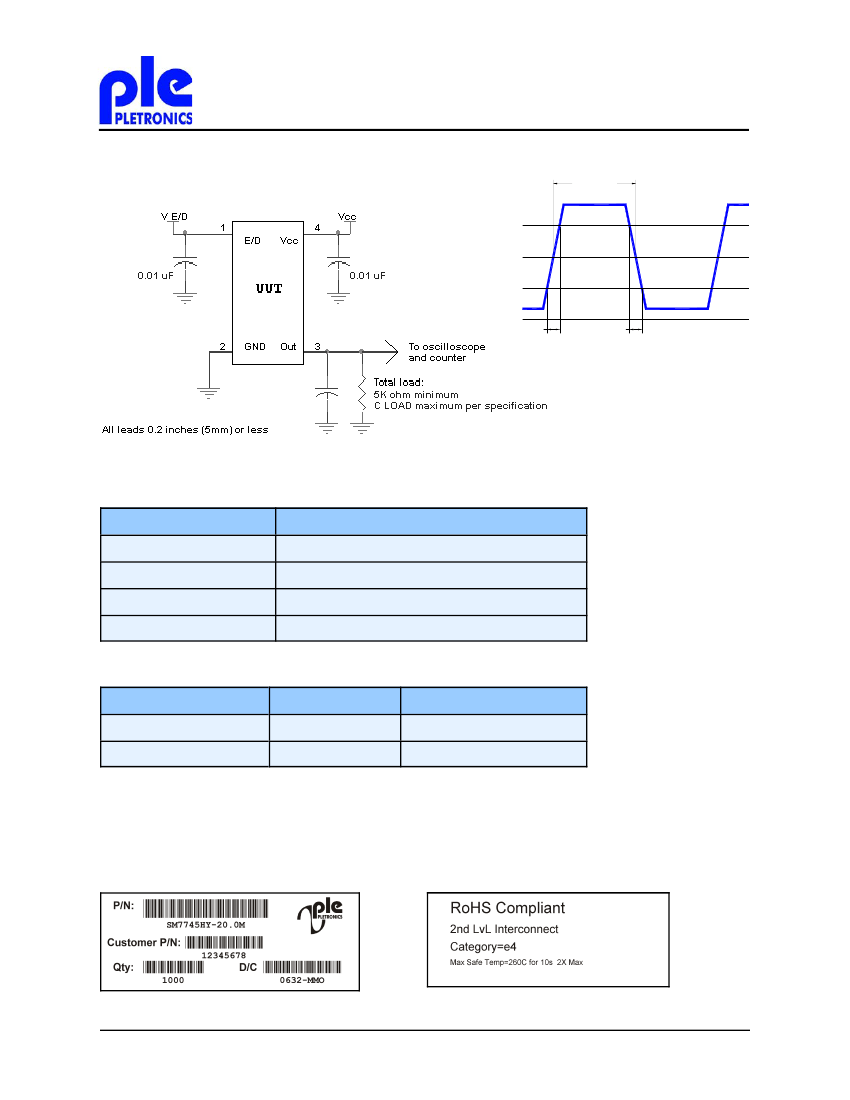

Preview

Download Datasheet

View All

SM77H Series 5.0V

CMOS Clock Oscillators

April 2010

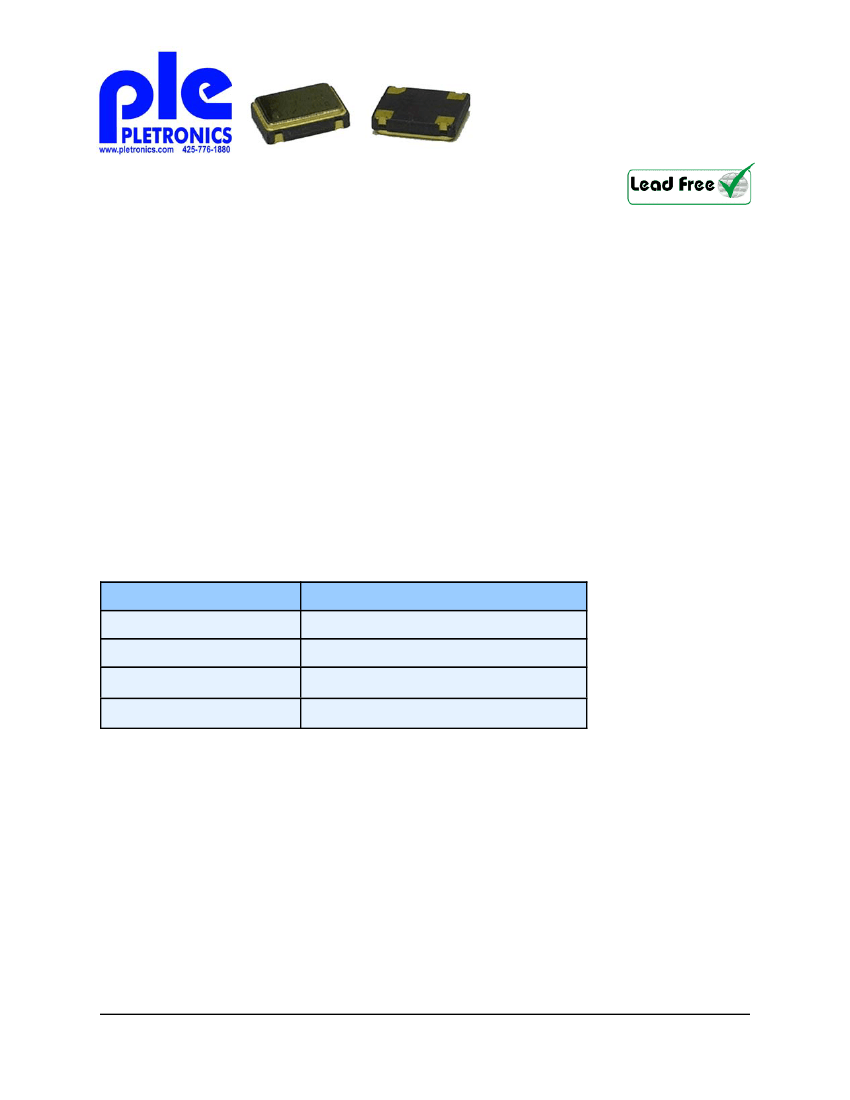

• Pletronics’ SM77H Series is a quartz crystal

controlled precision square wave generator with a

CMOS output.

• The package is designed for high density surface

mount designs.

• This is a low cost mass produced oscillator.

• Tape and Reel or cut tape packaging is available.

0.8 to 70 MHz

5 x 7 mm LCC Ceramic Package

Enable/Disable or Standby Function

Disable function includes low standby power

mode

• Low Jitter

•

Pletronics Inc. certifies this device is in accordance with the

RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.

Pletronics Inc. guarantees the device does not contain the following:

Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s

Weight of the Device: 0.17 grams

Moisture Sensitivity Level: 1 As defined in J-STD-020C

Second Level Interconnect code: e4

Absolute Maximum Ratings:

Parameter

Supply Voltage

Input Voltage

Output Voltage

Output Current

Unit

-0.5V to +7.0V

-0.5V to V

+ 0.5V

-0.5V to V

+ 0.5V

+25 mA to -25 mA

Thermal Characteristics

The maximum die or junction temperature is 155

The thermal resistance junction to board is 30 to 50

C/Watt depending on the solder pads, ground plane

and construction of the PCB.

Product information is current as of publication date. The product conforms

to specifications per the terms of the Pletronics standard warranty. Production

processsing does not necessarily include testing of all parameters.

SM7745HE-33.333M Related Products

	SM7745HE-33.333M	SM7745HE-1.0M	SM7745HE-20.0M	SM7720HE-20.0M
Description	CMOS Output Clock Oscillator, 33.333MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-4	CMOS Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-4	CMOS Output Clock Oscillator, 20MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-4	CMOS Output Clock Oscillator, 20MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-4
Maker	Pletronics	Pletronics	Pletronics	Pletronics
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO
frequency stability	50%	50%	50%	20%
JESD-609 code	e4	e4	e4	e4
Manufacturer's serial number	SM77H	SM77H	SM77H	SM77H
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	33.333 MHz	1 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS
Output load	15 pF	15 pF	15 pF	15 pF
physical size	7.0mm x 5.0mm x 1.73mm	7.0mm x 5.0mm x 1.73mm	7.0mm x 5.0mm x 1.73mm	7.0mm x 5.0mm x 1.73mm
longest rise time	5 ns	5 ns	5 ns	5 ns
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %
Terminal surface	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
