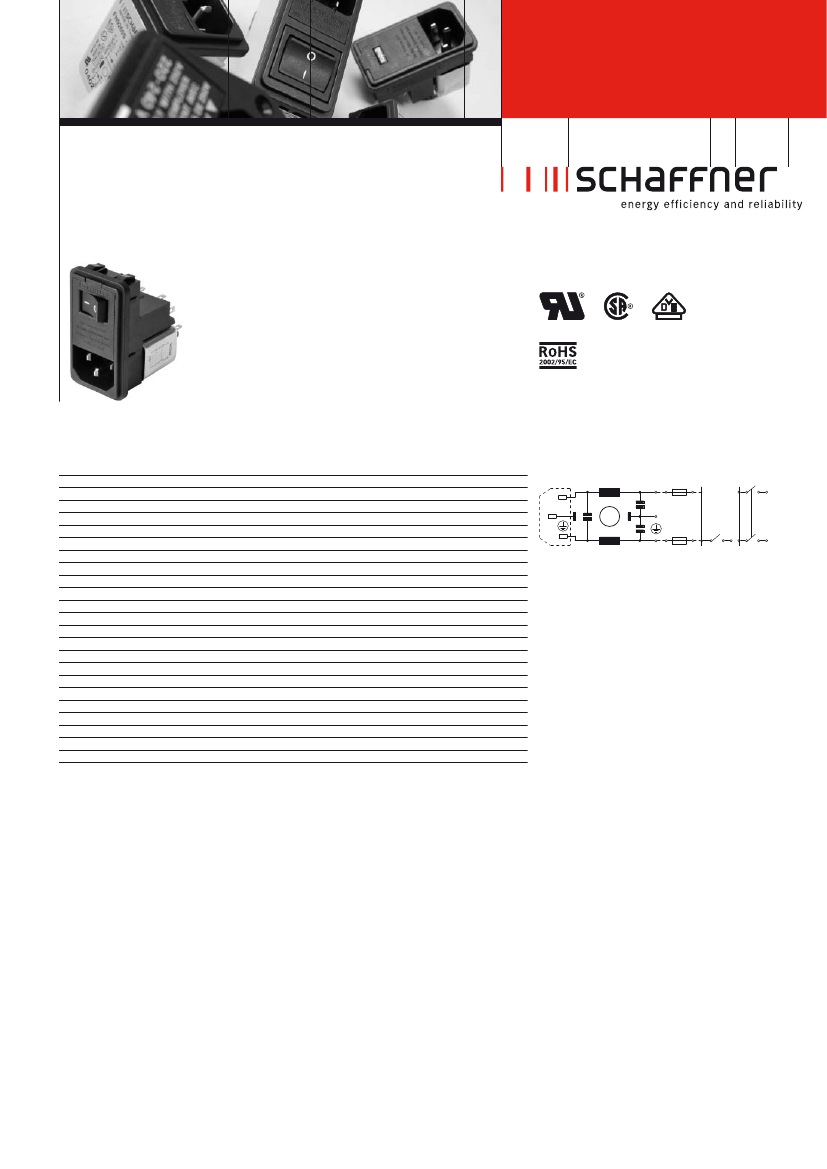

IEC inlet filters
FN 380
Versatile filtered power entry module
■
■
■
■
■
■
Rated currents up to 6A
Single or dual-fuse holder
Fuses Ø6.3 x 32mm or Ø5 x 20mm
2-pole rocker switch
General purpose application
Optional medical versions (B type)
Approvals
Technical specifications
Maximum continuous operating voltage:
Operating frequency:
Rated currents:
High potential test voltage:
250VAC, 50/60Hz
50 to 400Hz
1 to 6A @ 40°C max.
P –> E 2000VAC for 2 sec (standard types)
P –> E 2500VAC for 2 sec (B types)
P –> N 760VAC for 2 sec
IP40 according to IEC 60529
-25°C to +85°C (25/85/21)
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
UL 94V-2 or better
550,000 hours
Typical electrical schematic
Cx
N
E
P
Line
L J
G
Load
2xL
2xCy M K
H
Protection category:
Temperature range (operation and storage):
Design corresponding to:
Flammability corresponding to:
MTBF @ 40°C/230V (Mil-HB-217F):
Rocker switch description:
Function:
Electrical specifications:
Mechanical life:
Switch ratings:
USA (UL):
Canada (CSA):
Europe (ENEC):
*
Value in () relates to the inductive current charge: cos
γ
= 0.65
2-pole, dark not illuminated
Marking I - 0
Inrush current 51A
6,000 on-off operations according to UL 1054, TV 5
10,000 on-off operations according to ENEC
50,000 cycles
6A, 125VAC; 4A, 250VAC; 1/10HP
6A, 125VAC; 4A, 250VAC; 1/10HP
6A (4A), 250VAC*
Features and benefits
The FN 380 power entry module combines an
IEC inlet, a mains filter with asingle or dual-
fuse holder and a 2-pole rocker switch.
Choosing FN 380 product line brings you the
rapid availability of a standard filter associated
with the necessary safety acceptances.
Standard IEC connector filters are a practi-
cal solution helping you to pass EMI system
approval in a short time. A wide selection on
amperage ratings, fuse options, mounting
possibilities and filters for medical applications
are designed to offer you the desired solution.
■
■
■
■
■
■
■
Typical applications
■
Good conducted attenuation performance,
based on chokes with high saturation
resistance and excellent thermal behavior.
Rear/front or snap-in mounting.
Single or dual-fuse holder.
USA Ø6.3 x 32mm or EU Ø5 x 20mm fuses.
2-pole rocker switch.
Voltage selector 110-120V / 220-240V.
Custom-specific versions are available on
request.
Portable electrical and electronic
equipment
■
■
■
Consumer goods
EDP and office equipment
Single-phase power supplies, switch-mode
power supplies
■
■
Test and measurement equipment
Medical equipment
> Components
> FN 380

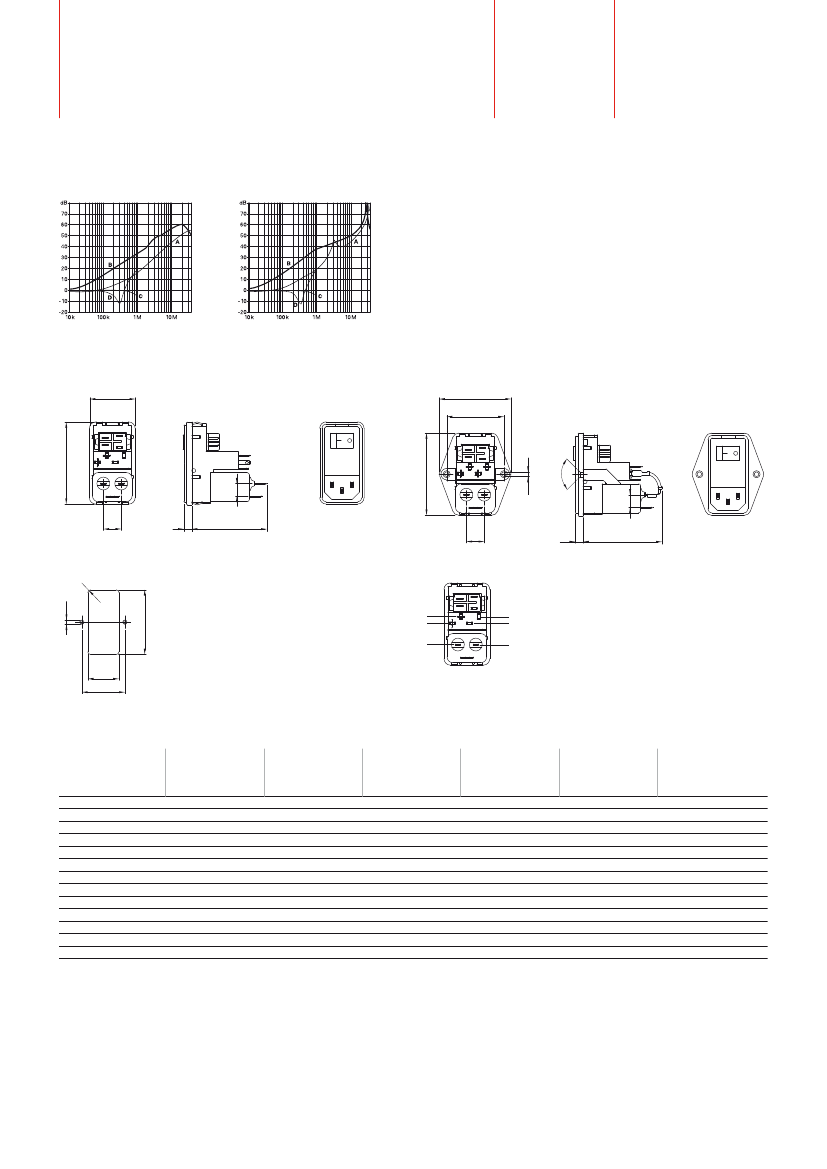

Filter selection table
Filter*
Rated current Leakage current**
@ 40°C (25°C)
@ 230VAC/50Hz
[A]
2 (2.4)
4 (4.8)
6 (7.2)
2 (2.4)
4 (4.8)
6 (7.2)
2 (2.4)
4 (4.8)
6 (7.2)
2 (2.4)
4 (4.8)
6 (7.2)
2 (2.4)
4 (4.8)
6 (7.2)
2 (2.4)
4 (4.8)
6 (7.2)
2 (2.4)
4 (4.8)
6 (7.2)
[μA]
373
373
373
373
373
373
373
373
373
373
373
373
373
373
373
2
2
2
2
2
2
Inductance
L
[mH]
0.70
0.30
0.18
0.70
0.30
0.18
2.00
0.80
0.50
0.70
0.30
0.18
2.00
0.80
0.50
0.70
0.30
0.18
2.00
0.80
0.50
Capacitance
Cx
Cy
[nF]
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
[nF]
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
1000
1000
1000
1000
1000
1000
Resistance
Output
R connections
[kΩ]
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
Fuses***
Weight
FN 380-2-2.
FN 380-4-2.
FN 380-6-2.
FN 382-2-2.
FN 382-4-2.
FN 382-6-2.
FN 385-2-2.
FN 385-4-2.
FN 385-6-2.
FN 388-2-2.
FN 388-4-2.
FN 388-6-2.
FN 389-2-2.
FN 389-4-2.
FN 389-6-2.
FN 382B-2-2.
FN 382B-4-2.
FN 382B-6-2.
FN 389B-2-2.
FN 389B-4-2.
FN 389B-6-2.
*
**
[Qty]
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
[g]
55
55
55
55
55
55
65
65
65
60
60
60
70
70
70
55
55
55
70
70
70
Select the requested fuse holder for fuse EUR-1 or USA-1.
Maximum leakage under normal operating conditions. Note: if the neutral line is interrupted, worst case leakage could reach twice this level.
*** Filters are delivered without fuse.
Product selector
FN 38xx-y-zz
1:
2:
Fuse Ø5 x 20mm (FUSE-H EUR-1)
Fuse Ø6.3 x 32mm (FUSE-H USA-1)
2:
Rocker switch, 2-pole, dark not illuminated
1 to 6:
Rated current
Blank:
B:
Standard version
Medical version (with bleed resistor and without Y2-capacitor)
0:
2:
5:
8:
9:
Snap-in version, single-fuse, standard performance
Snap-in version, dual-fuse, standard performance
Snap-in version, dual-fuse, high performance
Flange mounting version, dual-fuse, standard performance
Flange mounting version, dual-fuse, high performance
For example: FN 380-6-21, FN 388-4-22, FN 389B-2-21
Headquarters
Schaffner EMV AG
4542 Luterbach, Switzerland
T +41 32 681 66 26
F +41 32 681 66 41
sales@schaffner.com
www.schaffner.com
China
Schaffner EMC Ltd. Shanghai
T +86 21 6813 9855
cschina@schaffner.com
Finland
Schaffner Oy
T +358 19 357 271
finlandsales@schaffner.com
France
Schaffner EMC S.A.S.
T +33 1 34 34 30 60
francesales@schaffner.com
Germany
Schaffner EMV GmbH
T +49 721 56910
germanysales@schaffner.com
Schaffner Jacke GmbH
T +49 2951 6001 0
jacke-trafo@schaffner.com
Italy
Schaffner EMC S.r.l.
T +39 02 66 04 30 45
italysales@schaffner.com
Japan
Schaffner EMC K.K.
T +81 3 5456 0180
japansales@schaffner.com
Singapore
Schaffner EMC Pte Ltd.
T +65 6377 3283
singaporesales@schaffner.com
Sweden
Schaffner EMC AB
T +46 8 5792 1121
swedensales@schaffner.com
Switzerland
Schaffner EMV AG
T +41 32 681 66 26
sales@schaffner.ch
Taiwan
Schaffner EMV Ltd.
T +886 2 87525050
taiwansales@schaffner.com
Thailand
Schaffner EMC Co. Ltd.
T +66 53 58 11 04
thailandsales@schaffner.com
UK
Schaffner Ltd.
T +44 118 9770070
uksales@schaffner.com
USA
Schaffner EMC Inc.
T +1 732 225 9533
Toll free 1 800 367 5566
usasales@schaffner.com
To find your local partner within
Schaffner‘s global network, please go to
www.schaffner.com
May 2008
© 2008 Schaffner EMC.
Specifications subject to change without
notice. All trademarks recognized.
Schaffner is an ISO-registered company.
Its products are designed and manufac-
tured under the strict quality and environ-
mental requirements of the ISO 9001 and
ISO 14001 standards.
This document has been carefully
checked. However, Schaffner does not
assume any liability for errors or inac-
curacies.
