LN21WAL(U): DescriptionSingle Color LED, Red, White Diffused, T-1 3/4, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size29KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

LN21WAL(U) Overview

Single Color LED, Red, White Diffused, T-1 3/4, 5mm,

LN21WAL(U) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Panasonic
Reach Compliance Code	unknown
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.6 V
JESD-609 code	e0
Lens type	WHITE DIFFUSED
Nominal luminous intensity	50.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.65 mm
method of packing	BULK
peak wavelength	665 nm
Maximum reverse voltage	3 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	40 deg

Preview

Download Datasheet

View All

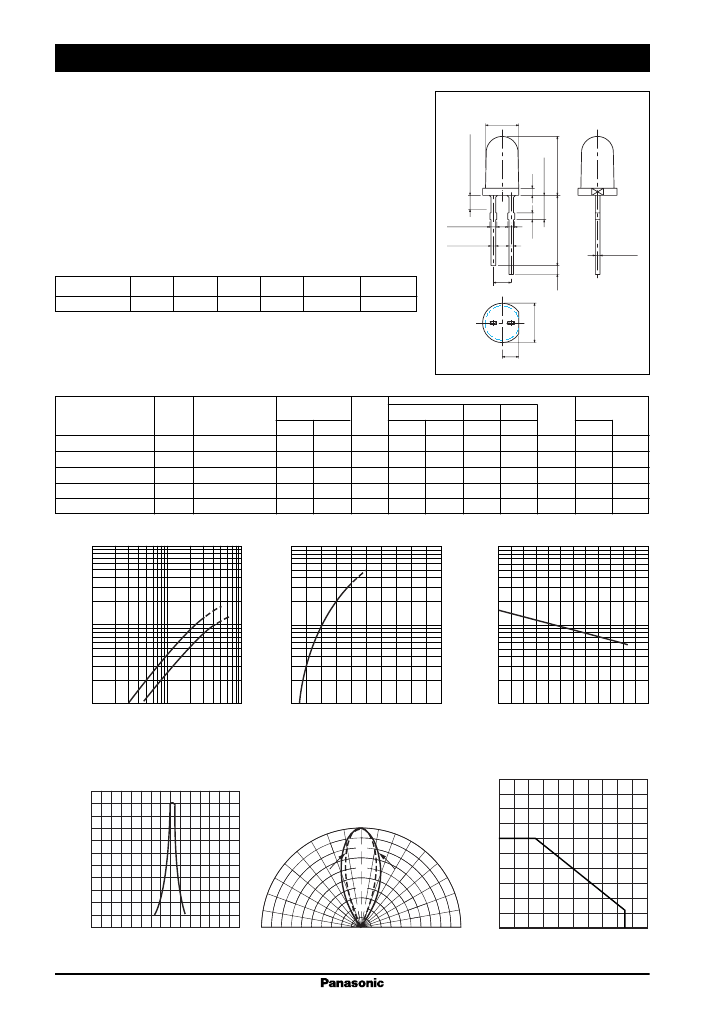

超高輝度

GaAIAs

Ultra Bright GaAIAs Lamps

Unit: mm

2 Max. NOT SOLDERED

φ

5.0

±

0.2

丸½

Round Type

φ

5.0 mm Series

Conventional Part No.

Global Prat No.

Lighting Color

1.0

4.15

±

0.3

1.0

8.65

±

0.2

12.0

±

1.0

LN21RAL(U) ············ LNG201RDA ············ Red

LN21RCAL(U) ········· LNG201LDA ············ Red

LN21WAL(U) ··········· LNG201WDA ··········· Red

LN21CAL(U) ············ LNG201CDA ············ Red

s

絶対最大定格 Absolute

Maximum Ratings (T

a

=

25°C)

Lighting Color P

D

(mW) I

F

(mA) I

FP

(mA)

∗

V

R

(V) T

opr

(°C) T

stg

(°C)

Red

70

150

30

3

−25 ∼ +85 −30 ∼ +100

★I

FP

の条件は，

duty 10%，

Pulse width 1 msec. The condition of I

FP

is duty 10%, Pulse width 1 msec

2

−

1.0

±

0.1

2

−

0.6

±

0.1

0.6

±

0.1

2

1

2.5

φ

6.0

±

0.2

1.5

2.54

1: Anode

2: Cathode

s

電気的光学的特性 Electro−Optical

Characteristics (T

a

=

25°C)

Conventional

Part No.

LN21RAL(U)

LN21RCAL(U)

LN21WAL(U)

LN21CAL(U)

Unit

1000

Lighting

Color

Red

−

I

O



I

F

Lens Color

Red Diffused

Red Clear

White Diffused

Clear

−

I

O

Typ

50

85

50

85

mcd

100

V

F

Min

20

30

20

30

mcd

I

F

20

mA

I

F



V

F

Typ

1.8

V

Max

2.6

V

λ

P

Typ

665

nm

∆λ

Typ

20

nm

I

R

I

F

20

mA

Max

100

µA

V

R

3

V

I

O



T

a

相対発光強度

(%)

Relative Luminous Intensity

500

300

光度（軸上） I

O

(mcd)

Luminous Intensity

500

300

L

LN N2

21 1RC

CA A

L

L( L(

U

LN N2

U

) )

1R

21 A

W L

AL (U

(U )

)

50

順方向電流 I

F

(mA)

Forward Current

30

100

50

30

10

5

3

100

50

30

10

1

3

5

10

30

50

100

1

1.6

1.8

2.0

2.2

2.4

10

−20

0

20

40

60

80

100

順方向電流 I

F

(mA)

Forward Current

順方向電圧 V

F

(V)

Forward Voltage

周囲温度

T

a

(˚C )

Ambient Temperature

相対発光強度



波長特性

順方向電流 I

F

(mA)

Forward Current

Relative Luminous Intensity

Wavelength Characteristics

50

I

F



T

a

指向特性

Directive Characteristics

20° 10°

30°

40°

0°

80°

60°

40°

20°

80

60

40

20

0

20

40

60

80

10° 20°

30°

40°

50°

LN21RAL(U)

LN21WAL(U)

60°

70°

80°

90°

100

0

20

40

60

80

100

相対発光強度

(%)

Relative Luminous Intensity

100

80

60

40

20

0

500

40

30

50°

60°

70°

80°

600

700

800

90°

100

LN21RCAL(

U)

LN21CAL(

U)

20

10

波長

λ

P

(nm)

Wavelength

相対発光強度

(%)

Relative Luminous Intensity

周囲温度

T

a

(

°C

)

Ambient Temperature

238

LN21WAL(U) Related Products

	LN21WAL(U)	LN21CAL(U)	LN21RAL(U)	LN21RCAL(U)
Description	Single Color LED, Red, White Diffused, T-1 3/4, 5mm,	Single Color LED, Red, Clear, T-1 3/4, 5mm,	Single Color LED, Red, Diffused, T-1 3/4, 5mm,	Single Color LED, Red, Clear, T-1 3/4, 5mm,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
color	RED	RED	RED	RED
color@wavelength	Red	Red	Red	Red
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A
Maximum forward voltage	2.6 V	2.6 V	2.6 V	2.6 V
JESD-609 code	e0	e0	e0	e0
Lens type	WHITE DIFFUSED	CLEAR	DIFFUSED	CLEAR
Nominal luminous intensity	50.0 mcd	85.0 mcd	50.0 mcd	85.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.65 mm	8.65 mm	8.65 mm	8.65 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	665 nm	665 nm	665 nm	665 nm
Maximum reverse voltage	3 V	3 V	3 V	3 V
shape	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	40 deg	30 deg	40 deg	30 deg
Maker	Panasonic	-	Panasonic	Panasonic

Recommended Resources

Motorcycle anti-theft alarm circuit-b

Thyristor finishing circuit form circuit (5)

Sanle brand WP-600A mechanical microwave oven circuit diagram

LED-parallel LED digital tube static display circuit (common anode)

Simultaneous generation of three waveform function oscillators

Ordinary thyristor single-phase control circuit
