8Mb: 512K x 18, 256K x 32/36
3.3V I/O, PIPELINED, DCD SYNCBURST SRAM
8Mb SYNCBURST
SRAM
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
™
MT58L512L18D, MT58L256L32D,
MT58L256L36D
3.3V V
DD
, 3.3V I/O, Pipelined, Double-
Cycle Deselect
Fast clock and OE# access times
Single +3.3V +0.3V/-0.165V power supply (V
DD
)
Separate +3.3V isolated output buffer supply (V
DD
Q)
SNOOZE MODE for reduced-power standby
Common data inputs and data outputs
Individual BYTE WRITE control and GLOBAL WRITE
Three chip enables for simple depth expansion and
address pipelining
Clock-controlled and registered addresses, data I/Os
and control signals
Internally self-timed WRITE cycle
Burst control (interleaved or linear burst)
Automatic power-down for portable applications
100-pin TQFP package
165-pin FBGA package
Low capacitive bus loading
x18, x32, and x36 versions available
100-Pin TQFP**
165-Pin FBGA
OPTIONS
• Timing (Access/Cycle/MHz)
3.5ns/6ns/166 MHz
4.0ns/7.5ns/133 MHz
5ns/10ns/100 MHz
• Configurations
512K x 18
256K x 32
256K x 36
• Packages
100-pin TQFP (2-chip enable)
100-pin TQFP (3-chip enable)
165-pin, 13mm x 15mm FBGA
• Operating Temperature Range
Commercial (0°C to +70°C)
Industrial (-40°C to +85°C)**
Part Number Example
MARKING
-6
-7.5
-10
MT58L512L18D
MT58L256L32D
MT58L256L36D
NOTE:
1. JEDEC-standard MS-026 BHA (LQFP).
T
S
F*
None
IT
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs high-
speed, low-power CMOS designs that are fabricated us-
ing an advanced CMOS process.
Micron’s 8Mb SyncBurst SRAMs integrate a 512K x 18,
256K x 32, or 256K x 36 SRAM core with advanced syn-
chronous peripheral circuitry and a 2-bit burst counter.
All synchronous inputs pass through registers controlled
by a positive-edge-triggered single-clock input (CLK).
The synchronous inputs include all addresses, all data
inputs, active LOW chip enable (CE#), two additional
chip enables for easy depth expansion (CE2, CE2#), burst
control inputs (ADSC#, ADSP#, ADV#), byte write
enables (BWx#) and global write (GW#). Note that CE2#
is not available on the T Version.
MT58L512L18DT-7.5
* A Part Marking Guide for the FBGA devices can be found on Micron’s
Web site—http://www.micron.com/support/index.html.
** Industrial temperature range offered in specific speed grades and
configurations. Contact factory for more information.
8Mb: 512K x 18, 256K x 32/36 3.3V I/O, Pipelined, DCD SyncBurst SRAM
MT58L512L18D_D.p65 – Rev. 2/02
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2002, Micron Technology, Inc.
8Mb: 512K x 18, 256K x 32/36
3.3V I/O, PIPELINED, DCD SYNCBURST SRAM

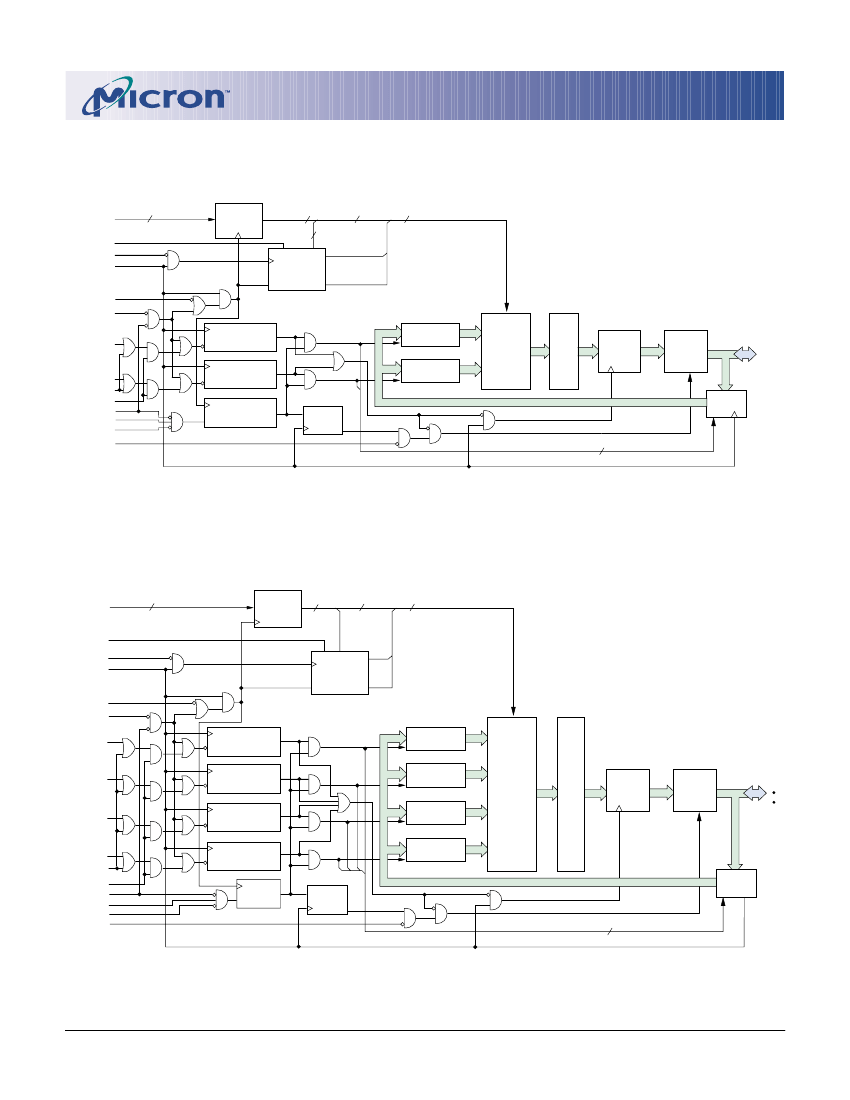

FUNCTIONAL BLOCK DIAGRAM
512K x 18
19
SA0, SA1, SA
MODE
ADV#
CLK
ADDRESS
REGISTER
19
17
19
2
SA0-SA1
SA1'
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BYTE “b”
WRITE REGISTER
9
BYTE “b”
WRITE DRIVER
9
512K x 9 x 2
MEMORY
ARRAY
9
18
SENSE 18
AMPS
BWb#
OUTPUT
18
REGISTERS
OUTPUT
BUFFERS
E
18
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
BYTE “a”
WRITE DRIVER
DQs
DQPa
DQPb
ENABLE
REGISTER
18
PIPELINED
ENABLE
2
INPUT
REGISTERS
FUNCTIONAL BLOCK DIAGRAM
256K x 32/36
18
SA0, SA1, SA
ADDRESS
REGISTER
16
SA0-SA1
18
MODE
ADV#
CLK
Q1
SA1'
BINARY
COUNTER
SA0'
CLR
Q0
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “c”
WRITE REGISTER
9
BYTE
“d”
WRITE DRIVER
BYTE
“c”
WRITE DRIVER
BYTE
“b”
WRITE DRIVER
BYTE
“a”
WRITE DRIVER
9
BWc#
9
9
256K x 8 x 4
(x32)
256K x 9 x 4
(x36)
36
SENSE
AMPS
36
OUTPUT
REGISTERS
36
BWb#
BYTE “b”
WRITE REGISTER
9
9
MEMORY
ARRAY
OUTPUT
BUFFERS
E
DQs
DQPa
36
DQPd
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
9
ENABLE
REGISTER
36
PIPELINED
ENABLE
4
INPUT
REGISTERS
NOTE:
Functional block diagrams illustrate simplified device operation. See truth tables, pin descriptions, and timing diagrams
for detailed information.
8Mb: 512K x 18, 256K x 32/36 3.3V I/O, Pipelined, DCD SyncBurst SRAM
MT58L512L18D_D.p65 – Rev. 2/02
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2002, Micron Technology, Inc.
8Mb: 512K x 18, 256K x 32/36
3.3V I/O, PIPELINED, DCD SYNCBURST SRAM
GENERAL DESCRIPTION (continued)
Asynchronous inputs include the output enable (OE#),
clock (CLK) and snooze enable (ZZ). There is also a burst
mode input (MODE) that selects between interleaved
and linear burst modes. The data-out (Q), enabled by
OE#, is also asynchronous. WRITE cycles can be from
one to two bytes wide (x18) or from one to four bytes wide
(x32/x36), as controlled by the write control inputs.
Burst operation can be initiated with either address
status processor (ADSP#) or address status controller
(ADSC#) inputs. Subsequent burst addresses can be in-
ternally generated as controlled by the burst advance
input (ADV#).
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed WRITE
cycles. Individual byte enables allow individual bytes to
be written. During WRITE cycles on the x18 device, BWa#
controls DQa pins and DQPa; BWb# controls DQb pins
and DQPb. During WRITE cycles on the x32 and x36
devices, BWa# controls DQa pins and DQPa; BWb# con-
trols DQb pins and DQPb; BWc# controls DQc pins and
DQPc; BWd# controls DQd pins and DQPd. GW# LOW
causes all bytes to be written. Parity bits are only avail-
able on the x18 and x36 versions.
This device incorporates an additional pipelined en-
able register which delays turning off the output buffer
an additional cycle when a deselect is executed. This
feature allows depth expansion without penalizing sys-
tem performance.
Micron’s 8Mb SyncBurst SRAMs operate from a +3.3V
V
DD
power supply, and all inputs and outputs are TTL-
compatible. The device is ideally suited for Pentium
®
and PowerPC pipelined systems and systems that benefit
from a very wide, high-speed data bus. The device is also
ideal in generic 16-, 18-, 32-, 36-, 64-, and 72-bit-wide
applications.
Please refer to Micron’s Web site (www.micron.com/
sramds)
for the latest data sheet.
