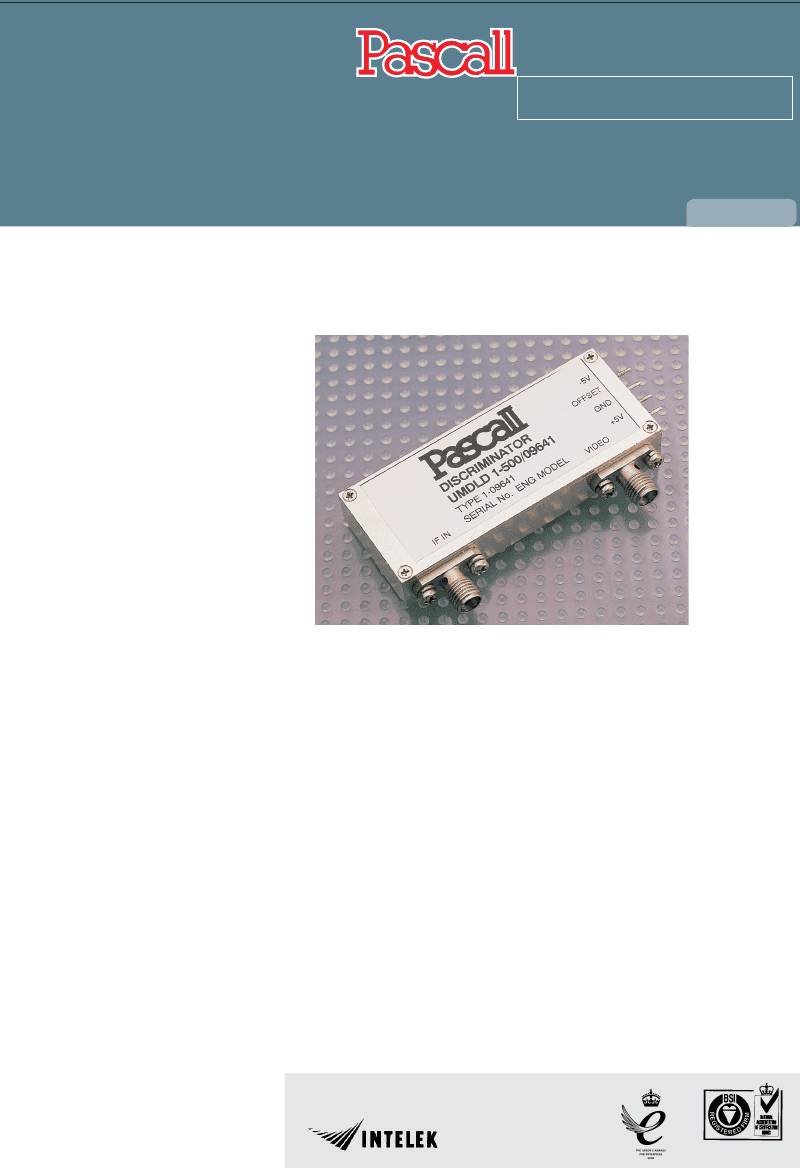

1GHz Ultra-Miniature Frequency Discriminators
Centre Frequency 1 GHz
Frequency Accuracy <5%
Linear Bandwidth >50%
Power Dissipation from 0.5W
The Pascall Ultra-Miniature series of Frequency Discriminators provide
broadband performance and superb linearity over a wide temperature
range.
The UMDLD range of discriminators are robustly constructed in
lightweight aluminium alloy housings and are designed to withstand
harsh mechanical environments.
This range is specified for operation over a case temperature range
maximum of -45ºC to +85ºC.
The standard supply voltage is +/- 5 Volts and options are available
for +/-12 and +/-15 Volts. The +/-5 Volt unit has a power dissipation
of less than 0.5 Watts. This offers distinct advantages in thermal
stability making it the ideal choice for compact airborne equipment
designs where low power dissipation is vital to maintain high reliability
and performance.
Pascall have a large range of alternative discriminators covering centre
frequencies from 10 MHz to 1 GHz and are also able to design models
to meet customers' specific requirements.
A company within the Electronics
Division of INTELEK plc
FM13274
BS EN ISO 9001
1GHz Ultra-Miniature Frequency Discriminators
UMDLD 1-500
DATA
Frequency Range
Video Output Slope (Typical)
Frequency Accuracy
@25ºC
Over Temp range
Optional Electronic Offset Adjust
Rated Input Level
Pulse Rise Time
VSWR
Power Supply
750 - 1250 MHz
10mV / MHz
+/- 10 MHz
+/- 25 MHz
+/- 100mV min
0 dBm to -10 dBm
< 10ns
2 : 1 max
+ 5 Volts @ 25mA std. +12 / +15 @ 30mA options
- 5 Volts @ 70mA std. -12 / -15 @ 85mA options
Size
Weight
Connectors
Case Temperature Range
(operating)
(storage)
63.5 x 25.4 x 10.3 mm
28g
SMA
* -45 to +85ºC
-55 to +100ºC
*option available
Ordering Information
UMDLD-1-500-AXX
Temp.Range 1 = 0 to 60ºC
2 = -45 to +85ºC
Supply Volts 1 =
±12V
2 =
±15V
3 =
±5V
08/2004
Pascall Electronics Limited,
Tel +44 (0) 1983 817300
Westridge Business Park,
Fax +44 (0) 1983 564708
Cothey Way,
Ryde, Isle of Wight
PO33 1QT UK
The right is reserved to amend the specifications of the products without notice
www.pascall.co.uk
