MM98PN-1: DescriptionTriple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size151KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MM98PN-1 Overview

Triple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE

MM98PN-1 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum frequency conversion loss	13.5 dB
Maximum operating frequency	19000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	TRIPLE BALANCED

Preview

Download Datasheet

View All

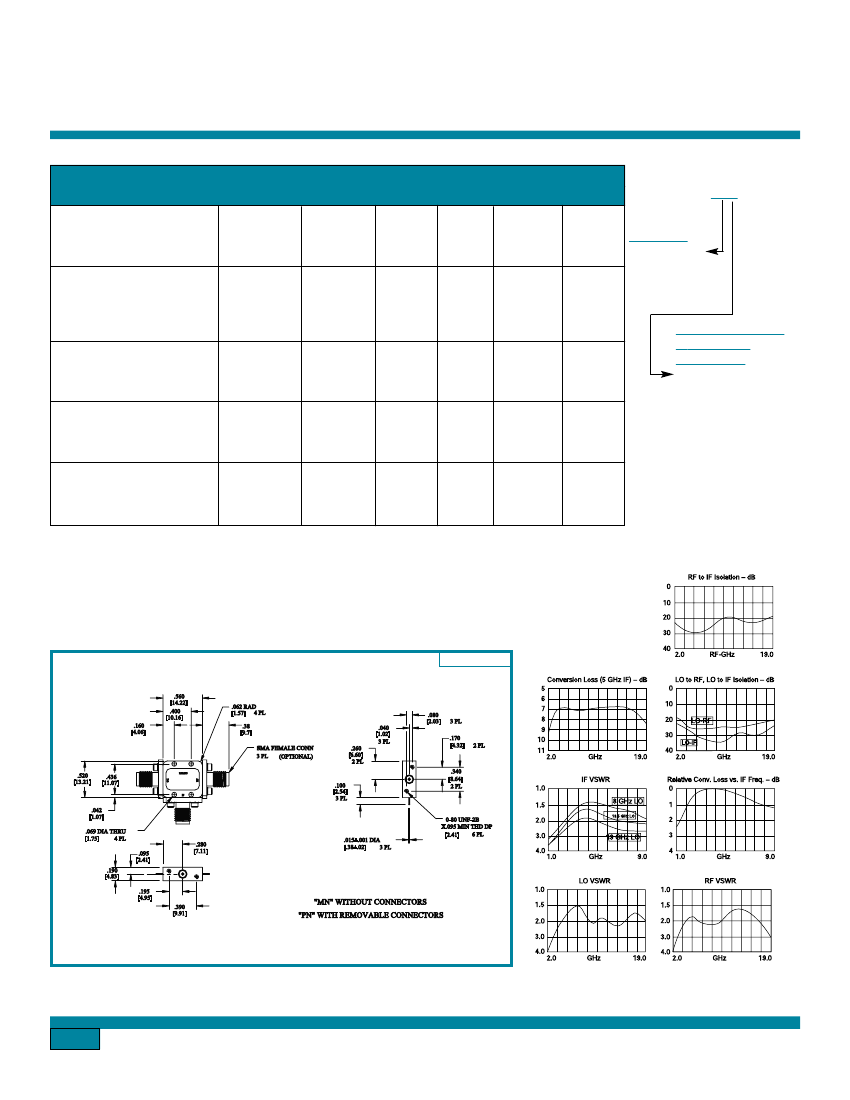

REMEC

Triple Balanced Mixer

Ultra-Broadband

Electrical Specifications

Parameter

SSB Conversion

loss:

(2) (3)

Isolation

LO to RF:

LO to IF:

RF to IF:

IF to RF:

Input 1-dB

Compression Point:

Input Third Order

Intercept Point:

LO Power:

(1)

RF 2.0-19.0 GHz

LO 2.0-19.0 GHz

IF 1.0-9.0 GHz

:

Conditions

RF(GHz)

3.0-17.0

3.0-19.0

2.0-19.0

LO(GHz)

3.0-17.0

3.0-19.0

2.0-19.0

1.0-9.0

IF(GHz)

2.0-6.0

2.0-8.0

1.0-9.0

Min

Specifications

Typical

7.0 dB

7.5 dB

8.0 dB

24 dB

30 dB

22 dB

25 dB

+5 dBm

+8 dBm

+12 dBm

+15 dBm

+14 dBm

+17 dBm

+21 dBm

+24 dBm

+10 dBm

+13 dBm

+17 dBm

+21 dBm

Max

9.5 dB

11.0 dB

12.5 dB

13.5 dB

MM9xxN-1

LO Power

4 = +10 dBm

6 = +13 dBm

7 = +17 dBm

8 = +21 dBm

Drop-In Module or

With SMA(F)

Connectors

M = Module

P = With Connectors

2.0-19.0

15 dB

17 dB

2.0-19.0

1.0-9.0

(4)

2.0-19.0

1.0-9.0

MM94

MM96

MM97

MM98

MM94

MM96

MM97

MM98

MM94

MM96

MM97

MM98

Notes:

1. Specifications are guaranteed when tested as a downconverter in a 50 Ohm system from -55°C to +100°C

with the nominal LO power. Specifications indicated as typical are not guaranteed.

2. Noise figure is typically within ±0.5 dB of conversion loss.

3. Conversion loss typically degrades less than 0.5 dB at +100°C and improves less than 0.5 dB at -55°C.

4. Usable LO drives are up to 2 dB below and 3 dB above nominal.

Typical

Performance

at 25°C

MM9xxN-1

Outline: N

All dimensions are in inches and [mm].

Specifications subject to change without notice.

3-47

1590 Buckeye Drive - Milpitas, CA 95035 - TEL: 408-432-9898 - FAX: 408-432-1551 - components@remec.com - www.remec.com

MM98PN-1 Related Products

	MM98PN-1	MM97PN-1	MM97MN-1	MM94MN-1	MM96PN-1	MM98MN-1	MM96MN-1	MM94PN-1
Description	Triple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE	Triple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE	Triple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE	Triple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE	Triple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE	Triple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE	Triple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE	Triple Balanced Mixer, 2000MHz Min, 19000MHz Max, 13.5dB Conversion Loss-Max, HERMETIC SEALED PACKAGE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	MODULE	MODULE	COAXIAL	MODULE	MODULE	COAXIAL
Maximum frequency conversion loss	13.5 dB	13.5 dB	13.5 dB	13.5 dB	13.5 dB	13.5 dB	13.5 dB	13.5 dB
Maximum operating frequency	19000 MHz	19000 MHz	19000 MHz	19000 MHz	19000 MHz	19000 MHz	19000 MHz	19000 MHz
Minimum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	TRIPLE BALANCED	TRIPLE BALANCED	TRIPLE BALANCED	TRIPLE BALANCED	TRIPLE BALANCED	TRIPLE BALANCED	TRIPLE BALANCED	TRIPLE BALANCED
Maker	Spectrum Microwave	Spectrum Microwave	-	-	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
