MASWSS0094

Description
IC,RF SWITCH,SINGLE,DPDT,GAAS,LLCC,12PIN,PLASTIC
CategoryWireless rf/communication    Radio frequency and microwave
File Size138KB,5 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

MASWSS0094 Overview

IC,RF SWITCH,SINGLE,DPDT,GAAS,LLCC,12PIN,PLASTIC

MASWSS0094 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codeunknown
1dB compression point29 dBm
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals12
on time0.09 µs
Maximum operating frequency6000 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeLCC12,.12SQ,20
power supply3/5 V
RF/Microwave Device TypesDPDT
surface mountYES
technologyGAAS

MASWSS0094 Preview

GaAs Broadband DPDT Diversity Switch
DC - 6.0 GHz
Features
802.11a + b/g Dual Band Applications
Broadband Performance: DC - 6.0 GHz
Low Insertion Loss: 0.7 dB @ 2.4 GHz
1.0 dB @ 4.9 to 6.0 GHz
High Isolation: 43 dB @ 2.4 GHz
30 dB @ 4.9 to 6.0 GHz
Fast Switching Speed: 0.5 µm GaAs PHEMT
Low Cost 3 mm 12-Lead PQFN Package
Lead-Free Package Available: MASWSS0129
Known Good Die Available
MASWSS0094
V6
Functional Schematic
GND
Rx
Tx
Pin 1
GND
GND
Vc1
GND
GND
Vc2
Description
M/A-COM’s MASWSS0094 is a broadband GaAs
PHEMT MMIC diversity switch available in a low
cost 3 mm 12-lead PQFN package or as known
good die. The MASWSS0094 is ideally suited for
applications where very small size and low cost are
required.
Typical applications are for WLAN IEEE 802.11a
and 802.11b/g systems that employ two antennas
for transmit and receive diversity. Other applications
include cordless phones and base stations.
Designed for high power, this DPDT switch
maintains high linearity up to 6.0 GHz.
The MASWSS0094 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and
reliability.
ANT1
Pin Configuration
3 mm 12-Lead PQFN Package
Pin
No.
1
2
3
4
5
Pin Name
GND
GND
V
C1
ANT1
GND
ANT2
V
C2
GND
GND
Rx
GND
Tx
Paddle
3
Description
Ground
Ground
Control 1
Antenna Port 1
Ground
Antenna Port 2
Control 2
Ground
Ground
Receive Port
Ground
Transmit Port
RF and DC Ground
Ordering Information
1
Part Number
MASWSS0094
MASWSS0094TR
MASWSS0094TR-3000
MASWSS0094SMB
MASWSS0094-DIE
6
7
Package
Bulk Packaging
7 inch, 1000 piece reel
13 inch, 3000 piece reel
Sample Test Board
(Includes 5 Samples)
Separated Die on Grip Ring
2
8
9
10
11
12
13
1. Reference Application Note M513 for reel size information.
2. Die quantity varies.
3. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
North America
Tel: 800.366.2266 / Fax: 978.366.2266
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
ANT2
GND
GaAs Broadband DPDT Diversity Switch
DC - 6.0 GHz
MASWSS0094
V6
Electrical Specifications: T
A
= 25°C, Z
0
= 50Ω, V
C
= 0
V
/ 3
V, 8 pF Capacitor
4
Parameter
Insertion Loss
5
Test Conditions
2.4 GHz
2 - 4 GHz
4 - 5 GHz
4.9 - 6 GHz
2.4 GHz
4.9 - 6 GHz
2.4 GHz
4.9 - 6 GHz
2.4 GHz
4.9 - 6 GHz
Two Tone, +15 dBm/Tone, 5 MHz Spacing, > 50 MHz
2.4 GHz
5.3 GHz
5.8 GHz
Two Tone, +15 dBm/Tone, 5 MHz Spacing, > 50 MHz
2.4 GHz
5.3 GHz
5.8 GHz
2.4 GHz
5.3 GHz
5.8 GHz
2.4 GHz, Pin = +20 dBm
5.8 GHz, Pin = +20 dBm
2.4 GHz, Pin = +20 dBm
5.8 GHz, Pin = +20 dBm
10% to 90% RF
90% to 10% RF
50% control to 90% RF, and 50% control to 10% RF
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBc
dBc
dBc
dBc
nS
nS
nS
mV
Min.
25
Typ.
0.70
0.75
0.90
1.00
43
30
11
20
23
15
93
86
84
52
50
50
33
31
31
-75
-77
-69
-86
35
60
90
6
6
Max.
1.30
1.55
25
Isolation
6
(on/off or off/on)
Isolation
(on/on or off/off)
Return Loss
IP2
IP3
Input P-1dB
2
nd
Harmonic
3
rd
Harmonic
Trise, Tfall
Ton, Toff
Transients
Control Current
|Vc| = 3 V
µA
4. For positive voltage control, external DC blocking capacitors are required on all RF ports.
5. Insertion loss can be optimized by varying the DC blocking capacitor value.
6. Isolation minimum specification guaranteed in final package assembly only.
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
North America
Tel: 800.366.2266 / Fax: 978.366.2266
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
GaAs Broadband DPDT Diversity Switch
DC - 6.0 GHz

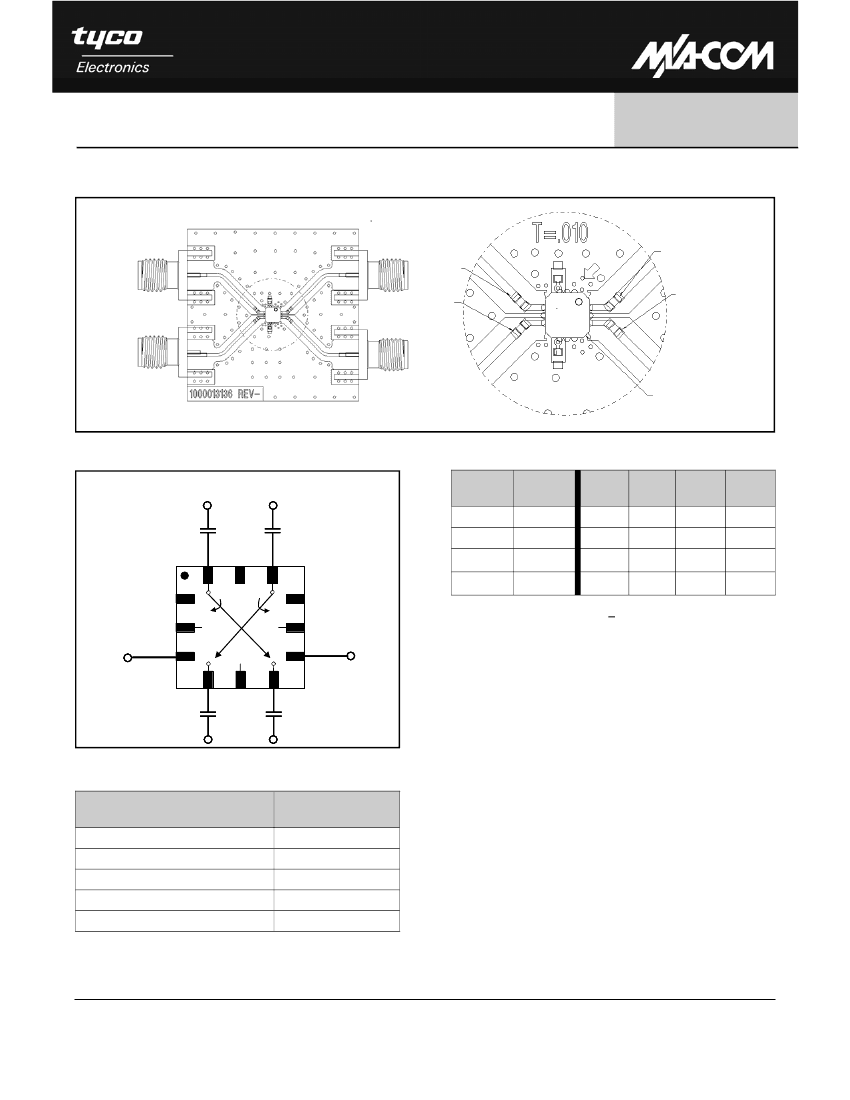

Evaluation Board for 3 mm 12-Lead PQFN Package
MASWSS0094
V6
C1
C4
C2
C3
U1
Application Schematic
C1, C2, C3, C4 = 8 pF
Truth Table
9,10
Control
V
C
1
1
C2
Control
V
C
2
0
1
1
0
ANT 1 ANT 1 ANT 2 ANT 2
- Rx
- Tx
- Tx
- Rx
On
Off
Off
Off
Off
On
Off
Off
On
Off
Off
Off
Off
On
Off
Off
C1
GND
Tx
0
1
0
GND
GND
Rx
GND
GND
9. 1 = +2.9 V to +5 V, 0 = 0 V + 0.2 V.
10. Differential voltage, V(state 1) - V(state 0), must be 2.7 V
minimum and must not exceed 8.5 V.
Vc1
ANT1
ANT2
Vc2
Handling Procedures
Please observe the following precautions to avoid
damage:
C4
GND
C3
Absolute Maximum Ratings
7,8
Parameter
Input Power @ 3 V Control
Input Power @ 5 V Control
Voltage
Operating Temperature
Storage Temperature
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
Absolute
Maximum
+31 dBm
+34 dBm
±8.5 volts
-40°C to +85
°
C
-65
°
C to +150
°
C
7. Exceeding any one or combination of these limits may cause
permanent damage to this device.
8. M/A-COM does not recommend sustained operation near
these survivability limits.
3
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
North America
Tel: 800.366.2266 / Fax: 978.366.2266
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
GaAs Broadband DPDT Diversity Switch
DC - 6.0 GHz

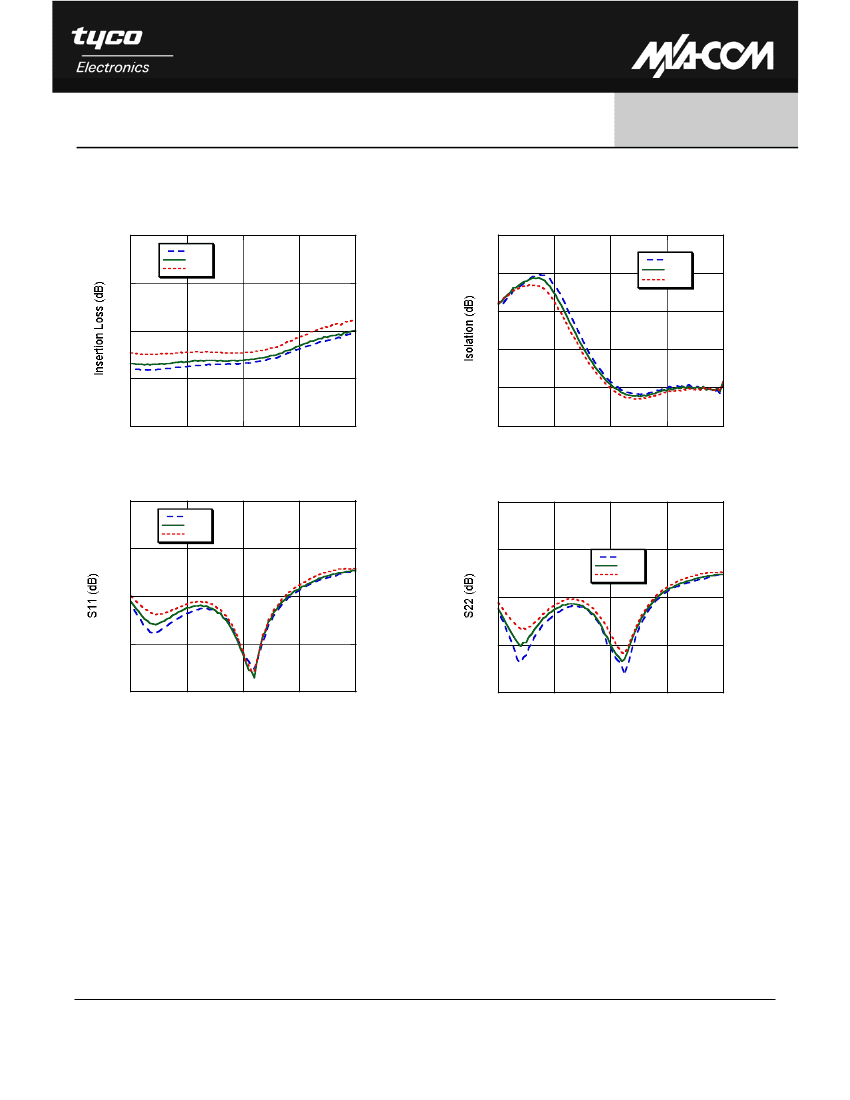

Typical Performance Curves, 8 pF Blocking Caps
Insertion Loss
2.0
-30°C
+25°C
+85°C
MASWSS0094
V6
Isolation
50
-30°C
+25°C
+85°C
45
1.5
40
1.0
35
0.5
30
0.0
2
3
4
5
6
25
2
3
4
5
6
Frequency (GHz)
Frequency (GHz)
Antenna Ports Return Loss
0
-30°C
+25°C
+85°C
Tx/Rx Ports Return Loss
0
-10
-10
-30°C
+25°C
+85°C
-20
-20
-30
-30
-40
2
3
4
5
6
-40
2
3
4
5
6
Frequency (GHz)
Frequency (GHz)
4
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
North America
Tel: 800.366.2266 / Fax: 978.366.2266
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
GaAs Broadband DPDT Diversity Switch
DC - 6.0 GHz

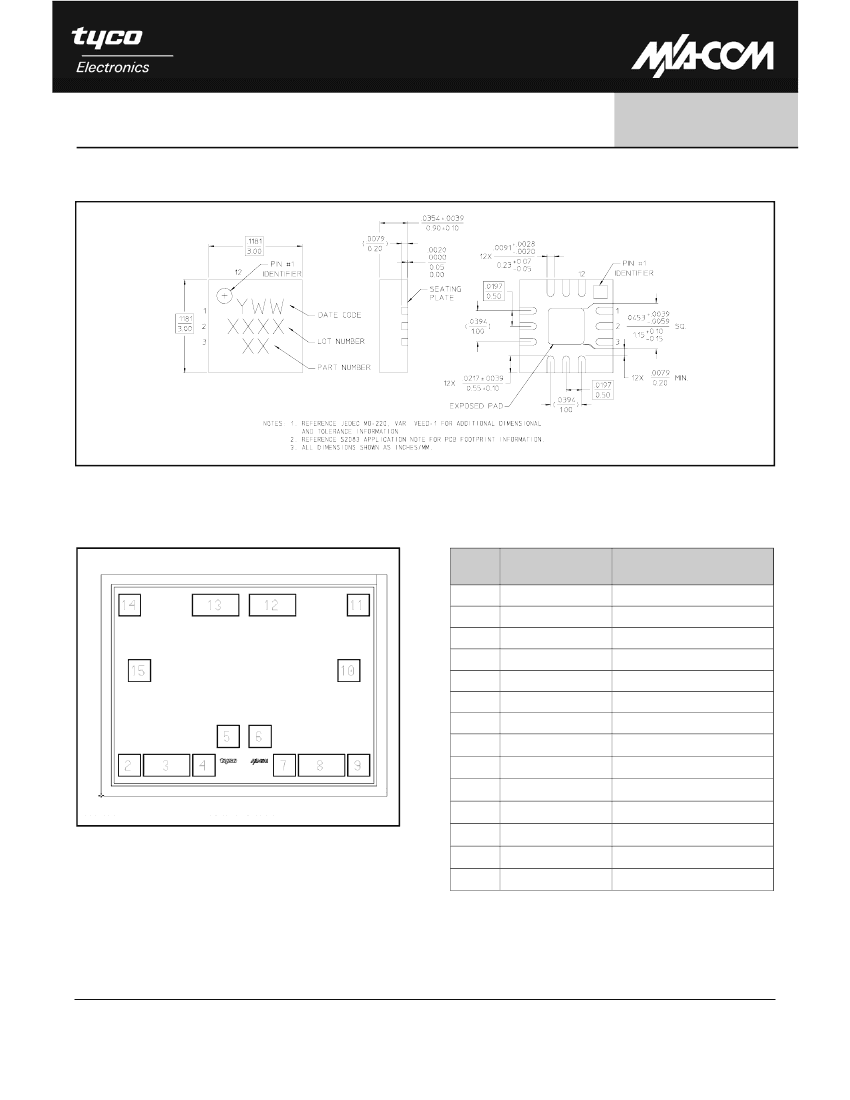

3 mm 12-Lead PQFN
MASWSS0094
V6
MASWSS0094-DIE
Die Bond Pad Layout
Die Bond Pad Configuration
Pad
No.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Name
V
C1
GND
N/C
ANT1
ANT2
N/C
GND
V
C2
Rx
N/C
GND
GND
N/C
TX
Description
Control 1
Ground
No Connection
Antenna Port 1
Antenna Port 2
No Connection
Ground
Control 2
Receive Port
No Connection
Ground
Ground
No Connection
Transmit Port
5
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
North America
Tel: 800.366.2266 / Fax: 978.366.2266
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
GPIO pin multiplexing in C6455
In addition, when using GPIO, you also need to consider the pin reuse of the corresponding chip. Taking 6455 as an example, the GPIO pin reuse is as shown in the figure below:It can be seen that most ...
火辣西米秀 DSP and ARM Processors
PIC's I2C interface slave communication error, failed to send data
1. Use STM32 chip as host, PIC16F677 as slave for data acquisition. The host implements IIC communication in analog mode, the rate is 400K, and the slave is implemented by configuring related IIC regi...
张皓翔 Microchip MCU
Recommended internally by Huawei Core Network Development Department, all the places this time are Huawei ones!
Work location: Beijing (Interview location: Beijing) Job position: Software Engineer, Senior Software Engineer Job Description 1) Responsible for the design and development of communication product so...
tvee Embedded System
If you need a remote monitoring solution, please contact me
If you have plans for schools, factories, supermarkets, governments, etc., please feel free to share your ideas!...
poeipc Industrial Control Electronics
Motor Control TMC260 Technical Inquiry
[table] [tr][td][backcolor=rgb(222, 240, 251)]The newly designed motor driver module uses the TMC260 chip, which can drive the motor normally. However, no matter whether the motor is stalled or not, i...
天命风流 Motor Drive Control(Motor Control)
Newbie, what does this mean?
0 1 2 3 4 5 6 7 8 9 ABCDEF 0123456789ABCDEF 22:0FC0h: 51 5C AA 85 AF 82 0C 95 23 6B 9B 8F B0 65 FB 5F Q\......#k...e._ I can understand that 23 6B is hexadecimal ASCII and is #k. In the program it exp...
stingxing Embedded System

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1422  538  760  157  1609  29  11  16  4  33
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
