IDT74FCT162374ATEG datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74FCT162374ATEG

IDT74FCT162374ATEG: DescriptionBus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.635 INCH PITCH, CERPACK-48; Categorylogic logic; File Size231KB，8 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

IDT74FCT162374ATEG Overview

Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.635 INCH PITCH, CERPACK-48

IDT74FCT162374ATEG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	DFP
package instruction	0.635 INCH PITCH, CERPACK-48
Contacts	48
Reach Compliance Code	compliant
series	FCT
JESD-30 code	R-GDFP-F48
JESD-609 code	e3
length	15.875 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum seat height	2.413 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	9.652 mm

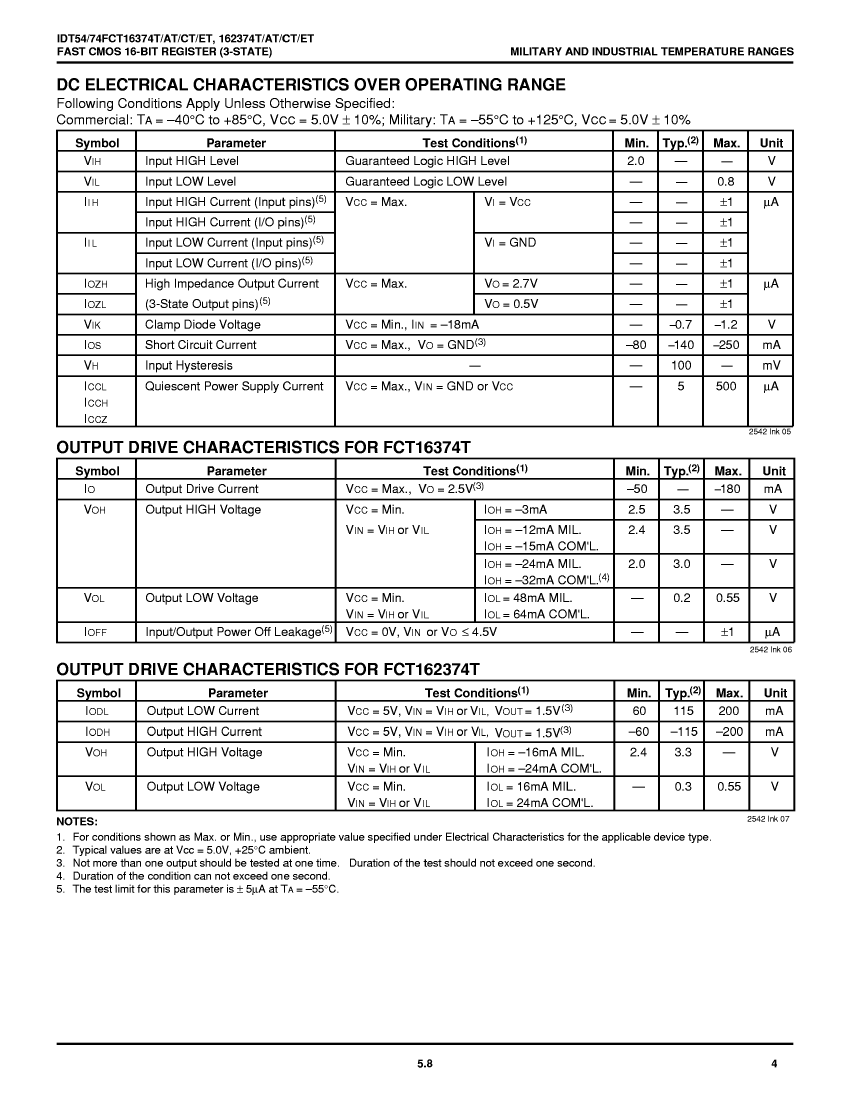

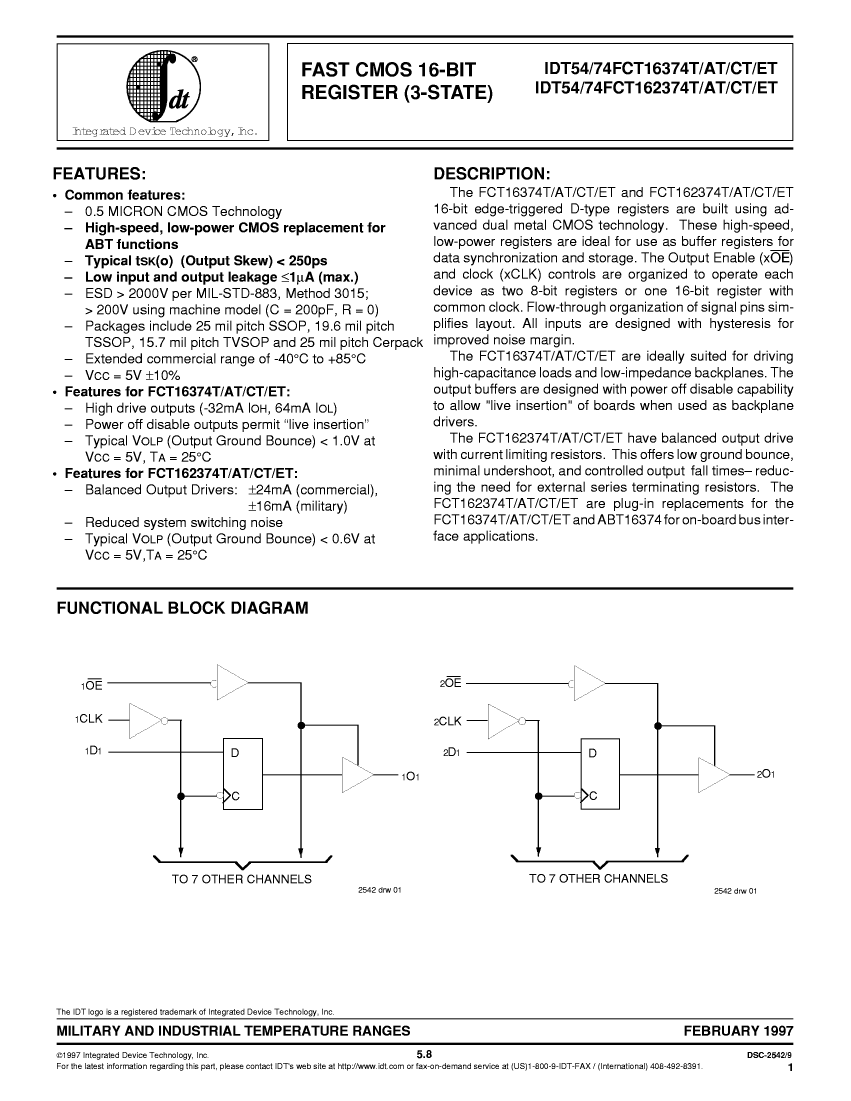

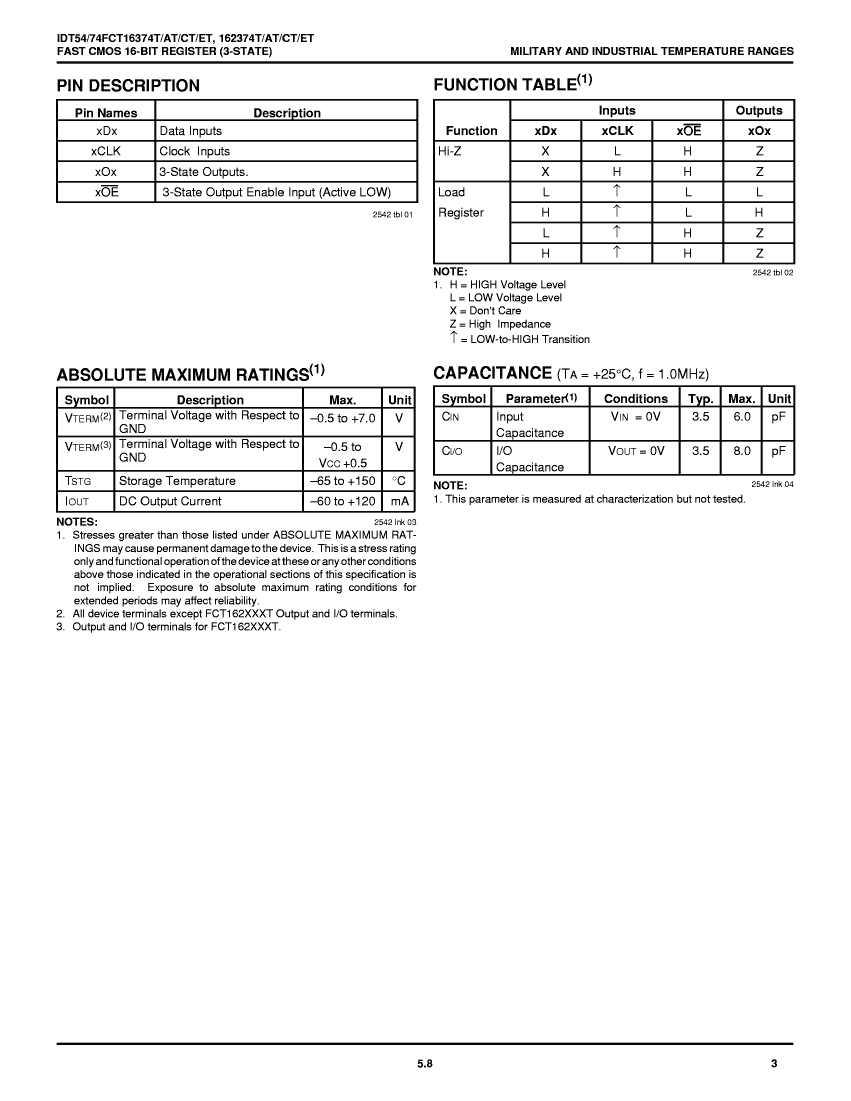

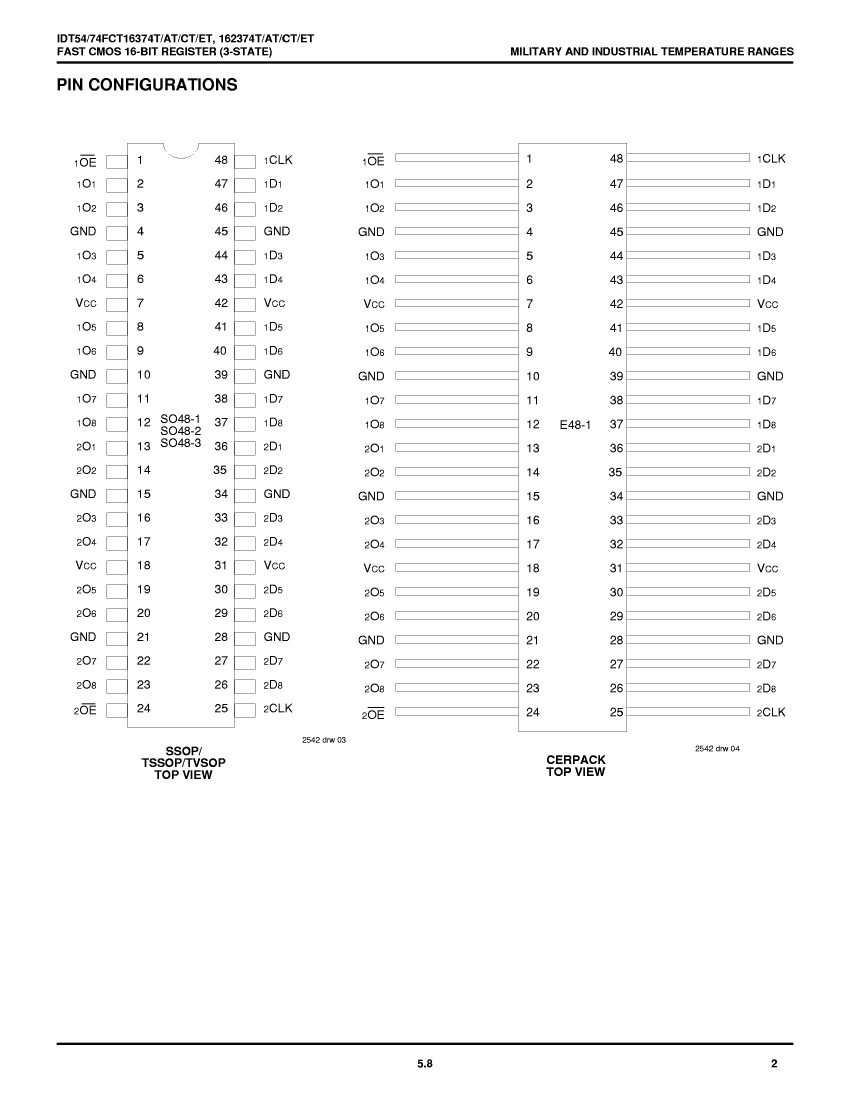

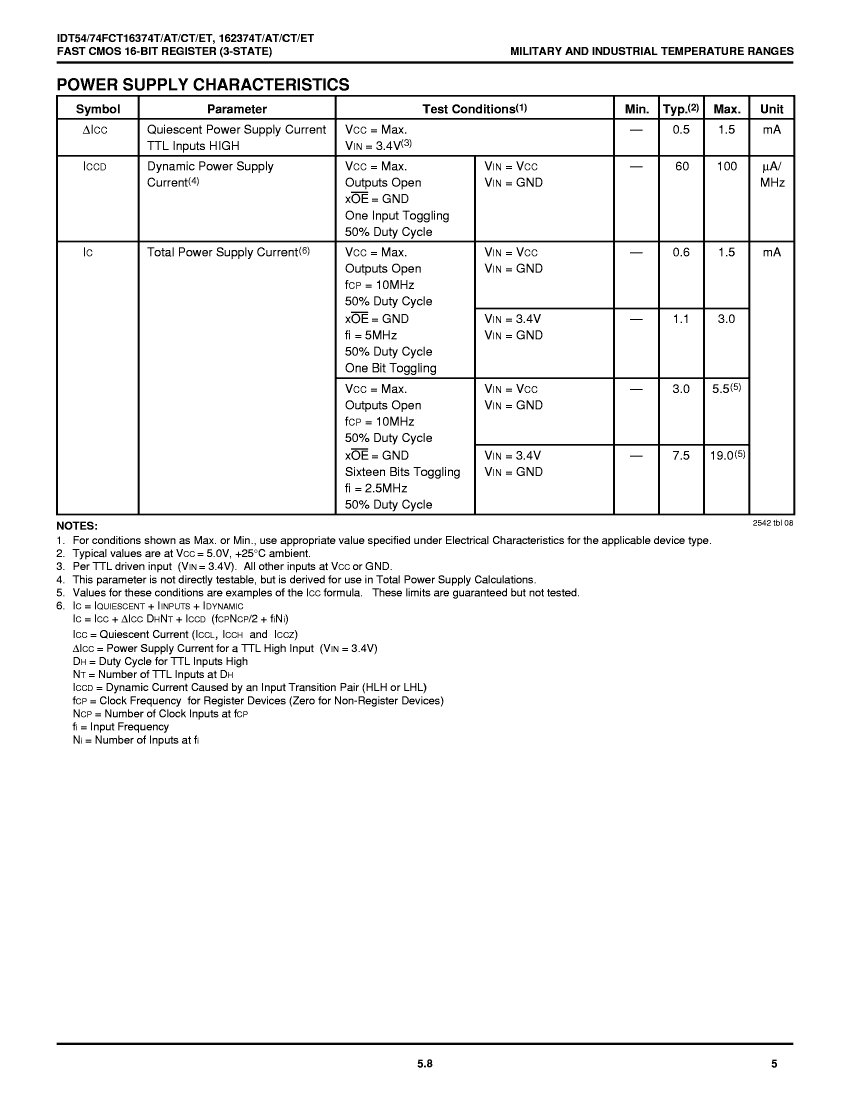

IDT74FCT162374ATEG Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

IDT74FCT162374ATEG Related Products

	IDT74FCT162374ATEG	IDT74FCT162374ETEG	IDT74FCT162374TEG
Description	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.635 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.635 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.635 INCH PITCH, CERPACK-48
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	DFP	DFP	DFP
package instruction	0.635 INCH PITCH, CERPACK-48	0.635 INCH PITCH, CERPACK-48	0.635 INCH PITCH, CERPACK-48
Contacts	48	48	48
Reach Compliance Code	compliant	compliant	compli
series	FCT	FCT	FCT
JESD-30 code	R-GDFP-F48	R-GDFP-F48	R-GDFP-F48
JESD-609 code	e3	e3	e3
length	15.875 mm	15.875 mm	15.875 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8
Number of functions	2	2	2
Number of ports	2	2	2
Number of terminals	48	48	48
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	260	260	260
propagation delay (tpd)	6.5 ns	3.7 ns	10 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.413 mm	2.413 mm	2.413 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	FLAT	FLAT	FLAT
Terminal pitch	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30
width	9.652 mm	9.652 mm	9.652 mm
