UPD23C16000WG5-XXX-7JF: DescriptionMASK ROM, 2MX8, 120ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-44; Categorystorage storage; File Size299KB，24 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD23C16000WG5-XXX-7JF Overview

MASK ROM, 2MX8, 120ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-44

UPD23C16000WG5-XXX-7JF Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	120 ns
Other features	USER CONFIGURABLE AS 1M X 16
JESD-30 code	R-PDSO-G44
length	18.41 mm
memory density	16777216 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	44
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
organize	2MX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	MOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm

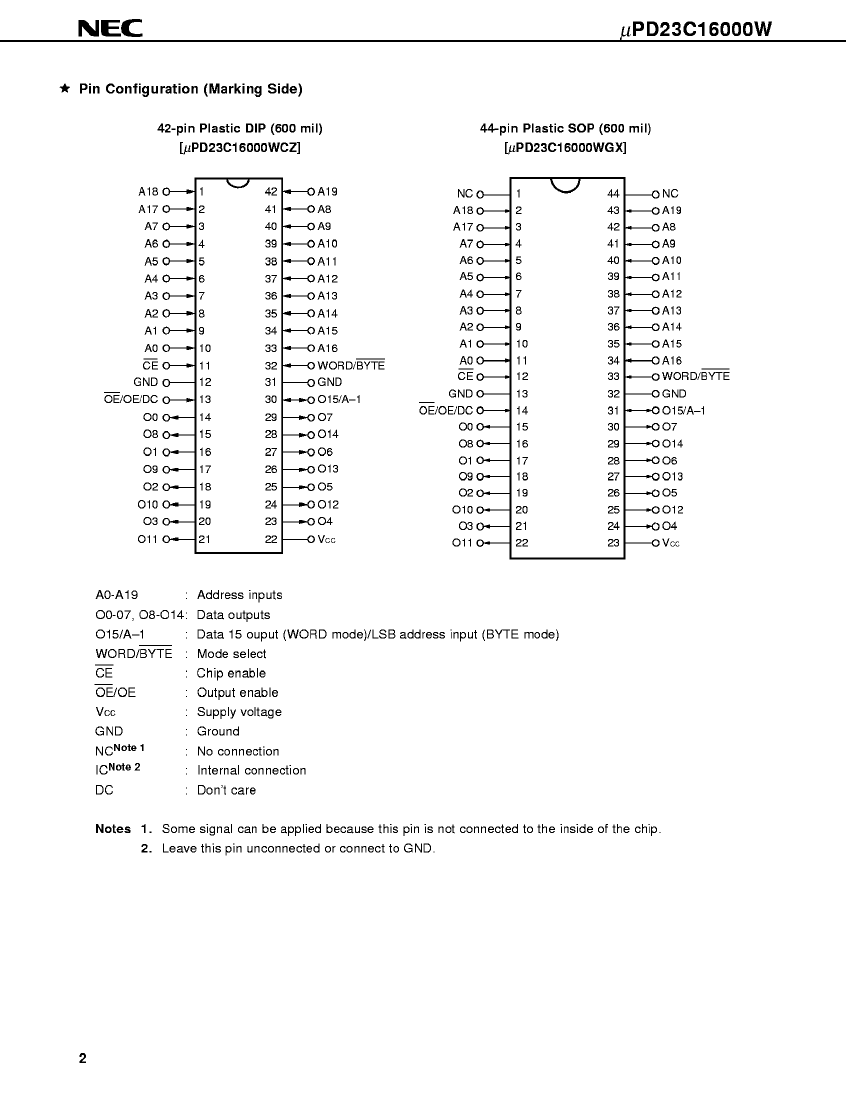

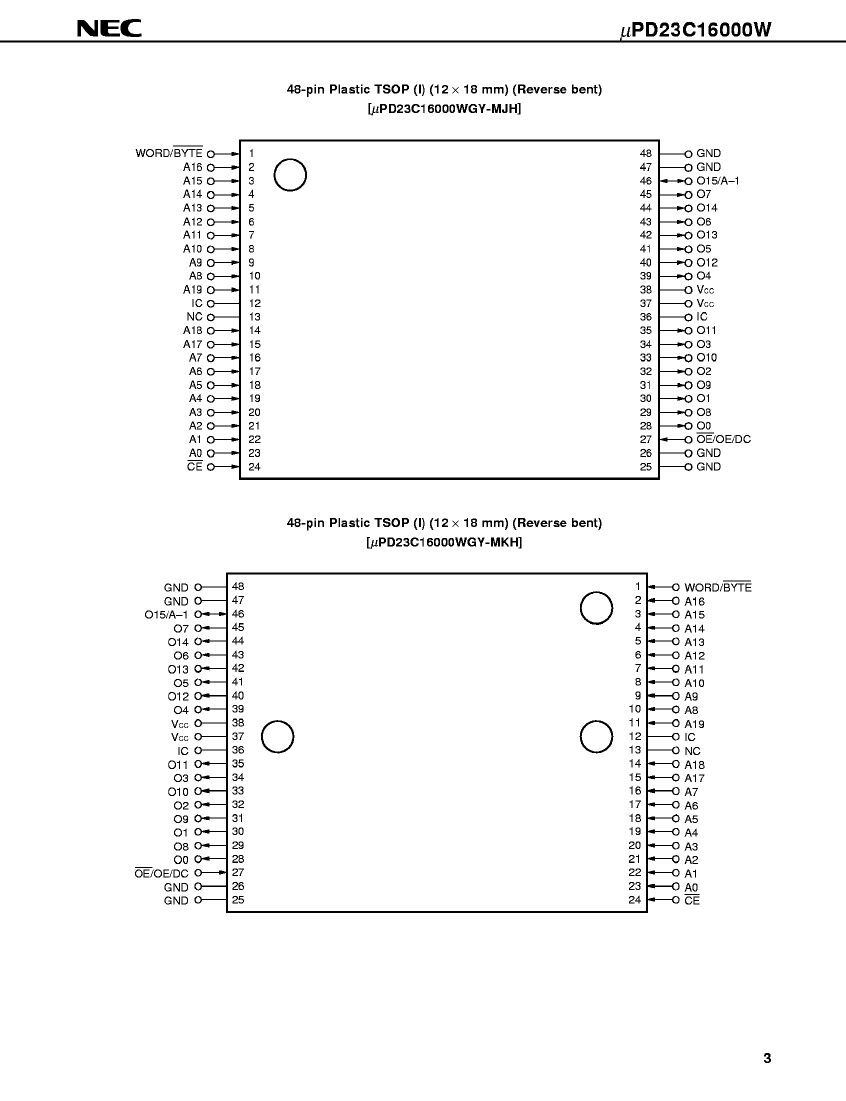

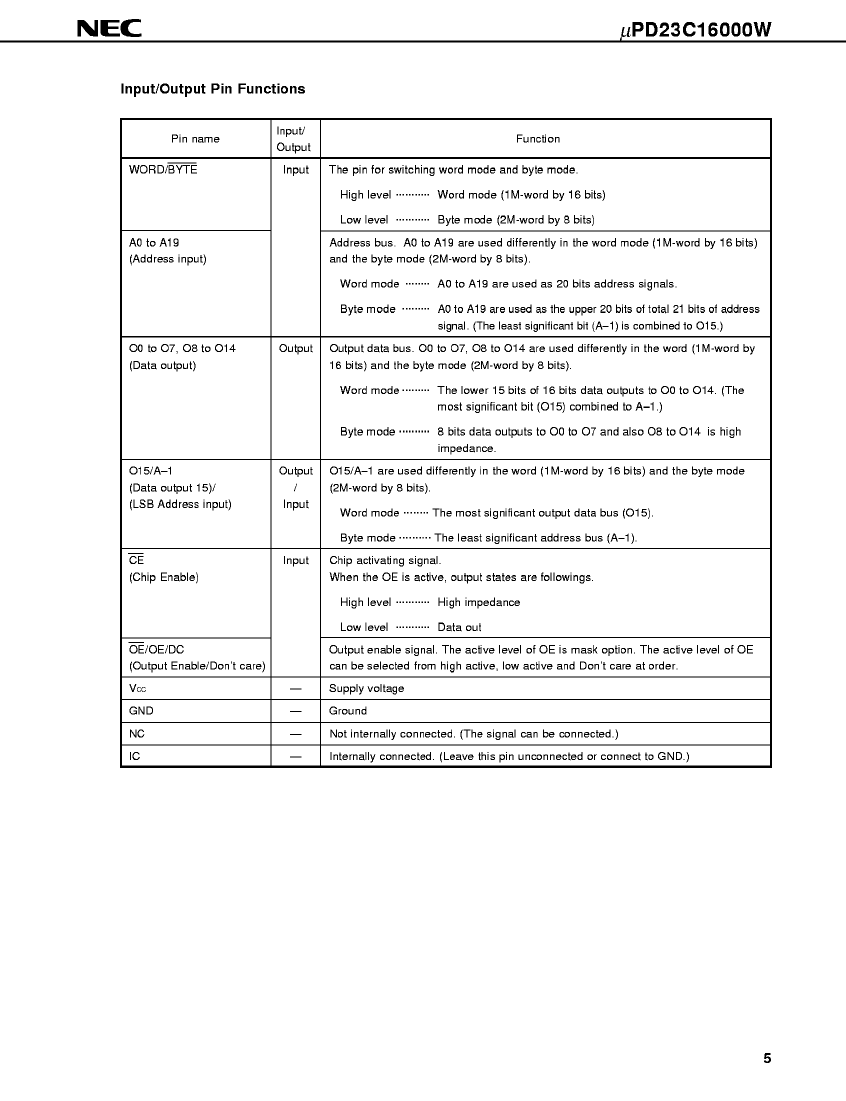

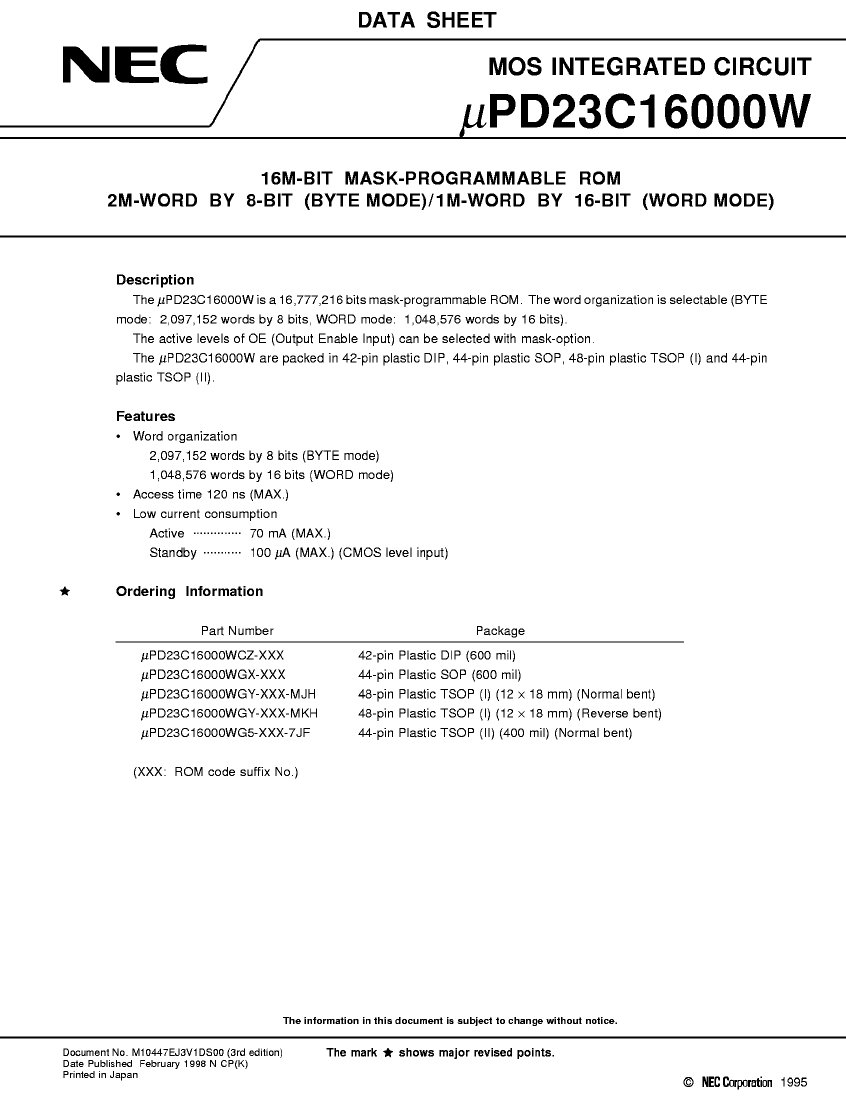

Preview

Download Datasheet

UPD23C16000WG5-XXX-7JF Related Products

	UPD23C16000WG5-XXX-7JF	UPD23C16000WGY-XXX-MKH	UPD23C16000WCZ-XXX	UPD23C16000WGX-XXX	UPD23C16000WGY-XXX-MJH
Description	MASK ROM, 2MX8, 120ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-44	MASK ROM, 2MX8, 120ns, MOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48	MASK ROM, 2MX8, 120ns, MOS, PDIP42, 0.600 INCH, PLASTIC, DIP-42	MASK ROM, 2MX8, 120ns, MOS, PDSO44, 0.600 INCH, PLASTIC, SOP-44	MASK ROM, 2MX8, 120ns, MOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48
Parts packaging code	TSOP2	TSOP1	DIP	SOIC	TSOP1
package instruction	TSOP2,	TSOP1-R,	DIP,	SOP,	TSOP1,
Contacts	44	48	42	44	48
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	120 ns	120 ns	120 ns	120 ns	120 ns
Other features	USER CONFIGURABLE AS 1M X 16	USER CONFIGURABLE AS 1M X 16	USER CONFIGURABLE AS 1M X 16	USER CONFIGURABLE AS 1M X 16	USER CONFIGURABLE AS 1M X 16
JESD-30 code	R-PDSO-G44	R-PDSO-G48	R-PDIP-T42	R-PDSO-G44	R-PDSO-G48
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	44	48	42	44	48
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
organize	2MX8	2MX8	2MX8	2MX8	2MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP1-R	DIP	SOP	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	5.72 mm	3 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES
technology	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.5 mm	2.54 mm	1.27 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	12 mm	15.24 mm	13.24 mm	12 mm
Maker	NEC Electronics	-	NEC Electronics	NEC Electronics	NEC Electronics
length	18.41 mm	16.4 mm	-	27.83 mm	16.4 mm
