PS-5 Series
PHASE SHIFTERS, MANUAL
5 to 200 MHz / 0 to 360 Continuously Variable / 10% Bandwidth / BNC Connectors
PRINCIPAL SPECIFICATIONS
Model
Number
PS-5-***B
Center
Frequency,
f
o
, MHz
5 to 200
Usable
Bandwidth
f
o
±
5%
GENERAL SPECIFICATIONS
Phase Shift Range:
Insertion Loss:
Impedance:
VSWR:
CW Power:
Drive:
Drive Rotation for
maximum phase shift:
Weight, nominal:
Operating Temp:
360° min. @ f
o
2 dB max.
50
Ω
nom.
1.75:1 max.
1 Watt max.
Knob/Lock
Half-Turn nom.
16 oz (455 g)
-- 55° to +85°C
For complete Model Number replace *** with desired Center Frequency, f
o
in MHz.

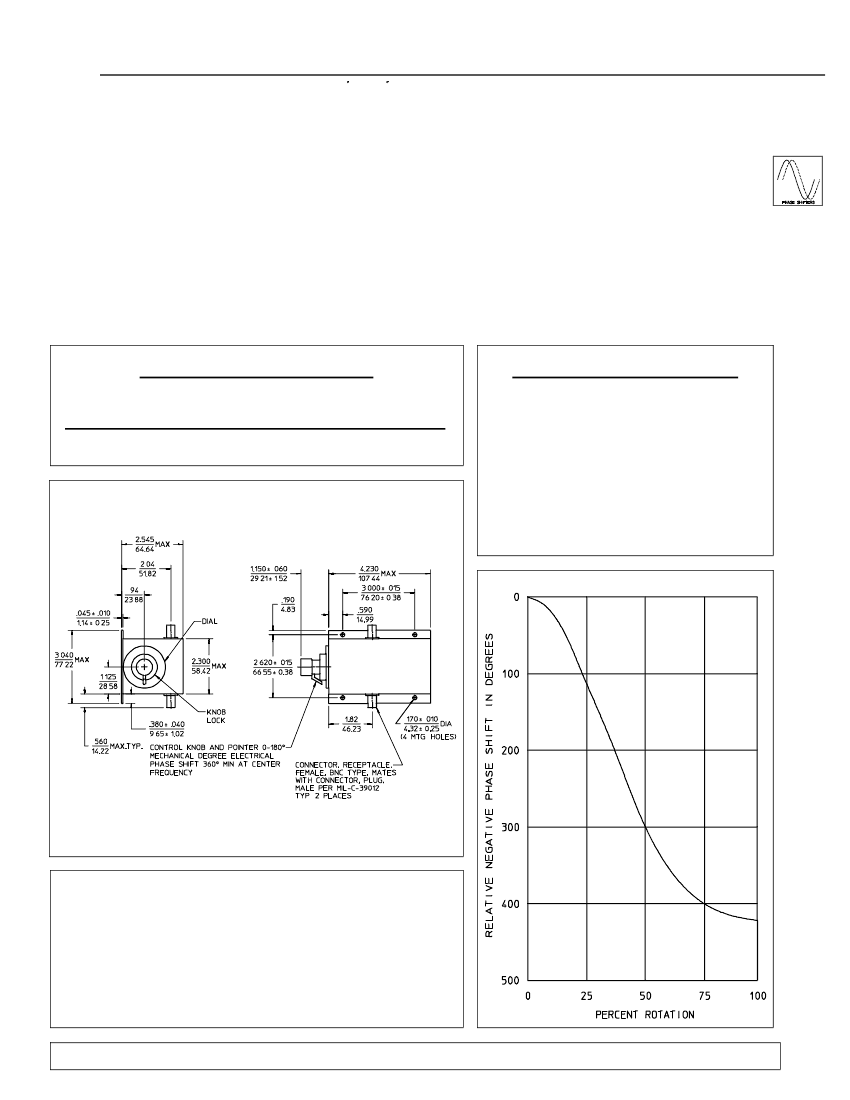

Package Outline
Typical Performance
NOTES:
1. Tolerance on 3 place dimensions
±0.20
(0.51) except as noted.
2. Insertion loss increases with clockwise rotation of knob.
3. Dimensions in inches over millimeters.
4. Dial is uncalibrated.
General Notes:
1. The PS-5 series of manual phase shifters covers the 5 to 200 MHz frequency
range providing continuously variable phase shift 0° to 360°. This is
accomplished by cascading two 180° shifters for a total of 360°. A lock is
provided to avoid unintentionally changing the intended setting.
2. These models employ a pair of lumped element quadrature hybrids with
matched pairs of L-C networks acting as sliding short circuits on the outputs.
The electrical length of the shorts effectively delays the reflected signal which
appears at the isolated ports of the quad hybrids.
3. Merrimac Phase Shifters are designed for high reliability, and can be supplied
screened for specific applications.
15Feb96
F rf t e if r to c n a t
M ERRI AC /41 Faifel Pl,W estCal
o ur h r n o ma in o t c
M
ri d .
dwel,NJ,07006 / 973575-
l
1300 /FAX 973- 0531
575-
