SR-TMIN-D-I: DescriptionRF Coaxial Relay, SPDT, Failsafe, 0.266A (Coil), 28VDC (Coil), 7448mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size95KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

SR-TMIN-D-I Overview

RF Coaxial Relay, SPDT, Failsafe, 0.266A (Coil), 28VDC (Coil), 7448mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount,

SR-TMIN-D-I Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN INDICATOR
body width	25.4 mm
body height	43.94 mm
Body length or diameter	25.4 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.266 A
Coil power	7448 mW
Coil resistance	105.3 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum insertion loss	0.3 dB
Maximum isolation	60 dB
Manufacturer's serial number	SR
Installation features	PANEL MOUNT
Maximum operating frequency	18000 MHz
Minimum operating frequency
physical size	25.4mm X 25.4mm X 43.94mm
Relay action	FAILSAFE
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	15 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

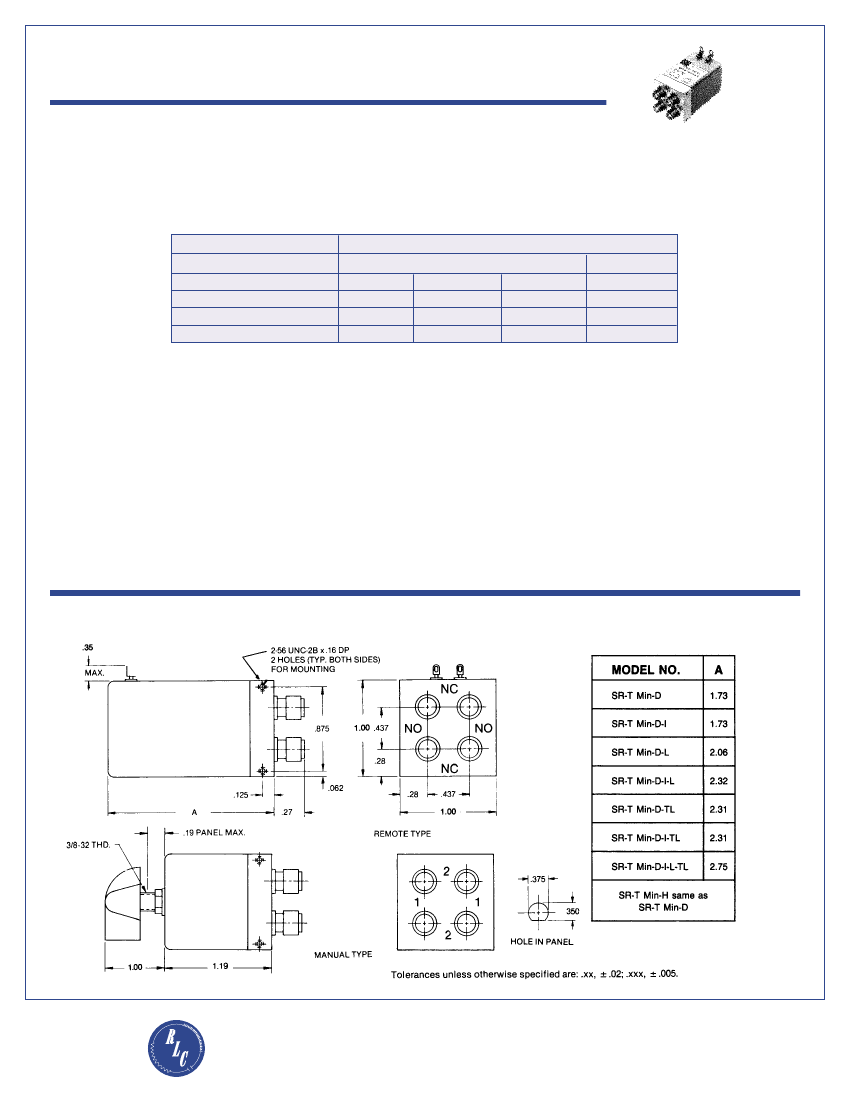

Miniature Transfer Coaxial Switches

This RLC Electronics' Miniature Transfer Switch line provides

extremely high reliability, long life and outstanding electrical

performance and features extremely low insertion loss

and VSWR over the entire DC-18 GHz range, with an option

to 26.5 GHz, while maintaining high isolation.

Specifications

S

1-

T

MIN

-2-3-4-5-6

Switch Type

Frequency Range

Frequency (GHz)

Insertion Loss (Max dB)

VSWR (Max)

Isolation (dB Min)

DC-4.0

0.1

1.2

80

TRANSFER

DC-18GHz

4.0-12.4

0.2

1.3

70

12.4-18.0

0.3

1.5

60

OPTION

18 - 26.5

1.0

2.0

45

Power Rating, RF Cold Switching:

See page 5.

Impedance:

50 Ohms

Operating Power 25°C:

(Failsafe):

12Vdc at 650 ma nom.

28Vdc at 266 ma nom. 115 Vac at 50 ma nom.

(Latching):

12 Vdc at 180 ma nom. 28 Vdc at 90 ma nom.

115 Vac at 225 ma nom. Current applied 10 ms min.

cutthroat circuitry(standard), recovery time 100 ms nom.

Connectors, RF:

SMA Female

Connectors, Power:

Feed through solder lugs.

Life:

1,000,000 operations.

Switching Time:

15 mS Max.

Weight:

3 oz.

Environmental Conditions:

MIL-S-3928

Operating Mode:

Manual, failsafe or latching.

Switching Sequence:

Break before make.

To designate the switch desired use:

(1) “M” for Manual, “R” for Remote.

(2) “A” for 115 Vac, “D” for 28 Vdc or “H” for 12 Vdc.

(3) “I” for indicators if desired.

(4) “L” for latching cutthroat if desired

(5) “TL” for TTL Driver if desired

(6) “26” for 26.5 GHz operation

Example: SR-Tmin-D-I-L-26 is a remote, 28 Vdc; with indicators, latching cut throat switch. 26.5GHz operation.

Outline Drawing

RLC ELECTRONICS, INC.

24

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
