SENSITRON
SEMICONDUCTOR
Technical Data
Data Sheet 2916, Rev.C
MBR3035/3045CT
MBRB3035/3045CT
MBR3035/3045CT-1
MBR30…CT/MBRB30…CT/MBR30…CT-1
SCHOTTKY RECTIFIER
Applications:
•
•
•
•
•
•
•
Switching power supply
•
Converters
•
Free-Wheeling diodes
•
Reverse battery protection
150
°
C T
J
operation
Center tap configuration
Low forward voltage drop
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and
moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
Features:
MBR30…CT
Case styles
MBRB30…CT
MBR30…CT-1
TO-220AB
D
2
PAK

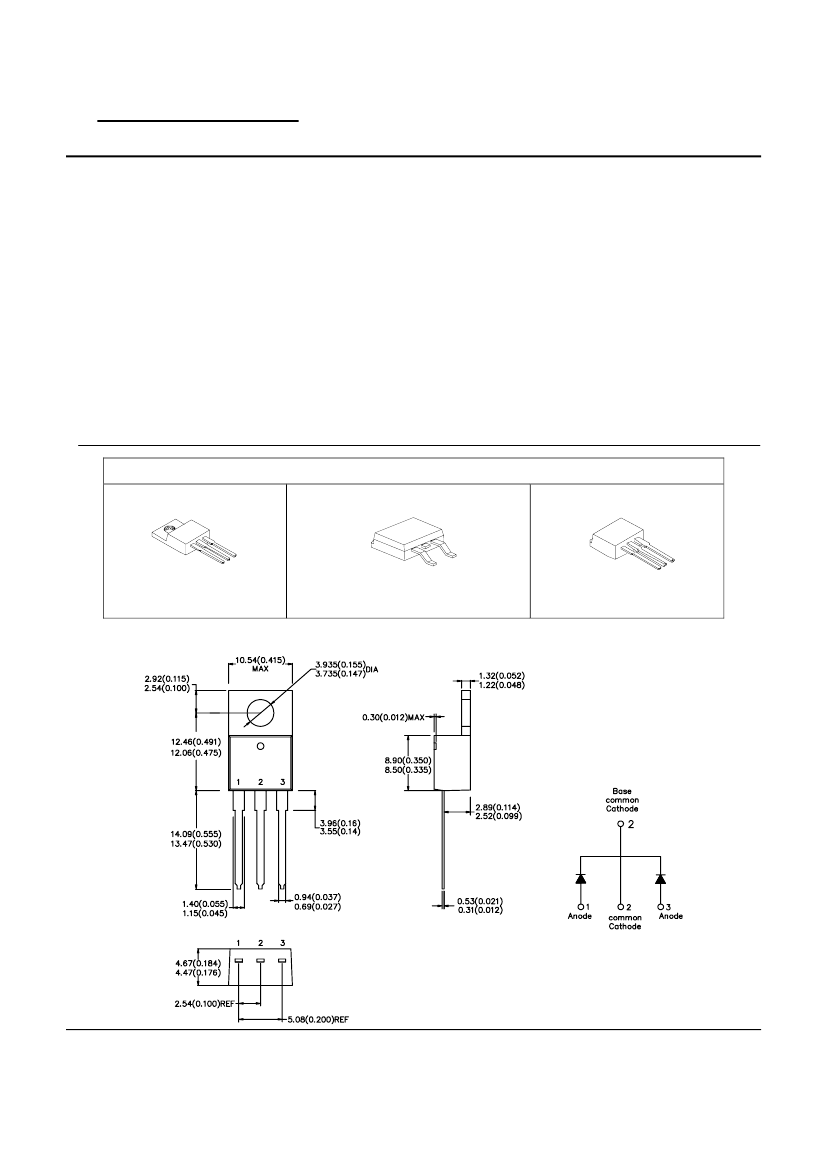

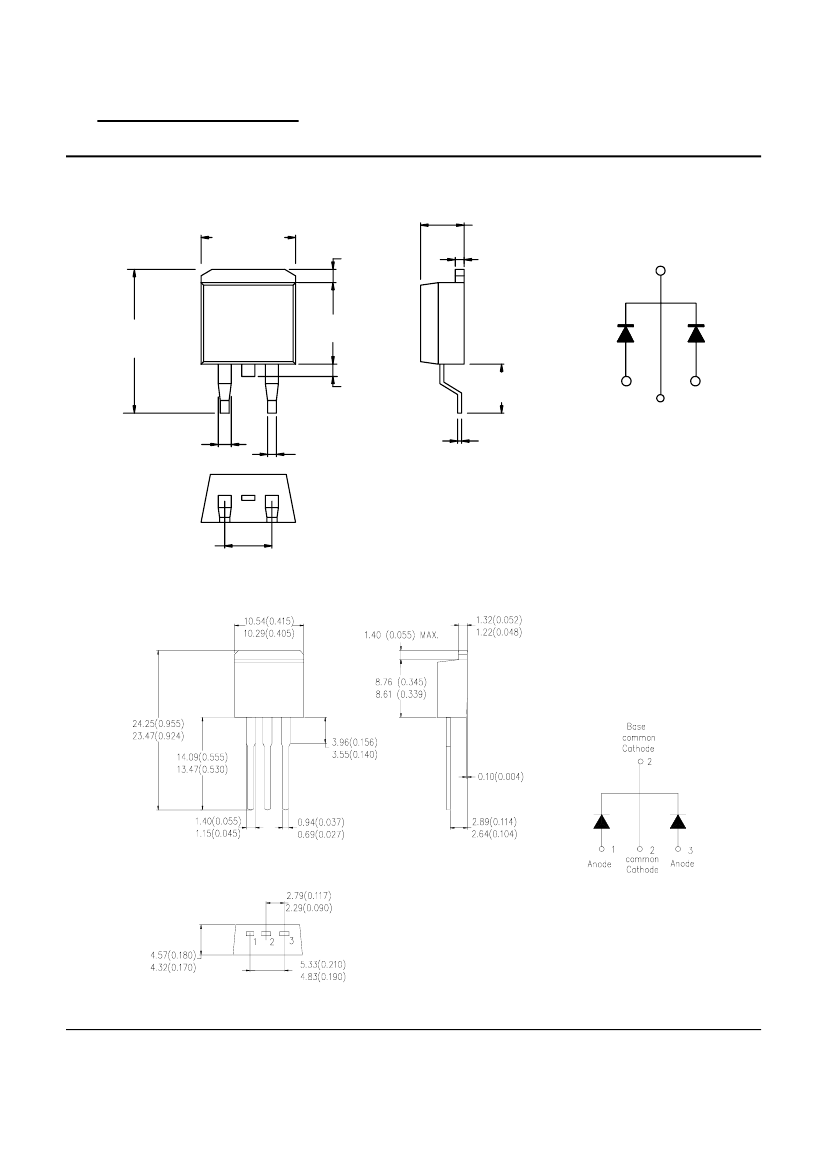

Mechanical Dimensions: In Inches / mm
TO-262
TO-220AB
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
Data Sheet 2916, Rev. C
MBR3035/3045CT
MBRB3035/3045CT
MBR3035/3045CT-1
Maximum Ratings:
Characteristics
Symbol
Condition
Max.
MBR3035CT
35
MBRB3035CT
MBR3035CT-1
MBR3045CT
45
MBRB3045CT
MBR3045CT-1
15(Per leg)
30(Per Device)
240
Units
Peak Inverse Voltage
V
RWM
-
V
Max. Average Forward
Max. Peak One Cycle Non-
Repetitive Surge Current
I
F(AV)
50% duty cycle @T
C
= 123°C,
rectangular wave form
8.3 ms, half Sine pulse
A
I
FSM
A
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
(per leg) *
Symbol
V
F1
V
F2
Max. Reverse Current
(per leg) *
I
R1
I
R2
Max. Junction Capacitance
(per leg)
Typical Series Inductance
(per leg)
Max. Voltage Rate of Change
*
Pulse Width < 300µs, Duty Cycle <2%
Condition
@ 30A, Pulse, T
J
= 25
°C
@ 15A, Pulse, T
J
= 125
°C
@ 30A, Pulse, T
J
= 125
°C
@V
R
= rated V
R
T
J
= 25
°C
@V
R
= rated V
R
T
J
= 100
°C
@V
R
= 4V, T
C
= 25
°C
f
SIG
= 1MHz
Measured lead to lead 5 mm from
package body
-
Max.
0.84
0.57
0.72
1.0
40
500
8.0
10,000
Units
V
V
mA
mA
pF
nH
V/µs
C
T
L
S
dv/dt
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
Maximum Thermal
Resistance, Case to Heat
Sink
Approximate Weight
Mounting Torque
Case Style
Symbol
T
J
T
stg
R
θJC
Condition
-
-
DC operation
Specification
-55 to +150
-55 to +150
1.6
Units
°C
°C
°C/W
DC operation
50
°C/W
g
Kg-cm
R
θJA
wt
T
M
-
-
2
6(Min.)
12(Max.)
2
TO-220AB D PAK TO-262
•
