CD40103BE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD40103BE

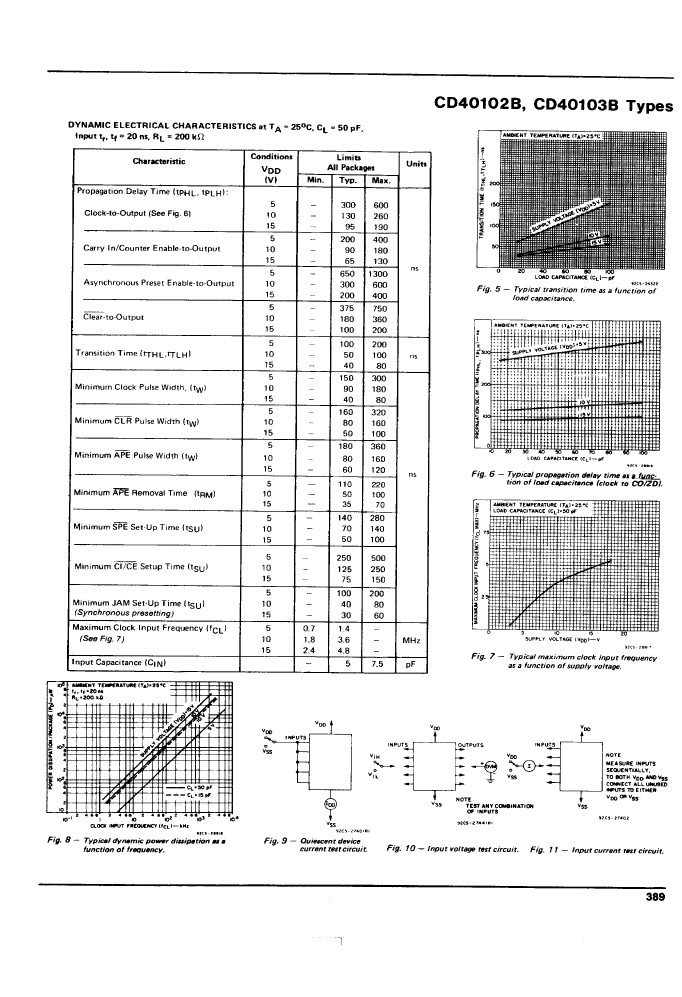

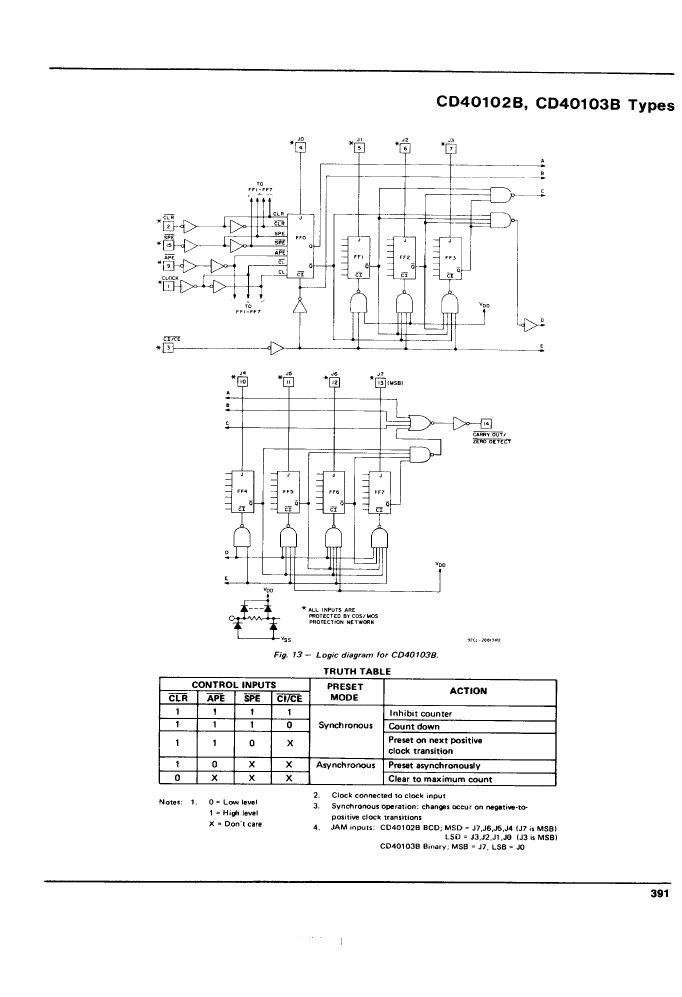

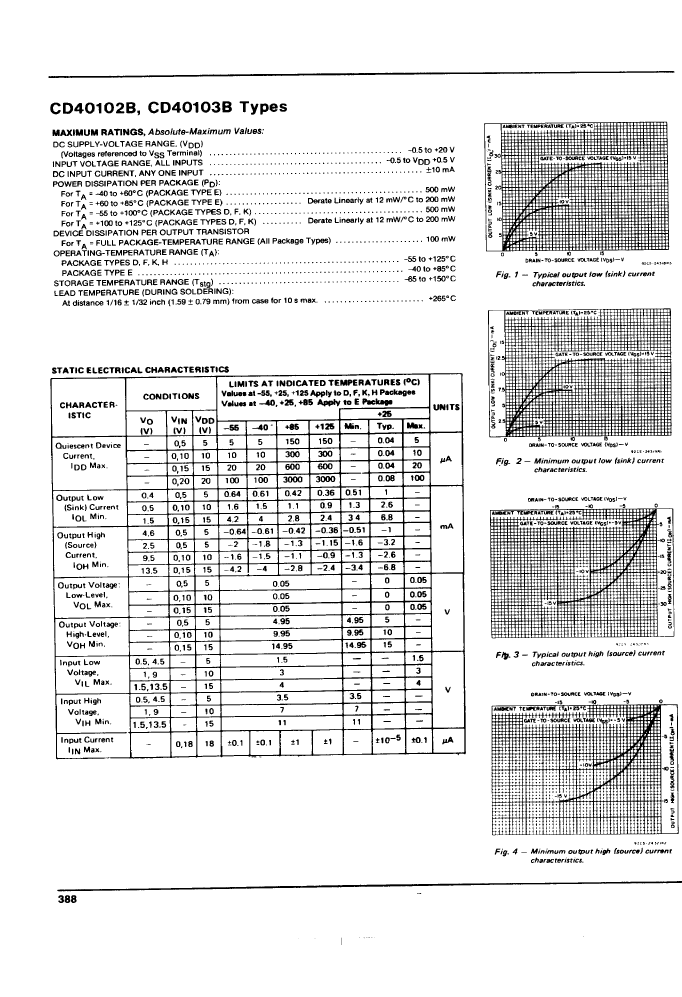

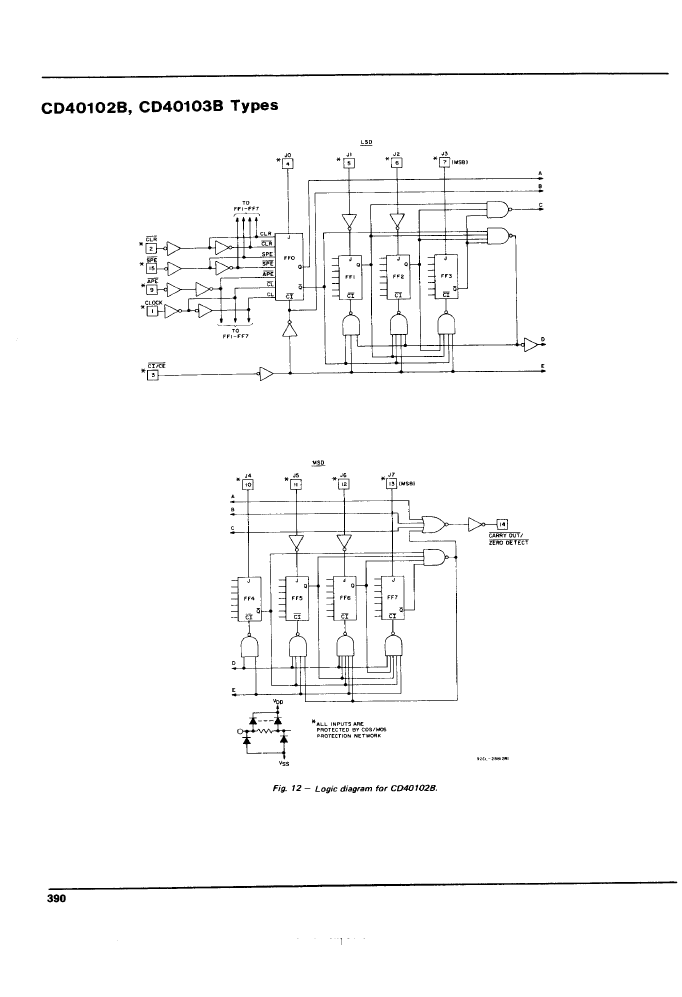

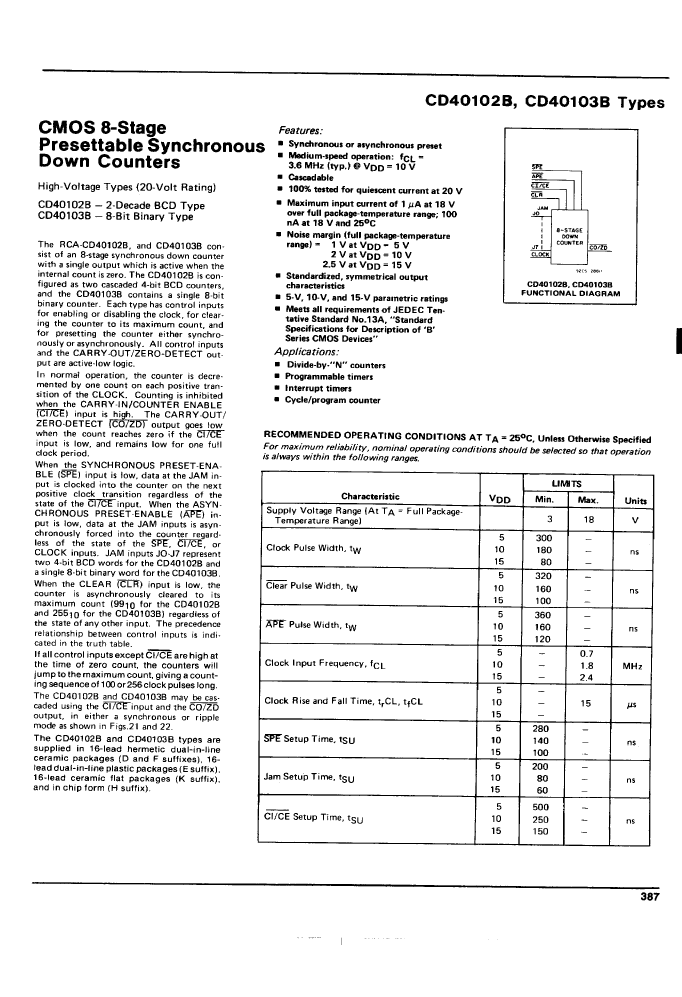

CD40103BE: DescriptionBinary Counter, Synchronous, Down Direction, CMOS, PDIP16,; Categorylogic logic; File Size324KB，7 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD40103BE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD40103BE	-	-	View	Buy Now

CD40103BE Overview

Binary Counter, Synchronous, Down Direction, CMOS, PDIP16,

CD40103BE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Counting direction	DOWN
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CD40103BE Related Products

	CD40103BE	CD40102BD	CD40102BE	CD40103BF	CD40103BD	CD40103BH	CD40102BH	CD40102BF
Description	Binary Counter, Synchronous, Down Direction, CMOS, PDIP16,	Binary Counter, Synchronous, Down Direction, CMOS, CDIP16,	Binary Counter, Synchronous, Down Direction, CMOS, PDIP16,	Binary Counter, Synchronous, Down Direction, CMOS, CDIP16,	Binary Counter, Synchronous, Down Direction, CMOS, CDIP16,	Binary Counter, Synchronous, Down Direction, CMOS,	Binary Counter, Synchronous, Down Direction, CMOS,	Binary Counter, Synchronous, Down Direction, CMOS, CDIP16,
Maker	RCA	RCA	RCA	RCA	RCA	RCA	RCA	RCA
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	, DIE OR CHIP	, DIE OR CHIP	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN
Load/preset input	YES	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	2	2	1	1	1	2	2
Maximum operating temperature	85 °C	125 °C	85 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIE OR CHIP	DIE OR CHIP	DIP16,.3
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	-	incompatible
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	-	-	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	-	-	e0
Number of terminals	16	16	16	16	16	-	-	16
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	-	-	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	-	-	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	-	IN-LINE
surface mount	NO	NO	NO	NO	NO	-	-	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	-	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	-	DUAL
