Datasheet> All Categories > Discrete semiconductor> diode> SMV1249-004

SMV1249-004: DescriptionVariable Capacitance Diode, 31pF C(T), 15V, Silicon, Hyperabrupt, PACKAGE-3; CategoryDiscrete semiconductor diode; File Size907KB，12 Pages; ManufacturerSkyworks; Websitehttp://www.skyworksinc.com

Download Datasheet Parametric Compare View All

SMV1249-004 Overview

Variable Capacitance Diode, 31pF C(T), 15V, Silicon, Hyperabrupt, PACKAGE-3

SMV1249-004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Skyworks
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	15 V
Configuration	COMMON CATHODE, 2 ELEMENTS
Minimum diode capacitance ratio	11
Nominal diode capacitance	31 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	2
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245
Maximum power dissipation	0.25 W
Certification status	Not Qualified
minimum quality factor	600
Maximum repetitive peak reverse voltage	15 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Varactor Diode Classification	HYPERABRUPT

Preview

Download Datasheet

View All

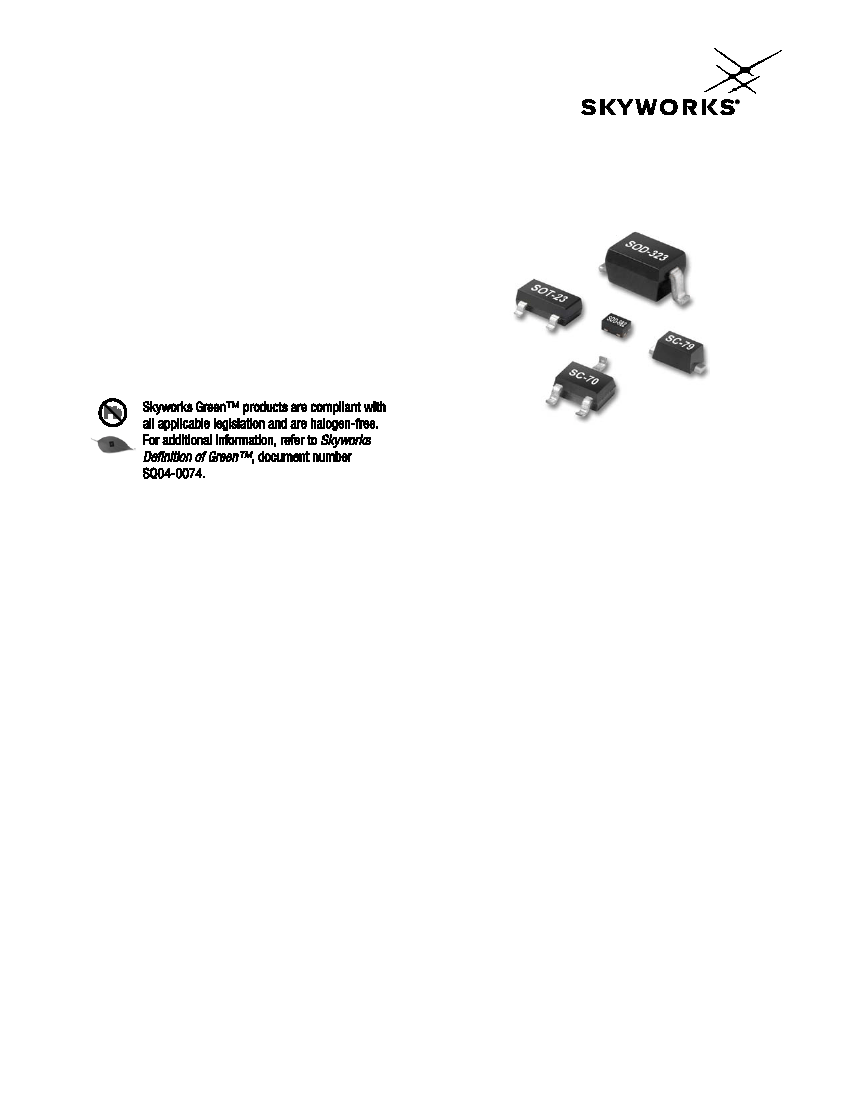

DATA SHEET

SMV1247-SMV1255 Series: Hyperabrupt Junction Tuning

Varactors

Applications

•

Low tuning voltage VCOs

•

High-volume commercial systems

Features

•

High capacitance ratio: C

0.3V

4.7V

= 12 typical

•

Packages rated MSL1, 260

°C

per JEDEC J-STD-020

Description

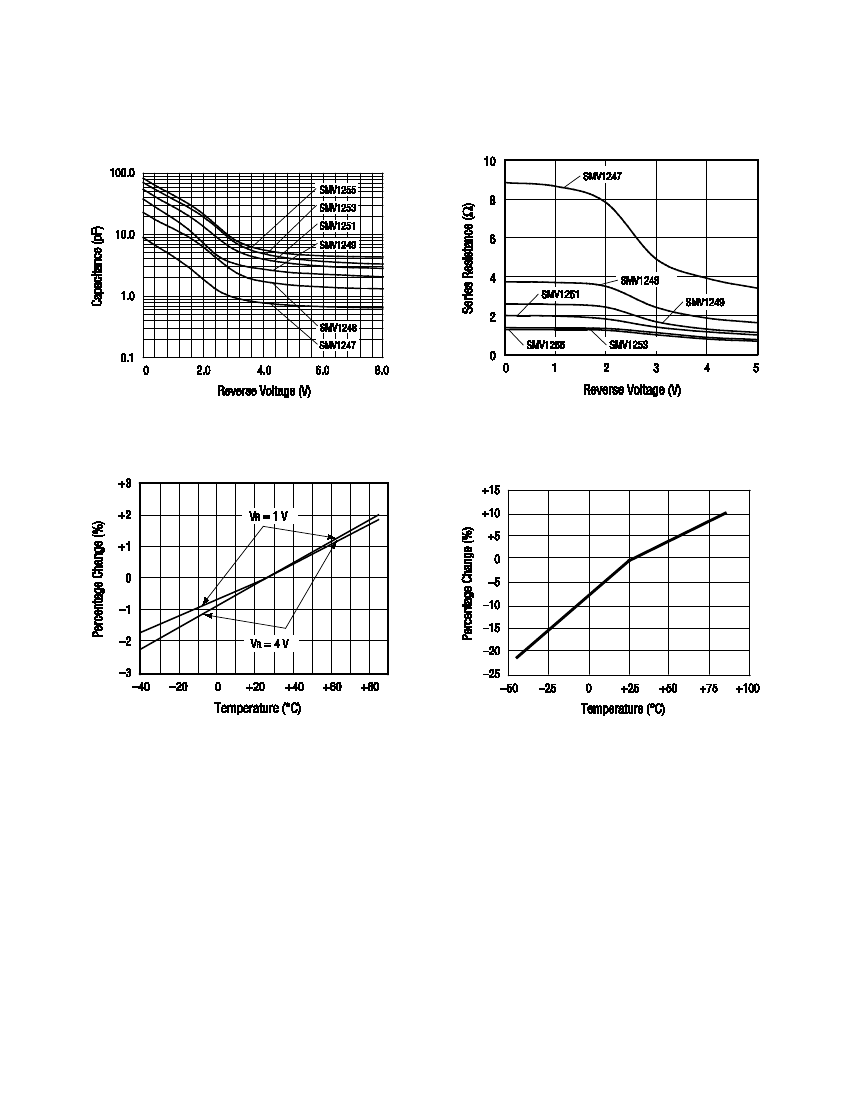

The SMV1247-SMV1255 group of silicon hyperabrupt junction

varactor diodes is designed for use in Voltage Controlled

Oscillators (VCOs) with a low tuning voltage operation. This group

of varactors is characterized for capacitance and resistance over

temperature.

Table 1 describes the various packages and markings of the

SMV1247 to SMV1255 varactors.

Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com

200061N • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • February 7, 2013

SMV1249-004 Related Products

	SMV1249-004	SMV1248-001LF	SMV1251-004LF	SMV1247-074LF	SMV1249-003LF	SMV1248-074LF
Description	Variable Capacitance Diode, 31pF C(T), 15V, Silicon, Hyperabrupt, PACKAGE-3	Variable Capacitance Diode, 17pF C(T), 15V, Silicon, Hyperabrupt, GREEN PACKAGE-3	Variable Capacitance Diode, 42pF C(T), 15V, Silicon, Hyperabrupt, GREEN PACKAGE-3	Variable Capacitance Diode, 7pF C(T), 15V, Silicon, Hyperabrupt, GREEN, SC-70, 3 PIN	Variable Capacitance Diode, 31pF C(T), 15V, Silicon, Hyperabrupt, GREEN PACKAGE-3	Variable Capacitance Diode, 17pF C(T), 15V, Silicon, Hyperabrupt, GREEN, SC-70, 3 PIN
Is it lead-free?	Contains lead	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	incompatible	conform to	conform to	conform to	conform to	conform to
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Minimum breakdown voltage	15 V	15 V	-	15 V	15 V	15 V
Configuration	COMMON CATHODE, 2 ELEMENTS	SINGLE	-	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Minimum diode capacitance ratio	11	10.8	-	9.5	11	10.8
Nominal diode capacitance	31 pF	17 pF	-	7 pF	31 pF	17 pF
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	-	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	-	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e3	-	e3	e3	e3
Number of components	2	1	-	2	2	2
Number of terminals	3	3	-	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245	260	-	260	260	260
Maximum power dissipation	0.25 W	0.25 W	-	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
minimum quality factor	600	700	-	1500	600	700
Maximum repetitive peak reverse voltage	15 V	15 V	-	15 V	15 V	15 V
surface mount	YES	YES	-	YES	YES	YES
Terminal surface	TIN LEAD	Matte Tin (Sn)	-	Tin (Sn)	Matte Tin (Sn)	Tin (Sn)
Terminal form	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	40	-	40	40	40
Varactor Diode Classification	HYPERABRUPT	HYPERABRUPT	-	HYPERABRUPT	HYPERABRUPT	HYPERABRUPT
Humidity sensitivity level	-	1	-	1	1	1
Base Number Matches	-	1	1	1	1	1
