84_SMS-50-0-1/111_NE

Description
RF Connector, Female, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size48KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

84_SMS-50-0-1/111_NE Overview

RF Connector, Female, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT

84_SMS-50-0-1/111_NE Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresCAPTIVATED
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPFA/PTFE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberSMS
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER

84_SMS-50-0-1/111_NE Preview

HUBER+SUHNER
®
DATA SHEET

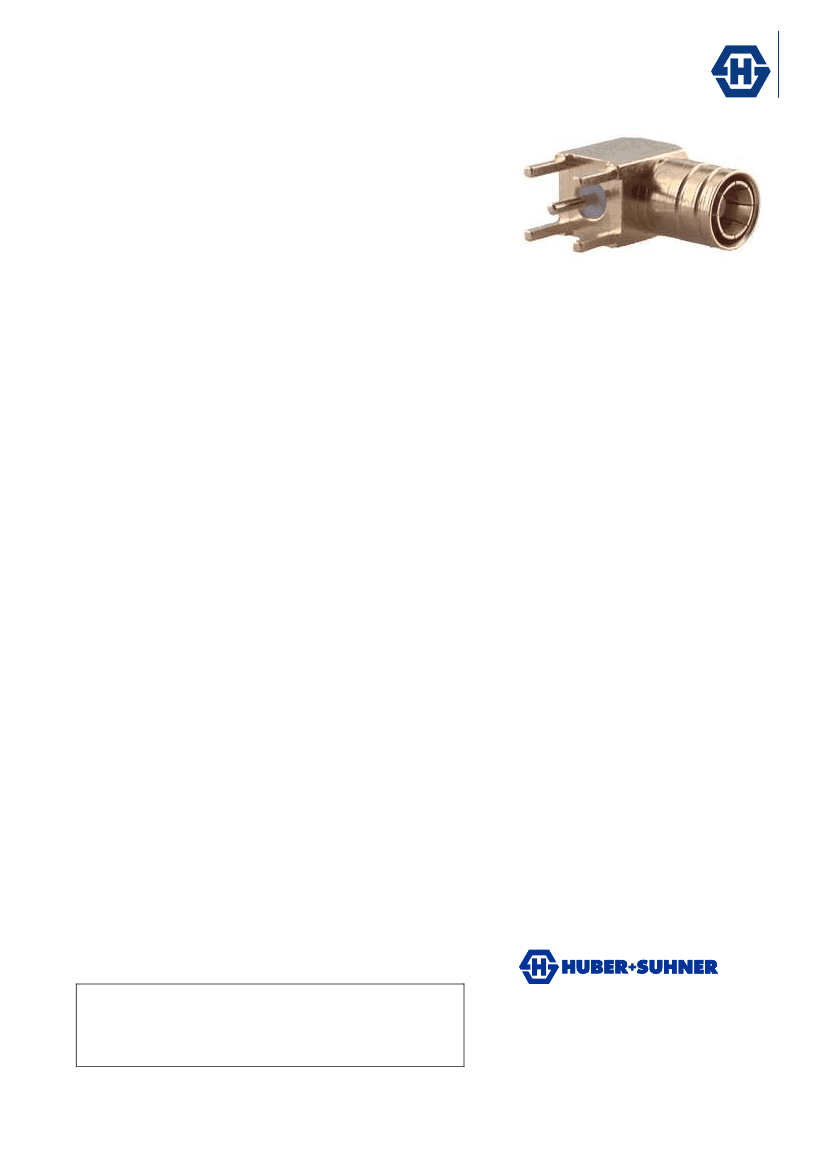

Coaxial PCB Connector: 84_SMS-50-0-1/111_N
Description
Rev.: C
Right angle PCB plug
Interface Standards
SUHNER-SMS
Technical Data
Electrical Data
Impedance
Interface frequency max.
50
4 GHz
through holes
0.0035 kg
-65 °C to 165 °C
compliant
Material
Copper Beryllium Alloy
Brass
Copper Beryllium Alloy
PFA / PTFE
DCA-00012876
84_SMS-50-0-1/111_NE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Mechanical Data
Board mounting type
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material Data
Related Documents
Catalogue drawing
Single package
Ordering Information
Remarks
PCB connector with stand-offs
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
Uncontrolled Copy
Page 1/1
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000193036 K
Issued: 09.08.11
