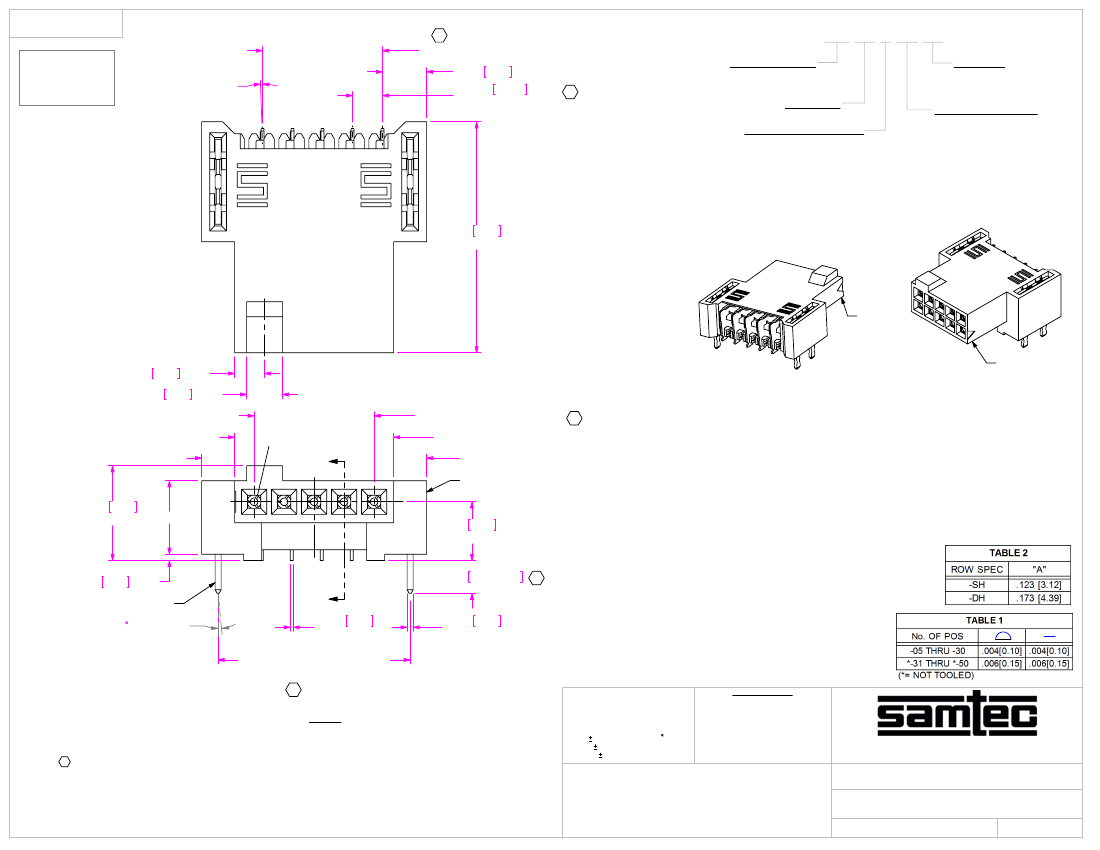

REVISION E
DO NOT
SCALE FROM
THIS PRINT
2° MAX SWAY
(EITHER DIRECTION)
C
(No OF POS - 1) X .050[1.27]
.074 1.87
.0500 1.270 (TYP)
C
(TOL NON-ACCUM)
SFM-1XX-XX-X-XH-TR
No OF POSITIONS
-05 THRU -30, *-31 THRU *-50
(PER ROW)
PACKAGE
-TR: TAPE & REEL
(SEE NOTE 5)
LEAD STYLE
ROW SPECIFICATION
-02
-SH: SINGLE HORIZONTAL
PLATING SPECIFICATION
-DH: DOUBLE HORIZONTAL
-L: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
(* = NOT TOOLED)
.385 9.78
REF
-SH
.050 1.27 REF
.060 1.52 REF
(No OF POS - 1) X .050[1.27]
C
01
-DH
(No OF POS - 1) X .050[1.27] + .065[1.65] REF
"A"
(No OF POS - 1) X .050[1.27] + .175[4.45] REF
SFM-XX-SH
.158 4.01
REF
"A" REF
.098 2.49
REF
C
L
.055±.004 1.39±0.10
C
.011 0.27 REF
WT-54-11-X
2 MAX SWAY
(EITHER DIRECTION)
"A"
.005 0.13
(TYP) REF
(No OF POS - 1) X .050[1.27]
+ .120[3.05]
C
SFM-105-02-X-SH SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
.010 0.25
REF (TYP)
*
PROPRIETARY NOTE
*
FIG 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM BURR ALLOWANCE: .0015[0.038].
3. MINIMUM PUSHOUT FORCE: .5 LB.
4. NOT RECOMMENDED FOR INVERTED REFLOW SOLDER.
5. FOR QUANTITIES UP TO 49 PIECES, NO LEADER, TRAILER, OR REEL WILL BE SUPPLIED.
FOR QUANTITIES OF 50-124 PIECES, NO LEADER OR TRAILER WILL BE SUPPLIED.
.XX: .01[0.3]
2
.XXX: .005[0.13]
.XXXX: .0020[0.051]
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 6:1
INSULATOR: VECTRA E130i UL 94V-0, COLOR: BLACK
CONTACT: PHOS BRONZE
.050 x .050 SOCKET STRIP ASSEMBLY
SFM-1XX-XX-X-XH-TR
11/22/2010
SHEET
1
OF
3
c:\enterprisevault\DWG\MISC\MKTG\SFM-1XX-XX-X-XH-TR-MKT.SLDDRW
BY:
VICKY Z

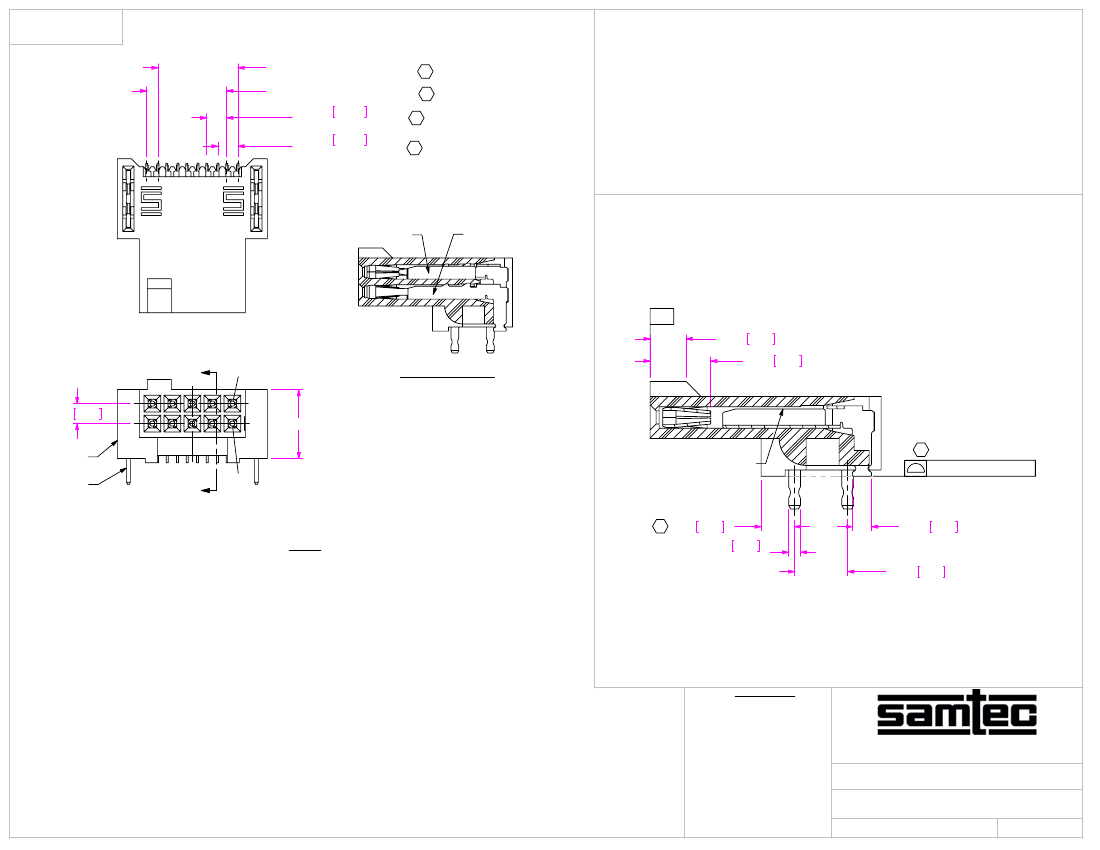

REVISION E
(No OF POS - 1) X .050[1.27]
C
(No OF POS - 1) X .050[1.27]
C
.0500 1.270 (TYP)
C
(TOL NON-ACCUM)
.0500 1.270 (TYP)
(TOL NON-ACCUM)
C
C-370-01-X
C-350-01-X
-C-
.060 1.52 REF
"B"
.050 1.27
02
SECTION "B"-"B"
.101 2.57 REF
"A" REF
C-350-01-X
C
SEE TABLE 1, SHEET 1
(LOCATE ASSY ON DATUM -C
FOR MEASUREMENT)
.032 0.81 (TYP) REF
SFM-05-DH
WT-54-01-X
"B"
C
.056 1.42
SFM-105-02-X-DH SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
C
L
01
FIG 2
.020 0.50
(TYP) REF
.089 2.25 REF
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050 x .050 SOCKET STRIP ASSEMBLY
SFM-1XX-XX-X-XH-TR
11/22/2010
SHEET
2
OF
3
c:\enterprisevault\DWG\MISC\MKTG\SFM-1XX-XX-X-XH-TR-MKT.SLDDRW
BY:
VICKY Z

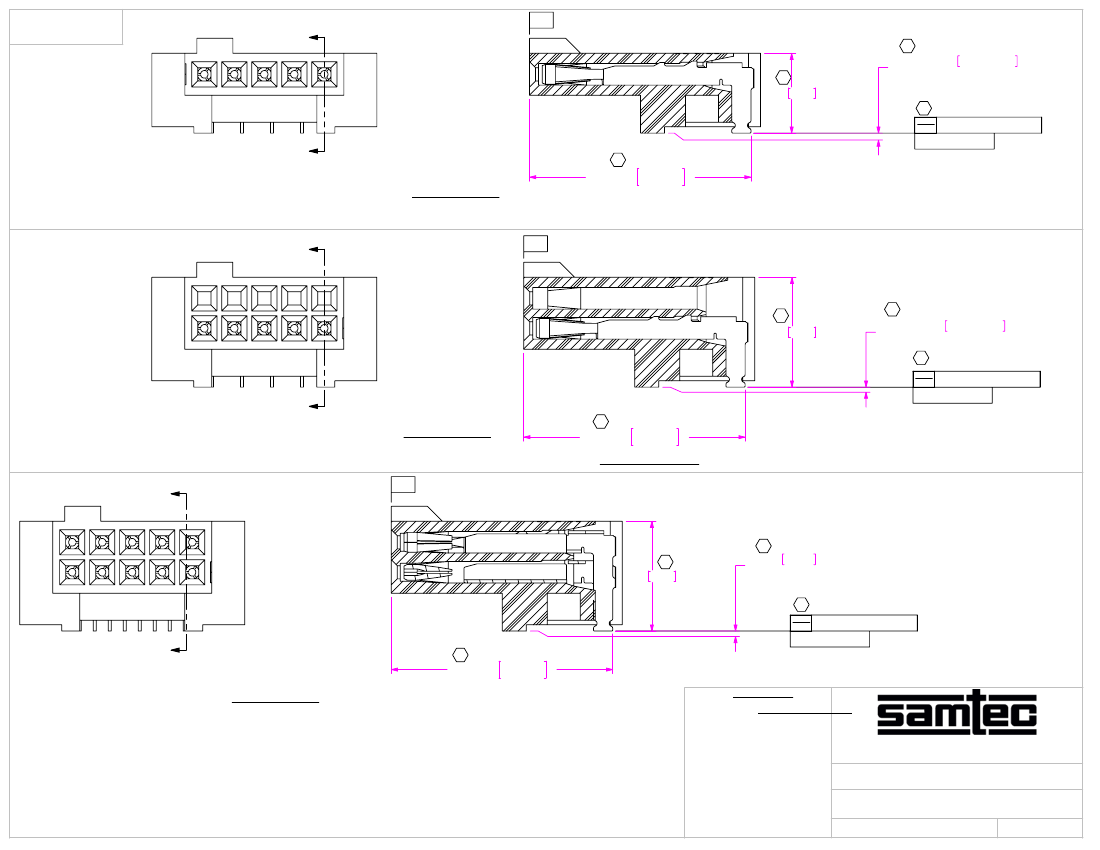

REVISION E
"C"
-C-
C
.0000±.0030 0.000±0.08
(MEAS. BOTH ENDS)
C
C
.133 3.38
"C"
IN-PROCESS 1
FILL C-350-01-X
(FOR -SH ONLY)
(SEE TABLE 1, SHT 1)
(WITHIN ROW)
C
+.006
.369
- .001
+0.15
9.37
- 0.03
(LOCATE ASSY ON DATUM -C
FOR MEASUREMENT)
"D"
-C-
C
.183 4.65
C
.0000±.0030 0.000±0.08
(MEAS. BOTH ENDS)
C
(SEE TABLE 1, SHT 1)
(WITHIN ROW)
"D"
IN-PROCESS 1
FILL C-350-01-X
(FOR -DH ONLY)
C
+.006
+0.15
.369
- .001
9.37
- 0.03
(LOCATE ASSY ON DATUM -C
FOR MEASUREMENT)
SECTION "D"-"D"
"E"
-C-
C
.183 4.65
C
.0000 0.000
(MEAS. BOTH ENDS)
C
"E"
IN-PROCESS 2
FILL C-370-01-X
(FOR -DH ONLY)
C
+.006
+0.15
.369
- .001
9.37
- 0.03
*
(SEE TABLE 1, SHT 1)
(WITHIN ROW)
(LOCATE ASSY ON
DATUM -C FOR
MEASUREMENT)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
SECTION "E"-"E"
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
*
DO NOT SCALE DRAWING
SHEET SCALE: 6:1
.050 x .050 SOCKET STRIP ASSEMBLY
SFM-1XX-XX-X-XH-TR
11/22/2010
SHEET
3
OF
3
c:\enterprisevault\DWG\MISC\MKTG\SFM-1XX-XX-X-XH-TR-MKT.SLDDRW
BY:
VICKY Z
