07812680238140-12: DescriptionBoard Stacking Connector, 28 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS AND REACH COMPLIANT; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

07812680238140-12 Overview

Board Stacking Connector, 28 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS AND REACH COMPLIANT

07812680238140-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	078
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	28
UL Flammability Code	94V-0

07812680238140-12 Preview

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

Ratioplast

Electronics

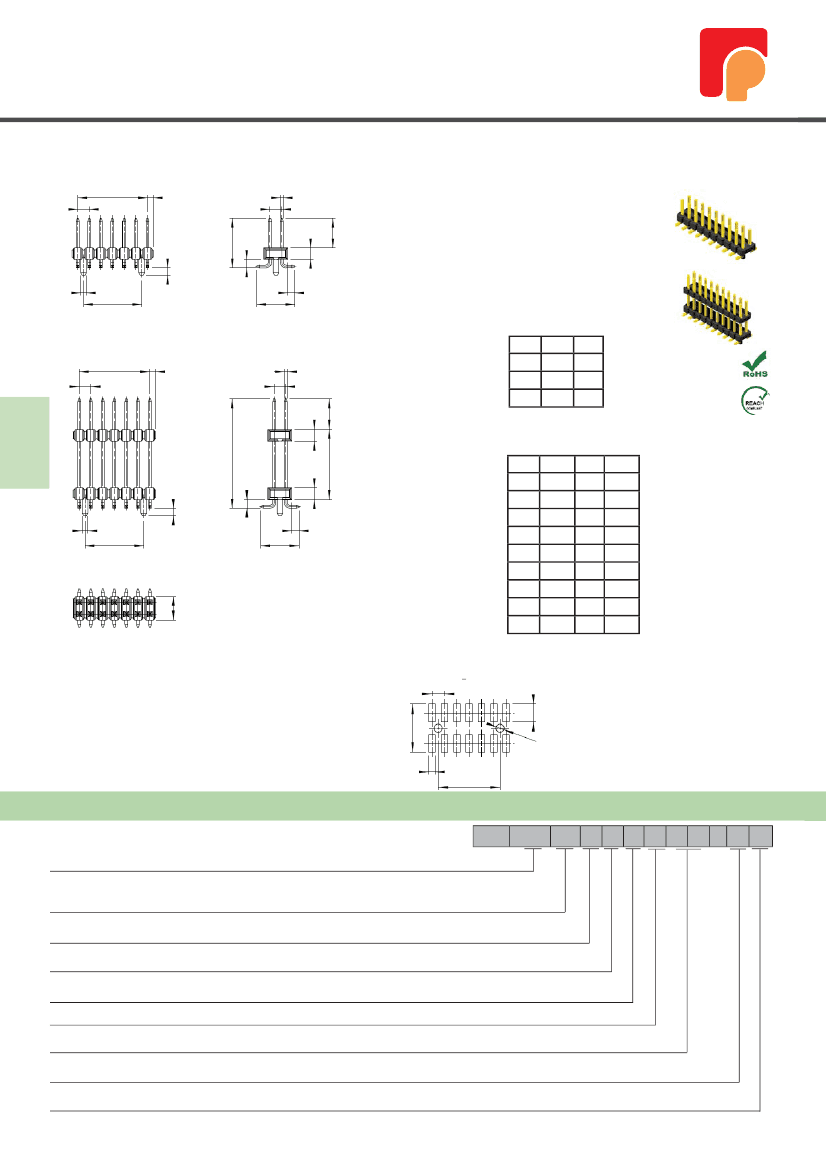

SMD Stiftleisten Raster 2,00mm / SMT Pin Header pitch 2,00mm

Serie 078

(N/2-1)x2,00

2,00

1,00

0,5x0,5

2,00

6,50

1,25

1,27

1,48

ø 1,00

(N/2-2)x2,00

Abmessungen 2-reihig / dimensions 2-row

Code

(N/2-1)x2,00

2,00

1,00

0,5x0,5

2,00

104

118

126

10,40

11,80

12,60

6,92

8,32

9,12

1,48

2,00

1,27

4,00

Technische Daten / Technical Data

Isolierkörper / Insulator

Kontaktmaterial / Contact material

Nennspannung / Current Voltage

ø 1,30

Nennstrom / Current Rating

Temperaturbereich / Temperatur Range

Lötwärmebeständigkeit / Ressistance soldering

2,80

2,00

7,70

Raster / Pitch

2,00mm

ø 1,00

(N/2-2)x2,00

Codierte Pinlänge / Encoded pin length

(siehe Tabelle / see table)

Anzahl Reihe / Number of row

2-reihig / 2-row

Raster / Pitch

2,00mm

Sonderraster / other pitch

Polzahl / Number of contacts

06...80

(2-reihig / 2-row)

Seite/ Page 72

2,00

Andere Abmessungen auf Anfrage / other dimensions on request

Abmessungen Sandwich / dimmensions double body

Code

104

118

126

10,40

11,80

12,60

13,90

15,30

16,80

18,60

24,30

27,30

4,20

5,20

4,72

6,12

5,92

7,22

8,62

10,12

11,92

17,62

20,62

1,25

6,50

139

153

168

186

243

273

Andere Abmessungen auf Anfrage / other dimensions on request

Empfohlenes Leiterplatten Layout

Recommended P.C.B. Layout

(PCB Tolerance +0,05)

1,00

PA4.6 (UL94-V0)

CuZn30

250V AC

-40°C....+105°C

235°C (30-60sec.)

260°C (10 sec)

(N/2-2)x2,00

weitere Informationen auf Anfrage / more information on request

Bestellbeispiel

How to order

Bitte ersetzen Sie X durch unten aufgeführten Code

Please replace X with coding listed below

078 XXX XX 2

X X X X X - X X

Veredelung / Plating

80=

0,75μm selektiv vergoldet / 0,75μm selective gold plating

(andere Veredelungen auf Anfrage / other platings on request)

Ausführung / Version

stehend / standing

sandwich / double body

ohne Posi pin / without locating peg

mit Posi pin / with locating peg

Pick and Place Pad option

ohne / without PP-Pad

mit / with PP-Pad

Verpackung / Packaging

Schüttgut / Bulk

2=Rolle

/ Reel (auf Anfrage / on request)

Ratioplast-Electronics, H.Wiedemann GmbH Sonderanfertigungen und andere Veredelungen auf Anfrage. Die Vervielfältigung dieser Unterlagen durch Kopieren oder Nachdruck ist

nur mit ausdrücklicher Genehmigung des Herausgebers gestattet. Zuwiderhandlung verplichtet zu Schadensersatz. Mit Erscheinen dieses Kataloges verlieren vorherige Ausgaben Ihre

Gültigkeit. Design und technische Änderung vorbehalten / Customer Designs and special platings on request. The duplication of this cataloge by copying or reprint is used by permission
