SCD01CFW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SCD01CFW

SCD01CFW: DescriptionTransistor Output SSR, 1-Channel, 1000V Isolation, HERMETIC SEALED, CERAMIC PACKAGE-6; CategoryLED optoelectronic/LED photoelectric; File Size741KB，4 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric Compare View All

SCD01CFW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SCD01CFW	-	-	View	Buy Now

SCD01CFW Overview

Transistor Output SSR, 1-Channel, 1000V Isolation, HERMETIC SEALED, CERAMIC PACKAGE-6

SCD01CFW Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
package instruction	HERMETIC SEALED, CERAMIC PACKAGE-6
Reach Compliance Code	compliant
Other features	CMOS COMPATIBLE
Maximum forward current	0.015 A
Maximum insulation voltage	1000 V
Number of components	1
Maximum on-state current	0.002 A
Maximum on-state resistance	0.22 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR

Preview

Download Datasheet

View All

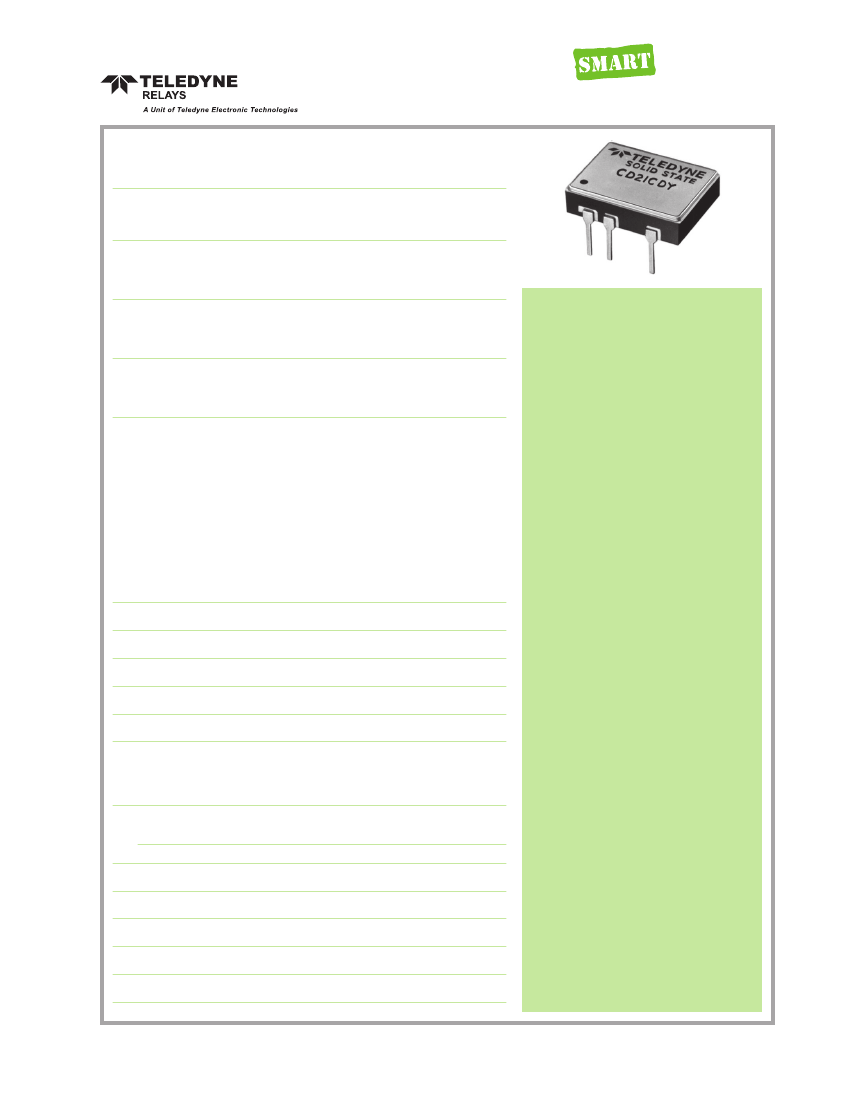

Series CD

2A, 60Vdc Optically Isolated, Short-Circuit Protected

DC Solid-State Relay

Part*

Number

CD00CFW

CD00CFY

CD01CFW

CD01CFY

CD20CDW

CD20CDY

CD21CDW

CD21CDY

DESC Drawing

Number

Relay Description

Basic Solid-State Relay (SSR)

90091-008

SSR with Control Status

90091-006

FEATURES

SSR with Short-Circuit Protection

90091-004

SSR with Short-Circuit Protection

90091-002

and Control Status

* The Y suffix denotes parameters tested to MIL-PRF-28750 specifications.

The W suffix denotes parameters tested to Teledyne specifications.

For surface mount (SMT), add “S” prefix to part number. Example:

SCD00CFW

ELECTRICAL SPECIFICATIONS

(-55°C TO +105°C UNLESS OTHERWISE NOTED)

INPUT (CONTROL) SPECIFICATION

When used in 2 terminal configuration

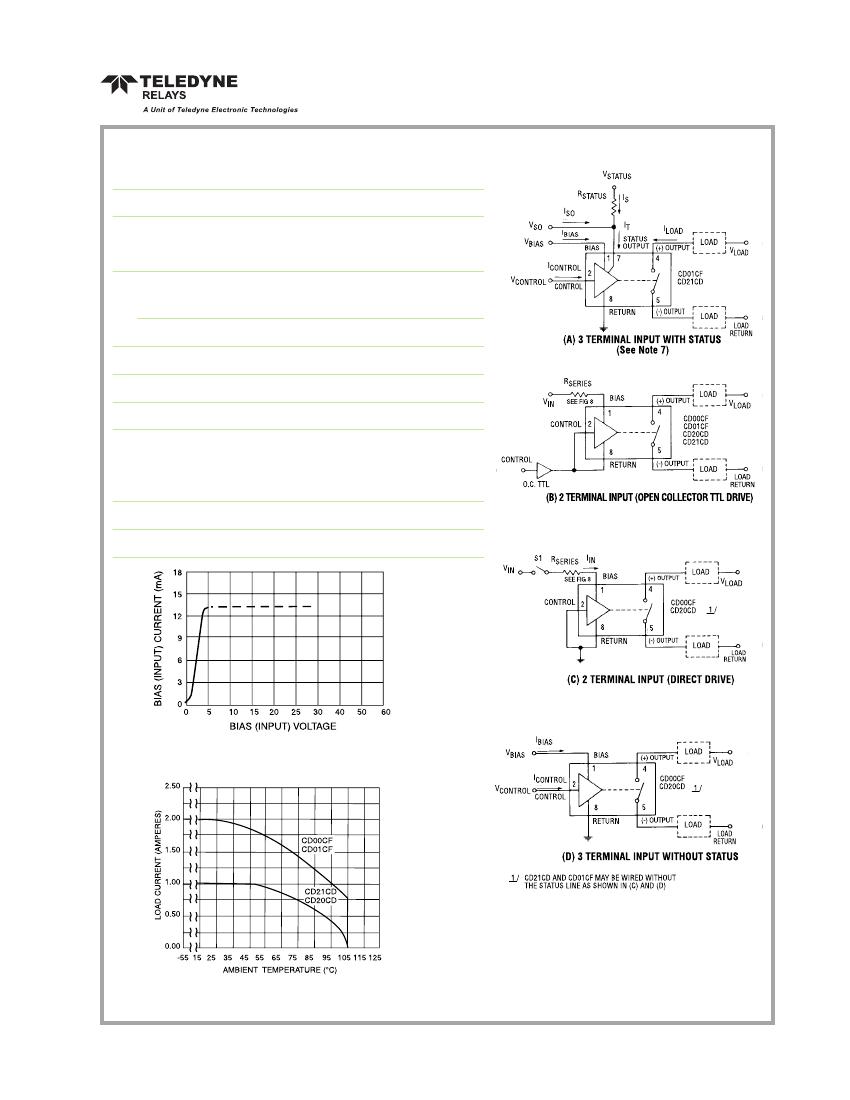

(TTL or direct control) (See Fig. 1)

• Available with short circuit/current

overload protection

• Available with input status monitor

• TTL and CMOS compatible control

• Low ON resistance power FET output

• Fast switching speed

• Meets 28 Vdc system requirements of

MIL-STD-704

• Optical isolation

• Low profile hermetic ceramic package

• Built and tested to the requirements of

MIL-PRF-28750

DESCRIPTION

This all solid-state relay utilizes the

latest technology to provide a low ON

resistance. The control (input) and load

(output) are optically isolated to protect

input logic circuits from voltage and

current transients which can occur on

the output supply. The optical isolation

also provides a full floating output, thus

allowing the load to be connected to

either output terminal. The control circuit

is buffered to enable the relay to be

driven directly from standard CMOS or

open collector TTL logic circuits.

Available options include short circuit

and current overload protection, which

provides complete protection for both

the relay and the system wiring. This

feature not only provides protection

should a short or overload occur while

the relay is on, but will also provide

protection should the relay be switched

into a short. In either case, the relay will

sense the short circuit condition and

then block it indefinitely until the short is

removed and the unit is reset by cycling

the input control. The second option is a

status output, which provides a built-in-

test function. This feature checks the

input circuitry of the relay and provides a

logic (0) low when the input circuit is

turned on and operational. Both options

are available either together or

separately as standard features.

Min

Typ

Max Units

1.5

Vdc

-32

Vdc

Input Current @ V

= 5 Vdc (See Fig. 2)

Turn-Off Voltage (Guaranteed Off)

Turn-On Voltage (Guaranteed On)

Reverse Voltage Protection

Input Supply Range (See Note 4)

When used in 3 terminal configuration

(CMOS or open collector TTL) (See Fig. 1)

Min

3.8

INPUT (CONTROL) SPECIFICATION

Typ

Max Units

250

µA

Vdc

0.3

Vdc

Control Current

CONTROL

= 5 Vdc

CONTROL

= 18 Vdc

Control Voltage Range

Bias Supply Voltage (See Note 4)

Bias Supply Current @ V

BIAS

= 5 Vdc

Turn-Off Voltage (Guaranteed Off)

Turn-On Voltage (Guaranteed On)

3.2

3.8

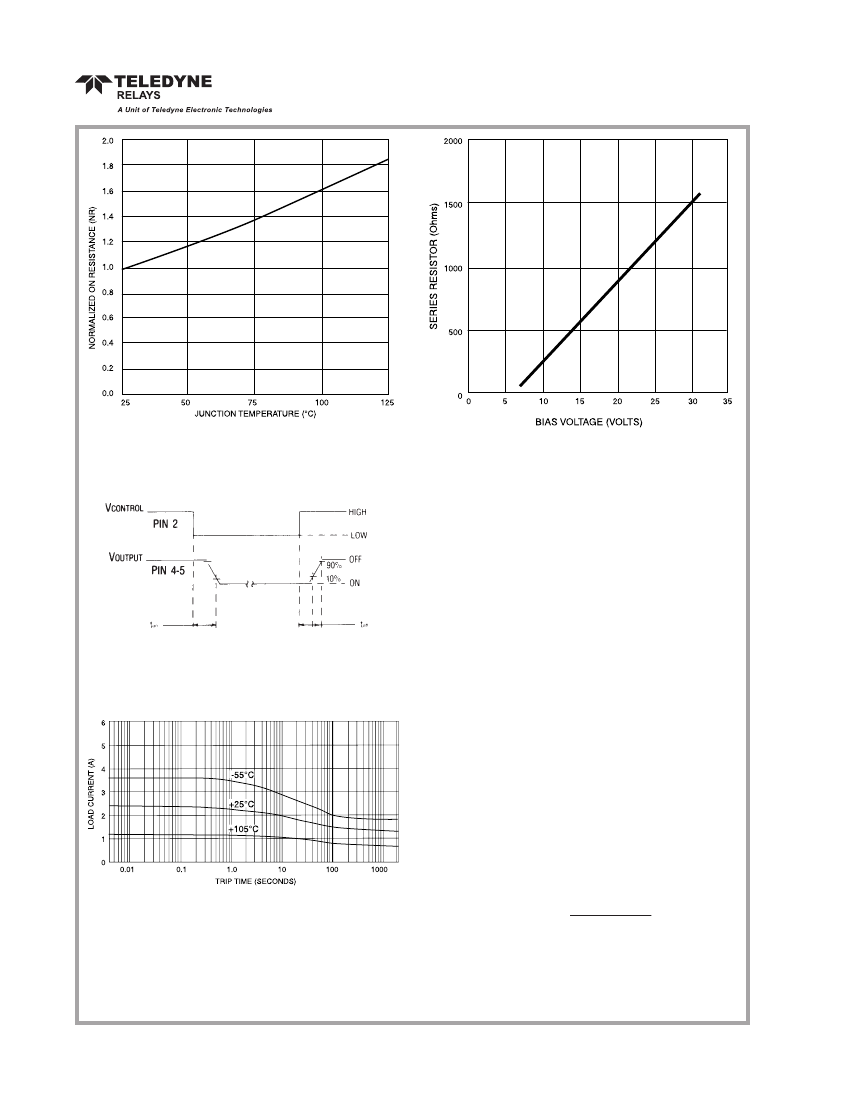

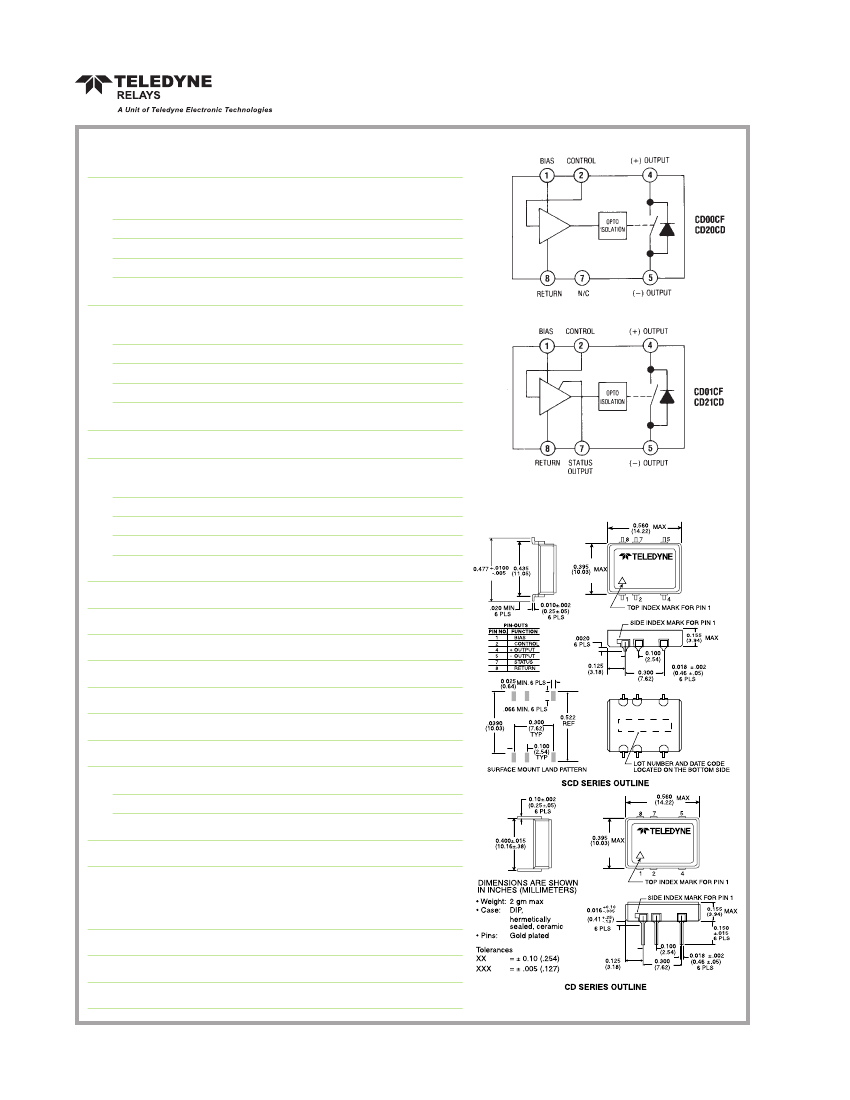

(800) 284-7007 • www.teledynerelays.com

CD 41

CD\072002\Q1

SCD01CFW Related Products

	SCD01CFW	SCD01CFY	SCD20CDY	SCD20CDW	SCD21CDW	SCD00CFW	SCD00CFY
Description	Transistor Output SSR, 1-Channel, 1000V Isolation, HERMETIC SEALED, CERAMIC PACKAGE-6	Transistor Output SSR, 1-Channel, 1000V Isolation, HERMETIC SEALED, CERAMIC PACKAGE-6	Transistor Output SSR, 1-Channel, 1000V Isolation, HERMETIC SEALED, CERAMIC PACKAGE-6	Transistor Output SSR, 1-Channel, 1000V Isolation, HERMETIC SEALED, CERAMIC PACKAGE-6	Transistor Output SSR, 1-Channel, 1000V Isolation, HERMETIC SEALED, CERAMIC PACKAGE-6	Transistor Output SSR, 1-Channel, 1000V Isolation, HERMETIC SEALED, CERAMIC PACKAGE-6	Transistor Output SSR, 1-Channel, 1000V Isolation, HERMETIC SEALED, CERAMIC PACKAGE-6
Maker	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated
package instruction	HERMETIC SEALED, CERAMIC PACKAGE-6	HERMETIC SEALED, CERAMIC PACKAGE-6	HERMETIC SEALED, CERAMIC PACKAGE-6	HERMETIC SEALED, CERAMIC PACKAGE-6	HERMETIC SEALED, CERAMIC PACKAGE-6	HERMETIC SEALED, CERAMIC PACKAGE-6	HERMETIC SEALED, CERAMIC PACKAGE-6
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli
Other features	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE
Maximum forward current	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A
Maximum insulation voltage	1000 V	1000 V	1000 V	1000 V	1000 V	1000 V	1000 V
Number of components	1	1	1	1	1	1	1
Maximum on-state current	0.002 A	0.002 A	0.001 A	0.001 A	0.001 A	0.002 A	0.002 A
Maximum on-state resistance	0.22 Ω	0.22 Ω	0.45 Ω	0.45 Ω	0.45 Ω	0.22 Ω	0.22 Ω
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
