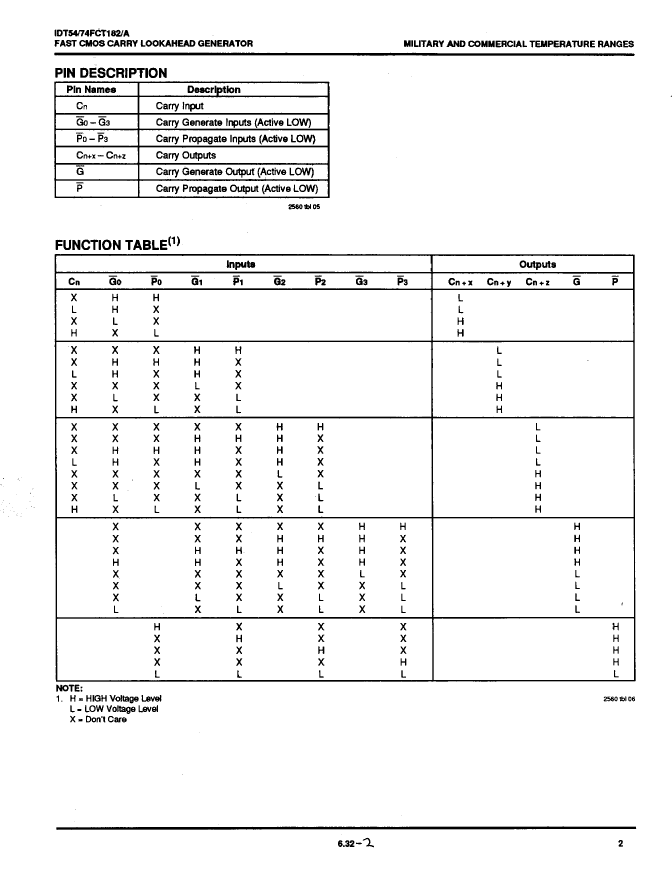

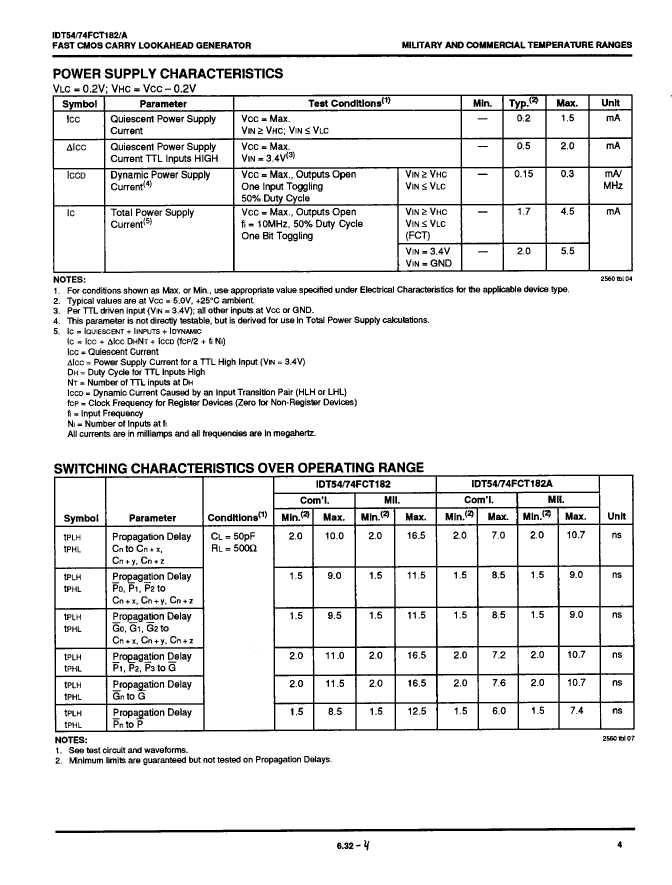

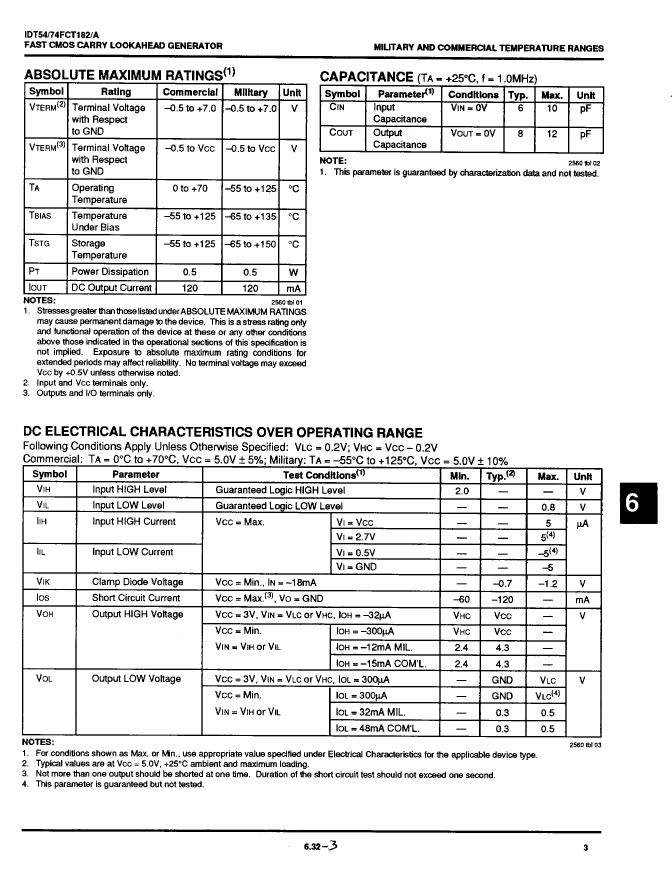

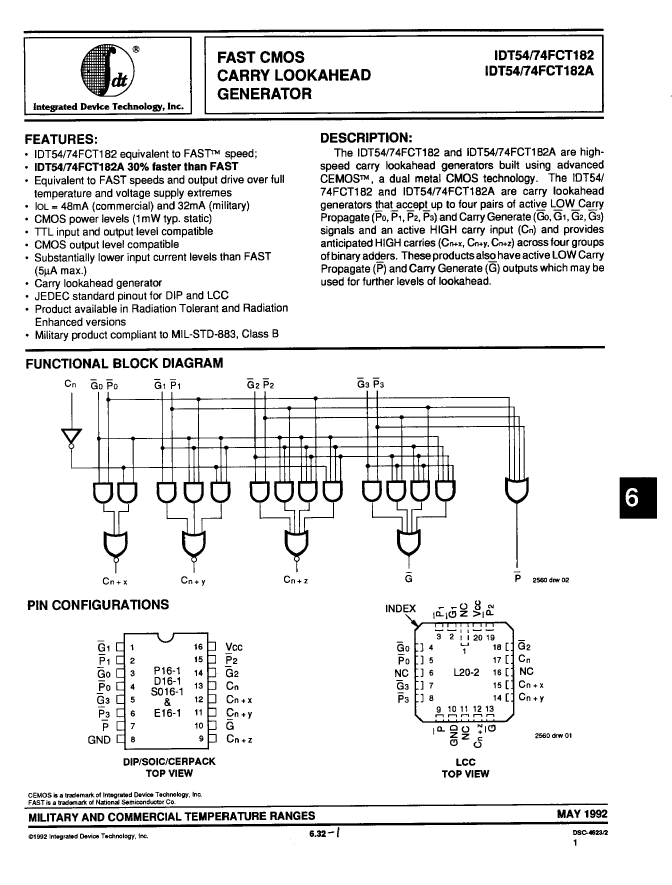

Preview

IDT54FCT182EB: DescriptionLook-Ahead Carry Generator, CMOS, CDFP20; Categorylogic logic; File Size225KB，4 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT54FCT182EB Overview

Look-Ahead Carry Generator, CMOS, CDFP20

IDT54FCT182EB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Logic integrated circuit type	LOOK-AHEAD CARRY GENERATOR
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

IDT54FCT182EB Related Products

	IDT54FCT182EB	IDT74FCT182PQ	IDT54FCT182ALB	IDT54FCT182DB	IDT54FCT182ADB	IDT54FCT182AEB	IDT54FCT182LB
Description	Look-Ahead Carry Generator, CMOS, CDFP20	Look-Ahead Carry Generator, CMOS, PDIP16	Look-Ahead Carry Generator, CMOS, CQCC20	Look-Ahead Carry Generator, CMOS, CDIP16	Look-Ahead Carry Generator, CMOS, CDIP16	Look-Ahead Carry Generator, CMOS, CDFP20	Look-Ahead Carry Generator, CMOS, CQCC20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	R-XDFP-F20	R-PDIP-T16	S-XQCC-N20	R-XDIP-T16	R-XDIP-T16	R-XDFP-F20	S-XQCC-N20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	LOOK-AHEAD CARRY GENERATOR	LOOK-AHEAD CARRY GENERATOR	LOOK-AHEAD CARRY GENERATOR	LOOK-AHEAD CARRY GENERATOR	LOOK-AHEAD CARRY GENERATOR	LOOK-AHEAD CARRY GENERATOR	LOOK-AHEAD CARRY GENERATOR
Number of terminals	20	16	20	16	16	20	20
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DFP	DIP	QCCN	DIP	DIP	DFP	QCCN
Encapsulate equivalent code	FL20,.3	DIP16,.3	LCC20,.35SQ	DIP16,.3	DIP16,.3	FL20,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
