IDT54FCT191TDB datasheet, PDF - EEWORLD Datasheet

IDT54FCT191TDB: DescriptionBinary Counter, FCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16, 0.300 INCH, CERDIP-16; Categorylogic logic; File Size189KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

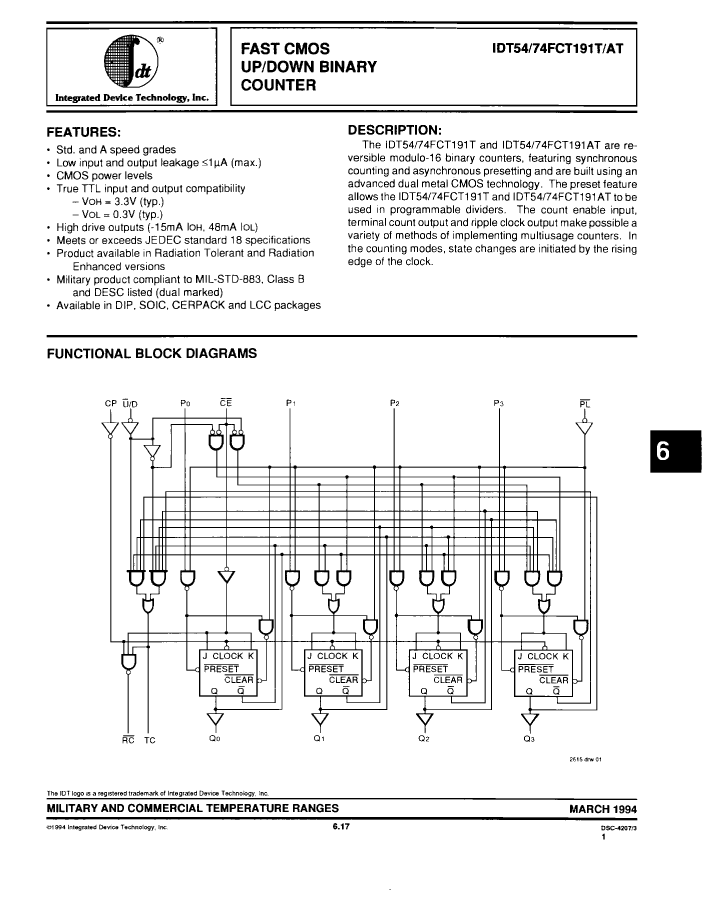

IDT54FCT191TDB Overview

Binary Counter, FCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16, 0.300 INCH, CERDIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	DIP
package instruction	DIP, DIP16,.3

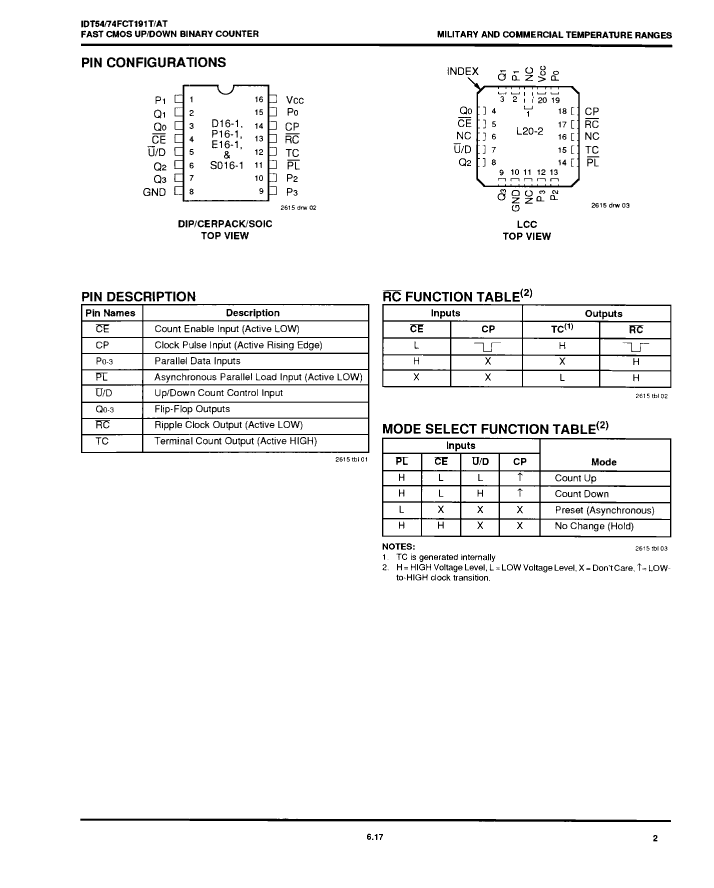

Contacts	16
Reach Compliance Code	not_compliant
Other features	TCO OUTPUT
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	20.066 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	71400000 Hz
MaximumI(ol)	0.032 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

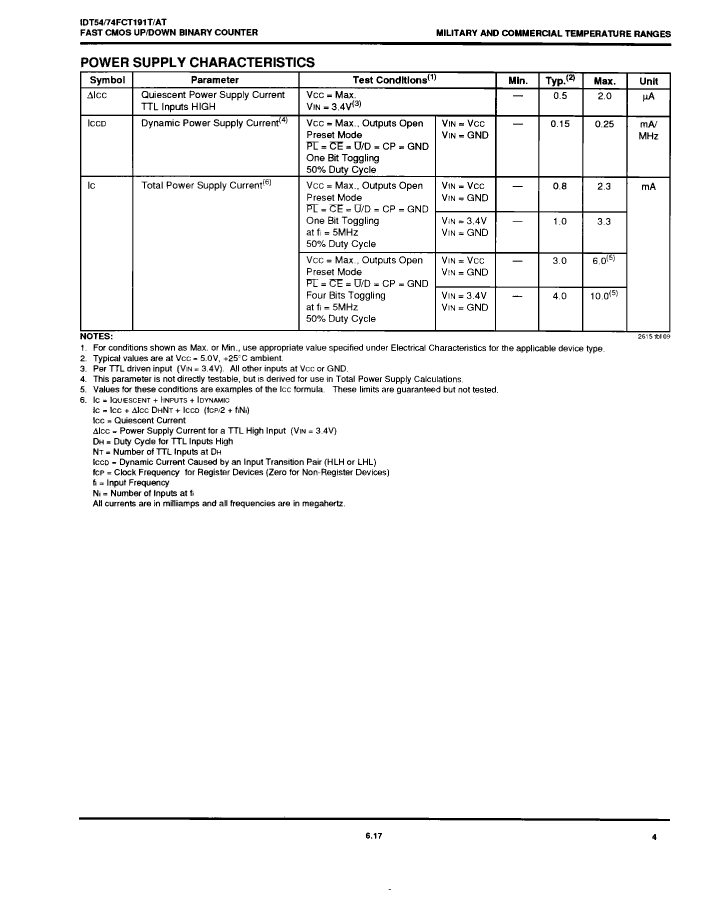

power supply	5 V

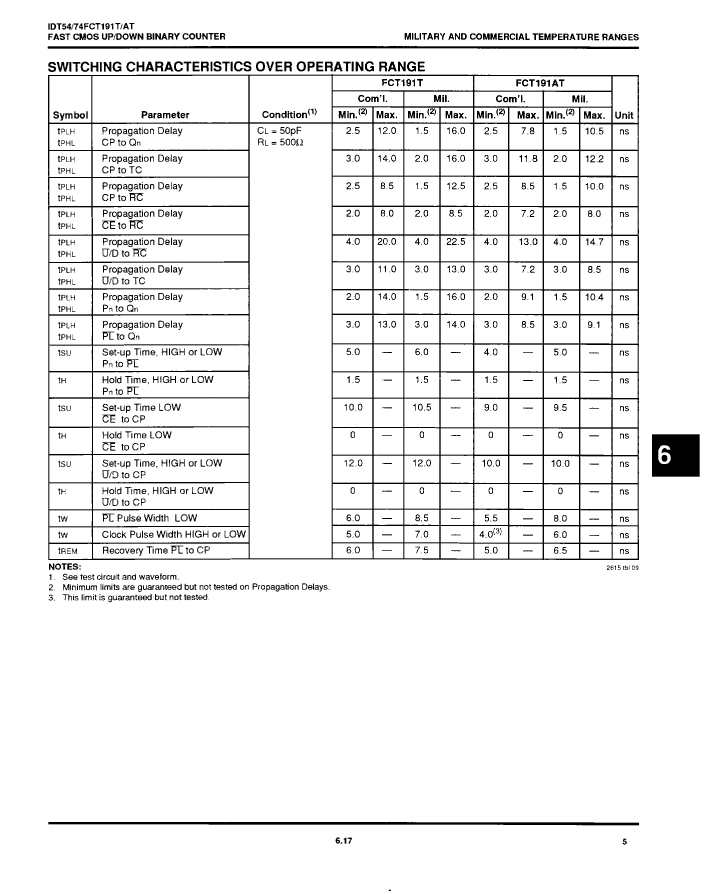

Prop。Delay @ Nom-Sup	16 ns
propagation delay (tpd)	16 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm

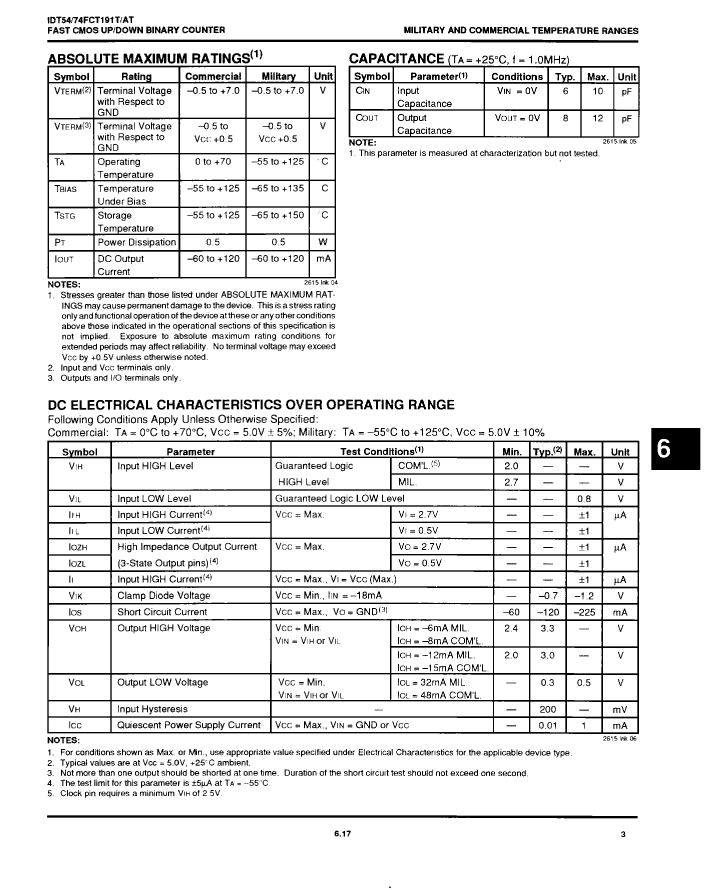

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
