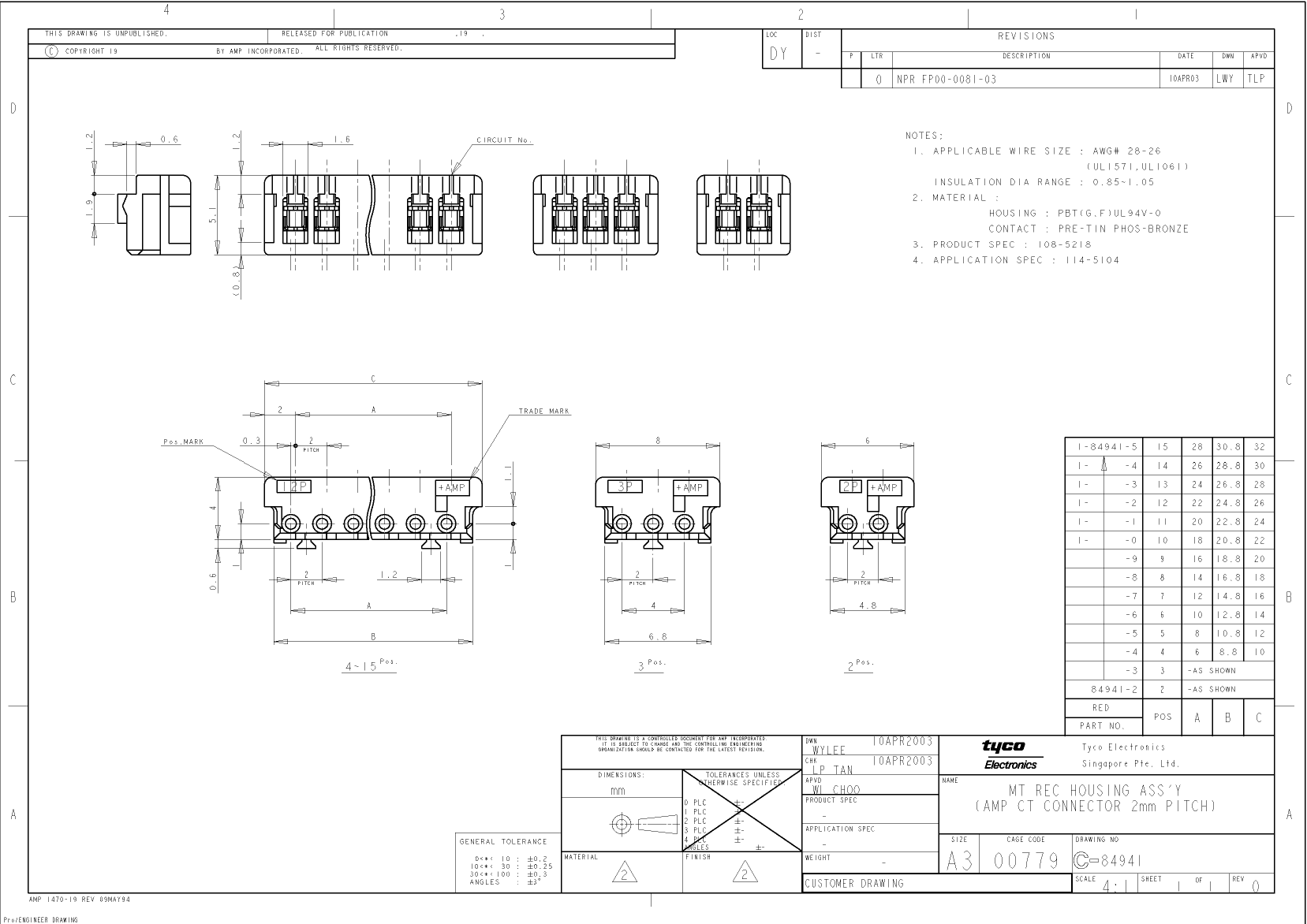

HEADER CONNECTOR,CABLE MNT,RECEPT,8 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,LOCKING,RED
| Parameter Name | Attribute value |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| Other features | ROHS AND ELV COMPLIANT |
| body width | 0.181 inch |
| subject depth | 0.201 inch |
| body length | 0.709 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | SN |
| Contact completed and terminated | TIN |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 30 Cycles |
| Minimum insulation diameter | 0.032 inch |
| Insulation resistance | 1000000000 Ω |
| Insulator color | RED |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | 84941 |
| Plug contact pitch | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation type | CABLE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Termination type | IDC |
| Total number of contacts | 8 |
| Maximum wire diameter | 26 AWG |
| Minimum wire diameter | 28 AWG |
| 84941-8 | A1F:130.08HY | 84941-9 | 84941-7 | 1-84941-1 | 1-84941-0 | |
|---|---|---|---|---|---|---|
| Description | HEADER CONNECTOR,CABLE MNT,RECEPT,8 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,LOCKING,RED | Inverter Thyristors | HEADER CONNECTOR,CABLE MNT,RECEPT,9 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,LOCKING,RED | HEADER CONNECTOR,CABLE MNT,RECEPT,7 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,LOCKING,RED | HEADER CONNECTOR,CABLE MNT,RECEPT,11 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,LOCKING,RED | HEADER CONNECTOR,CABLE MNT,RECEPT,10 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,LOCKING,RED |
| Reach Compliance Code | unknown | - | unknown | unknown | unknown | unknown |
| Other features | ROHS AND ELV COMPLIANT | - | ROHS AND ELV COMPLIANT | ROHS AND ELV COMPLIANT | ROHS AND ELV COMPLIANT | ROHS AND ELV COMPLIANT |
| body width | 0.181 inch | - | 0.181 inch | 0.181 inch | 0.181 inch | 0.181 inch |
| subject depth | 0.201 inch | - | 0.201 inch | 0.201 inch | 0.201 inch | 0.201 inch |
| body length | 0.709 inch | - | 0.787 inch | 0.63 inch | 0.945 inch | 0.866 inch |
| Body/casing type | RECEPTACLE | - | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contactor design | PREASSEM CONN | - | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN |
| Contact to complete cooperation | SN | - | SN | SN | SN | SN |
| Contact completed and terminated | TIN | - | TIN | TIN | TIN | TIN |
| Contact point gender | FEMALE | - | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | - | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | - | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| Durability | 30 Cycles | - | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles |
| Minimum insulation diameter | 0.032 inch | - | 0.032 inch | 0.032 inch | 0.032 inch | 0.032 inch |
| Insulation resistance | 1000000000 Ω | - | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | RED | - | RED | RED | RED | RED |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | - | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Plug contact pitch | 0.079 inch | - | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Installation option 1 | LOCKING | - | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation type | CABLE | - | CABLE | CABLE | CABLE | CABLE |
| Number of rows loaded | 1 | - | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 105 °C | - | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | - | -40 °C | -40 °C | -40 °C | -40 °C |
| polarization key | POLARIZED HOUSING | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 3 A | - | 3 A | 3 A | 3 A | 3 A |
| Guideline | UL | - | UL | UL | UL | UL |
| Termination type | IDC | - | IDC | IDC | IDC | IDC |
| Total number of contacts | 8 | - | 9 | 7 | 11 | 10 |
| Maximum wire diameter | 26 AWG | - | 26 AWG | 26 AWG | 26 AWG | 26 AWG |
| Minimum wire diameter | 28 AWG | - | 28 AWG | 28 AWG | 28 AWG | 28 AWG |
| Objectid | - | - | 304957586 | 304957584 | 304957588 | 304957587 |
| ECCN code | - | - | EAR99 | EAR99 | EAR99 | EAR99 |
| YTEOL | - | - | 7.8 | 7.8 | 7.8 | 7.8 |
| Filter function | - | - | NO | NO | NO | NO |
| Mixed contacts | - | - | NO | NO | NO | NO |
| Number of connectors | - | - | ONE | ONE | ONE | ONE |
