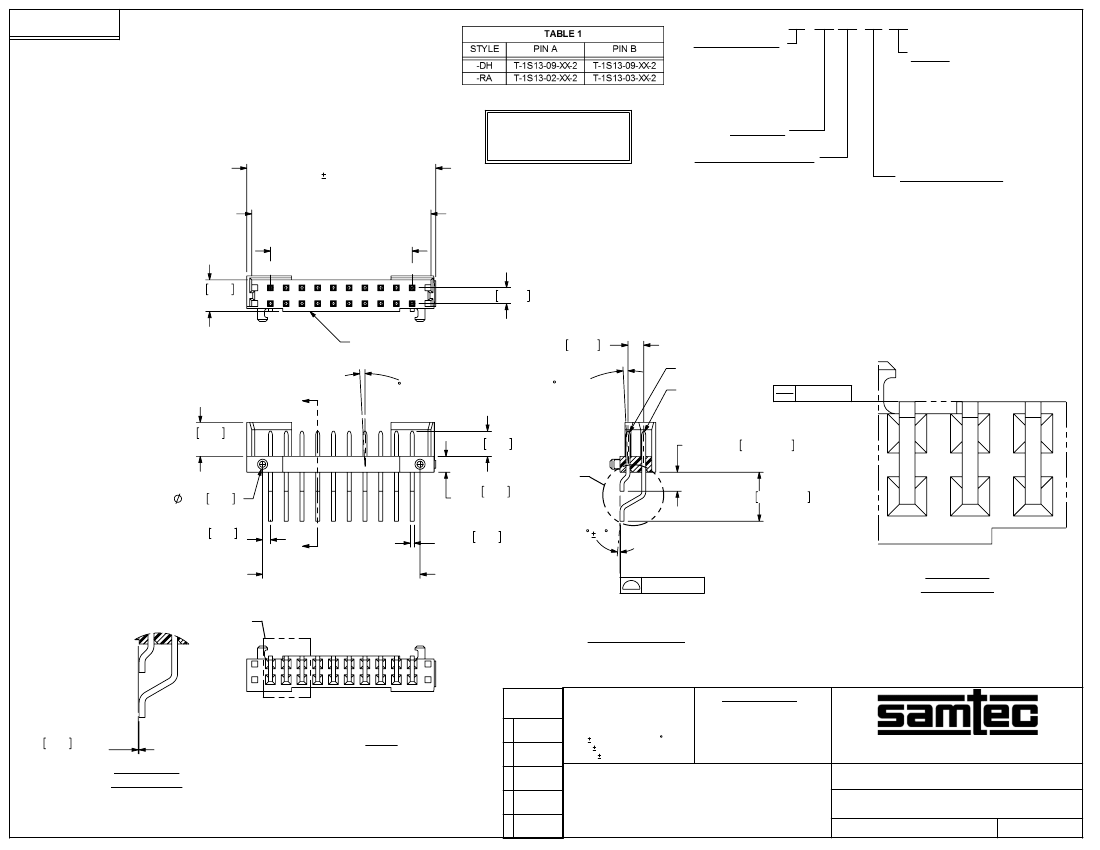

REVISION X
NOTES:
1.
REPRESENTS A CRITICAL DIMENSION.
2. MAX BURR ALLOWANCE: .002 [.05].
3. MAX CUT FLASH: .015 [.38].
4. MINIMUM PUSHOUT FORCE: 2 LB.
5. COPLANARITY TO INCLUDE INSULATOR.
6. FIRST AND LAST PIN OF EACH ROW TO BE FLUSH TO
.0030 [.076] ABOVE A LINE MADE BY BODY.
7. SHEAR TO DIMENSION SHOWN.
8. MEASURE AT BEND.
9. T-1S13-XX-T-2 MUST BE FILLED IN THE SAME
WAY AS THE SELECTIVE PLATED PINS TO
PREVENT BAND MARKS FROM BEING IN
THE POST AREA.
10. STRAIGHTNESS TO BE CHECKED BETWEEN SOLDER LOCKS.
TSH-1XX-XX-XX-XX-XX
No OF POSITIONS
-DH ROW SPEC:
-05 THRU -35
-RA ROW SPEC:
-05 THRU -48
(PER ROW)
[INCREMENTS OF 5 STD]
LEAD STYLE
-01: .126 POST
PLATING SPECIFICATION
OPTION
-TR: TAPE AND REEL PACKAGING
(-DH ONLY)
-K: POLYAMIDE FILM PAD
(10 POS MIN)
(USE K-500-300, SEE FIG 3, SHT 3)
( NOT AVAILABLE ON -RA)
(NOT AVAILABLE ON 15 THRU
30 POSITIONS, SEE NOTE FIG 3)
-SL: SOLDER LOCKS
PATENT NUMBER
6159045
((No OF POS + 2) x .07874[2.0000])
.005[.13]
.010[.25]
(No OF POS x .07874[2.0000])
+ .109[2.77] REF
(No OF POS -1) x .07874
[2.0000]
02
.158 4.01
REF
01
20
.07874 2.000 REF
19
TSH-XX-D-ES-XX-SL
.07874 2.000
2 MAX TOE
(TYP)
-G: 20μ" GOLD IN CONTACT AREA,
ROW SPECIFICATION
3μ" GOLD ON TAIL
-T: MATTE TIN CONTACT AND TAIL
-DH: DOUBLE HORIZONTAL (SEE FIG 1)
-S: 30μ" SELECTIVE GOLD IN CONTACT AREA,
-RA: RIGHT ANGLE (SEE FIG 2, SHT 3)
MATTE TIN ON TAIL
-L: 10μ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30μ" GOLD IN CONTACT AREA,
3μ" GOLD ON TAIL
-F: 3μ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-TM: MATTE TIN CONTACT AND TAIL
-SM: 30μ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10μ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3μ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
PIN A
"A"
.170 4.32
REF
2 MAX SWAY
(TYP)
PIN B
.006[0.15]
(TAILS ONLY)
(SEE NOTE 10)
.126 3.20
'D'
.095±.010 2.41±0.25
.050 1.27
REF
.0394 1.00
REF
"A"
No OF POS x .07874[2.0000]
REF
'E'
.079 2.01
REF
.0197 0.50
SQ REF (TYP)
0
3
.245±.010 6.22±0.25
.0060[.152]
(SEE NOTE 6)
DETAIL 'E'
SCALE 8 : 1
SECTION "A"-"A"
FREQUENCY
THIS SHEET
CPC
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.003 0.08 MAX
(SEE NOTE 6)
DETAIL 'D'
SCALE 3 : 1
-DH: DOUBLE HORIZONTAL
TSH-110-01-XX-DH-SL SHOWN
(AVAILABLE IN POSITIONS -05 THRU -35)
FIG 1
A
B C1, C7, C8
C
D
E
C2
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL 94 VO
TERMINAL: PHOSPHOR BRONZE
F:\DWG\MISC\MKTG\TSH-1XX-XX-XX-XX-XX-MKT.SLDDRW
2mm HORIZONTAL MOUNT TERMINAL STRIP ASSEMBLY
TSH-1XX-XX-XX-XX-XX
9/8/99
SHEET
1
OF
3
BY:
KEVIN B

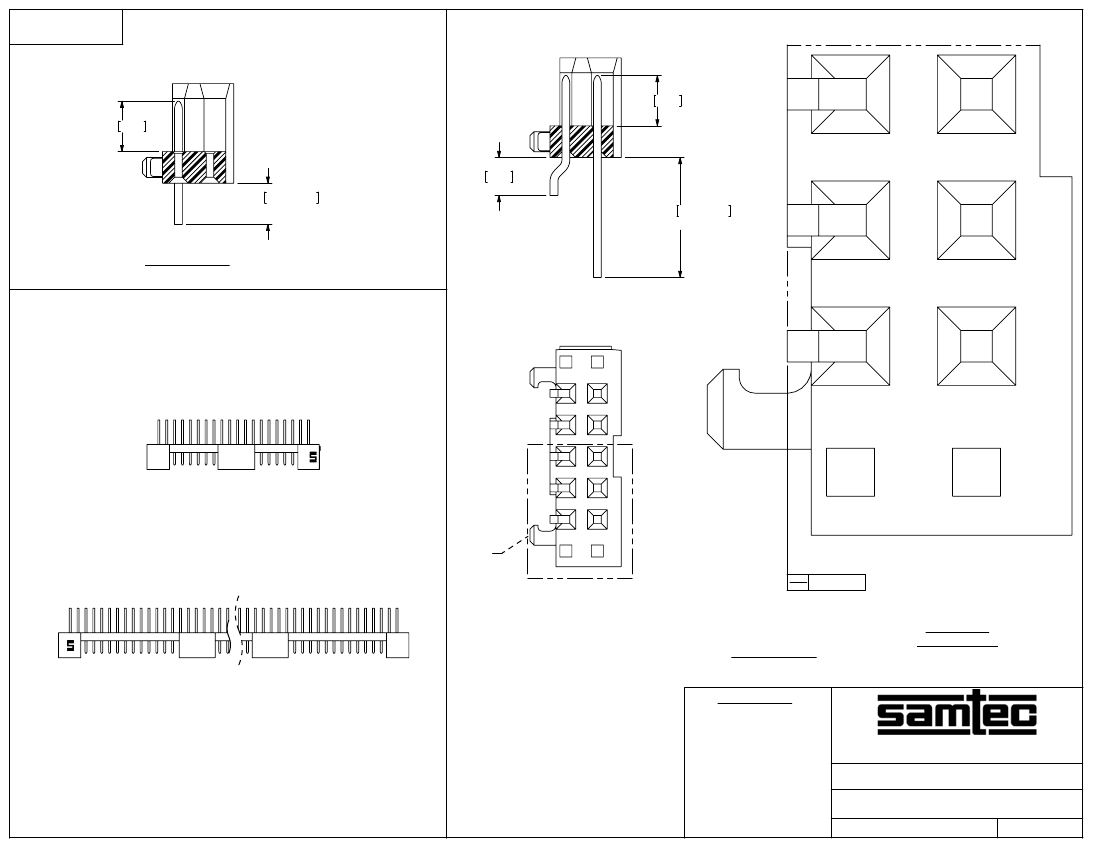

REVISION X
.126 3.20
.126 3.20
.095 2.41 REF
.103±.010 2.62±0.25
(SEE NOTE 7)
.300±.010 7.62±0.25
(SEE NOTE 7)
IN-PROCESS 1
POSITIONS -15 THRU -30
'F'
POSITIONS -31 THRU -48
.006[0.15]
(TAILS ONLY)
(SEE NOTE 10)
IN-PROCESS 2
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DETAIL 'F'
SCALE 16 : 1
F:\DWG\MISC\MKTG\TSH-1XX-XX-XX-XX-XX-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
2mm HORIZONTAL MOUNT TERMINAL STRIP ASSEMBLY
DWG. NO.
TSH-1XX-XX-XX-XX-XX
9/8/99
SHEET
2
OF
3
BY:
KEVIN B

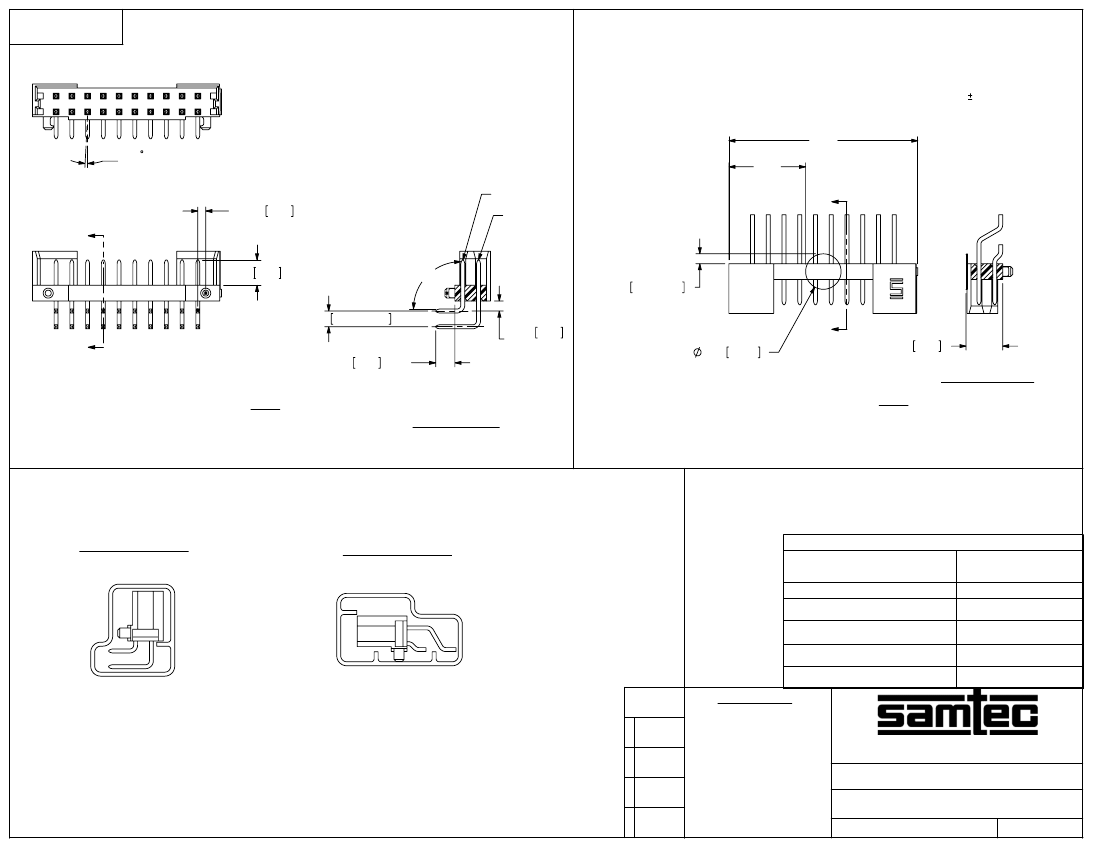

REVISION X
"R" = USE MEASURED DIMENSION
"S" = (("R" - .177[4.50])/2) .020[.51]
2 MAX SWAY
(ANY DIRECTION)
PIN A
.0394 1.00 REF
"B"
.126 3.20
PIN B
"R"
"S"
"C"
90°
.049±.010 1.25±0.25
"C"
.177 4.501
.183 4.65
.07874±.0050 2.000±0.13
"B"
.096 2.43 REF
.050 1.27
(SEE NOTE 8)
SECTION "C"-"C"
FIG 3
SECTION "B"-"B"
NOTE:
FOR 15 THRU 30 POSITIONS, -K OPTION NOT NEEDED DUE TO LOCATION OF PLASTIC SHROUD
-K: POLYAMIDE FILM PAD
(10 POSITION MIN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
-RA: RIGHT ANGLE
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
[AVAILABLE IN POSITIONS -05 THRU -48]
FIG 2
PACKAGING VIEW
-RA OPTION
PACKAGING VIEW
-DH OPTION
CRITICAL DIMENSION INSPECTION INSTRUCTION TABLE
ASSEMBLY OPERATION
IN-PROCESS
INSPECTION
FILL T-1S13-09-XX-2 (DH)
FORM T-1S13-09-XX-2 (DH)
FILL T-1S13-XX-XX-2 (RA)
TUBE: PT-1-24-01-45
PLUG: TP-03
TUBE: PT-1-24-05-17
PLUG: TP-07
NOTE:
ALL POSITIONS ARE TO BE TUBED.
C1
C2, C3, C4, C7, C8,
C9
C1
C5, C6
RA T-1S13-XX-XX-2
FREQUENCY
THIS SHEET
A
B C1, C5, C6
C
D
CPC
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2mm HORIZONTAL MOUNT TERMINAL STRIP ASSEMBLY
TSH-1XX-XX-XX-XX-XX
9/8/99
SHEET
3
OF
3
F:\DWG\MISC\MKTG\TSH-1XX-XX-XX-XX-XX-MKT.SLDDRW
BY:
KEVIN B
