IDT54FBT2240CDB datasheet, PDF

Datasheet> All Categories > logic> logic> IDT54FBT2240CDB

IDT54FBT2240CDB: DescriptionBus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CDIP20, 0.300 INCH, CERDIP-20; Categorylogic logic; File Size146KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT54FBT2240CDB Overview

Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CDIP20, 0.300 INCH, CERDIP-20

IDT54FBT2240CDB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	not_compliant
Control type	ENABLE LOW
series	BCT/FBT
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	25.3365 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	1.5 mA
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	4.445 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

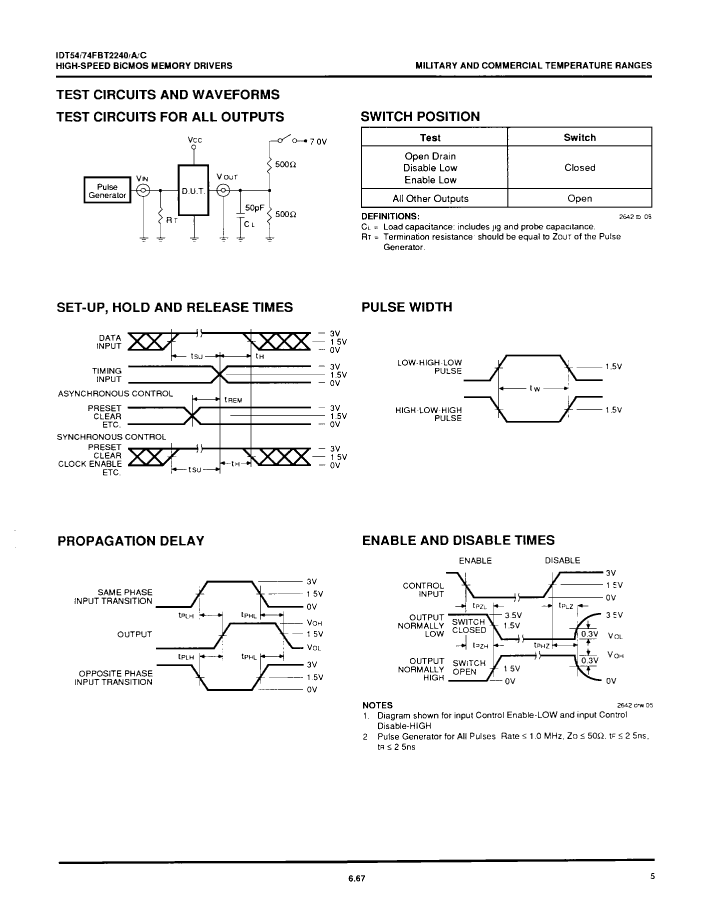

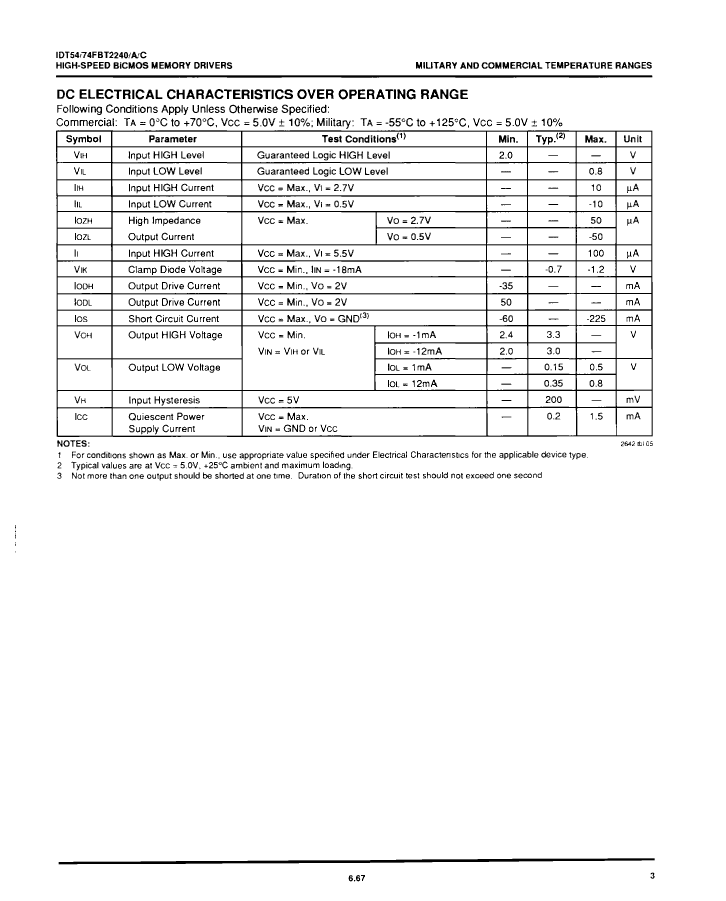

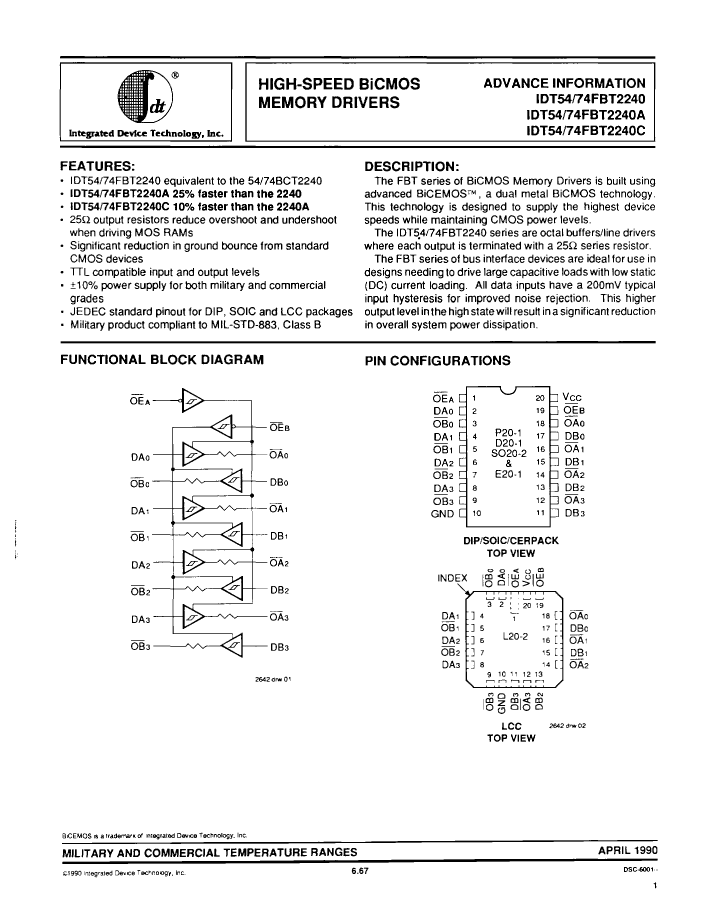

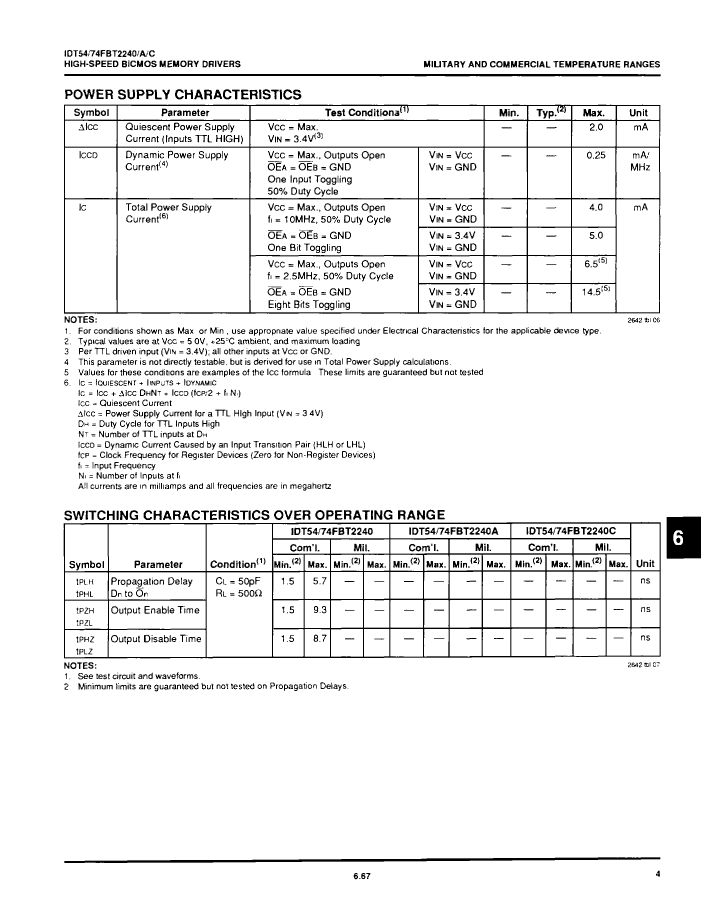

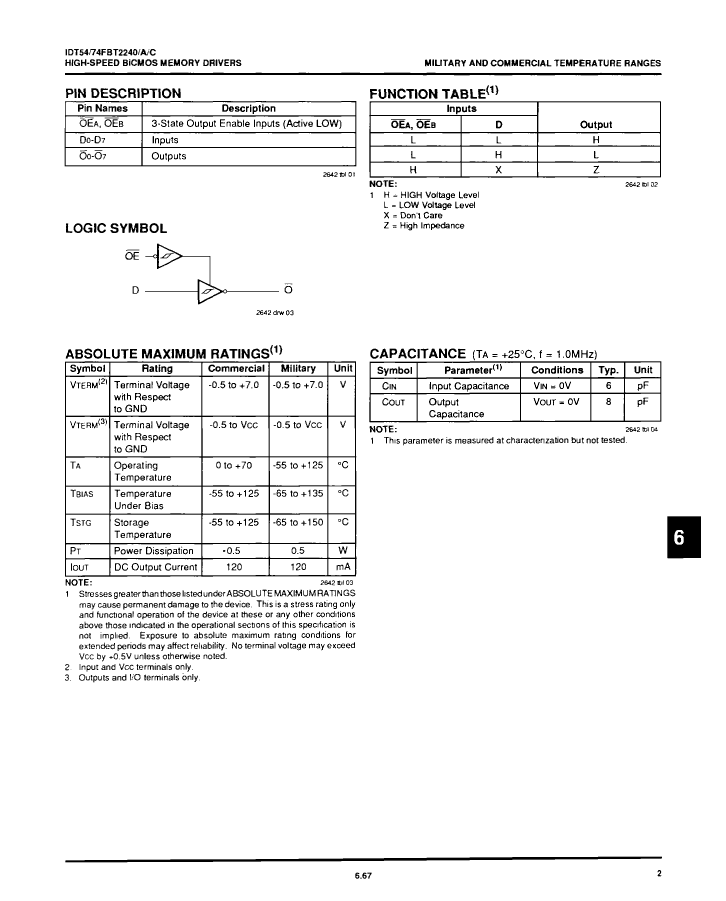

Preview

Download Datasheet

View All

IDT54FBT2240CDB Related Products

	IDT54FBT2240CDB	IDT74FBT2240CSO	IDT54FBT2240CEB	IDT54FBT2240CLB	IDT74FBT2240CD	IDT74FBT2240CE	IDT74FBT2240CL	IDT74FBT2240CP
Description	Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CDIP20, 0.300 INCH, CERDIP-20	Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, PDSO20, 0.300 INCH, SOIC-20	Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CDFP20, CERPACK-20	Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CQCC20, LCC-20	Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CDIP20, 0.300 INCH, CERDIP-20	Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CDFP20, CERPACK-20	Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CQCC20, LCC-20	Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	SOIC	DFP	QLCC	DIP	DFP	QLCC	DIP
package instruction	DIP, DIP20,.3	SOP, SOP20,.4	DFP, FL20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3	DFP, FL20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3
Contacts	20	20	20	20	20	20	20	20
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
series	BCT/FBT	BCT/FBT	BCT/FBT	BCT/FBT	BCT/FBT	BCT/FBT	BCT/FBT	BCT/FBT
JESD-30 code	R-GDIP-T20	R-PDSO-G20	R-GDFP-F20	S-CQCC-N20	R-GDIP-T20	R-GDFP-F20	S-CQCC-N20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.012 A	0.001 A	0.012 A	0.032 A	0.001 A	0.001 A	0.001 A	0.001 A
Number of digits	4	4	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DFP	QCCN	DIP	DFP	QCCN	DIP
Encapsulate equivalent code	DIP20,.3	SOP20,.4	FL20,.3	LCC20,.35SQ	DIP20,.3	FL20,.3	LCC20,.35SQ	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	FLATPACK	CHIP CARRIER	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.445 mm	2.65 mm	2.337 mm	2.54 mm	4.445 mm	2.337 mm	2.54 mm	4.191 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	YES	YES	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE	GULL WING	FLAT	NO LEAD	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL
width	7.62 mm	7.5 mm	6.9215 mm	8.89 mm	7.62 mm	6.9215 mm	8.89 mm	7.62 mm
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
length	25.3365 mm	12.8 mm	-	8.89 mm	25.3365 mm	-	8.89 mm	26.1874 mm
