5360F3: DescriptionSingle Color LED Array, Amber, Diffused, T-1, 3mm, 8 PIN; CategoryLED optoelectronic/LED photoelectric; File Size120KB，1 Pages; ManufacturerChicago Miniature; Environmental Compliance

Download Datasheet Parametric View All

5360F3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5360F3	-	-	View	Buy Now

5360F3 Overview

Single Color LED Array, Amber, Diffused, T-1, 3mm, 8 PIN

5360F3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Chicago Miniature
package instruction	8 PIN
Reach Compliance Code	unknown
color	AMBER
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	7.0 mcd
Installation features	RADIAL MOUNT
Number of functions	4
Number of terminals	8
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	6.858 mm
method of packing	BULK
peak wavelength	603 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	55 deg

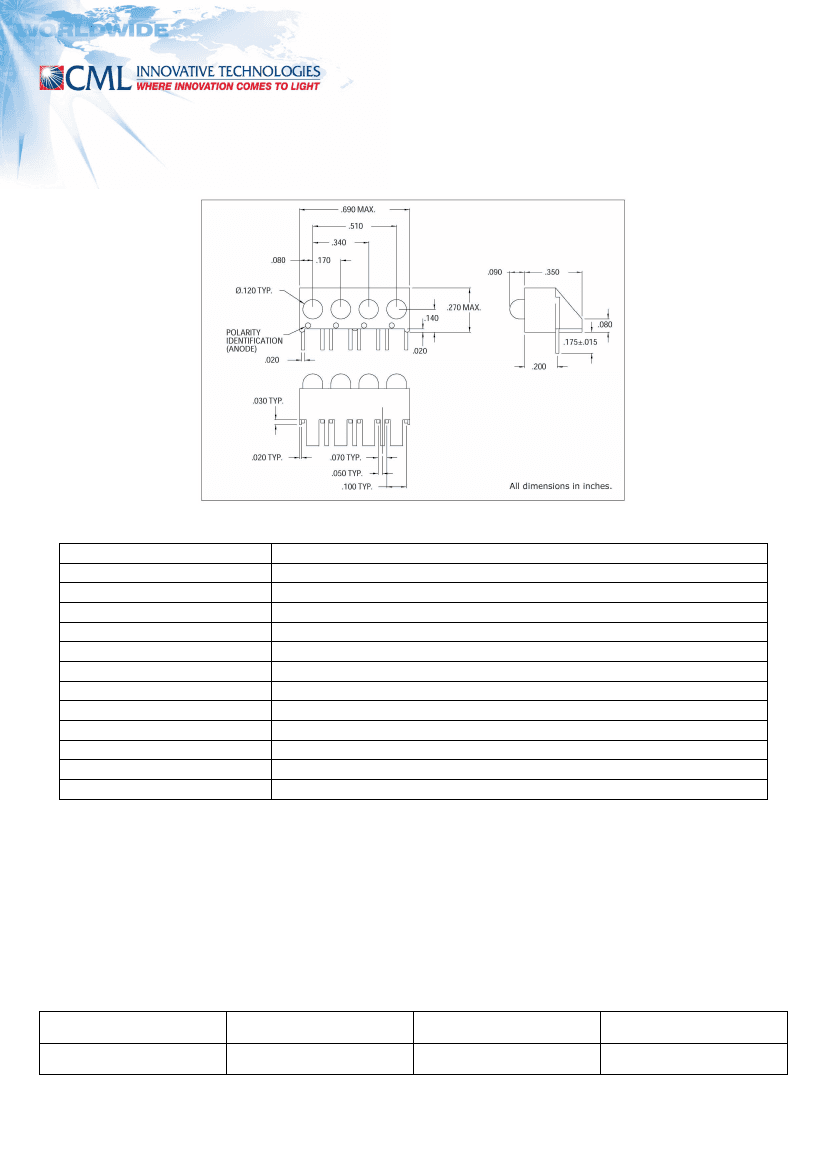

5360F3 Preview

Part Number : 5360F3

Serial Number : 5360F

Circuit Board Indicators

Emitted color

Lens color

Lum in min (mcd)

Lum in type (mcd)

Rated current (mA)

Cont forward current max

Fwd volts type

Forward volt max.

Reverse breakdown V

Viewing angle (°)

Peak Wave Lenght (mA)

Housing type

ROHS Status

Amber

5,6

16

10.0

30.0

2.2

3.0

5

55

603

UL94V-0

Yes

Drawn : VG

Revision :

Ch'd : VG

Revision date : 2006-03-06

Datasheet : 5360F

Name : VG

Print date : 12/09/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
