TS802C06-TE24L datasheet, PDF - EEWORLD Datasheet

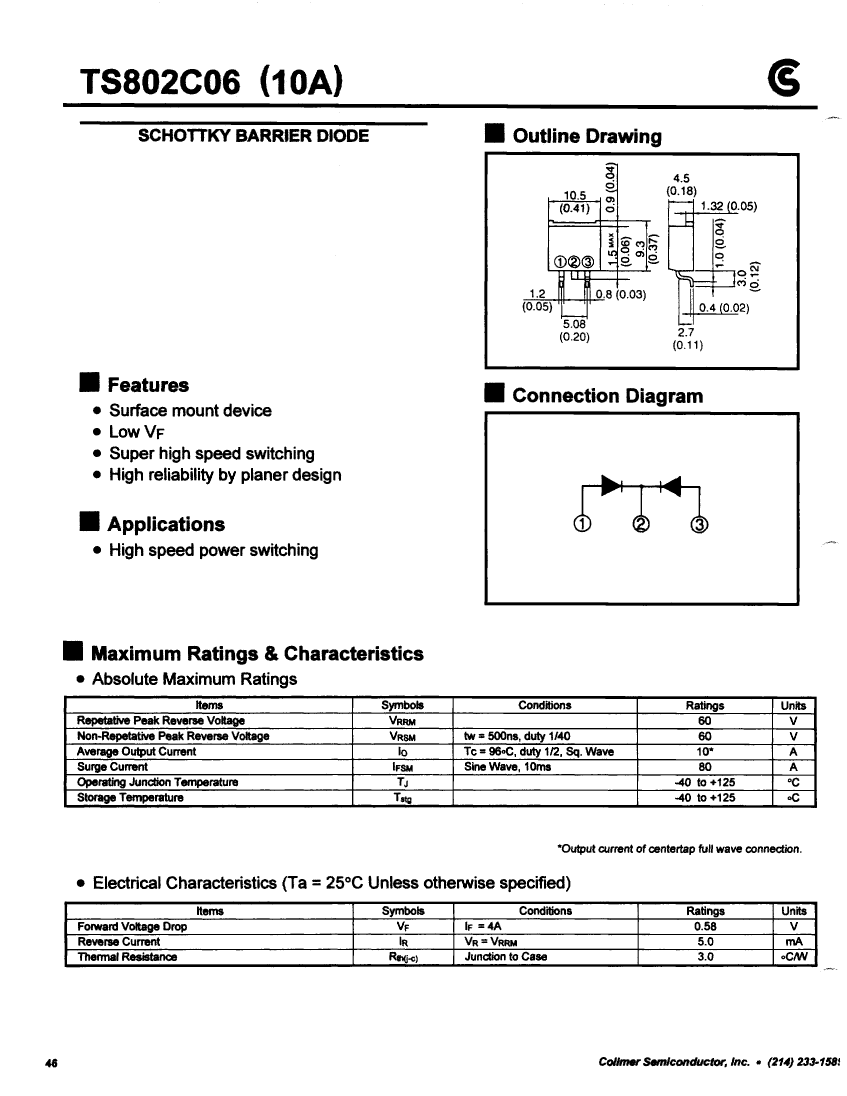

TS802C06-TE24L: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 60V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size35KB，1 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric Compare View All

TS802C06-TE24L Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 60V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	Fuji Electric Co., Ltd.
package instruction	R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	POWER
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	80 A
Number of components	2
Phase	1
Number of terminals	2
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	60 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE

	TS802C06-TE24L	TS802C06-TE24R
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 60V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 60V V(RRM), Silicon,
Maker	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.
package instruction	R-PSSO-G2	R-PSSO-G2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY
application	POWER	POWER
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2	R-PSSO-G2
Maximum non-repetitive peak forward current	80 A	80 A
Number of components	2	2
Phase	1	1
Number of terminals	2	2
Maximum output current	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	60 V	60 V
surface mount	YES	YES
technology	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE
