PUMA68F64006I-15E: DescriptionFlash Module, 2MX32, 150ns, PQMA68, PLASTIC, LCC-68; Categorystorage storage; File Size73KB，3 Pages; ManufacturerAPTA Group Inc

Download Datasheet Parametric View All

PUMA68F64006I-15E Overview

Flash Module, 2MX32, 150ns, PQMA68, PLASTIC, LCC-68

PUMA68F64006I-15E Parametric

Parameter Name	Attribute value
Maker	APTA Group Inc
Parts packaging code	QMA
package instruction	PLASTIC, LCC-68
Contacts	68
Reach Compliance Code	unknown
ECCN code	3A991.B.1.A
Maximum access time	150 ns
Other features	CAN ALSO BE CONFIGURED AS 8M X 8
Spare memory width	16
JESD-30 code	S-PQMA-S68
memory density	67108864 bit
Memory IC Type	FLASH MODULE
memory width	32
Number of functions	1
Number of terminals	68
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2MX32
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	S BEND
Terminal location	QUAD
type	NOR TYPE

Preview

Download Datasheet

View All

2M x 32 FLASH MODULE

PUMA 68F64006/A - 90/12/15

11403 West Bernado Court, Suite 100, San Diego, CA 92127.

Tel No: (619) 674 2233, Fax No: (619) 674 2230

Issue 1.0 : March 1999

Description

The PUMA 68F64006 is a high density 64 MBit CMOS

5V ONLY FLASH memory module in a JEDEC 68 pin

surface mount PLCC, with read access times of 90,

120 and 150ns. The plastic device is screened in to

ensure high reliability.

The device is capable of 10,000 Write/Erase cycles

and has 10 year data retention.

Features

•

64 Megabit FLASH module.

•

Fast Access Times of 90/120/150 ns.

•

Output Configurable as 32 / 16 / 8 bit wide.

•

Industrial, Military or Military (High Rel) Grade.

• Erase/Write Cycle Endurance 100,000 (Min.) -

E variant.

• 10 year data retention.

Block Diagram

PUMA 68F64006

A0~A20

OE

WE

RESET

2M x 8

FLASH

CS1

CS2

CS3

CS4

D0~7

D8~15

D16~23

D24~31

2M x 8

FLASH

2M x 8

FLASH

2M x 8

FLASH

Block Diagram

68F64006A

A0~A20

OE

WE4

WE3

WE2

WE1

RESET

2M x 8

FLASH

CS1

CS2

CS3

CS4

D0~7

D8~15

D16~23

D24~31

2M

x 8

FLASH

2M x 8

FLASH

2M x 8

FLASH

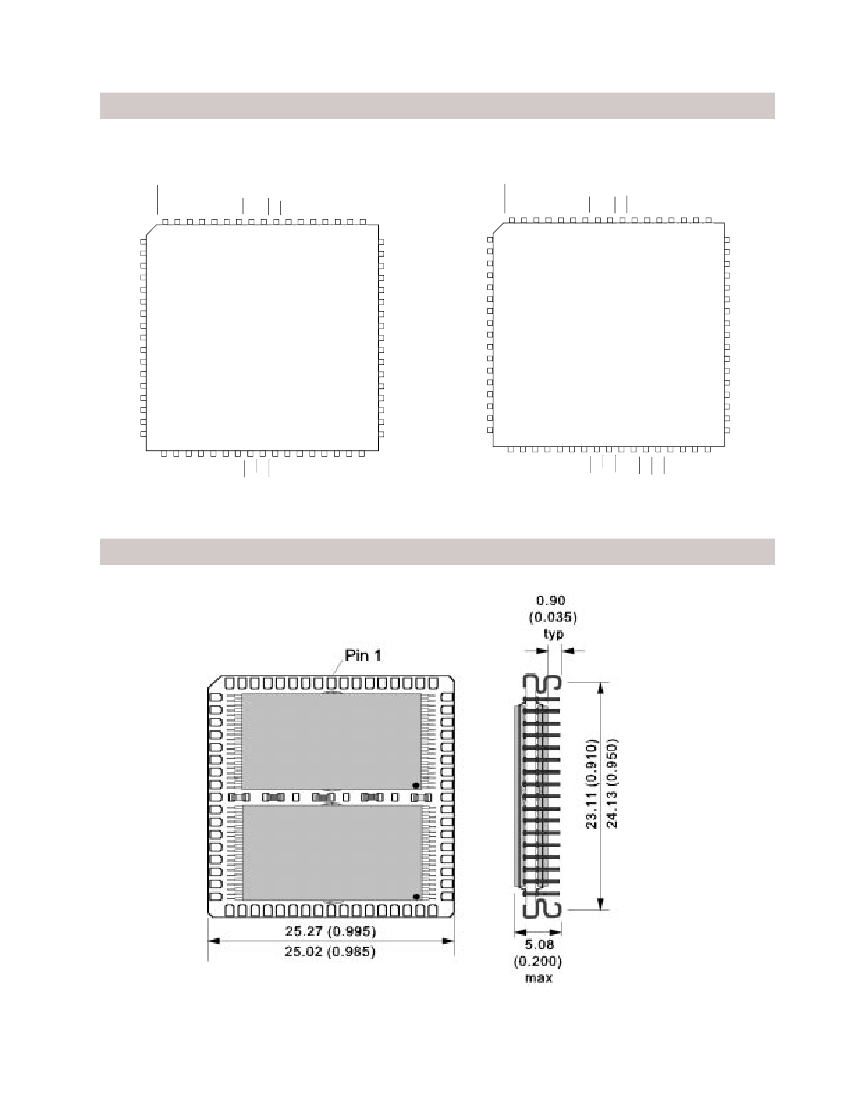

Pin Functions

A0~A20

D0~D31

WE1~4

Vcc

Address Input

Data Inputs/Outputs

Write Enable

Power (+5V)

RESET

CS1~4

OE

GND

State Machine Reset

Chip Selects

Output Enable

Ground
