LDT-N8007RI-USB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LDT-N8007RI-USB

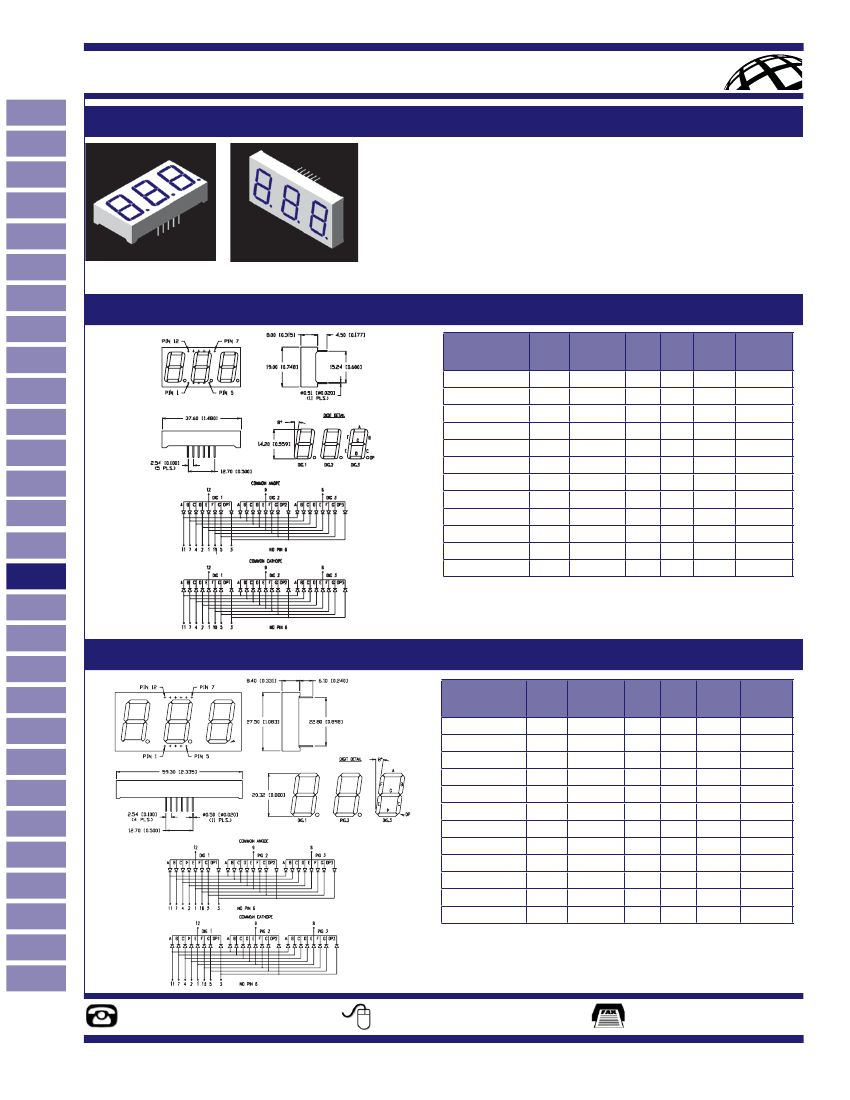

Preview

LDT-N8007RI-USB: DescriptionSmart/Normal 7 Seg Numeric LED Display, Blue, 20.32mm; CategoryLED optoelectronic/LED photoelectric; File Size173KB，1 Pages; ManufacturerLumex; Websitehttps://www.lumex.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LDT-N8007RI-USB Overview

Smart/Normal 7 Seg Numeric LED Display, Blue, 20.32mm

LDT-N8007RI-USB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Lumex
Reach Compliance Code	compliant
color	BLUE
Configuration	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display height	20.32 mm
Maximum forward current	0.025 A
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

LED

Displays ~ Seven Segment ~ Numeric

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

USA/Canada

+1-800-278-5666

Europe

+49-6081-964380

Asia

+886-3-5821124

USA/Canada

+1-847-359-8904

Europe

+49-6081-964381

Asia

+886-3-5821154

Triple Digit

Features/Options

►

Standard and high brightness chips

►

Intensity grading available

►

Custom sizes at minimal tooling

►

Face and segment off colors in grey

and milky white

Applications/Uses

►

Panel meter displays

►

Time lapsed panels

►

Diagnostic equipment

►

Counter displays

0.56” triple digit

Part Number

Wave

Length

(nm)

565

635

660

574

636

470

565

635

660

574

636

470

Brightness

(μcd)

@ 10mA

2500

8000

7000

15,000

6000

2500

8000

7000

15,000

6000

Vf

(typ)

10mA

2.2

2.0

1.7

2.2

2.0

3.5

2.2

2.0

1.7

2.2

2.0

3.5

Vf

(max)

10mA

2.6

2.5

2.2

2.6

4.0

2.6

2.5

2.2

2.6

4.0

Emitted

Color

Green

Red

Green

Red

Blue

Green

Red

Green

Red

Blue

Polarity

(common)

Anode

Cathode

LDT-M512RI

LDT-M514RI

LDT-M516RI

LDT-M512RI-SUG

LDT-M514RI-SI

LDT-M517RI-USB

LDT-N512RI

LDT-N514RI

LDT-N516RI

LDT-N512RI-SUG

LDT-N514RI-SI

LDT-N517RI-USB

0.80” triple digit

Part Number

Wave

Length

(nm)

565

635

660

574

636

470

565

635

660

574

636

470

Brightness

(μcd)

@ 10mA

2500

8000

7000

15,000

6000

2500

8000

7000

15,000

6000

Vf

(typ)

10mA

2.2

2.0

1.7

2.2

2.0

3.5

2.2

2.0

1.7

2.2

2.0

3.5

Vf

(max)

10mA

2.6

2.5

2.2

2.6

4.0

2.6

2.5

2.2

2.6

4.0

Emitted

Color

Green

Red

Green

Red

Blue

Green

Red

Green

Red

Blue

Polarity

(common)

Anode

Cathode

LDT-M8002RI

LDT-M8004RI

LDT-M8006RI

LDT-M8002RI-SUG

LDT-M8004RI-SI

LDT-M8007RI-USB

LDT-N8002RI

LDT-N8004RI

LDT-N8006RI

LDT-N8002RI-SUG

LDT-N8004RI-SI

LDT-N8007RI-USB

www.lumex.com

244

LDT-N8007RI-USB Related Products

	LDT-N8007RI-USB	LDT-N8004RI-SI	LDT-N514RI-SI	LDT-N512RI-SUG	LDT-M8002RI-SUG	LDT-N517RI-USB	LDT-N8006RI	LDT-N8002RI-SUG	LDT-M8004RI
Description	Smart/Normal 7 Seg Numeric LED Display, Blue, 20.32mm	Smart/Normal 7 Seg Numeric LED Display, Red, 20.32mm	Smart/Normal 7 Seg Numeric LED Display, Red, 14.2mm	Smart/Normal 7 Seg Numeric LED Display, Green, 14.2mm	Smart/Normal 7 Seg Numeric LED Display, Green, 20.32mm	Smart/Normal 7 Seg Numeric LED Display, Blue, 14.2mm	Smart/Normal 7 Seg Numeric LED Display, Red, 20.32mm	Smart/Normal 7 Seg Numeric LED Display, Green, 20.32mm	Smart/Normal 7 Seg Numeric LED Display, Red, 20.32mm
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
color	BLUE	RED	RED	GREEN	GREEN	BLUE	RED	GREEN	RED
Configuration	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display height	20.32 mm	20.32 mm	14.2 mm	14.2 mm	20.32 mm	14.2 mm	20.32 mm	20.32 mm	20.32 mm
Number of functions	3	3	3	3	3	3	3	3	3
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Maker	Lumex	Lumex	-	Lumex	Lumex	Lumex	Lumex	Lumex	Lumex
Maximum forward current	0.025 A	0.03 A	-	0.025 A	0.025 A	0.025 A	0.03 A	0.025 A	0.03 A
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
