DE09PN2430 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DE09PN2430

DE09PN2430: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size276KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric Compare View All

DE09PN2430 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

DE09PN2430 Parametric

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.335 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Manufacturer's serial number	DPN
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	1.946 N

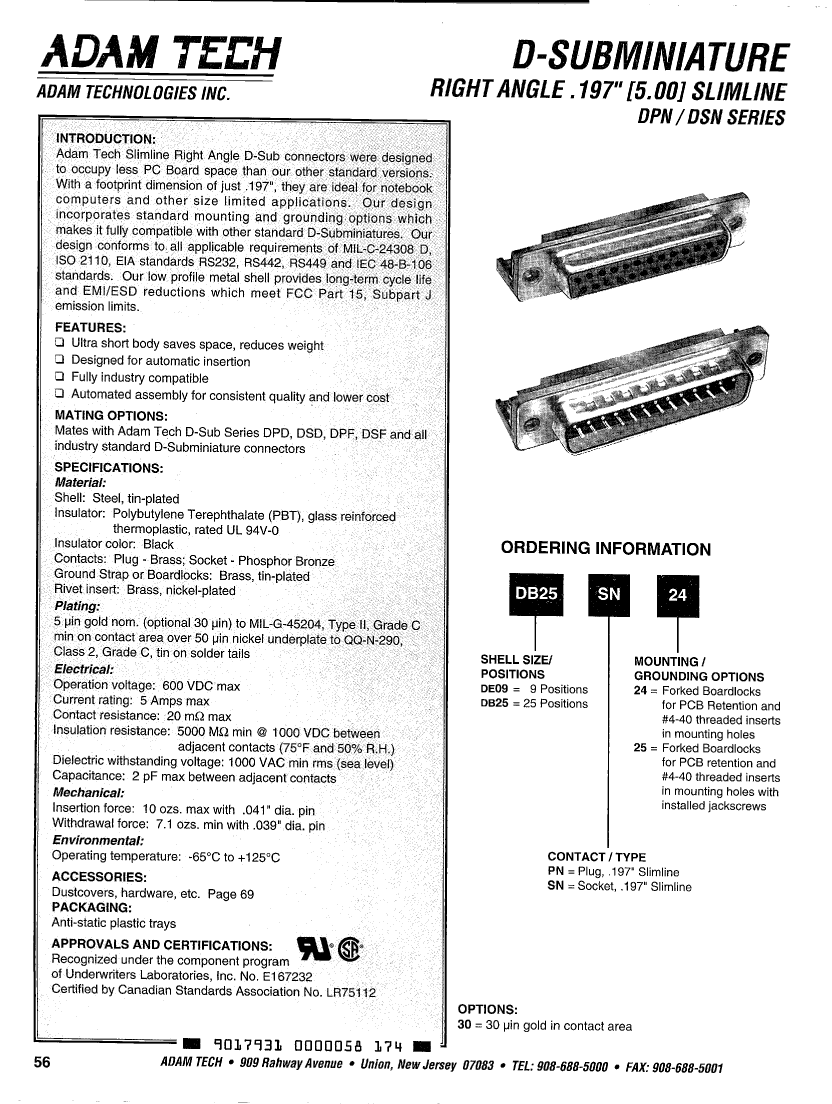

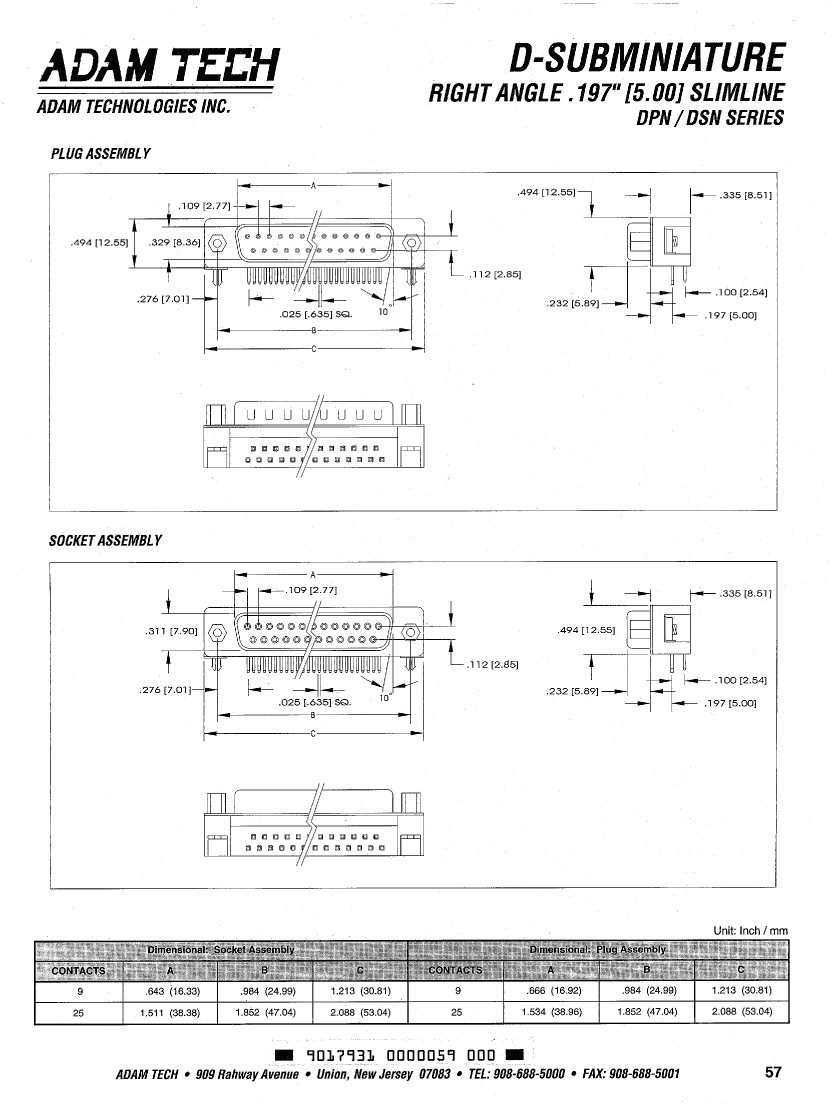

DE09PN2430 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DE09PN2430 Related Products

	DE09PN2430	DB25PN2430	DB25PN2530	DE09SN2430
Description	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
Maker	Adam Tech	Adam Tech	Adam Tech	Adam Tech
Reach Compliance Code	compliant	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.335 inch	0.335 inch	0.335 inch	0.335 inch
body length	1.213 inch	2.088 inch	2.088 inch	1.213 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	FEMALE
Contact material	BRASS	BRASS	BRASS	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES	YES	YES	YES
Manufacturer's serial number	DPN	DPN	DPN	DSN
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40
Installation option 2	THREADED	THREADED	THREADED	THREADED
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	25	25	9
Evacuation force-minimum value	1.946 N	1.946 N	1.946 N	1.946 N
