DPX3: DescriptionRack and Panel Connector, Female; Male, Crimp; Solder Terminal, Plug; Receptacle; CategoryThe connector The connector; File Size2MB，34 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DPX3 Overview

Rack and Panel Connector, Female; Male, Crimp; Solder Terminal, Plug; Receptacle

DPX3 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACTS: P-249-1397-000; S-249-1398-000; P-249-1399-000; S-249-1400-000, POLARIZATION AVAILABLE, MAX CONTACTS (SERIES)=318
Body/casing type	PLUG; RECEPTACLE
Connector type	RACK AND PANEL CONNECTOR
Contact point gender	FEMALE; MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	DIALLYL PHTHALATE
MIL compliance	NO
Manufacturer's serial number	DPX
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Termination type	CRIMP; SOLDER

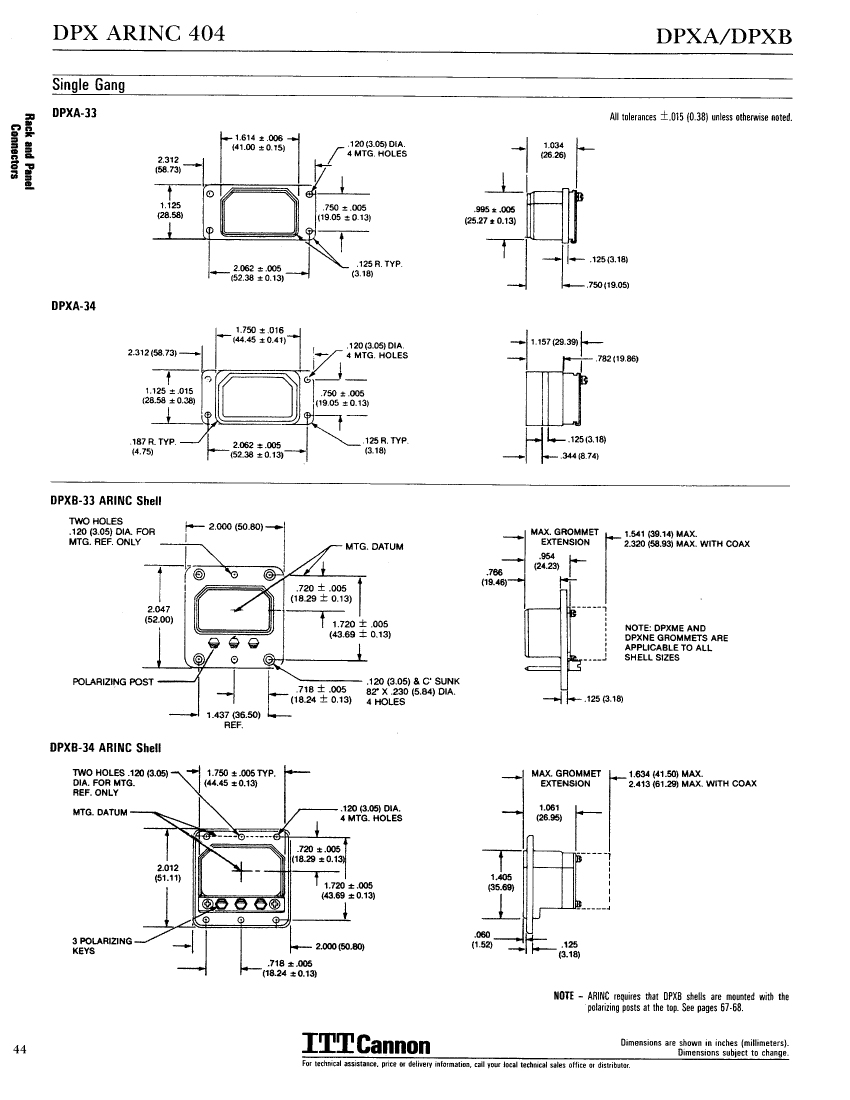

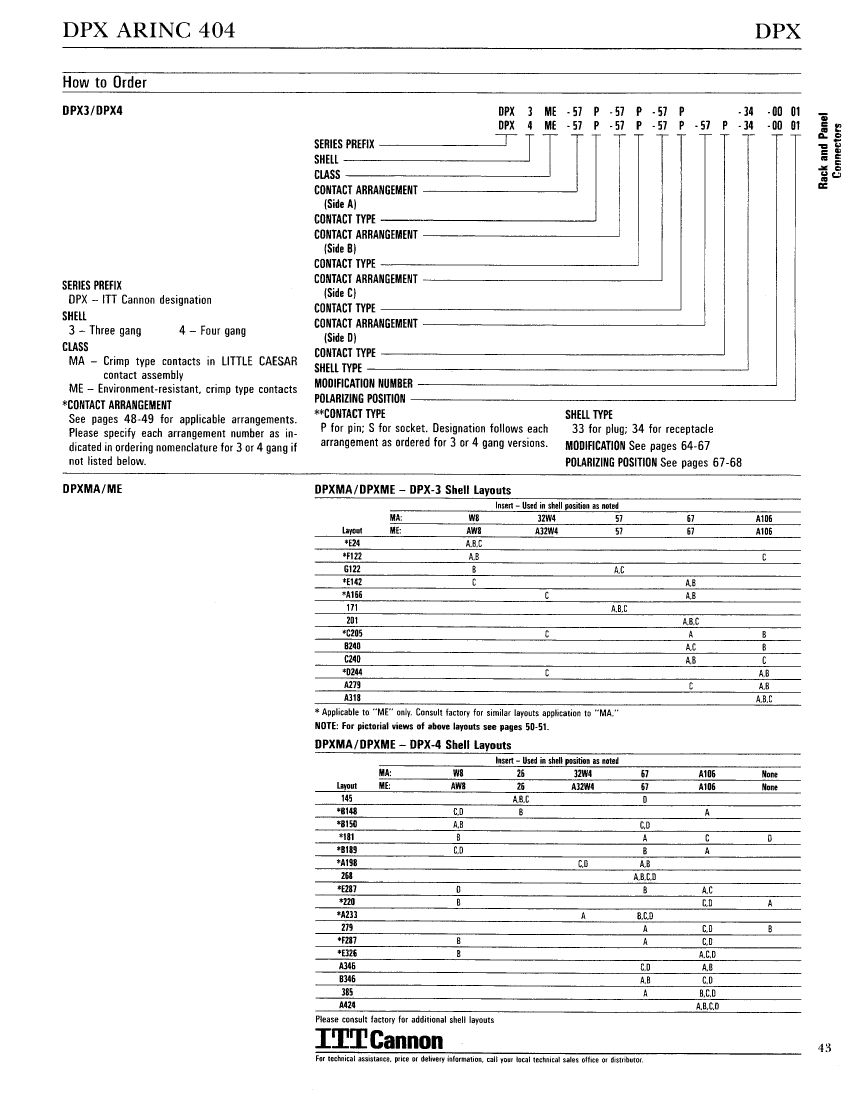

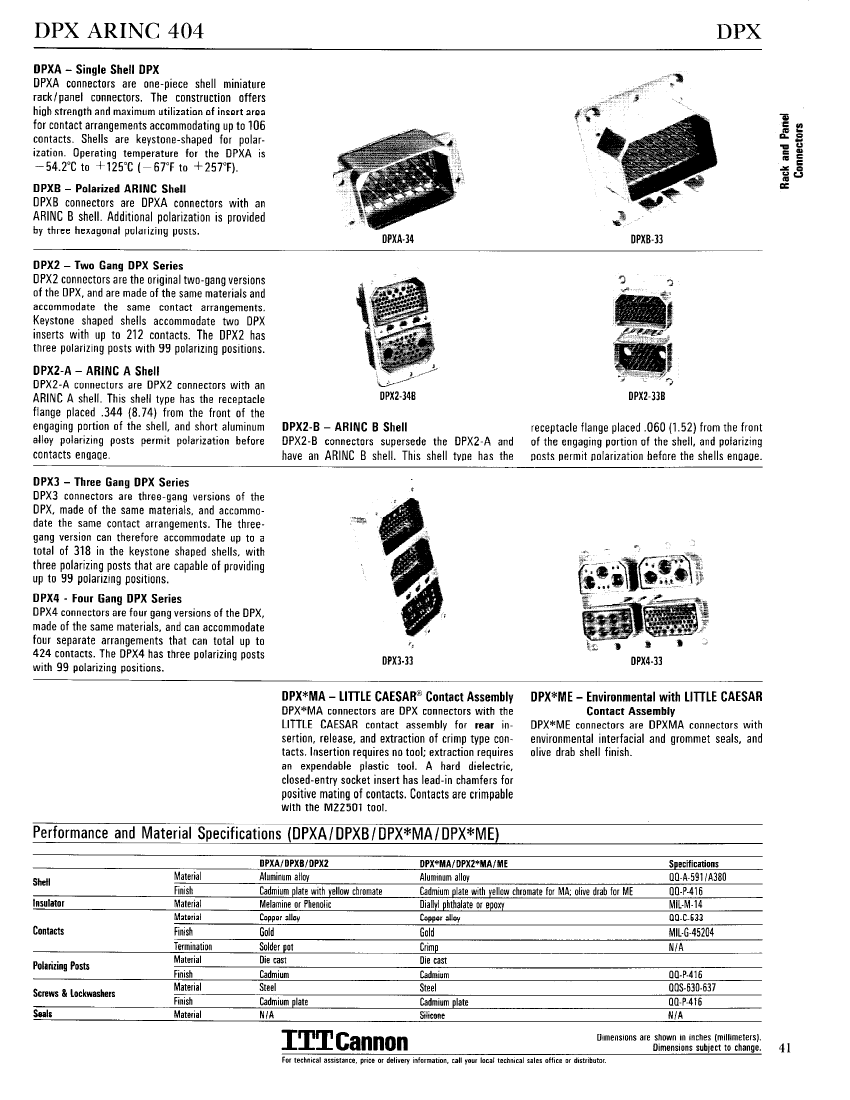

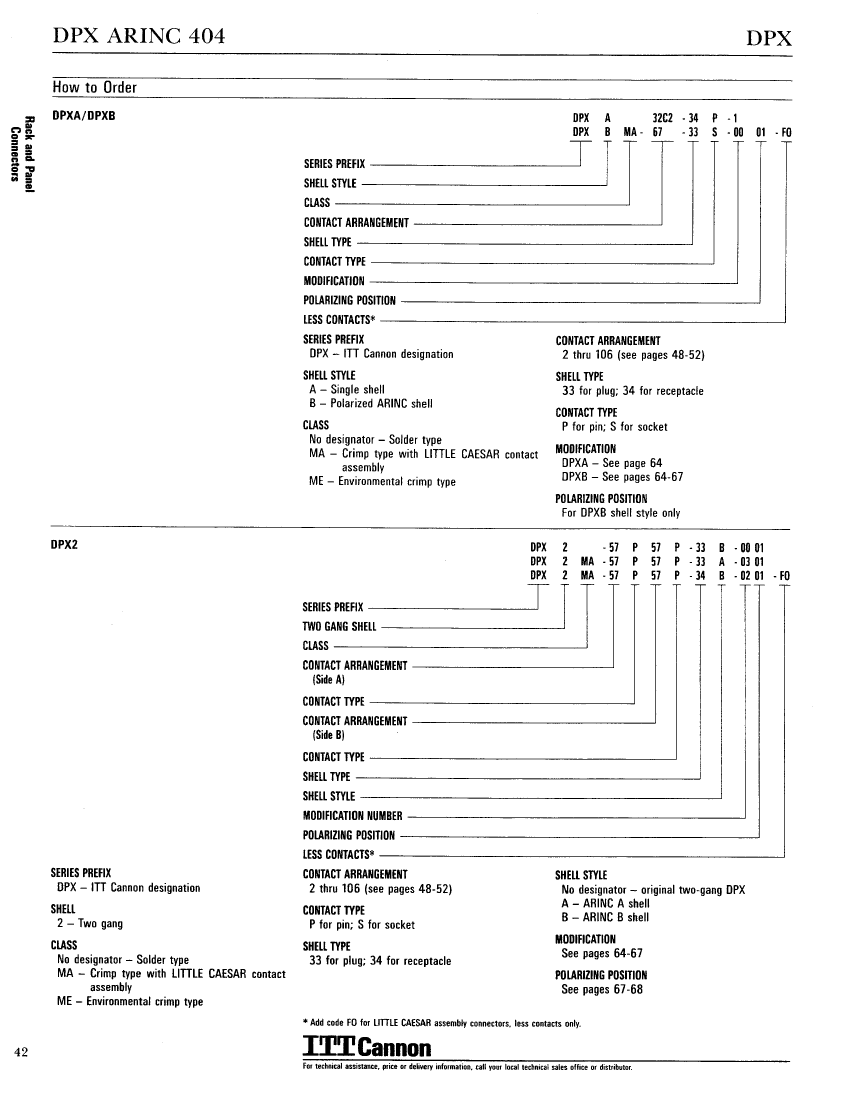

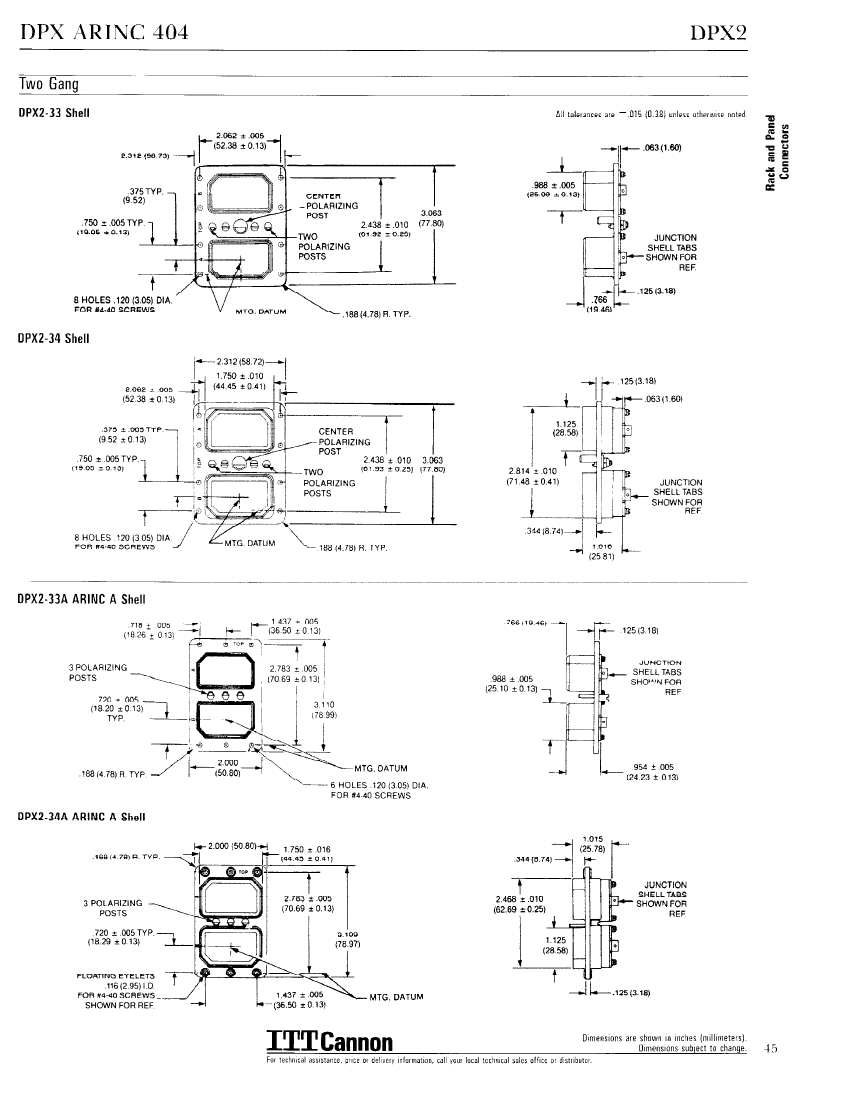

DPX3 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DPX3 Related Products

	DPX3	DPX4	DPXA
Description	Rack and Panel Connector, Female; Male, Crimp; Solder Terminal, Plug; Receptacle	Rack and Panel Connector, Female; Male, Crimp; Solder Terminal, Plug; Receptacle	Rack and Panel Connector, Female; Male, Crimp; Solder Terminal, Plug; Receptacle
Maker	ITT	ITT	ITT
Reach Compliance Code	compliant	compliant	compliant
Other features	COMPATIBLE CONTACTS: P-249-1397-000; S-249-1398-000; P-249-1399-000; S-249-1400-000, POLARIZATION AVAILABLE, MAX CONTACTS (SERIES)=318	COMPATIBLE CONTACTS: P-249-1397-000; S-249-1398-000; P-249-1399-000; S-249-1400-000, POLARIZATION AVAILABLE, MAX CONTACTS (SERIES)=424	COMPATIBLE CONTACTS: P-249-1397-000; S-249-1398-000; P-249-1399-000; S-249-1400-000, MAX CONTACTS (SERIES)=106
Body/casing type	PLUG; RECEPTACLE	PLUG; RECEPTACLE	PLUG; RECEPTACLE
Connector type	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR
Contact point gender	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE; MELAMINE/PHENOLIC
MIL compliance	NO	NO	NO
Manufacturer's serial number	DPX	DPX	DPX
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES	YES
Installation type	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM	CADMIUM	CADMIUM
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Termination type	CRIMP; SOLDER	CRIMP; SOLDER	CRIMP; SOLDER
