DCMV21WA4PN datasheet, PDF - EEWORLD Datasheet

DCMV21WA4PN: DescriptionD Subminiature Connector, 21 Contact(s), Male, Solder Terminal, #4-40; CategoryThe connector The connector; File Size601KB，7 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

DCMV21WA4PN Overview

D Subminiature Connector, 21 Contact(s), Male, Solder Terminal, #4-40

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S17P4
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	7.3 mΩ
Contact style	HYBRID
DIN compliance	NO
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	YES
Installation option 1	#4-40
Installation option 2	SCREW
Installation type	PANEL
Options	GENERAL PURPOSE
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	CADMIUM
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	21
UL Flammability Code	94V-0

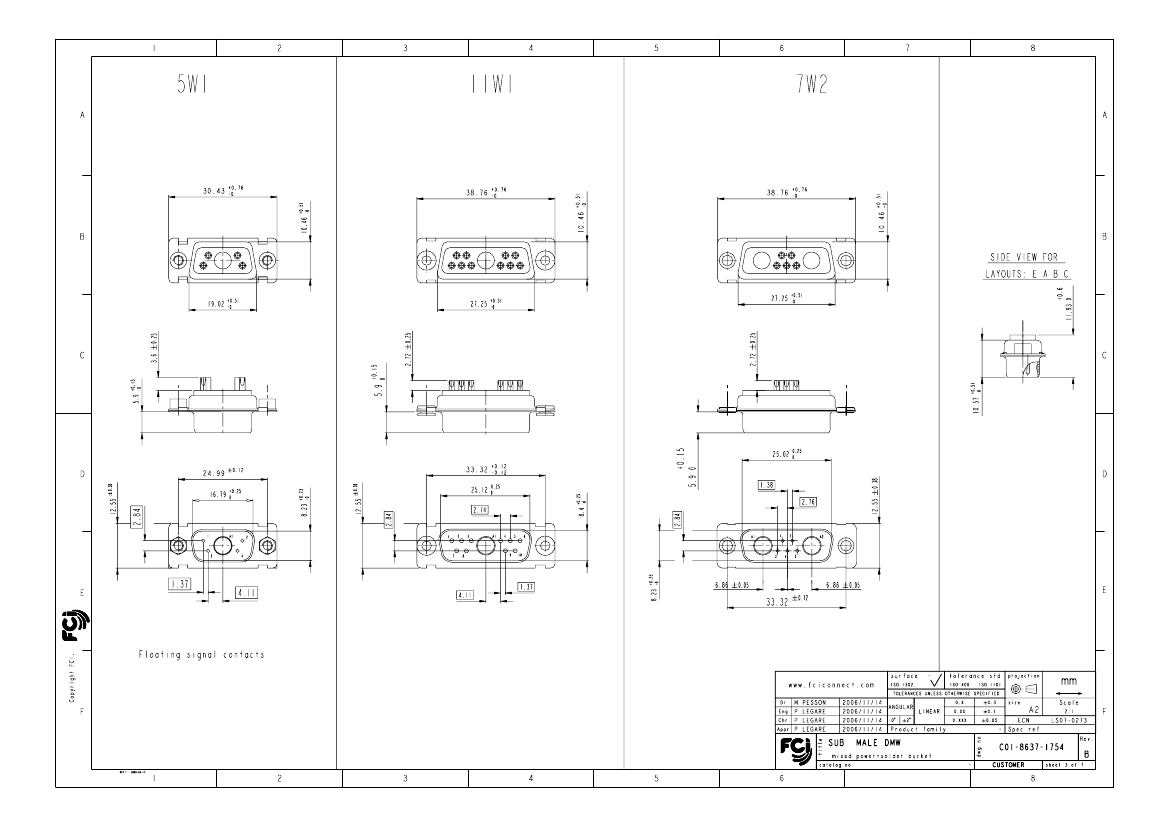

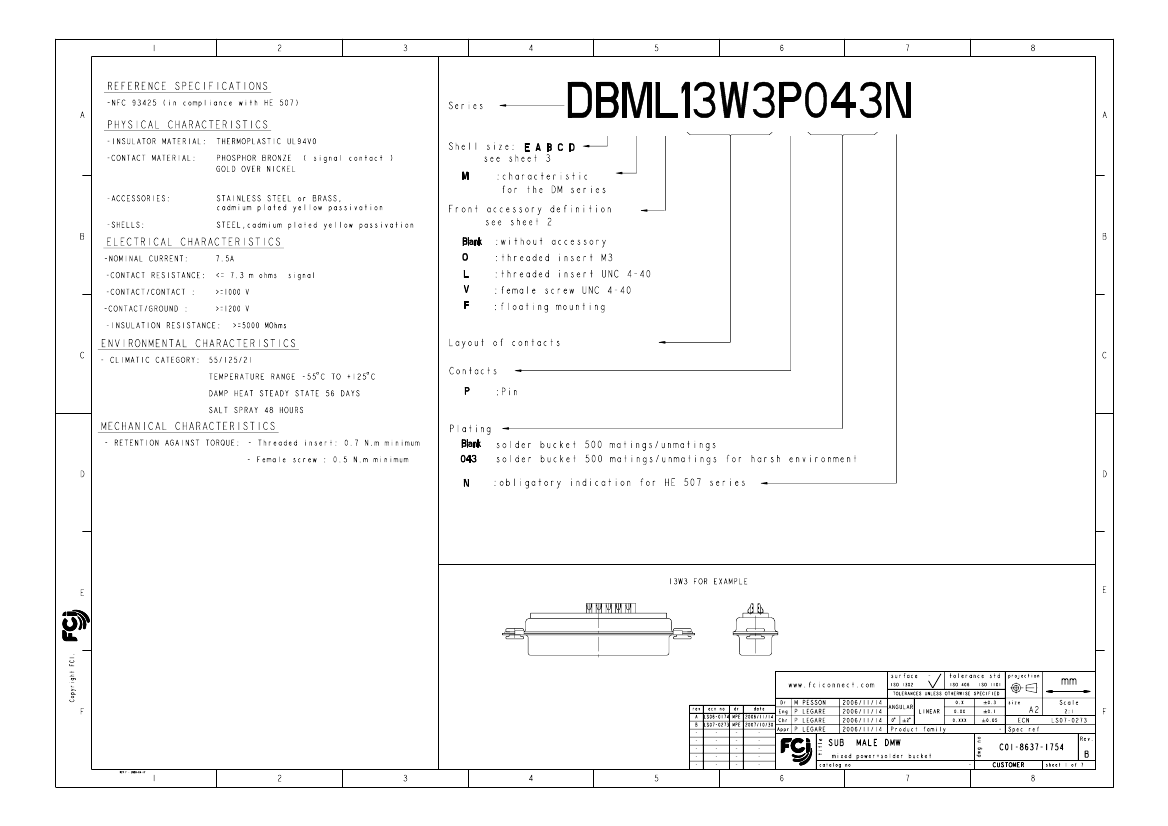

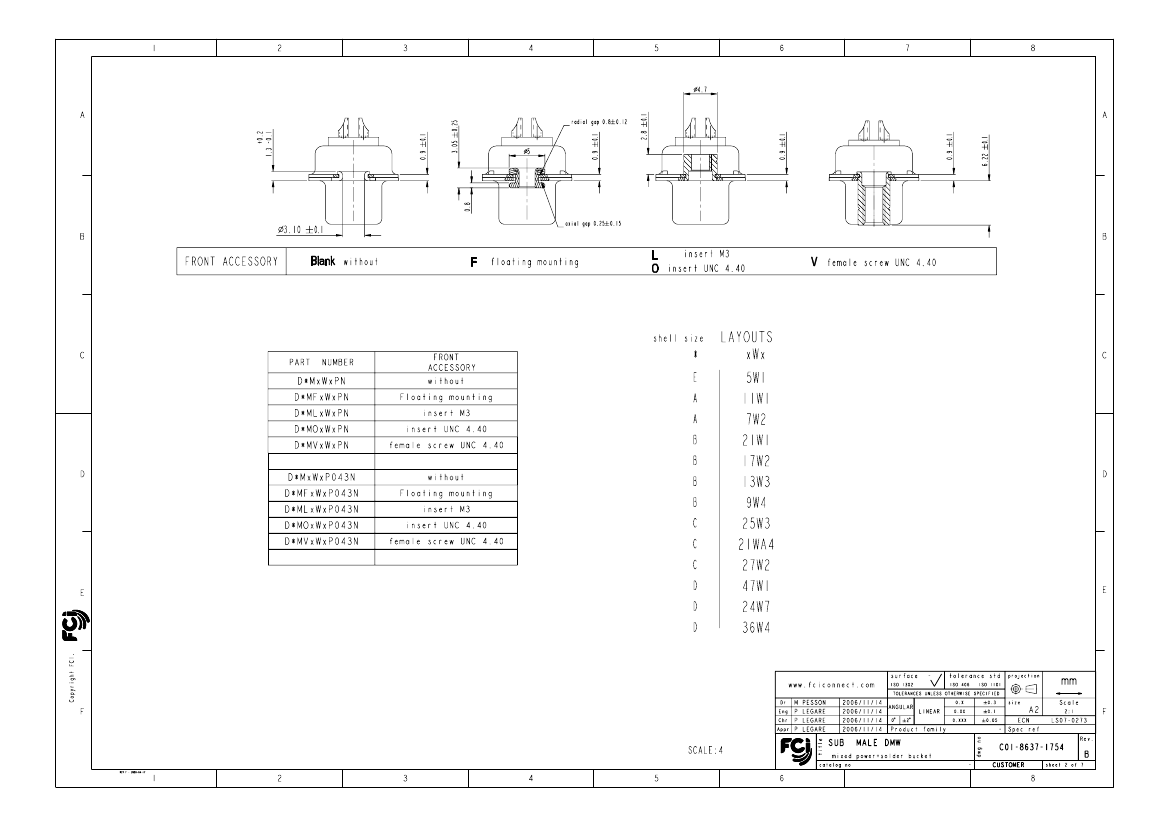

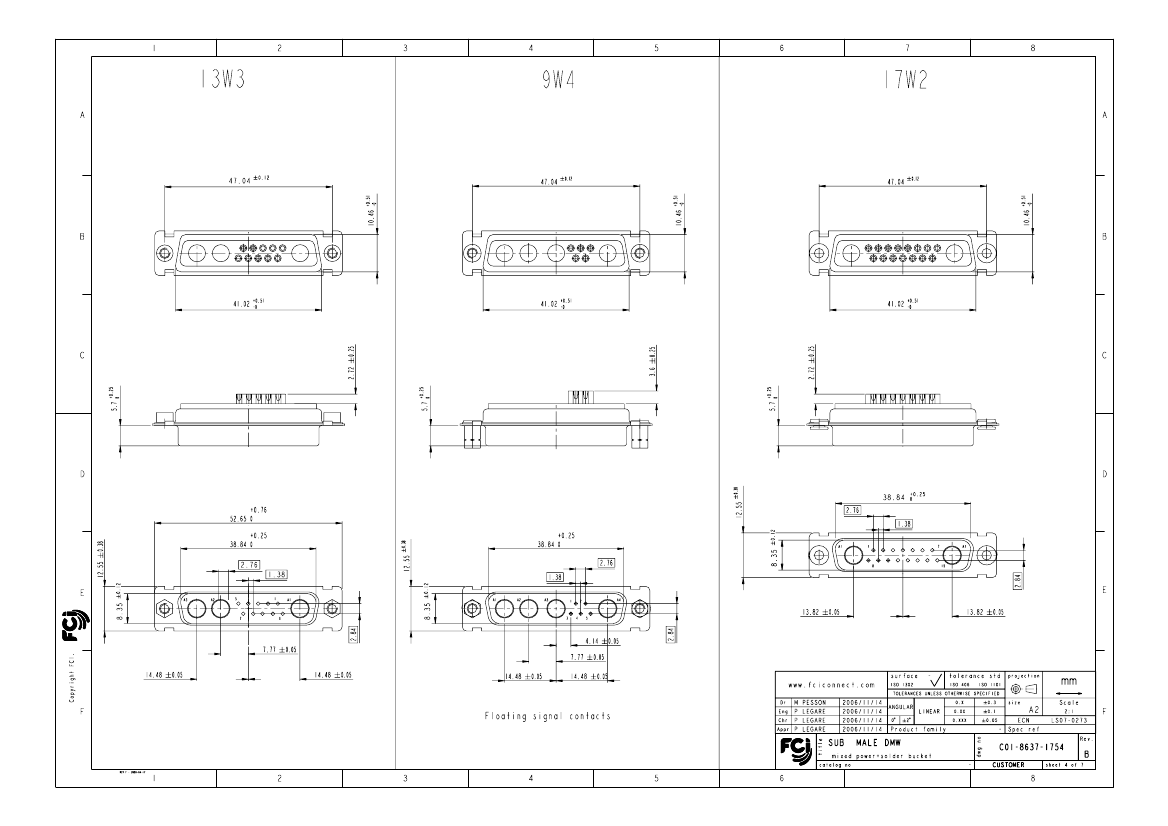

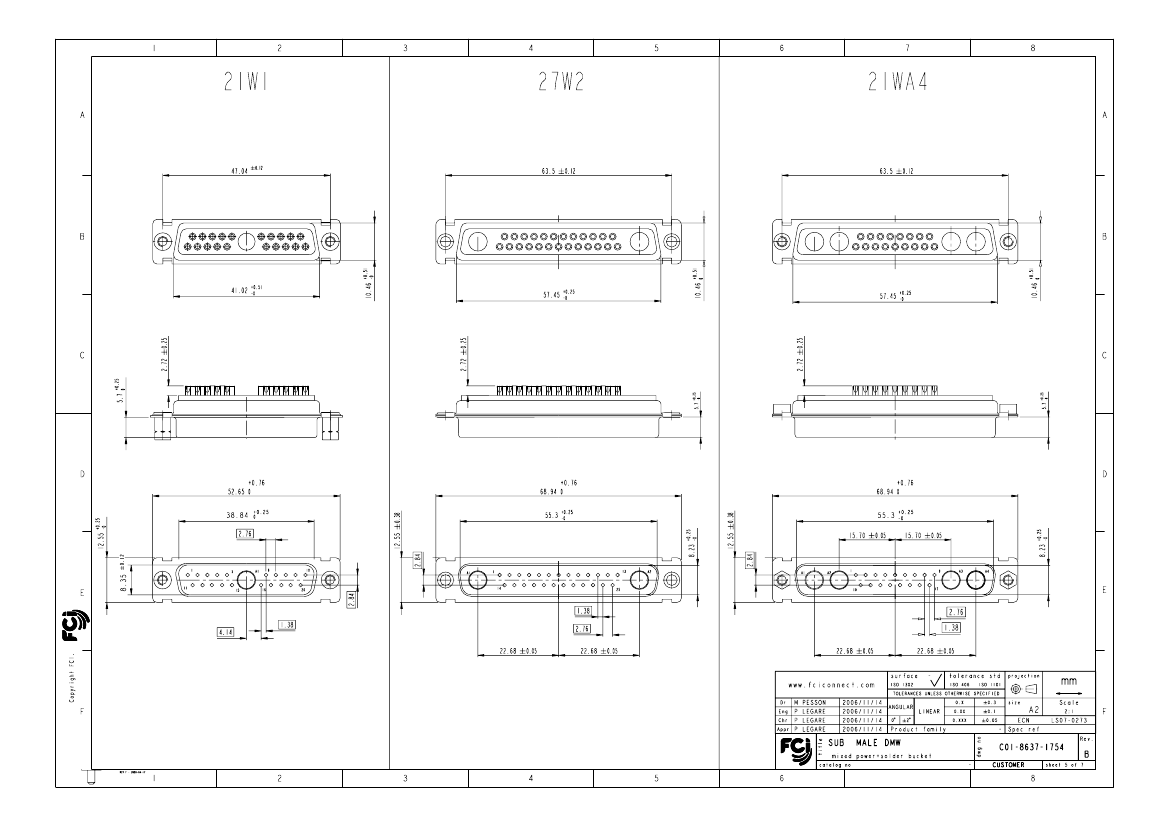

PDM:

PDS: Rev :B

Rev:B

STATUS:Released

Printed: Jun 18,

Jun 19, 2015

Printed:

2015

STATUS:

Released
