BDS21SMD-JQR-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BDS21SMD-JQR-A

BDS21SMD-JQR-A: DescriptionPower Bipolar Transistor, 5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-276AB, Ceramic, Metal-Sealed Cofired, 3 Pin, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size452KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

BDS21SMD-JQR-A Overview

Power Bipolar Transistor, 5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-276AB, Ceramic, Metal-Sealed Cofired, 3 Pin, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN

BDS21SMD-JQR-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TT Electronics plc
package instruction	HERMETIC SEALED, CERAMIC, SMD1, 3 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	COLLECTOR
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	80 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	1000
JEDEC-95 code	TO-276AB
JESD-30 code	R-CBCC-N3
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	NO LEAD
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	8 MHz

Preview

Download Datasheet

View All

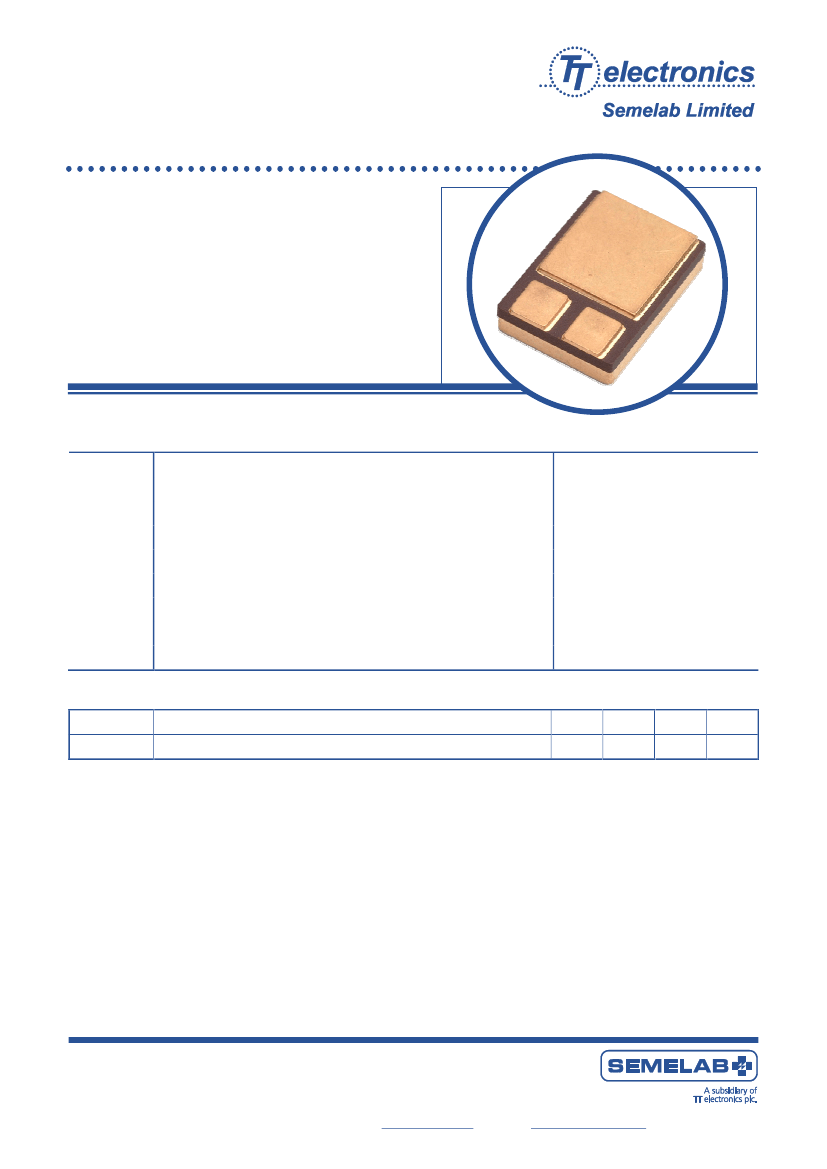

SILICON EPIBASE PNP

DARLINGTON TRANSISTOR

BDS21SMD

•

High DC Current Gain

Hermetic Ceramic Surface Mount Package

Designed For General Purpose Amplifiers and

Low Speed Switching Applications

Screening Options Available

•

ABSOLUTE MAXIMUM RATINGS

(TC = 25°C unless otherwise stated)

VCBO

VCEO

VEBO

Tstg

Collector – Base Voltage

Collector – Emitter Voltage

Emitter – Base Voltage

Continuous Collector Current

Base Current

TC = 25°C

Total Power Dissipation at

Derate Above 25°C

Junction Temperature Range

Storage Temperature Range

-80V

-5V

-5A

-0.1A

35W

0.2W/°C

-65 to +200°C

THERMAL PROPERTIES

Symbols

θJC

Parameters

Thermal Resistance, Junction To Case

Min.

Typ.

Max.

Units

°C/W

** This datasheet supersedes document 7603

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Semelab Limited

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Telephone +44 (0) 1455 556565

Fax +44 (0) 1455 552612

Email:

sales@semelab-tt.com

Document Number 8218

Issue 1

Page 1 of 2

Website:

http://www.semelab-tt.com
