DAC725BH datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC725BH

PDF

DAC725BH: DescriptionD/A Converter, 2 Func, Parallel, 8 Bits Input Loading, 4us Settling Time, CDIP28,; CategoryAnalog mixed-signal IC converter; File Size344KB，8 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

DAC725BH Overview

D/A Converter, 2 Func, Parallel, 8 Bits Input Loading, 4us Settling Time, CDIP28,

DAC725BH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	2\'S COMPLEMENT BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
Maximum linear error (EL)	0.003%
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	2
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified
Maximum stabilization time	8 µs
Nominal settling time (tstl)	4 µs
Maximum slew rate	40 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

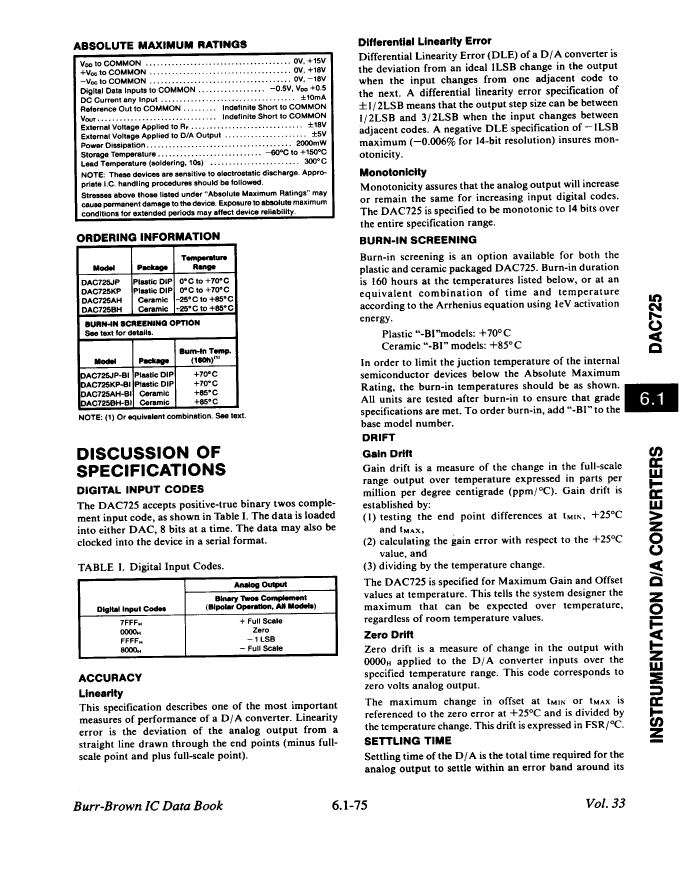

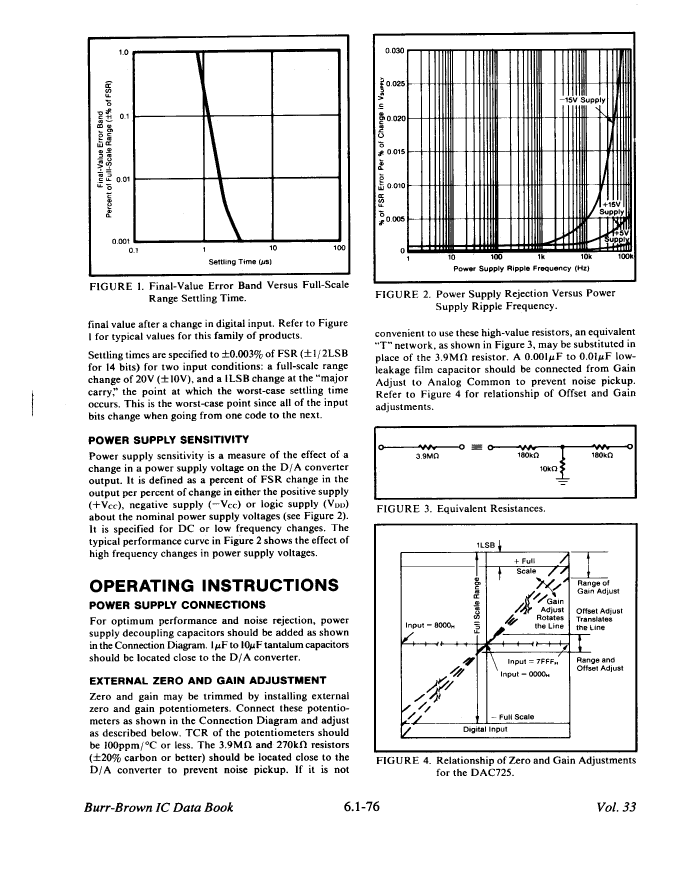

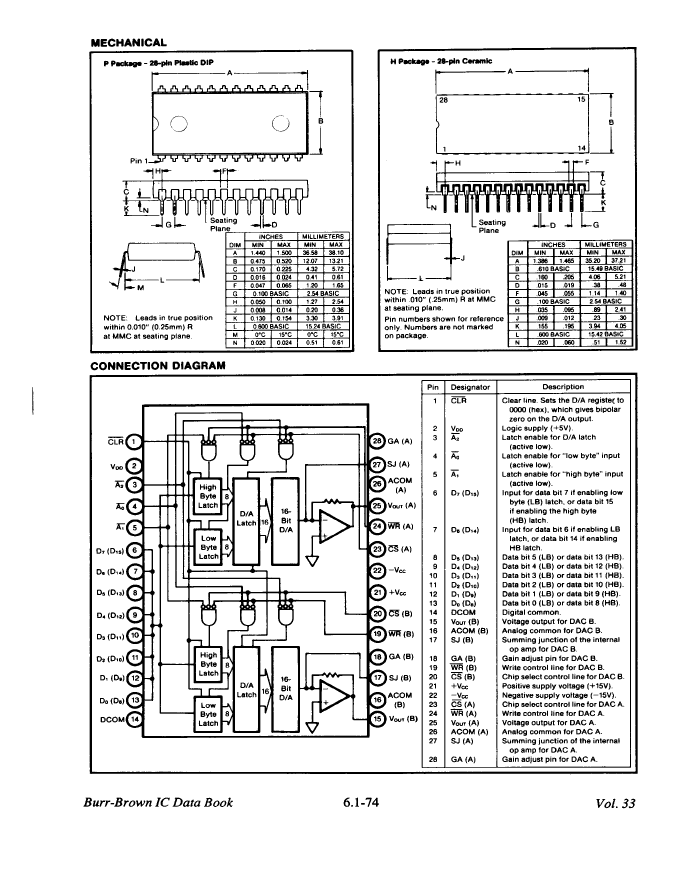

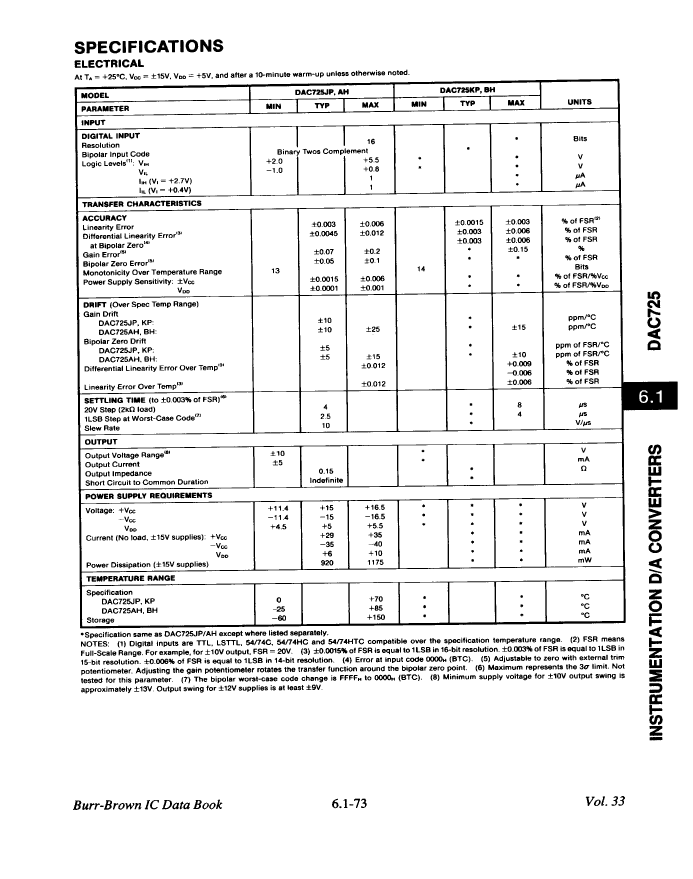

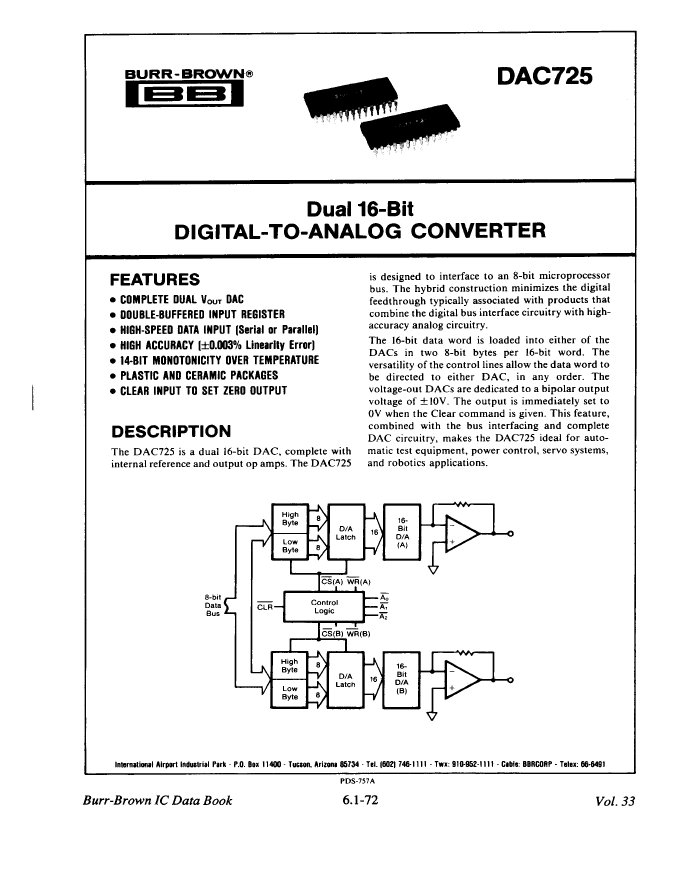

DAC725BH Preview

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DAC725BH Related Products

	DAC725BH	DAC725AH	DAC725KP-BI	DAC725AH-BI	DAC725BH-BI	DAC725JP-BI
Description	D/A Converter, 2 Func, Parallel, 8 Bits Input Loading, 4us Settling Time, CDIP28,	D/A Converter, 2 Func, Parallel, 8 Bits Input Loading, 4us Settling Time, CDIP28,	D/A Converter, 2 Func, Parallel, 8 Bits Input Loading, 4us Settling Time, PDIP28,	D/A Converter, 2 Func, Parallel, 8 Bits Input Loading, 4us Settling Time, CDIP28,	D/A Converter, 2 Func, Parallel, 8 Bits Input Loading, 4us Settling Time, CDIP28,	D/A Converter, 2 Func, Parallel, 8 Bits Input Loading, 4us Settling Time, PDIP28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	10 V	10 V	10 V	10 V	10 V	10 V
Minimum analog output voltage	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T28	R-CDIP-T28	R-PDIP-T28	R-CDIP-T28	R-CDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.003%	0.006%	0.003%	0.006%	0.003%	0.006%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	16	16	16	16	16	16
Number of functions	2	2	2	2	2	2
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-	-25 °C	-25 °C	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal settling time (tstl)	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs
Maximum slew rate	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	COMMERCIAL	OTHER	OTHER	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
