Kingbright
Features
l
LED
®
T-1(3mm) WITH SAPCER
L-474CB/1I HIGH EFFICIENCY RED
L-474CB/1G GREEN
L-474CB/1Y YELLOW
Package Dimensions
FIRMLY HELD BY SPACER - NO ADDITIONAL
IS CLEARLY IDENTIFIED ON PACKAGE.
FOR BACK PANEL ILLUMINATION,
FIXTURING OR GLUEING NECESSARY.
l
CATHODE
l
SUITABLE
CIRCUIT BOARD INDICATOR, LED INDICATOR.
Description
The Green source color devices are made with Gallium
Phosphide Light Emitting Diode.
The High Efficiency Red source color devices are made
with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±
1") unless otherwise noted.
3. Lead spacing is measured where the lead emer-
ge package.
4. Specifications are subjected to change without notice.
Selection Guide
Part No.
L-474CB/1IT
HIGH EFFICIENCY RED (GaAsP/GaP)
L-474CB/1EC
L-474CB/1GT
GREEN (GaP)
L-474CB/1GC
L-474CB/1YT
YELLOW (GaAsP/GaP)
L-474CB/1YC
Dice
Lens Type
RED TRANSPARENT
WATER CLEAR
GREEN TRANSPARENT
WATER CLEAR
YELLOW TRANSPARTENT
WATER CLEAR
Iv (mcd)
@ 10 mA
Min.
3.2
3.2
2
2
2
2
Viewing
Angle
2θ1/2
130°
130°
130°
130°
130°
130°
Max.
12.5
12.5
8
8
8
8
Note:
1.
θ
1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
3-L474CB-1

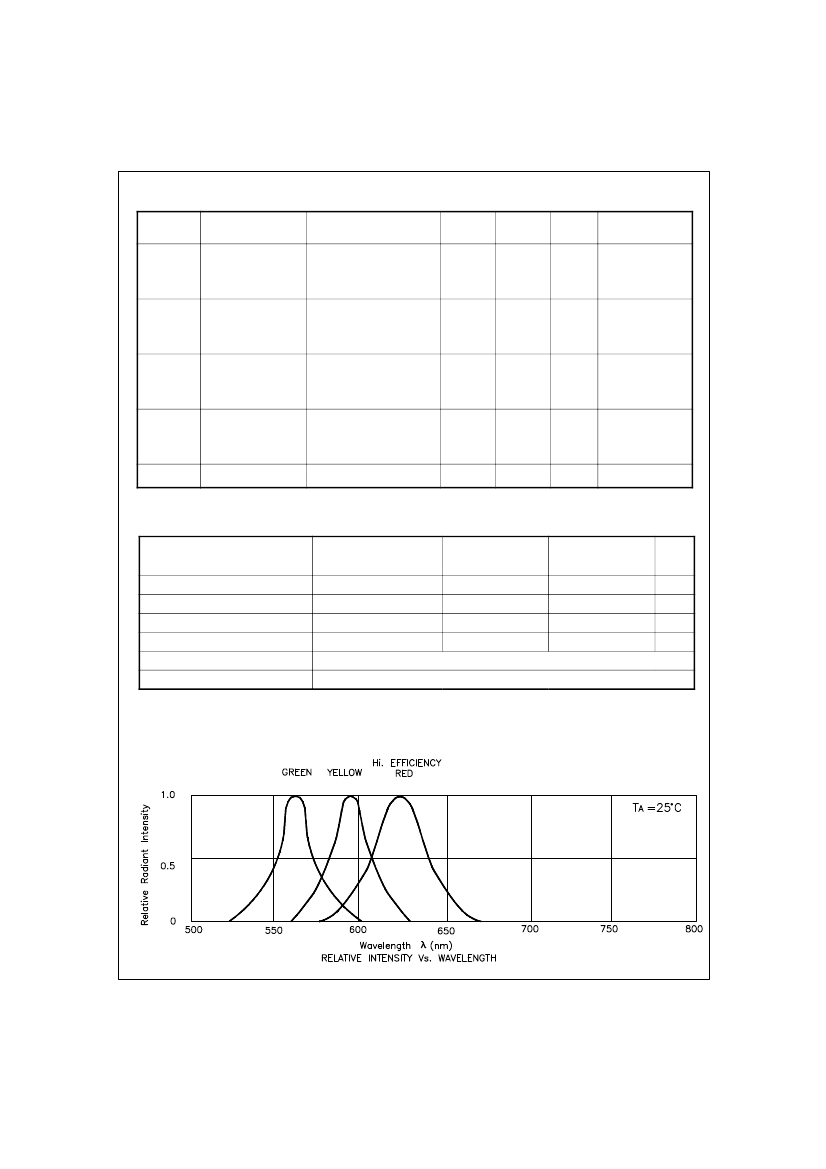

Electrical / Optical Characteristics at T
A
=25°C
Symbol
Parameter
Device
High Efficiency Red
Green
Yellow
Typ.
625
565
590
Max.
Units
Test Conditions
λ
peak
Peak Wavelength
nm
IF=20mA
∆λ
1/2
Spectral Line
Halfwidth
High Efficiency Red
Green
Yellow
45
30
35
nm
IF=20mA
C
Capacitance
High Efficiency Red
Green
Yellow
12
45
10
pF
VR=0V;f=1MHz
v
F
I
R
Forward Voltage
High Efficiency Red
Green
Yellow
All
2.0
2.2
2.1
10
2.5
2.5
2.5
V
IF=20mA
Reverse Current
uA
VR = 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Soldering Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
High Efficiency Red
105
30
150
5
Green
105
25
150
5
-40 °C To +85 °C
260 °C For 5 Seconds
Yellow
105
30
150
5
Units
mW
mA
mA
V
3-L474CB-2

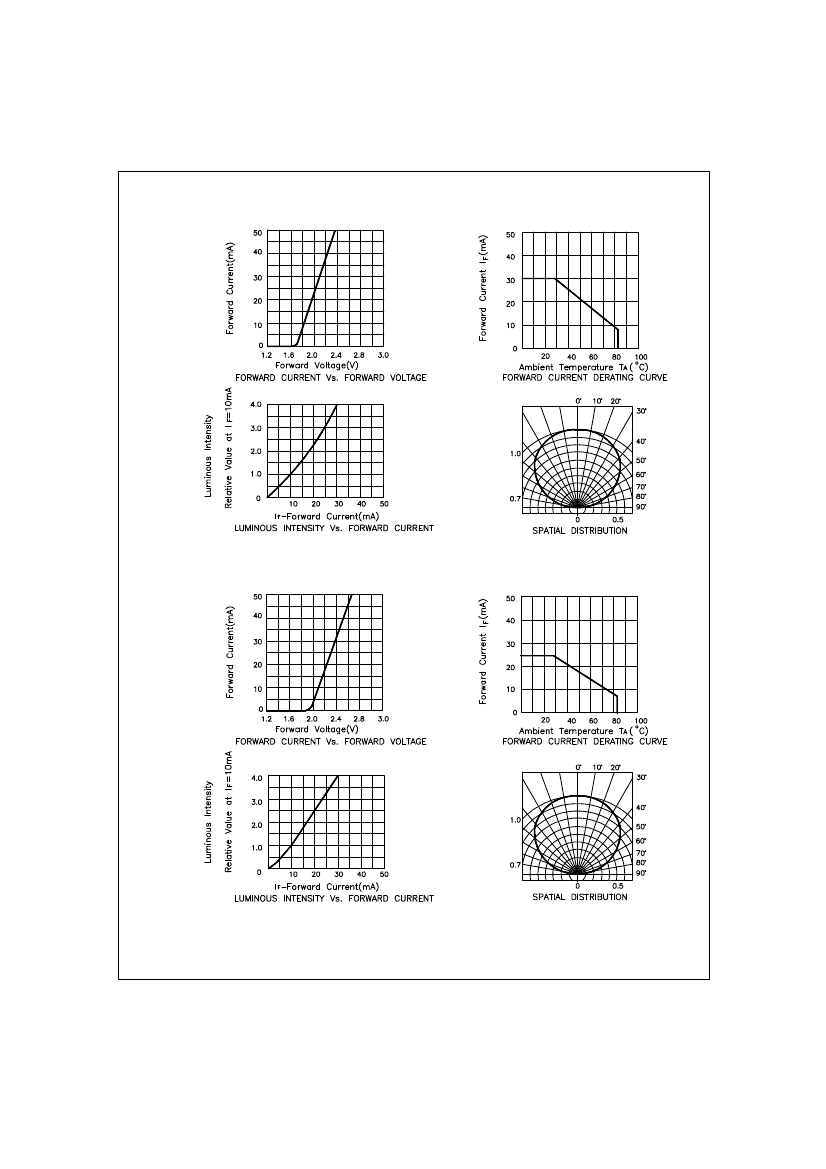

High Efficiency Red L-474CB/1IT , L-474CB/1EC
Green

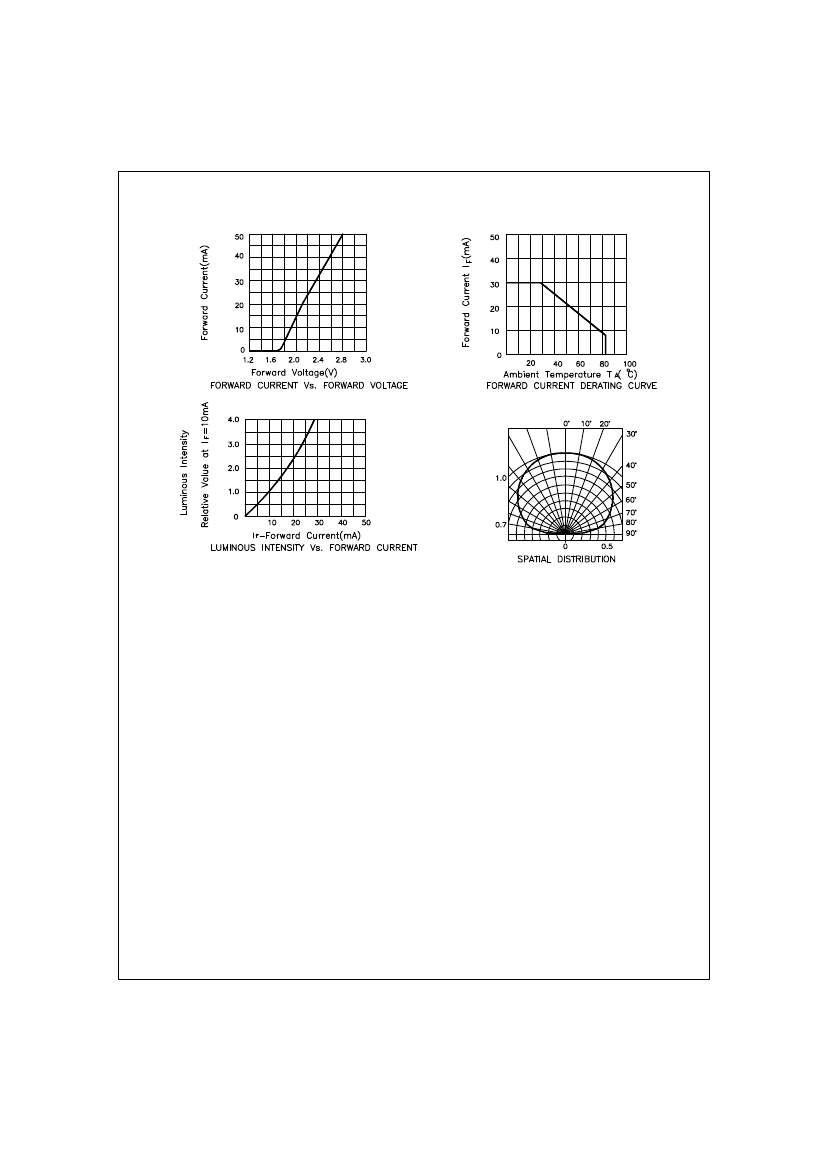

L-474CB/1GT , L-474CB/1GC
3-L474CB-3
