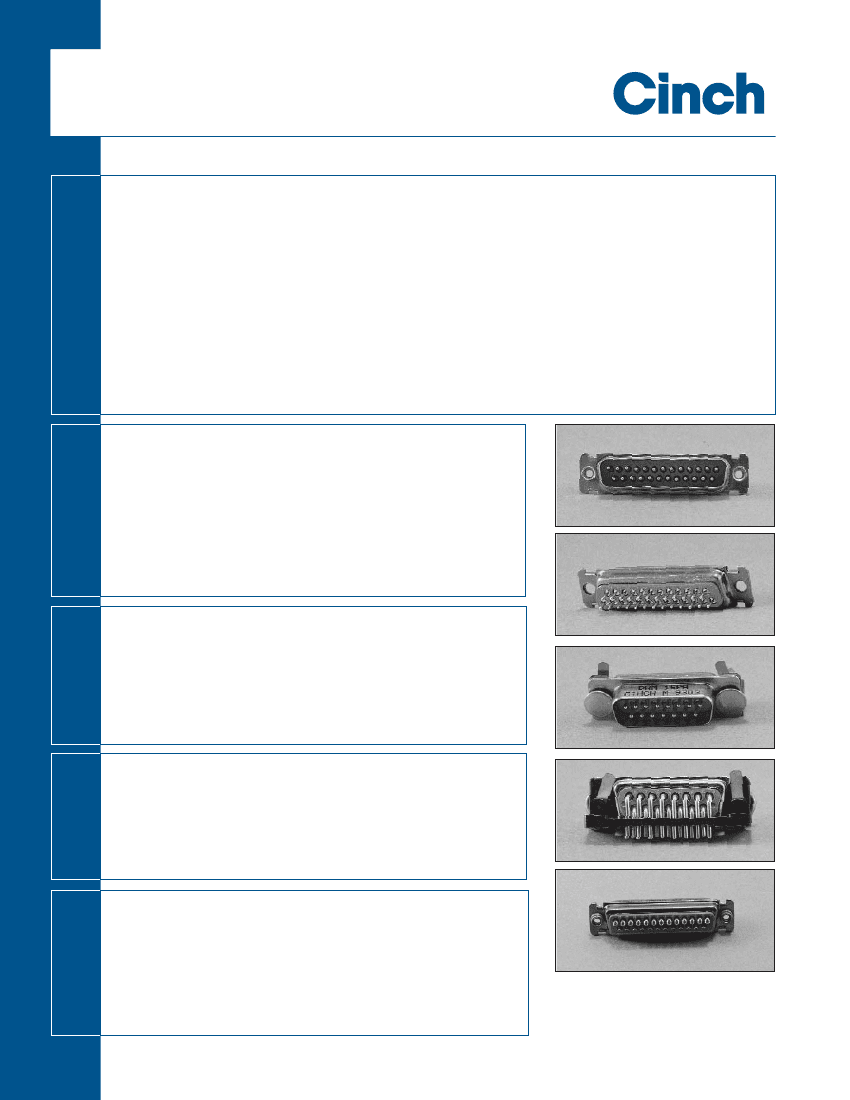

D-subminiature Metal Shell
Solder Cup, Right-Angle, and Vertical PCB
Series 1 - High Reliability
■
Available in vertical and right-angle dip solder PCB connectors and solder cup version for
wire termination.
■
Commercial version of M24308 military connectors with tin-plated or zinc-plated shell
and 30µin. gold plating.
■
Monoblock green diallyl phthalate insulator for improved electrical performance.
■
Machined contacts for precision performance.
■
Offered in 9, 15, 25, 37, and 50 (except right-angle version) position plugs and sockets.
■
Offered with .120 mounting holes, 4-40 clinch nuts (except right-angle version), or dual
float bushings (except right-angle version).
■
Approvals:
• UL Recognized - Files E170218 (UL1977)and E130965 (UL1863).
• CSA Approved - File LR31996.
■
See pages 4-5 thru 4-10 for standard dimensions, contact arrangements, and panel
mounting specifications.
Insulator Material:
Glass-filled diallyl phthalate (green)
UL 94V-0 rated
Connector Shell:
Steel with zinc plating and yellow chromate finish or
tin plating (grounding indents on plug)
Contact Material:
Plug - Brass (machined), Socket - Phosphor
bronze (machined)
Contact Plating:
30µin. gold over nickel
4-40 Clinch Nut:
Steel with cadmium plating and yellow chromate finish
Dual Float Bushing:
Stainless steel, passivated
E
NVIRONMENTAL
M
ATERIALS
F
EATURES
Operating Temperature:
-65°C to + 125°C
Shock:
50G peak per MIL-STD-202, Method 213, Condition G
Vibration:
12 cycles in three perpendicular directions @ 10-2000Hz, per
MIL-STD-202, Method 204, Condition D
Moisture Resistance:
90-95% relative humidity @ 40°C for 96 hours per
MIL-STD-202, Method 103
M
ECHANICAL
ELECTRICAL
Withstanding Voltage:
Current Rating:
Contact Resistance:
Insulation Resistance:
Minimum 1250V RMS @ sea level
5 Amps
2.7 milliohms maximum
5000 megohms maximum (initial);
1000 megohms (minimum) after
environmental testing
Individual Contact Insertion and
Separation Force (minimum/maximum):
0.7 oz./12 oz.
Durability:
500 mating cycles
Call Toll Free: 1 (800) 323-9612
4-48
D-subminiature Metal Shell
Solder Cup
Series 1 - High Reliability
•
Will accommodate up to 20 AWG wire.
.390 (9.91)
.200 (5.08) REF.
Ordering Information
Solder Cup Plugs
Zinc-Plated Shell with Yellow Chromate Finish
9
15
25
37
50
DEM-9P
DAM-15P
DBM-25P
DCM-37P
DDM-50P
DEME-9P
DAME-15P
DBME-25P
DCME-37P
DDME-50P
DEMY-9P
DAMY-15P
DBMY-25P
DCMY-37P
DDMY-50P
Tin-Plated Shell with Grounding Indents
DEM-9PTI
DAM-15PTI
DBM-25PTI
DCM-37PTI
DDM-50PTI
DEME-9PTI
DAME-15PTI
DBME-25PTI
DCME-37PTI
DDME-50PTI
DEMY-9PTI
DAMY-15PTI
DBMY-25PTI
DCMY-37PTI
DDMY-50PTI
Positions Mounting Hole 4-40 Clinch Nut Dual Float Bushings Mounting Hole 4-40 Clinch Nut Dual Float Bushings
4
Solder Cup Sockets
Zinc-Plated Shell with Yellow Chromate Finish
9
15
25
37
50
DEM-9S
DAM-15S
DBM-25S
DCM-37S
DDM-50S
DEME-9S
DAME-15S
DBME-25S
DCME-37S
DDME-50S
DEMY-9S
DAMY-15S
DBMY-25S
DCMY-37S
DDMY-50S
DEM-9ST
DAM-15ST
DBM-25ST
DCM-37ST
DDM-50ST
Tin-Plated Shell
DEME-9ST
DAME-15ST
DBME-25ST
DCME-37ST
DDME-50ST
DEMY-9ST
DAMY-15ST
DBMY-25ST
DCMY-37ST
DDMY-50ST
Positions Mounting Hole 4-40 Clinch Nut Dual Float Bushings Mounting Hole 4-40 Clinch Nut Dual Float Bushings
4-49
Call Toll Free: 1 (800) 323-9612
