LP82C21T203DQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> LP82C21T203DQ

LP82C21T203DQ: DescriptionSLIDE SWITCH, DPDT, LATCHED, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size185KB，3 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

LP82C21T203DQ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LP82C21T203DQ	-	-	View	Buy Now

LP82C21T203DQ Overview

SLIDE SWITCH, DPDT, LATCHED, PANEL MOUNT, ROHS COMPLIANT

LP82C21T203DQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	BLACK
Actuator length	0.376 inch
Actuator type	SLIDE
Other features	ROHS COMPLIANT
body width	17.55 mm
Body color	BLACK
body height	8.13 mm
Body length or diameter	27.48 mm
center contact material	COPPER
Center contact plating	SILVER
Contact (AC) maximum rated R load	11A@250VAC
Maximum contact current (AC)	11 A
Contact resistance	0.1 mΩ
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VRMS V
Electrical life	10000 Cycle(s)
End contact material	COPPER
End contact plating	SILVER
Shell material	NYLON
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Manufacturer's serial number	LP
Installation features	PANEL MOUNT
Maximum operating temperature	65 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	SLIDE SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.2 inch
Terminal material	COPPER
Termination type	SOLDER

Preview

Download Datasheet

View All

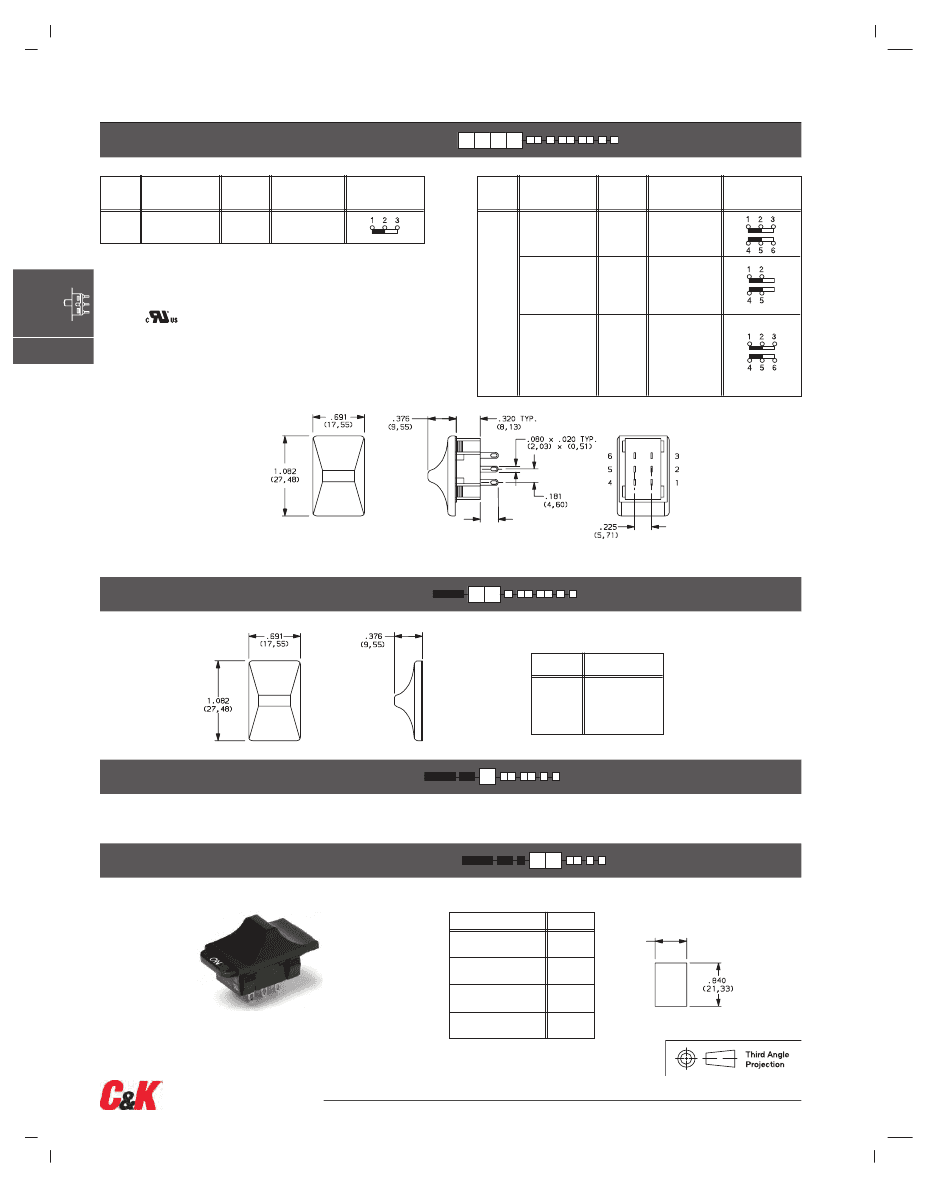

LP Series

Miniature Snap-in Slide Switches

Features/Benefits

•

6 to 11 AMPS available

•

Easy assembly—Snap-in mounting

•

Contamination resistant—extended actuator

•

Positive detent

•

RoHS compliant

Typical Applications

•

Small appliances

•

Outdoor appliances

•

Portable tools

Models Available

Specifications

CONTACT RATING: Q contact material (LP0X, LP2X Models: 6 AMPS

@ 125 V AC or 28 V DC; 3 AMPS @ 250 V AC (UL/CSA).

(LP7X, LP8X Models): 11 AMPS @ 125/250 V AC (UL/CSA).

See page I-27 for additional ratings.

ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.

INSULATION RESISTANCE: 109

Ω

min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

CONTACT RESISTANCE: Below 10 m

Ω

typ. initial

@ 2-4 V DC, 100 mA, for both silver and gold plated contacts.

OPERATING TEMPERATURE: -30ºC to +65ºC

STORAGE TEMPERATURE: -30ºC to +85ºC

NOTE:

Any models supplied with Q, B or G contact material are RoHS compliant.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Materials

HOUSING: 6/6 nylon (UL94V-2), black.

ACTUATOR: Glass filled acetal, UV and petroleum resistant,

black.

CONTACTS: Q contact material: Copper, silver plated. See page

I-27 for additional contact materials.

TERMINALS: Q contact material: Copper, silver plated. See page

I-27 for additional contact materials.

CONTACT SPRING: Music wire or stainless steel.

TERMINAL SEAL: Epoxy.

Slide

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages I–26 and I–27. For additional options not shown in catalog, consult Customer Service Center.

Switch Function

LP22

DPDT, 6 AMP

LP02

SPDT, 6 AMP

LP81

DPST, 11 AMP

LP82

DPDT, 11 AMP

Actuator

Black cap

Whitecap

Red cap

Detent

With detent

Mounting Style

Snap-in panel with tabs

(D, L, N markings only)

Terminations

Solder lug with hole

Housing Markings

NONE

No markings

ON-OFF

Contact Material

Silver

Gold

Dimensions

are shown:

Inches

(mm)

Specifications and dimensions subject to

change

I–25

www.ck-components.com

LP82C21T203DQ Related Products

	LP82C21T203DQ	LP22C31T203DQ	LP02C21T203DQ	LP22C21T203DQ	LP22C21T203Q	LP02C31T203DQ	LP82C31T203DQ	LP02C21T203Q
Description	SLIDE SWITCH, DPDT, LATCHED, PANEL MOUNT, ROHS COMPLIANT	SLIDE SWITCH, DPDT, LATCHED, 6A, 28VDC, PANEL MOUNT, ROHS COMPLIANT	SLIDE SWITCH, SPDT, LATCHED, 6A, 28VDC, PANEL MOUNT, ROHS COMPLIANT	SLIDE SWITCH, DPDT, LATCHED, 6A, 28VDC, PANEL MOUNT, ROHS COMPLIANT	SLIDE SWITCH, DPDT, LATCHED, 6A, 28VDC, PANEL MOUNT, ROHS COMPLIANT	SLIDE SWITCH, SPDT, LATCHED, 6A, 28VDC, PANEL MOUNT, ROHS COMPLIANT	SLIDE SWITCH, DPDT, LATCHED, PANEL MOUNT, ROHS COMPLIANT	SLIDE SWITCH, SPDT, LATCHED, 6A, 28VDC, PANEL MOUNT, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	C&K	C&K	C&K	C&K	C&K	C&K	C&K	C&K
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator color	BLACK	RED	BLACK	BLACK	BLACK	RED	RED	BLACK
Actuator length	0.376 inch	0.376 inch	0.376 inch	0.376 inch	0.376 inch	0.376 inch	0.376 inch	0.376 inch
Actuator type	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	17.55 mm	17.55 mm	17.55 mm	17.55 mm	17.55 mm	17.55 mm	17.55 mm	17.55 mm
Body color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
body height	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm
Body length or diameter	27.48 mm	27.48 mm	27.48 mm	27.48 mm	27.48 mm	27.48 mm	27.48 mm	27.48 mm
center contact material	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER
Center contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Contact (AC) maximum rated R load	11A@250VAC	6A@125VAC	6A@125VAC	6A@125VAC	6A@125VAC	6A@125VAC	11A@250VAC	6A@125VAC
Maximum contact current (AC)	11 A	6 A	6 A	6 A	6 A	6 A	11 A	6 A
Contact resistance	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ
Maximum contact voltage (AC)	250 V	125 V	125 V	125 V	125 V	125 V	250 V	125 V
Dielectric withstand voltage	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
End contact material	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER
End contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Shell material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	65 °C	65 °C	65 °C	65 °C	65 °C	65 °C	65 °C	65 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
switch function	DPDT	DPDT	SPDT	DPDT	DPDT	SPDT	DPDT	SPDT
Switch type	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal length	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Terminal material	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Manufacturer's serial number	LP	LP	LP	LP	LP	LP	-	LP
Maximum contact current (DC)	-	6 A	6 A	6 A	6 A	6 A	-	6 A
Contact (DC) maximum rated R load	-	6A@28VDC	6A@28VDC	6A@28VDC	6A@28VDC	6A@28VDC	-	6A@28VDC
Maximum contact voltage (DC)	-	28 V	28 V	28 V	28 V	28 V	-	28 V
