SD-40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SD-40

SD-40: Description4 Pin, Modular In-Line Plug; CategoryThe connector The connector; File Size450KB，5 Pages; ManufacturerCUI Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

SD-40 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SD-40	-	-	View	Buy Now

SD-40 Overview

4 Pin, Modular In-Line Plug

SD-40 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CUI Devices
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

Additional Resources:

Product Page

3D Model

date

page

02/19/2020

1 of 5

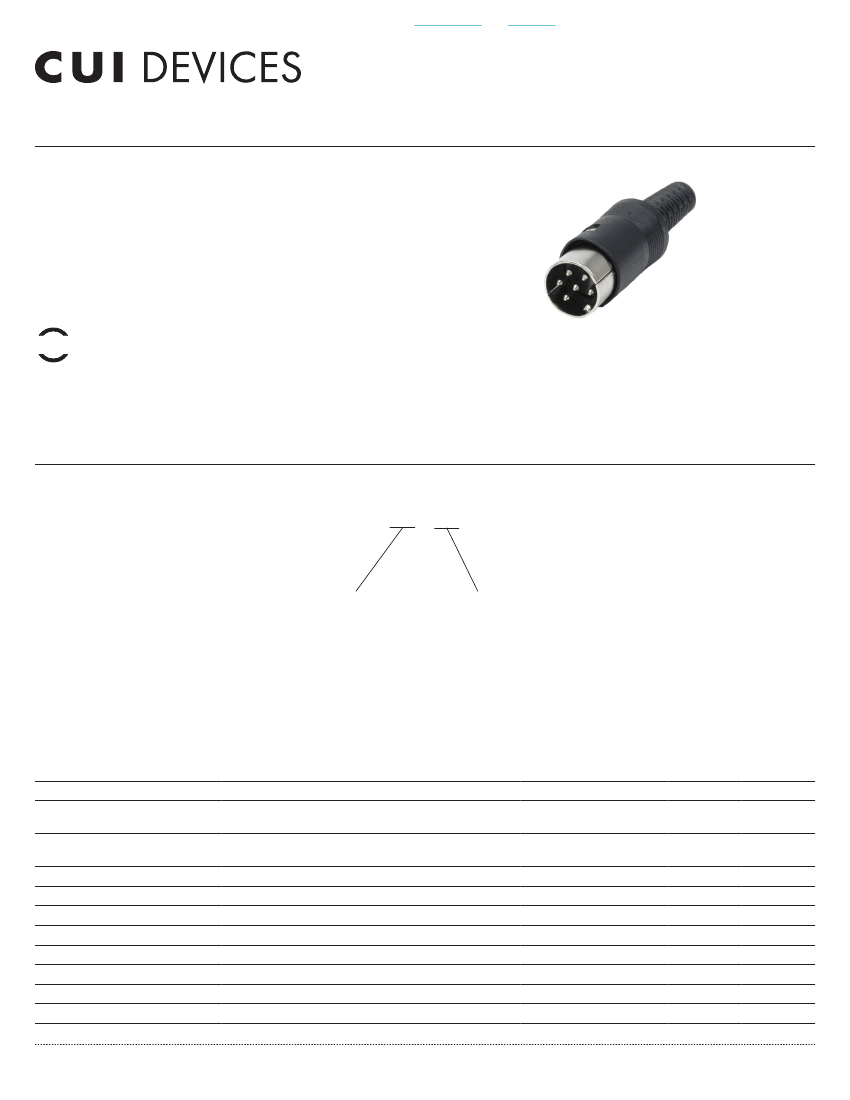

SERIES:

│

DESCRIPTION:

STANDARD DIN CONNECTOR

FEATURES

• strain relief

• 3~13 pins

• 100 Vac rated

RoHS

PART NUMBER KEY

SD -

Base Number

Pin Options

30 = 3 pins

40 = 4 pins

50 = 5 pins, 180 degrees

60 = 6 pins

70 = 7 pins

80 = 8 pins, 270 degrees

81 = 8 pins, 262 degrees

130 = 13 pins

SPECIFICATIONS

parameter

rated input voltage

rated input current

contact resistance

insulation resistance

voltage withstand

insertion force

withdrawal force

operating temperature

life

RoHS

yes

cuidevices.com

5,000

at 500 Vdc

for 1 minute

100

1,000

3.5

at 100 Vac

at 12 Vdc

conditions/description

min

typ

100

max

units

Vac

Vdc

mΩ

MΩ

Vac

°C

cycles

SD-40 Related Products

	SD-40	SD-51	SD-50	SD-130	SD-30	SD-60	SD-70	SD-80	SD-52
Description	4 Pin, Modular In-Line Plug	5 Pin, Modular In-Line Plug, 240°	5 Pin, Modular In-Line Plug, 180°	13 Pin, Modular In-Line Plug	3 Pin, Modular In-Line Plug	6 Pin, Modular In-Line Plug	7 Pin, Modular In-Line Plug	8 Pin, Modular In-Line Plug, 270°	5 Pin, Modular In-Line Plug, 360°
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	-
Maker	CUI Devices	-	CUI Devices	CUI Devices	CUI Devices	CUI Devices	CUI Devices	CUI Devices	CUI Devices

Recommended Resources

Touch switch 2

MC3362 receiving circuit

555 multiple waveform generator circuit diagram 2

Vehicle speed control device circuit

Ground potential isolation circuit

AC contactor power-saving silent operation circuit (3)
