LDQ-M3404RI-RA datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LDQ-M3404RI-RA

Preview

LDQ-M3404RI-RA: DescriptionSmart/Normal 7 Seg Numeric LED Display, Red, 7.62mm; CategoryLED optoelectronic/LED photoelectric; File Size81KB，3 Pages; ManufacturerLumex; Websitehttps://www.lumex.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LDQ-M3404RI-RA Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 7.62mm

LDQ-M3404RI-RA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Lumex
Reach Compliance Code	compliant
color	RED
Configuration	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT
Display height	7.62 mm
Number of functions	4
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

DATE

REVISIONS

REV

DRAWING NUMBER

REV

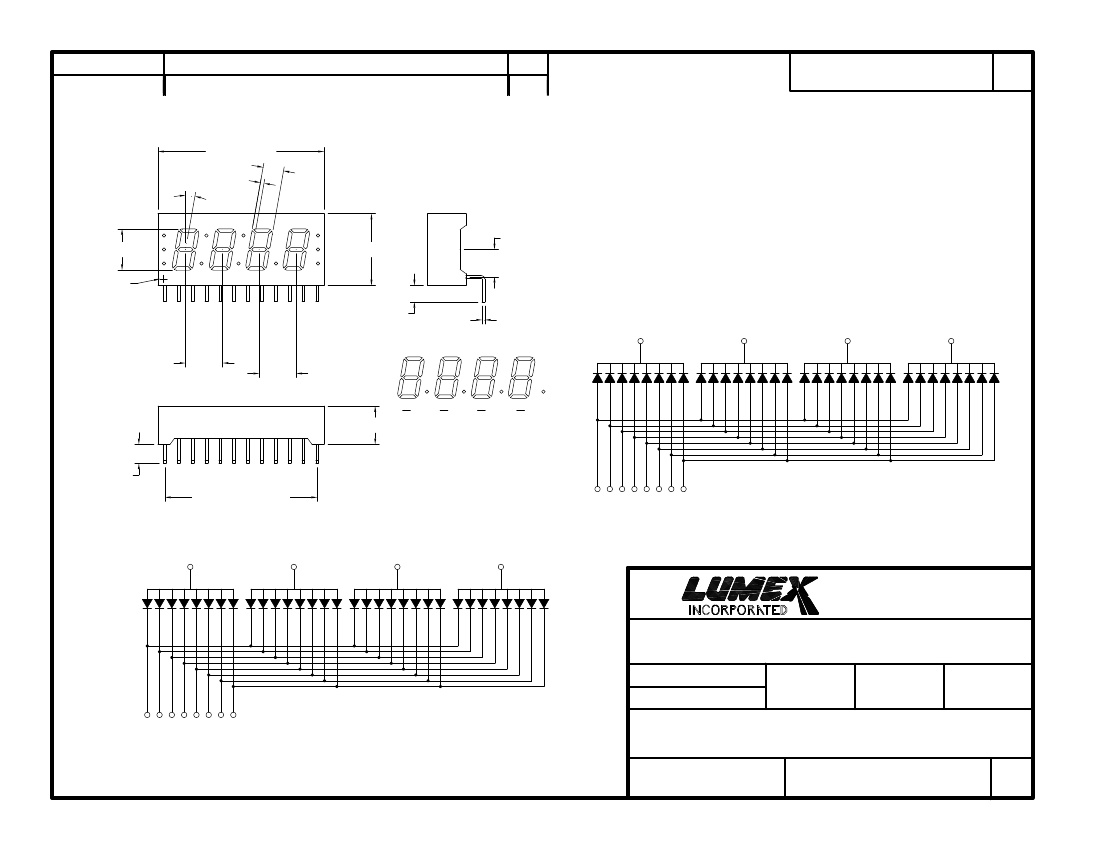

LDQ-X340XRI-RA

30.40 [1.197]

3.80 [0.150]

10°

0.80 [0.031]

A

F

7.60 [0.299]

G B

C

D4

5.00 [0.197]

13.20 [0.520]

E

D1

D2

D3

D

PIN 1

3.00 ± 0.5

ø0.50 [0.020]

[O.118] ±[0.019]

A

6.80 [0.268]

2

DIG. 1

3

DIG. 2

6

DIG. 3

10

DIG. 4

F

E

D1

7.00 [0.276]

G B

D

D4

C

A B C D E F G DP

DP

A B C D E F G DP

D2

D3

3.50 ± 0.5

[0.138] ± [0.019]

2.54 x 11 = 27.94

8 7 12 4 1 9 5 11

COMMON CATHODE

[0.100 x 11 = 1.100]

2

DIG. 1

3

DIG. 2

6

DIG. 3

10

DIG. 4

A B C D E F G DP

290 E. HELLEN ROAD

PALATINE, ILLINOIS 60067

(847) 359-2790

CONFIDENTIAL INFORMATION

THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF LUMEX INCORPORATED.

EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY LUMEX INCORPORATED, THE HOLDER OF

THIS DOCUMENT SHALL KEEP ALL INFORMATION CONTAINED HEREIN CONFIDENTIAL AND SHALL PROTECT

SAME IN WHOLE OR IN PART FROM DISCLOSURE AND DISSEMINATION TO ALL THIRD PARTIES.

DATE:

SCALE:

8 7 12 4 1 9 5 11

COMMON ANODE

10-1-97

N/A

DWN:

CHK’D:

APPD:

4 DIGIT, RIGHT ANGLE DISPLAY,

DRAWING NUMBER

REV

PAGE

MS/CK

1

OF

1

LDQ-X340XRI-RA

LDQ-M3404RI-RA Related Products

	LDQ-M3404RI-RA	LDQ-M3403RI-RA	LDQ-M3402RI-RA	LDQ-M3406RI-RA	LDQ-N3402RI-RA	LDQ-N3403RI-RA	LDQ-N3406RI-RA
Description	Smart/Normal 7 Seg Numeric LED Display, Red, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Yellow, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Green, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Super Red, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Green, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Yellow, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Super Red, 7.62mm
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	RED	YELLOW	GREEN	SUPER RED	GREEN	YELLOW	SUPER RED
Configuration	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT
Display height	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Number of functions	4	4	4	4	4	4	4
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Maker	Lumex	-	Lumex	Lumex	Lumex	Lumex	Lumex
