GD74LS00D datasheet, PDF - EEWORLD Datasheet

GD74LS00D: DescriptionNAND Gate, TTL, PDSO14,; Categorylogic logic; File Size118KB，3 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

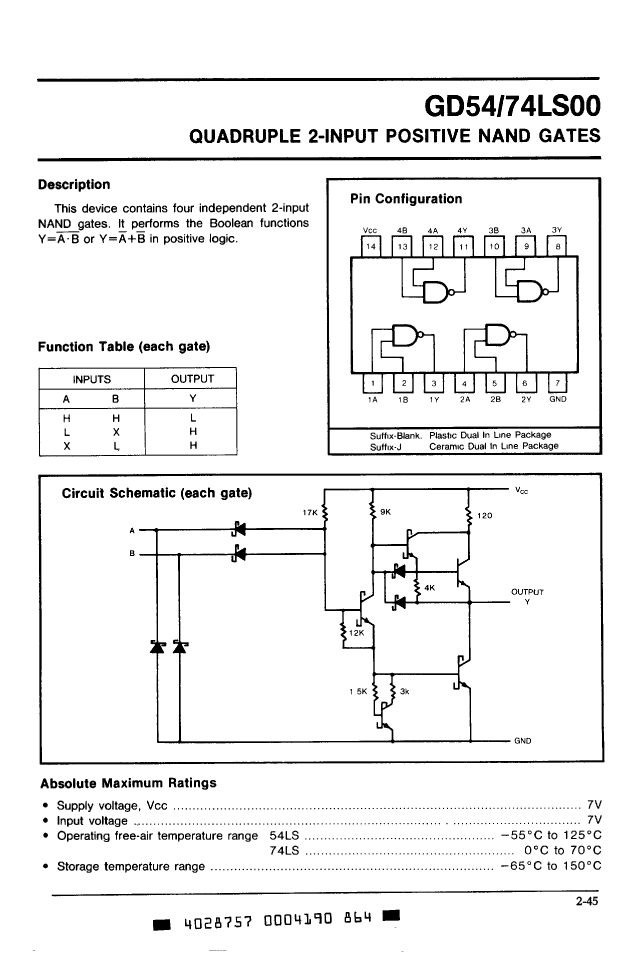

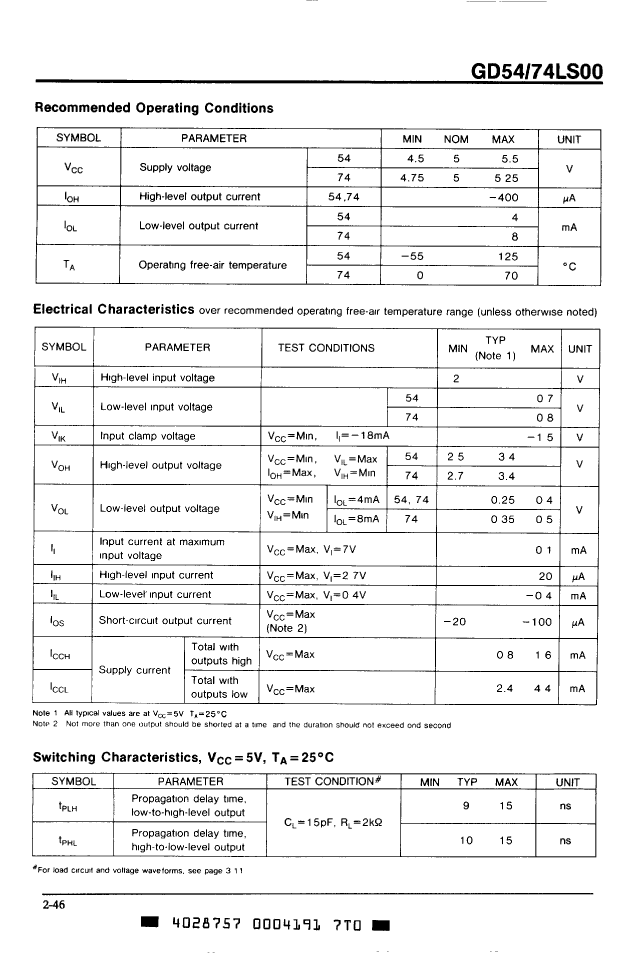

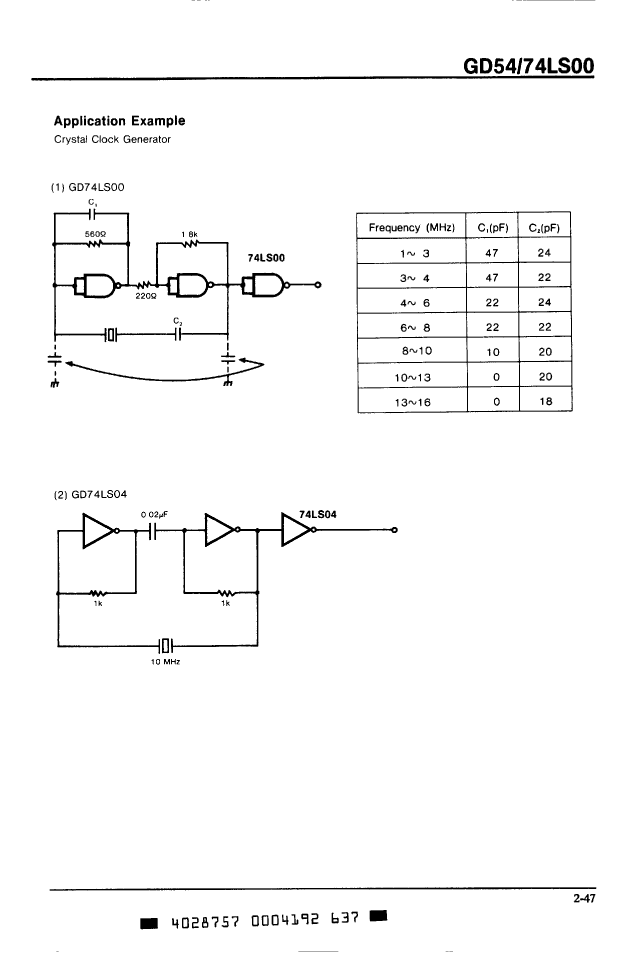

GD74LS00D Overview

NAND Gate, TTL, PDSO14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LG Semicon Co., Ltd.
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.008 A
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	4.4 mA
Prop。Delay @ Nom-Sup	15 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

	GD74LS00D	GD54LS00J	GD74LS00	GD74LS00J
Description	NAND Gate, TTL, PDSO14,	NAND Gate, TTL, CDIP14,	NAND Gate, TTL, PDIP14,	NAND Gate, TTL, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
package instruction	SOP, SOP14,.25	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G14	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.008 A	0.004 A	0.008 A	0.008 A
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	SOP	DIP	DIP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	4.4 mA	4.4 mA	4.4 mA	4.4 mA
Prop。Delay @ Nom-Sup	15 ns	15 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
