KSC1173
KSC1173
Low Frequency Power Amplifier
Power Regulator
• Collector Current : I
C
=3A
• Collector Dissipation : P
C
=10W (T
C
=25°C)
• Complement to KSA473
1
TO-220
2.Collector
3.Emitter
1.Base
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
T
C
=25°C unless otherwise noted
Symbol
BV
CBO
BV
CEO
BV
EBO
I
C
P
C
T
J
T
STG
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Collector Dissipation (T
C
=25°C)
Junction Temperature
Storage Temperature
Value
30
30
5
3
10
150
- 55 ~ 150
Units
V
V
V
A
W
°C
°C
Electrical Characteristics
T
C
=25°C unless otherwise noted
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE1
h
FE2
V
CE
(sat)
V
BE
(on)
f
T
C
ob
Parameter
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-off Current
Emitter Cut-off Current
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter ON Voltage
Current Gain Base Width Product
Output Capacitance
Test Condition
I
C
= 500µA, I
E
= 0
I
C
= 10mA I
B
= 0
I
E
= -1mA, I
C
= 0
V
CB
= 20V, I
E
= 0
V
EB
= 5V, I
C
= 0
V
CE
= 2V, I
C
= 0.5A
V
CE
= 2V, I
C
= 2.5A
I
C
= 2A, I
B
= 0.2A
V
CE
= 2V, I
C
= 0.5A
V
CE
= 2V, I
C
= 0.5A
V
CB
= 10V, I
E
=0,
f = 1MHz
70
25
0.3
0.75
100
35
Min.
30
30
5
1.0
1.0
240
0.8
1.0
V
V
MHz
pF
µA
µA
Typ.
Max.
Units
V
V
h
FE
Classification
Classification
h
FE1
O
70 ~ 140
Y
120 ~ 240
©2000 Fairchild Semiconductor International
Rev. A, February 2000
KSC1173

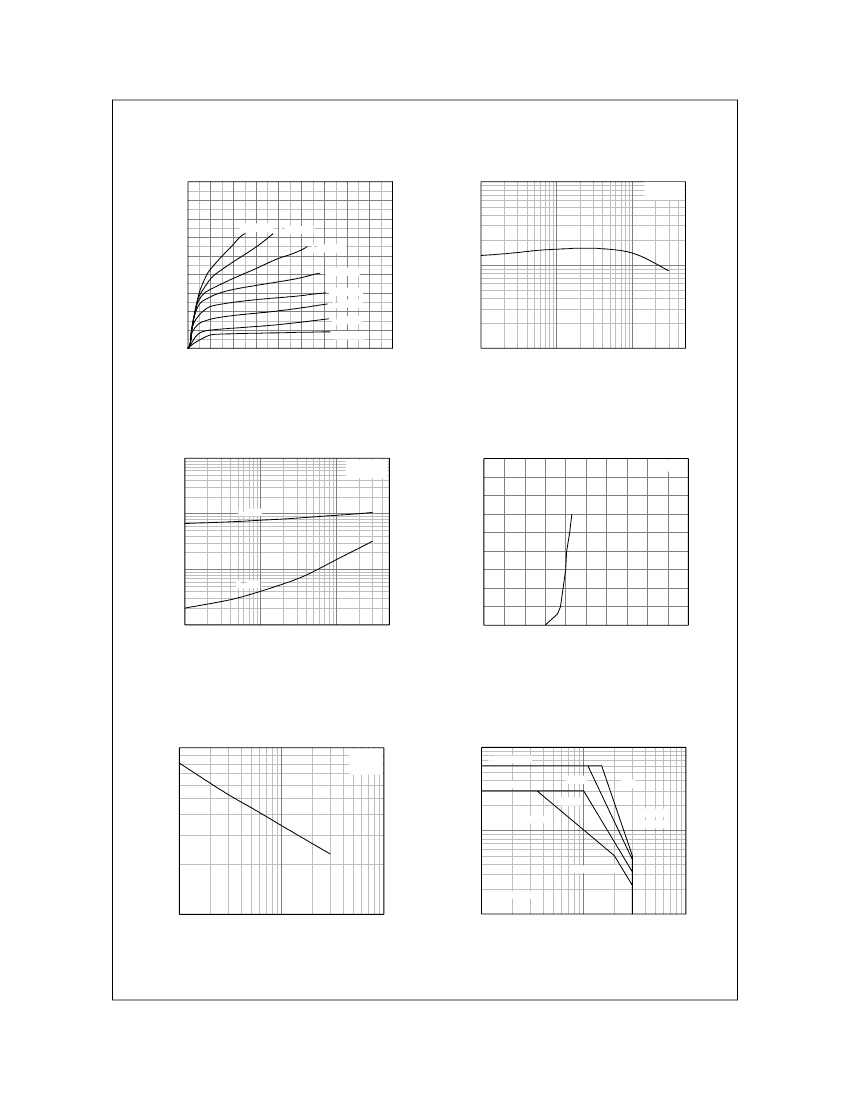

Typical Characteristics
4.5
4.0
1000
V
CE
= 2V
I
C
[A], COLLECTOR CURRENT
3.5
3.0
2.5
2.0
1.5
1.0
I
B
= 40mA I
B
= 30mA
I
B
= 20mA
I
B
= 15mA
I
B
= 10mA
I
B
= 8mA
I
B
= 5mA
h
FE
, DC CURRENT GAIN
6.4
7.2
100
0.5
I
B
= 3mA
0.0
0.0
0.8
1.6
2.4
3.2
4.0
4.8
5.6
10
0.01
0.1
1
V
CE
[V], COLLECTOR-EMITTER VOLTAGE
I
C
[A], COLLECTOR CURRENT
Figure 1. Static Characteristic
Figure 2. DC current Gain
V
BE
(sat), V
CE
(sat)[V], SATURATION VOLTAGE
10
4.5
I
C
= 10 I
B
V
CE
=2V
I
C
(A), COLLECTOR CURRENT
1
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
1
V
BE
(sat)
0.1
V
CE
(sat)
0.01
0.01
0.1
0.0
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
I
C
[A], COLLECTOR CURRENT
V
BE
(V), BASE-EMITTER VOLTAGE
Figure 3. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
Figure 4. Base-Emitter On Voltage
100
10
I
E
=0
f=1MHz
I
C
MAX(Pulse)
I
C
[A], COLLECTOR CURRENT
I
C
MAX(DC)
*10ms
*50ms
Tc=25℃
1ms
C
ob
[pF], CAPACITANCE
Thermal
limitation
1
S/B Limitation
*Single Pulse
0.1
10
1
10
100
1
10
100
V
CB
[V], COLLECTOR-BASE VOLTAGE
V
CE
[V], COLLECTOR-EMITTER VOLTAGE
Figure 5. Collector Output Capacitance
Figure 6. Safe Operating Area
©2000 Fairchild Semiconductor International
Rev. A, February 2000
