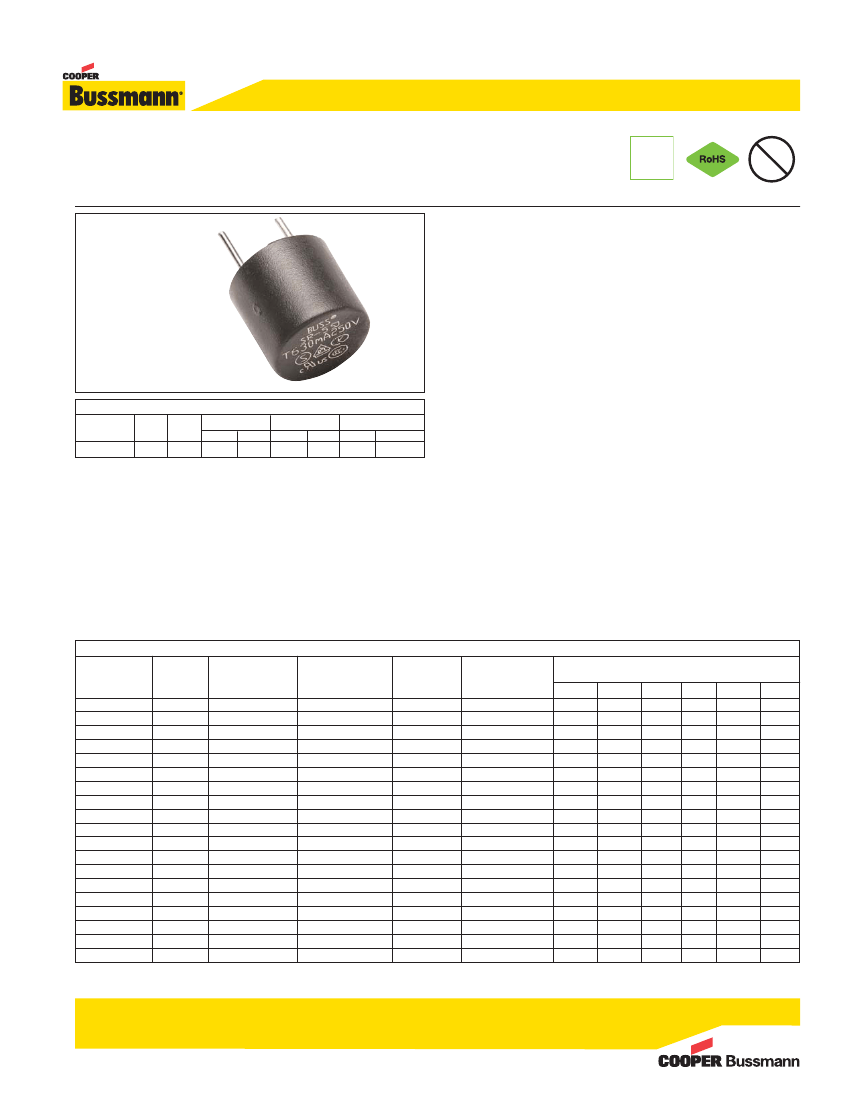

Subminiature Radial Leaded, Time-Delay Fuses
SR-5 Series
HF
FREE
HALOGEN
Pb
Radial Leaded Device
Agency Information
• KC: SU05011-9001 3.15A~6.3A, SU05011-9002 1~2.5A,
SU05011-9003 40mA~100mA, SU05011-9004 125mA~800mA
• PSE+JET: JET1641-31007-1001 1~5A, JET1641-31007-1002 6.3A
• CCC: 2009010207370507 40mA~4A
• CQC: CQC09012037502 5A, 6.3A
• SEMKO: 1023113 40mA~6.3A
• cURus: Guide JDYX2, File E306920&E19180 and Guide JDYX8,
File E306920&E19180
• VDE: File122052, 40020046
Specifications
• Solderability: EIA-186-9E Method 9
• High frequency vibration: MIL-STD-202F, Method 201A
• Operating temperature: -40°C to +85°C
• Soldering heat resistance: 260°C, 10 Sec. max (IEC 60068-2-20)
Ordering
• Specify product and packaging code (i.e., SR-5-1A-AP)
Electrical Characteristics
Rated 1.5 xIn 2.1 xIn 2.75 xIn
4 xIn
10 xIn
Current
min max min max min max min
max
100mA-6.3A 1 hr 2 min 400 mS 10 Sec 150 mS 3 Sec 20 mS 150 mS
Description
• Radial leaded time-delay thru-hole fuse
• Designed to IEC 60127-3, Sheet 4
• Internationally accepted for primary and secondary overcurrent
protection
• Place directly into PCB or plug into BK/PCS holder
• High inrush withstand capability
• Compatible with leaded and lead-free reflow and wave solder
Specifications
Part
Number
SR-5-100mA
SR-5-125mA
SR-5-160mA
SR-5-200mA
SR-5-250mA
SR-5-315mA
SR-5-400mA
SR-5-500mA
SR-5-630mA
SR-5-800mA
SR-5-1A
SR-5-1.25A
SR-5-1.6A
SR-5-2A
SR-5-2.5A
SR-5-3.15A
SR-5-4A
*SR-5-5A
*SR-5-6.3A
Voltage
Rating
AC
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Interrupting
Rating (amps)
@ Rated Voltage
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
40
50
63
Typical DC Cold
Resistance (Ω)
2.37
1.6
1.02
0.94
0.66
0.43
0.285
0.242
0.154
0.112
0.085
0.061
0.043
0.031
0.024
0.018
0.012
0.010
0.008
Typical
Melting**
I
2
t (@1mS)
0.015155
0.026783
0.039097
0.168832
0.24778
0.2772
0.771618
2
3.5
6.5
7.5
13
24
30
45
57
80
95.4
200
Voltage Drop
mV @ 20°C
Rated Current
288.5
238
196.5
215.5
185
152
127
143.5
113
104.5
100
91
102
74.5
72.5
70.25
62
57.5
60.85
VDE
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Agency Information
SEMKO cURus CCC KC-Mark PSE
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
CQC
x
x
x
x
CQC
x
x
* Conducting Path min. 0.2mm
2
** I
2
t value for 100mA to 400mA is measured at 100ln. I
2
t value for 500mA to 6.3A is measured at 10In.
0711
BU-SB11806
Page 1 of 3
Data Sheet 4347

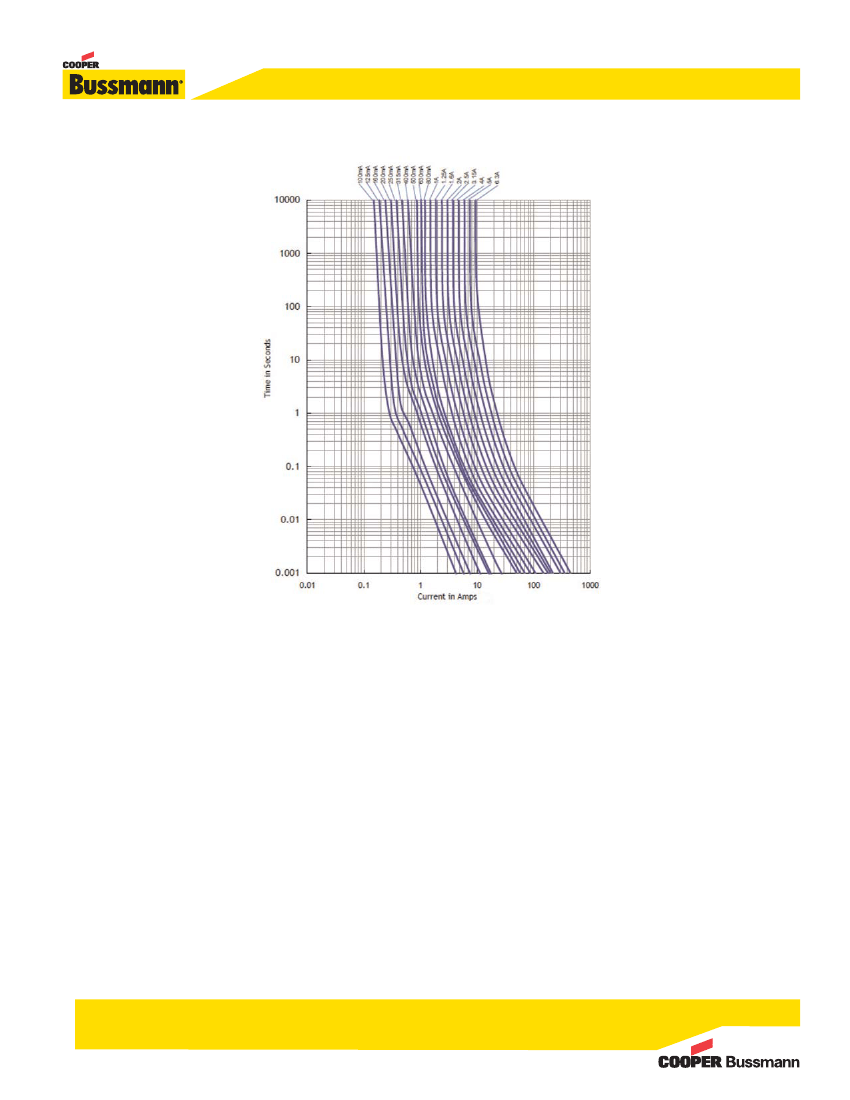

PCS Mounting Socket (RoHS compliant)
• Available as option. Specify catalog number BK/PCS
(in bulk 100 per bag)
(
0.30"
(7.62mm)

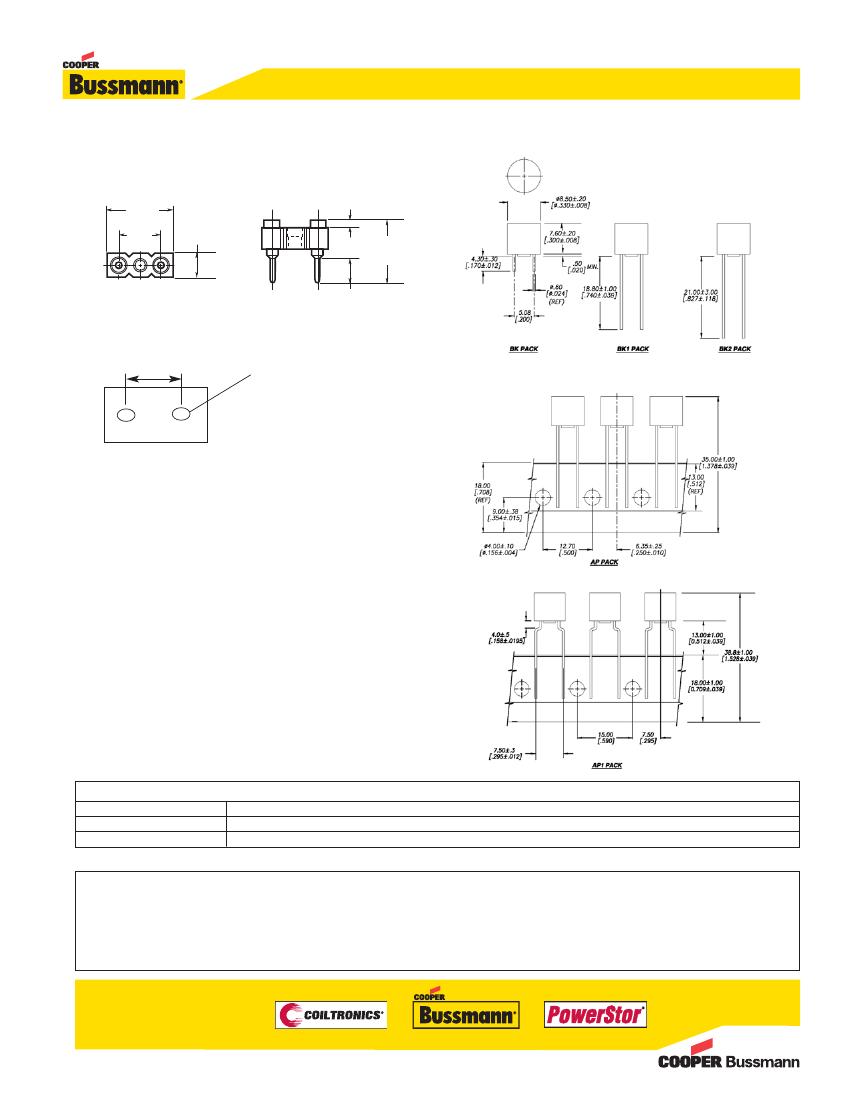

Dimensions – Packaging Information – mm [in]
)
0.03"
(0.76mm)
0.20"
(5.08mm)
0.095"
(2.41mm)
0.29"
(7.37mm)
(3.05mm
±
0.25mm)
0.12"
±
0.01"
Land Pattern
5.08 ± 0.2mm
Ø 1.0 ± 0.1mm
Packaging Code
Packaging Code Suffix
-AP, -AP
-BK, -BK1, -BK2
Description
Ammo-pack taped 1,000 per box (see Packaging Information for lead configurations)
In bulk 200 per bag (see Packaging Information for lead configurations)
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2011 Cooper Bussmann
www.cooperbussmann.com
0711
BU-SB11806
Page 3 of 3
Data Sheet 4347
