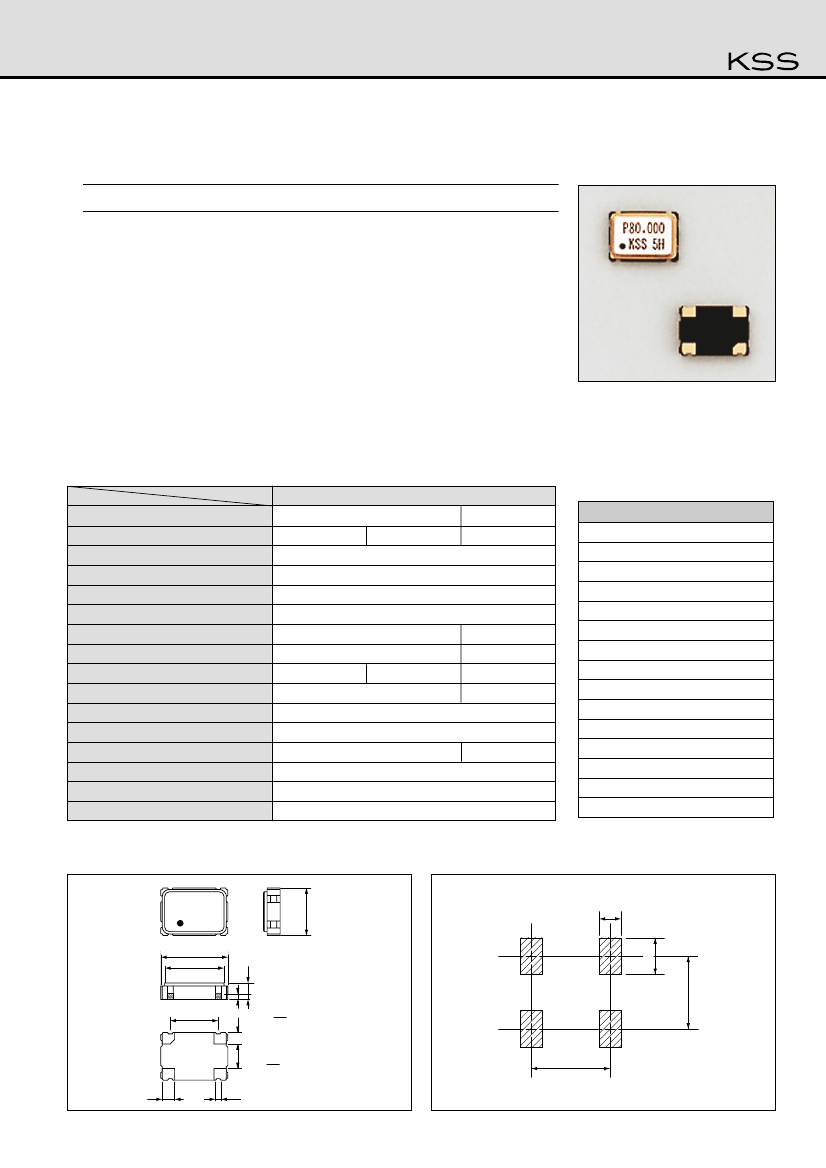

FXO-37F

Miniature Clock Crystal Oscillator

s

Features

¡It

is a compact and thin ceramic package with a metalized lead for surface mounting

that is able to be automatically loaded.

¡Reflow

soldering is possible.

¡CMOS,

TTL IC direct drive is possible. Depending upon the frequency band, there

is also a crystal oscillator with a CMOS IC with a tri-state function built in.

¡Use

in the broad frequency band from 50MHz to 125MHz is possible. (PLL circuit is

built in).

s

Specifications

Item

Application

Frequency Range

Standard Frequency

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Supply Voltage

Current

Load

Output Level

Output Symmetry

Rise Time/Fall Time

Start-up Time

Vibration

Shock

Weight

*Taping item packaging : one unit 3,000 pcs or 1,000 pcs

0.2g

10ms MAX.

5±0.25V

50mA MAX.

25pF(10TTL)

15pF(5TTL)

Type

FXO-37F

C-MOS Output

50~100MHz

100~125MHz

Table 1

±100×10

–6

0 ~+70:

-20~+80:

3.3±0.15V

25mA MAX.

15pF(5TTL)

V

OH

: 2.8V MIN.

V

OL

: 0.5V MAX.

FXO-37FL

Low Voltage Type

50~100MHz

s

Table 1

Standard Frequencies

Frequency (MHz)

50.000

60.000

64.000

65.000

66.667

67.700

70.000

75.000

75.525

80.000

90.3168

V

OH

: 4.0V MIN./V

OL

: 0.5V MAX.

40~60% (VT=1/2V

DD

)

7ns MAX.

15ms MAX.

94.410

100.000

106.250

120.000

10~55Hz Ampulitude 1.5mm, Cycle 2 minute, 3 direction, 2 hour each

1000G

s

Outline

FXO-37F

4

100.000

KSS 4G

1

7.0±0.2

6.2±0.2

2

1.8±0.2

3

5.0±0.2

s

Land Pattern(reference)

1.8

2.0

CONNECTION

1:INH

2:GND

3:OUTPUT

4:V

DD

INH:Hi or Open:Fout

Low:Output-Stop

(High

5.08

4.2

5.08±0.2

1.4

0.6

2.6

1.2 0.6

Dimensions(mm)
