NM422AD datasheet, PDF - EEWORLD Datasheet

NM422AD: DescriptionLine Transceiver, 1 Func, 2 Driver, 2 Rcvr, PDIP15; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size150KB，7 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

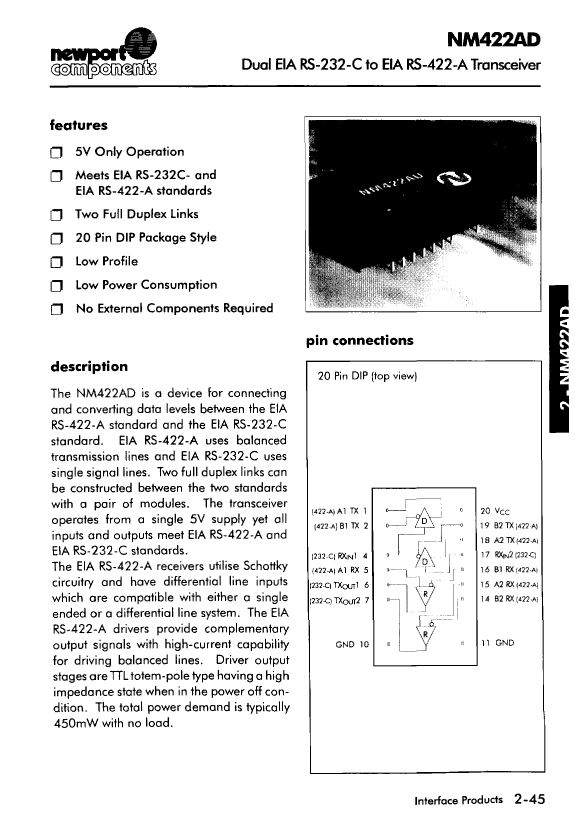

NM422AD Overview

Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, PDIP15

Parameter Name	Attribute value
Maker	Murata
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99

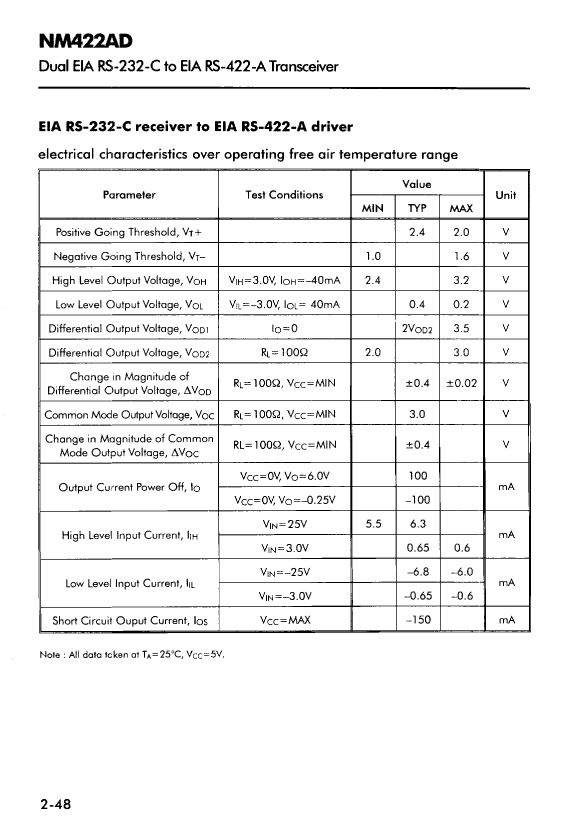

Differential output	YES
Number of drives	2
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-C; EIA-422-A
JESD-30 code	R-PDIP-P15
Number of functions	1
Number of terminals	15

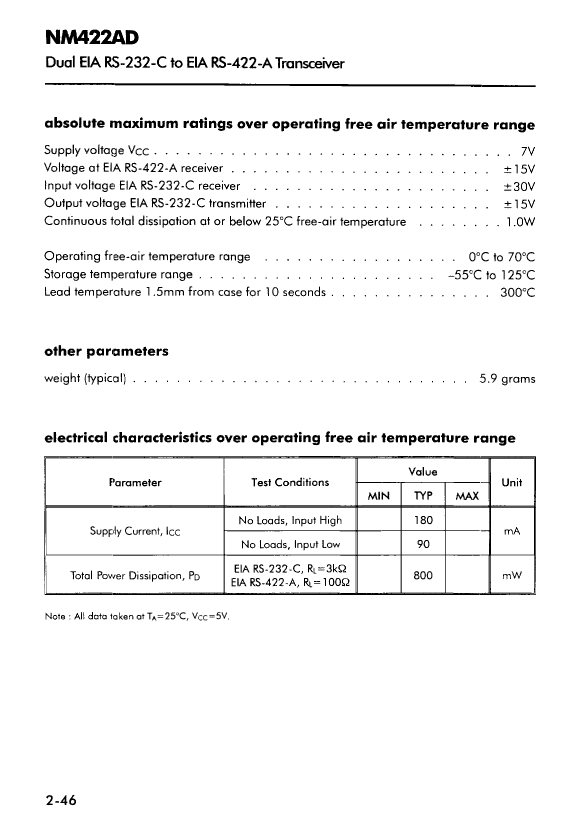

Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	TOTEM-POLE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified

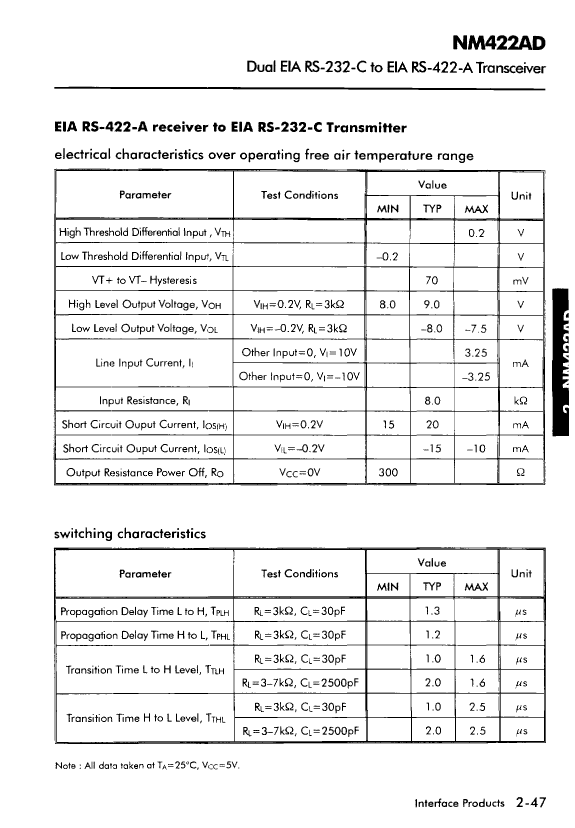

Maximum receive delay
Number of receiver bits	2
Nominal supply voltage	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal location	DUAL

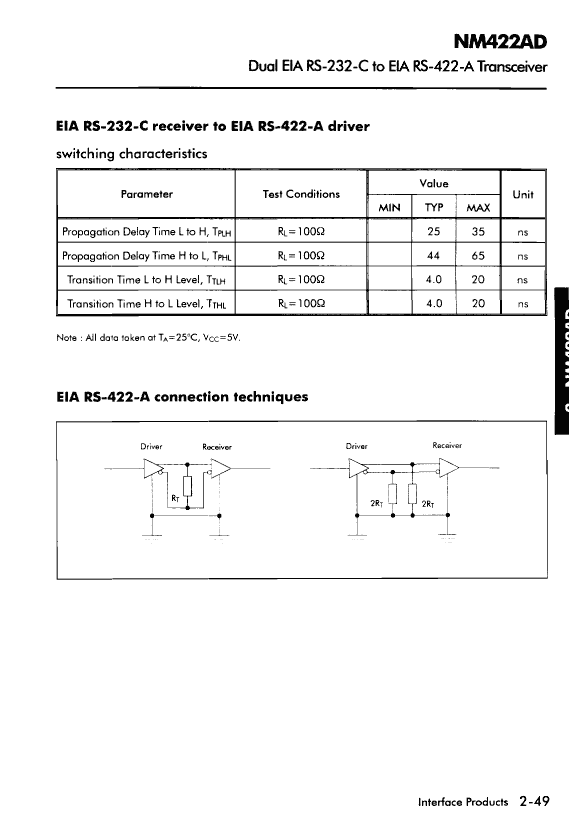

maximum transmission delay	65 ns

	NM422AD
Description	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, PDIP15
Maker	Murata
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	YES
Number of drives	2
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-C; EIA-422-A
JESD-30 code	R-PDIP-P15
Number of functions	1
Number of terminals	15
Maximum operating temperature	70 °C
Output characteristics	TOTEM-POLE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Number of receiver bits	2
Nominal supply voltage	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal location	DUAL
maximum transmission delay	65 ns
